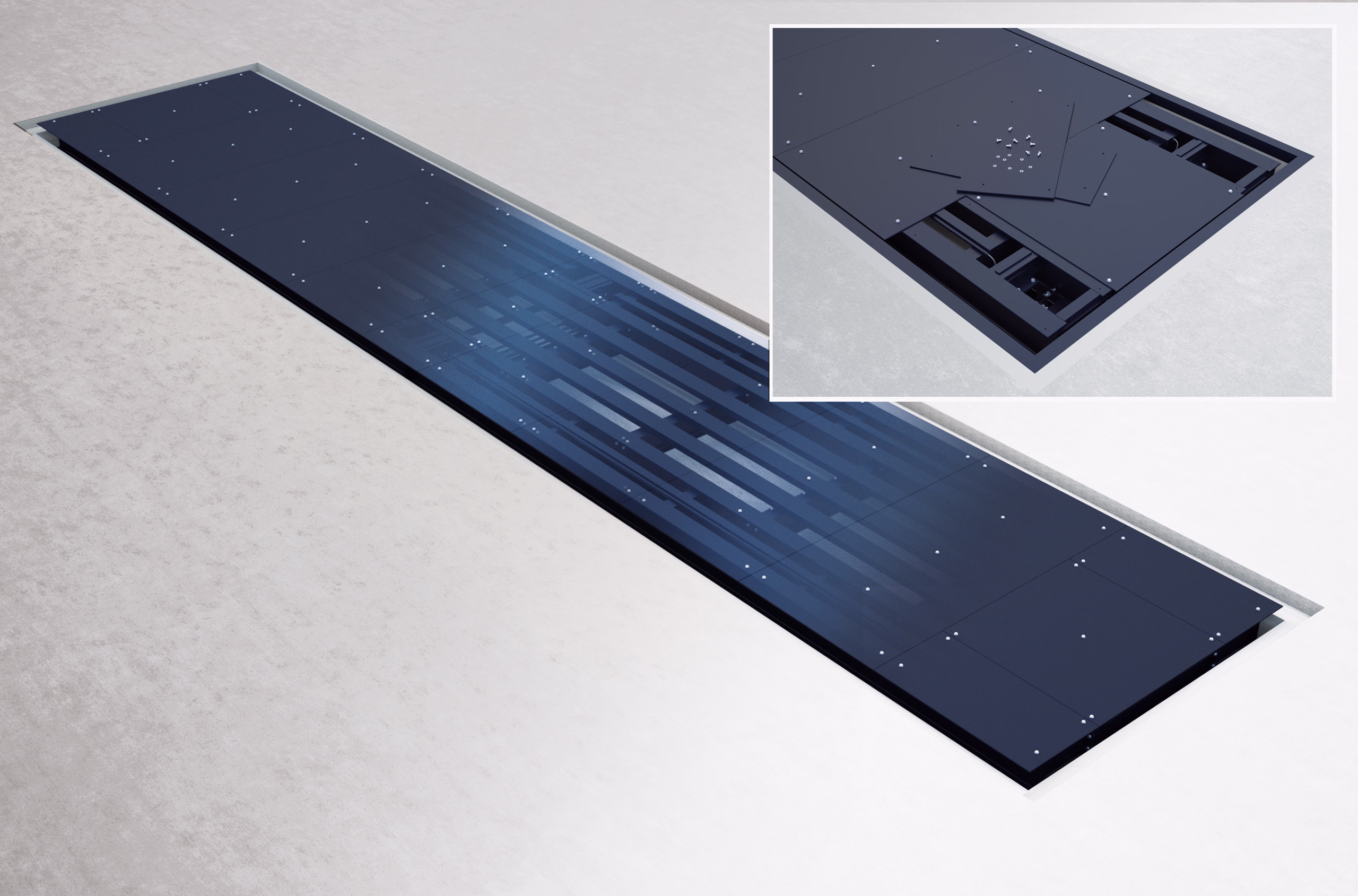

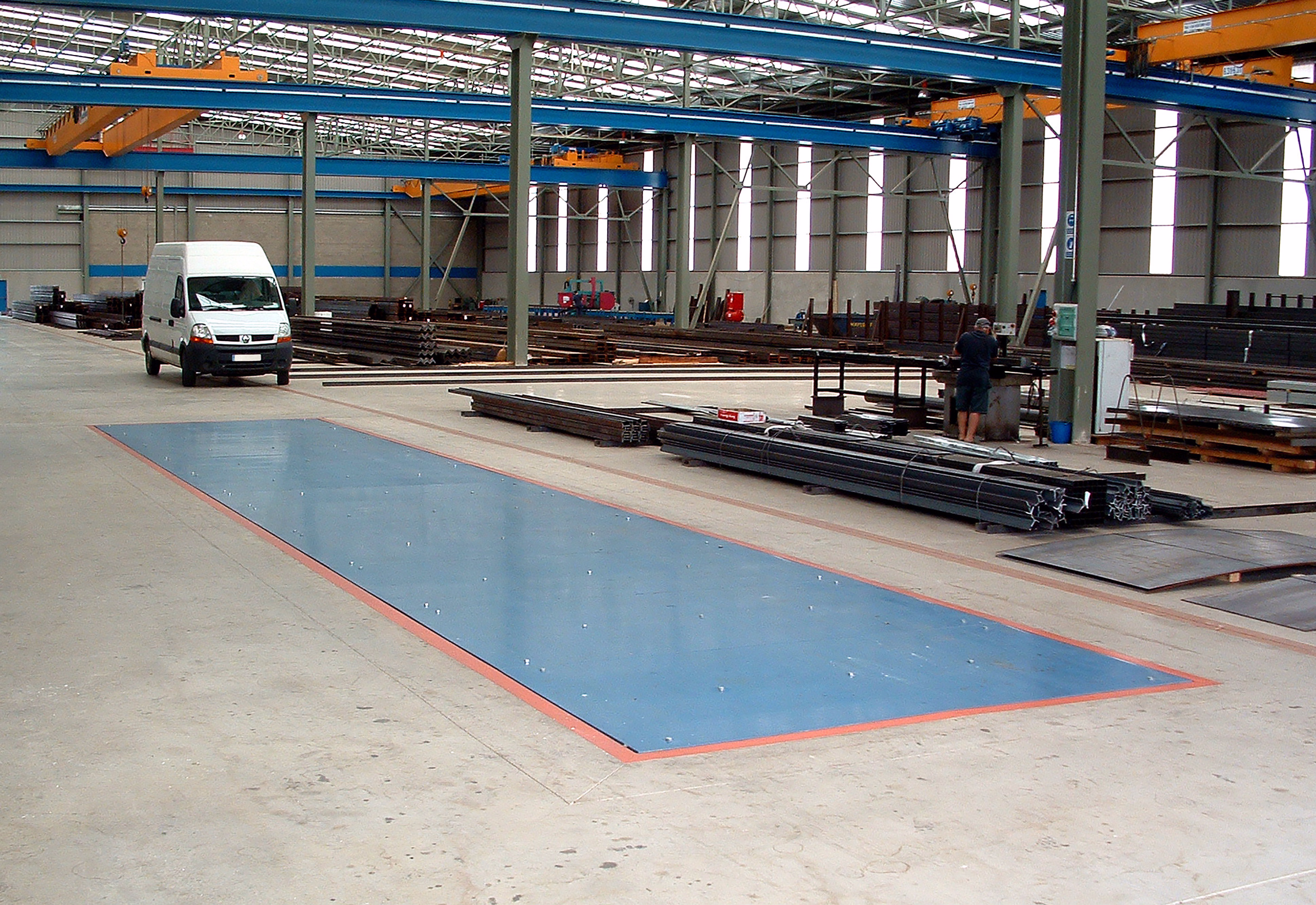

BPGEM Weighing System with Optional UPN Reinforcements
The BPGEM series weighbridges offer a perfect blend of robustness and versatility, especially with the optional installation of UPN (U-profile) reinforcements. This configuration maximizes the stability and durability of the weighing system, enabling reliable operation even in the most demanding industrial environments.
Key Features and Advantages
The primary considerations during the design of BPGEM scales were long-term reliability and installation flexibility.
UPN Reinforcements – Maximum Robustness
The BPGEM scales are already exceptionally stable as standard equipment, but the
two longitudinal UPN profiles significantly increase the rigidity of the structure.
- Bi-directional Use: The installation of UPN reinforcements allows the weighing system to be used in both longitudinal directions, increasing flexibility in site logistics.
- Structural Integrity: The UPN profiles reinforce the structure of the weighbridge, resisting high loads and dynamic stress.
- Omni-directional Use: For omni-directional use (accessible from all sides), the installation of two longitudinal UPN reinforcements is specifically recommended.
Installation Completeness: Control and Management
A mérési pontosság és a hatékony adatkezelés érdekében a BPGEM rendszert kiegészítheti a Giropes csúcstechnológiájú indikátorokkal és szoftverekkel:

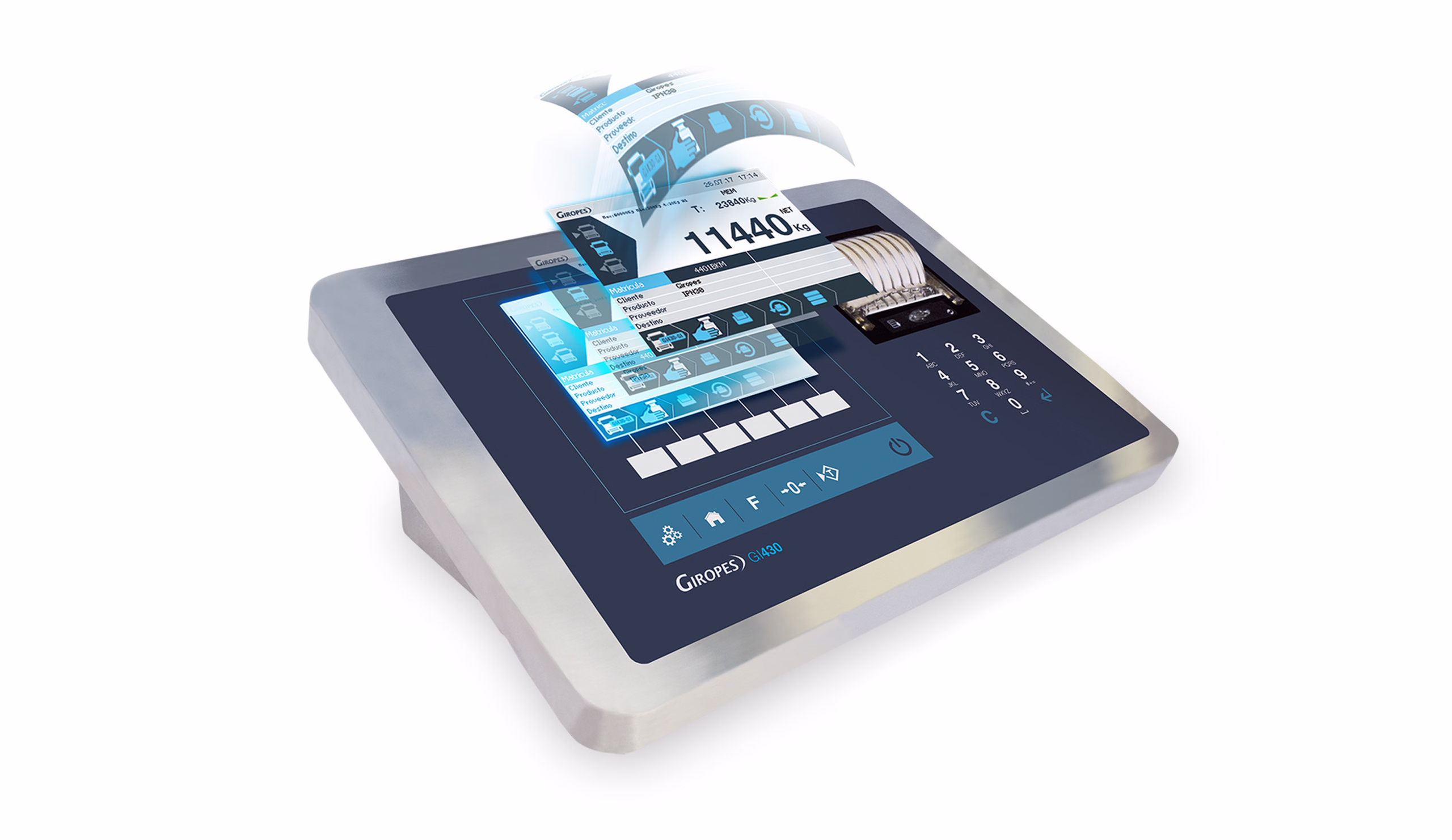

- GI430 Indicator: The ideal choice for complete management and control of the weighbridge installation.
- Truck Scale Management Software: Enables the recording, management, and analysis of weighing data, ensuring complete auditability.
Testre szabhatóság és Egyedi Megoldások
A Giropes filozófiája az, hogy konkrét intézkedésekkel és testre szabott megoldásokkal biztosítsa az ügyfél számára a legoptimálisabb eredményt. A kiegészítők és egyéb opciók lehetővé teszik a BPGEM termék teljes körű adaptálását az egyedi üzleti igényekhez.
Foundation Solutions and Accessories
The basis for precise and efficient weighing is adequate load cell support and a solid foundation.
- Mérőkamrák: Excellent engineering design allows for the installation of weighbridges even in areas where ground conditions are less than ideal (soil with lower bearing capacity). The proper foundation ensures the avoidance of cell compression, guaranteeing accurate and efficient weighing.
- Peremkeret: A peremkeret szögei alaplemezes talpakkal kerülnek kialakításra, amelyek lezárják a süllyesztett (aknás) vagy felszíni telepítésű hídmérlegek körüli árkot, biztosítva a szerkezet stabilitását és a perem védelmét.
- Panasonic Ütvecsavarozó: A vezeték nélküli, akkumulátoros Panasonic körbeforgó ütvecsavarozó használata jelentősen felgyorsítja és megkönnyíti a Giropes hídmérlegek összeszerelését a helyszínen.
G8R Ton Sensors
BPGEM systems are supplied with excellent quality G8R type load cells, which guarantee the accuracy and reliability of the measurements.
Technical Specifications
The BPGEM series offers a wide range of capacity and size options to meet all user requirements.
| Capacity (t) |
Length (m) |
Width (m) |
Height (mm) |
| 30 |
6 |
3 |
420 |
| 30 |
8 |
3 |
420 |
| 30 |
10 |
3 |
420 |
| 60 |
12 |
3 |
510 |
| 60 |
14 |
3 |
510 |
| 60 |
16 |
3 |
510 |
| 60 |
18 |
3 |
510 |
General Capacity Range: Between 30 tons and 60 tons.
Length Range: From 6 meters to 18 meters.
Width: Standard 3 meters.
Notes for Configuration
- BPGEM UPN Without Reinforcements: Standard configuration optimized for unidirectional use.
- BPGEM UPN With Reinforcements: Recommended for omnidirectional use, where two longitudinal UPN reinforcements are essential to maintain structural integrity.
This detailed description showcases the outstanding technical features, flexibility, and customization possibilities of the BPGEM weighbridge system, making it the ideal solution for modern industrial weighing tasks.
