WPC

WPC Series: Extra Flat Platform Scale for Deep Cleaning Requirements

The extra flat platform scale of the WPC series is specially designed for industrial environments where regular and thorough high-pressure water cleaning is essential. The robust design and excellent degree of protection guarantee a long service life and reliable operation even under the strictest hygiene requirements. This scale is an ideal choice for food processing plants, chemical facilities, or any area where washing the floor and the weighing surface with high-pressure water is necessary.

Key Features and Advantages

Excellent Cleanability and Water Resistance: The IP (Ingress Protection) rating of the scale's components allows for high-pressure water cleaning of the entire weighing surface and structure without damaging the internal sensors or electronics. This ensures the maintenance of a continuous hygiene level. Safe Design: The built-in safety screws prevent accidental collapsing or slamming of the scale during shipping, installation, or maintenance, thereby minimizing the risk of injury and damage to the load cell. Extra Flat Profile: The extremely low-profile design facilitates placing pallets, wheeled containers, or heavy objects onto the weighing surface, reducing physical strain and increasing workflow efficiency. High Capacity Load Cells: The platform is built upon four high-precision load cells, which ensure stable and reliable weighing across the entire capacity range. Compatibility with GI Series Indicators: The scale can be used with the WPC series multifunctional indicators (GI400-GI410 series), which offer a wide range of functions for weighing, counting, and checkweighing.

Technical Specifications

The WPC platform scale is available in a wide range of sizes and capacities to meet every unique requirement.

Dimension (mm)	Capacity (kg)	Readability (g)	AISI 304 Stainless Steel	AISI 316 Stainless Steel
800 x 800	300	100	•	•
800 x 800	600	200	•	•
1000 x 1000	300	100	•	•
1000 x 1000	600	200	•	•
1000 x 1000	1000	500	•	•
1250 x 1000	600	200	•	•
1250 x 1000	1500	500	•	•
1250 x 1000	3000	1000	•	•
1250 x 1250	600	200	•	•
1250 x 1250	1500	500	•	•
1250 x 1250	3000	1000	•	•
1500 x 1250	600	200	•	•
1500 x 1250	1500	500	•	•
1500 x 1250	3000	1000	•	•
1500 x 1500	1500	500	•	•
1500 x 1500	3000	1000	•	•

General Technical Parameters

• Configuration: Extra flat platform scale with four load cells.
• Area of application: Ipari környezetek, ahol mély tisztítás szükséges.
• Cleaning Capability: Suitable for high-pressure water cleaning (the IP rating of the components makes this possible).

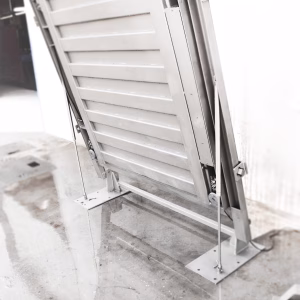

• Safety functions: Safety screws against accidental collapsing.
• Compatible Indicators: GI400 and GI410 series multifunctional indicators.
• Available Capacities: 300 kg -tól 3000 kg -ig.
• Available Dimensions: 800 x 800 mm -től 2000 x 1500 mm -ig (a fenti táblázatban részletezve).
• Material Selection: Available in AISI 304 or AISI 316 grade stainless steel design, depending on the corrosion requirements.

Material Selection Advantages

The WPC scale offers two types of stainless steel options, both of which offer excellent resistance to moisture and cleaning agents, but provide different levels of corrosion resistance: AISI 304 Stainless Steel: This basic, widely used stainless steel provides excellent general corrosion resistance, ideal for most food industry and general industrial applications where excessively aggressive chemicals are not used during cleaning. AISI 316 Stainless Steel: Due to the higher molybdenum content of AISI 316 (also known as marine grade stainless steel), it offers significantly better resistance to pitting corrosion caused by chlorides. This option is recommended for environments where saltwater, chlorine-containing disinfectants, or other aggressive chemical agents are frequently used during cleaning. The WPC series platform scale is the perfect combination of reliability, hygiene, and durability for the most demanding industrial weighing tasks.
