GIManager Software: Configuration and Display Tool for the GI6xx Series Weighing Indicators
The GIManager software is a dedicated, professional tool specifically designed for the
GI6xx series weighing indicators teljes körű konfigurálására, felügyeletére és valós idejű adatmegjelenítésére fejlesztettek ki. Ez a szoftver optimalizálja az ipari mérési rendszerek működését, biztosítva a precíz és hatékony adatkezelést a PC -ről.
A GIManager szoftver ingyenesen letölthető, és kulcsfontosságú szerepet játszik a mérőrendszerek folyamatos fejlesztésében és az ipari folyamatok optimalizálásában.
Main Features and Advantages
The GIManager software provides a comprehensive solution for managing the GI6xx series indicators, maximizing system flexibility and reliability.
1. Real-Time Data Display

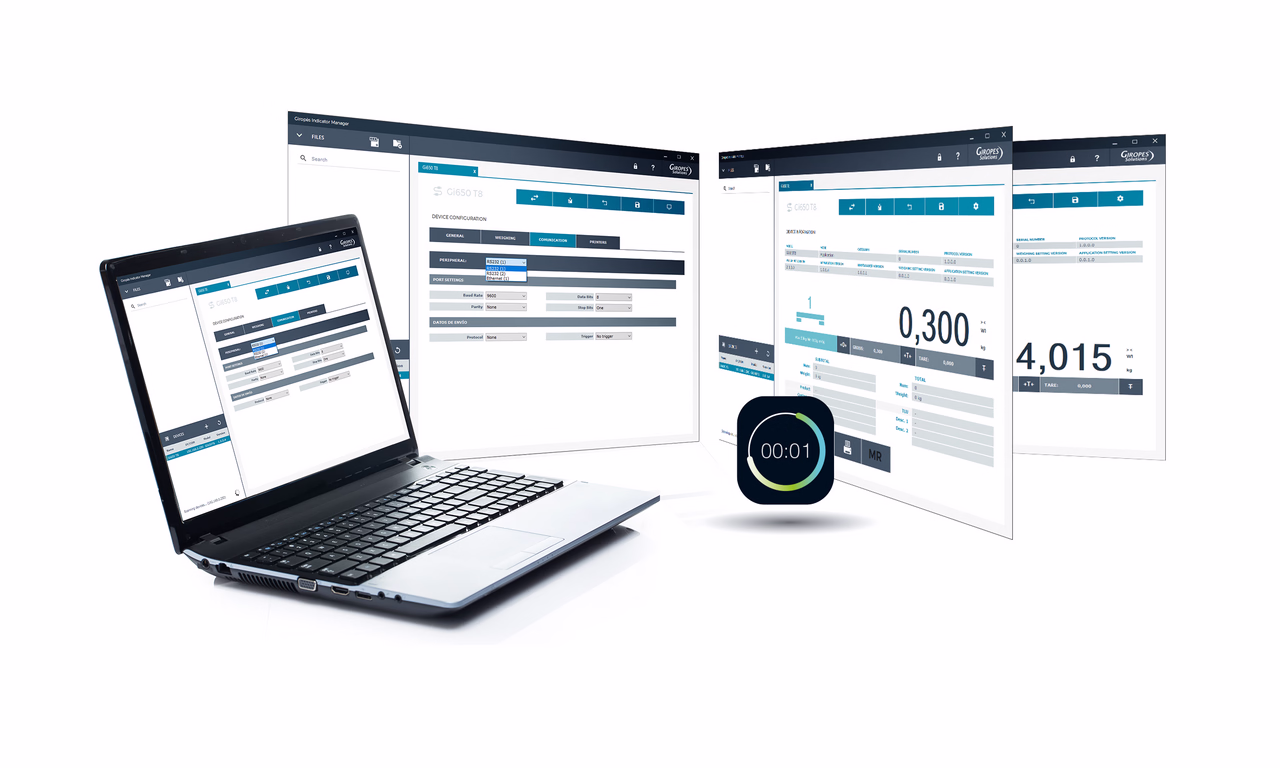

The software allows for the
real-time display of the connected scale's weight on the PC screen. This is critical in applications requiring continuous monitoring where immediate feedback on the measurement is necessary.
2. Teljes Körű Konfiguráció PC -ről
GIManager enables the complete parameterization of the weighing devices from a desktop computer, significantly simplifying and speeding up the setup process.
- Parameters and Backups: Lehetőség van az összes beállítás mentésére és visszaállítására, biztosítva a gyors helyreállítást bármilyen rendszerhiba esetén.
- Indicator Parameter Setting: Detailed configuration options in the following areas:
- General settings: Basic operating parameters.
- Metrological settings: Specifications concerning measurement accuracy and certification.
- Communication settings: Configuration of network and serial ports for data exchange with external systems.
- Ticket Configuration: The software allows for the customization of the format and content of printable documents (labels, invoices).
3. Network and Serial Communication Management
The GIManager has an intelligent search function that automatically identifies GI6xx indicators connected via network or serial port, facilitating connection establishment.
4. Firmware Management
The software supports firmware updates for measuring devices:
- Downloading Firmware Updates: Access to the latest software versions.
- Automatic Interface Adaptation: The software interface automatically adapts to the indicator's current firmware version, ensuring compatibility.
- Firmware Biztonsági Mentés: Backup of the existing firmware version before update procedures.
Compatibility and Technical Details
The GIManager software was developed specifically for the
GI6xx series indicators which are the result of continuous electronic innovation.
| Characteristic |
Description |
| Compatible Series |
GI6xx (pl.: GI650) |
| Main Function |
Configuration, supervision, real-time display |
| Connection Methods |
Network (LAN/Ethernet), Serial port (RS232/RS485) |
| Configuration Management |
Teljes körű paraméterezés PC -ről |
| Data saving |
Parameter and firmware backup |
| Firmware Update |
Supported, with automatic interface adaptation |
| Weight Display |
Display of real-time weight values |
| Certificate Management |
Testre szabható bizonylat konfiguráció |
| License |
Free Download |
The Synergy of GI650 Indicators and Software
GIManager software is the perfect complement to the
GI650 indicators, which represent the forefront of electronics and continuous innovation. The integrated solution allows users to maintain their measurement infrastructure at the highest level.
The software enables users to gain deep insight into the operation of the weighing system, minimizing downtime and maximizing accuracy. The document configuration capability is particularly valuable in logistics and manufacturing environments where precise and standardized documentation is essential.
GIManager is not just a setup tool; it is a comprehensive supervision platform that ensures weighing systems always operate according to optimal industry standards. Support for regular firmware updates guarantees that devices in the GI6xx series always have the latest features and security patches.
In summary: The GIManager software is an essential tool for anyone using GI6xx series weighing systems and aims to increase the efficiency and reliability of measurement processes.
