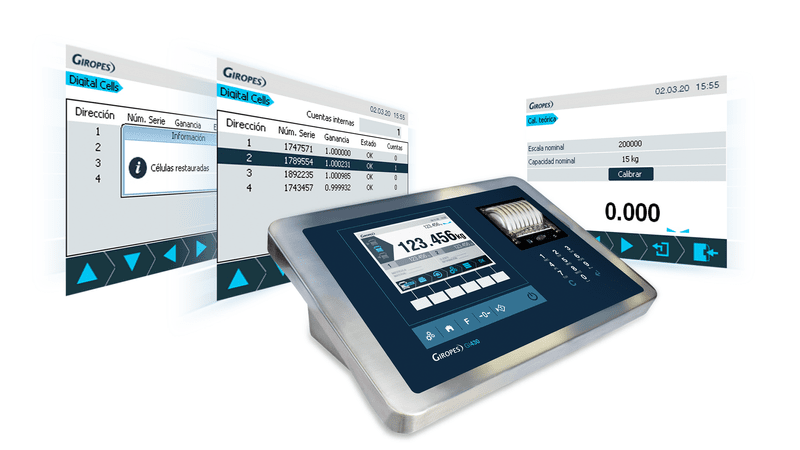

Giropes GI430 Truck Weighing Indicator – Compact Solution with Maximum Performance

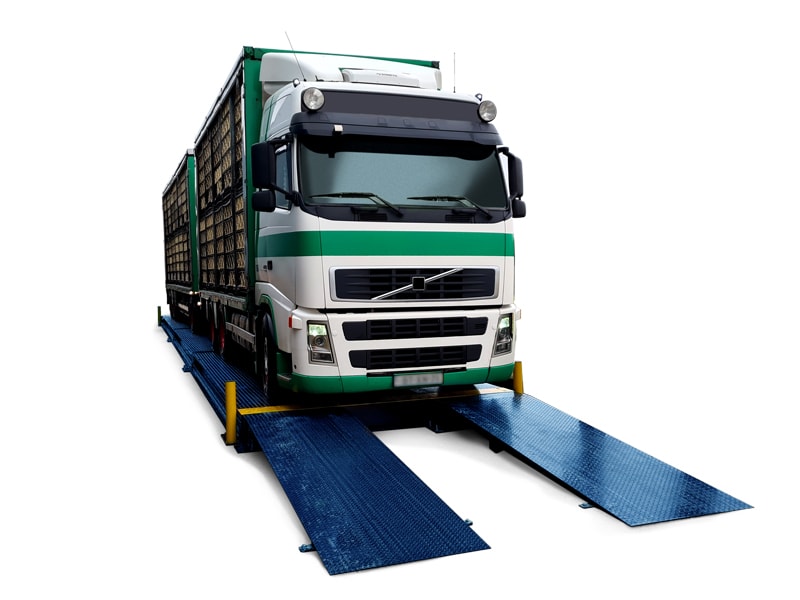

The Giropes GI430 is an extremely reliable and compact truck weighing indicator, designed thanks to optimized components. It is the ideal choice for any industrial environment requiring high performance and reliability for weighbridges equipped with analog load cells. The device's firmware has been specifically optimized for the accurate and consistent measurement of road traffic, ensuring efficient management of logistics processes.
Key Features and Advantages
The GI430 is not just a display, but an integrated solution that significantly optimizes weighing and data management processes:
-
Special Firmware for Truck Weighing: The software is designed to provide accurate and stable measurements even during high-volume vehicle traffic operations.
-
High Contrast TFT Display: It features a high-contrast, optimally sized display that guarantees easy readability in any working environment, regardless of changing lighting conditions.
-
Intuitive User Interface: The menu structure and keypad design are adapted for an industrial environment, simplifying handling, reducing operating time, and minimizing the possibility of errors.
-
Robust Construction: The device's robust construction withstands demanding environments and intensive working conditions.
-
Advanced Connectivity: It features standard Ethernet connection and multiple ports (USB, RS232) for data transmission, facilitating integration into existing systems and efficient data management according to standard protocols.
-
Optimization of Logistics Flow: Its configuration simplifies the efficient control of vehicle entry and exit, improving transit times and traceability.
Detailed Functionality and Configuration Options
The GI430 indicator offers several advanced functions for managing truck weighing operations:
Data Management and Storage
The built-in firmware offers extremely extensive data management capabilities:
-
Weighing Log: With 4,500 measurements storage capacity. The system sends a warning when the memory is full 80%.
-

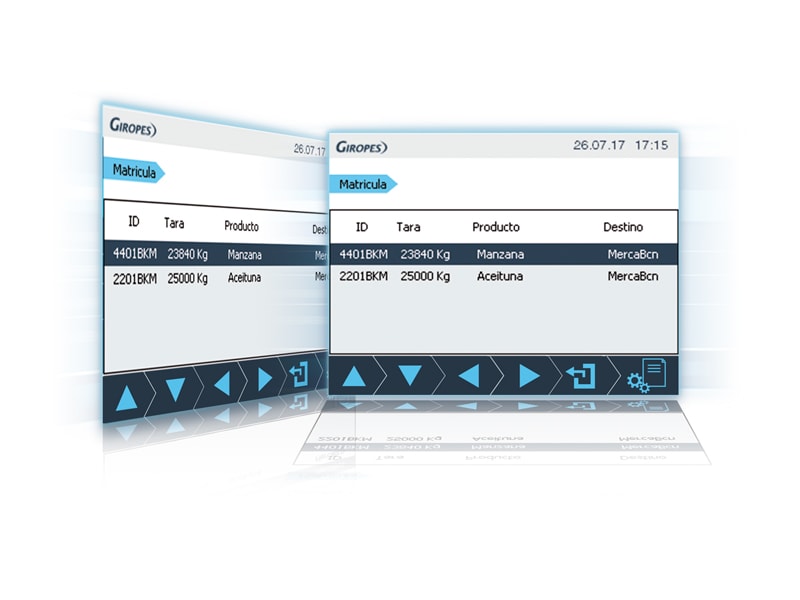

Vehicle Management: Capable of handling vehicles currently in transit.
-
Tare Management: Possibility to set manual or stored tare values.
-
File Management: Enables classification by customers, materials, origin, and destinations.
-
Code Management: With 2,000 codes storage in 4 different categories.
Ticket and Report Management
The system provides flexible ticket and report generation functions:
-

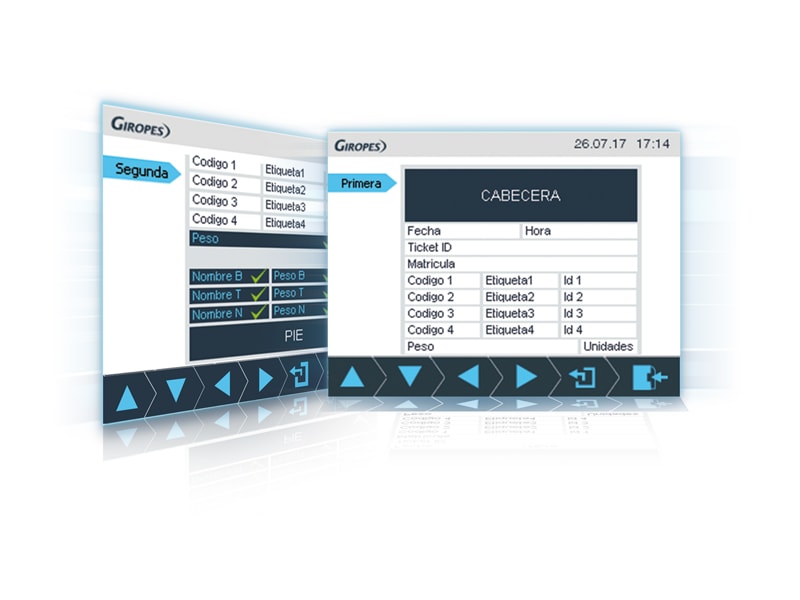

Ticket Configuration: The content of the tickets can be configured based on codes.
-
Language Selection: The printing language can be selected.
-
Ticket Reprinting: It is possible to reprint previous tickets.
-
Content Customization: The content of the printed tickets can be customized in detail.
-
Selectable Lists: Users can create lists according to their own needs. The four configurable codes can be used as variables for querying necessary information (e.g., product list, serial numbers). Reports can be displayed on the screen or printed.
Basic Operating Functions
-
via manual or stored entry weighing.
-
Date/Time setting.
-
Language selection.
-
Password protection.
-
Direct printing for single or one-off measurements.
Complete Automation Solution
The GI430 display enables complete automation in humid environments. The system can be connected seamlessly to Giropes scales, P16 repeaters, computer systems equipped with management software, and other necessary devices.
This integrated system
centralizes real-time monitoring and visualization of measurement data, optimizing the efficiency and accuracy of these industrial facilities through a comprehensive, automated solution. Integration with the GISCALE program can be customized for specific needs, facilitating efficient management and analysis of measurement data.
Technical Specifications
| Characteristic |
Detail |
| Model |
GI430 (For Analog Load Cells) |
| Construction |
INOX (Stainless Steel) |
| Protection |
IP54 |
| Display |
TFT Display, 320×240 pixel resolution, RGB |
| Keyboard |
24 membrane keys, Alphanumeric keyboard with function keys |
| Connections |
2x RS232*, 1x Ethernet, 1x USB |
| Tápellátás |
100-240 V AC, 50/60 Hz |
| Dimensions (Benchtop) |
352(w) x 119(d) x 208(h) mm (max.) |
| Dimensions (Wall Mount) |
385(w) x 170(d) x 226(h) mm (max.) |
| Packaging Dimensions |
418(w) x 300(d) x 146(h) mm (max.) |
| Gross Weight |
3 kg |
| Supported Languages |
English, Spanish, French, Italian, Croatian, Portuguese, Greek |

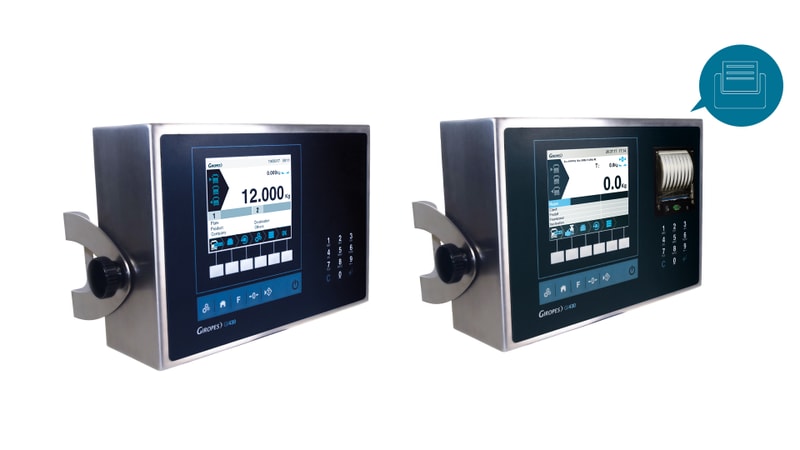

| Version Selection |
Benchtop and Wall Mount, with and without printer |
*Note: In the version equipped with a printer, one of the RS232 ports will be unavailable.
Available Models and Accessories
The GI430 series is available in multiple configurations to meet every installation requirement:
-
GI430 Alphanumeric TFT Stainless Steel Display (Benchtop)
-
GI430 Alphanumeric TFT Stainless Steel Display with Printer (Benchtop)
-
GI430 Alphanumeric TFT Stainless Steel Wall Mount Display
-
GI430 Alphanumeric TFT Stainless Steel Wall Mount Display with Printer
Optional Accessories:
-
Alibi Memory
-
Ethernet cable (0.5 m)
-
USB keyboard
-
RS232 cable for computer (1.5 m, 9F-9F / D)
-
RS232 cable for printer (1.5 m)
-
Interconnection cable for repeater (10 m)
-
LX-350 Printer
-
ORIENT BTP-M280 Printer
The GI430 display is part of the complete Giropes product range, ensuring precision and efficiency for the entire measurement infrastructure setup.
