Giropes GI450 Tehermérő Indikátor – Teljes Körű Automatizálási Megoldás
A Giropes GI450 indikátor a legmodernebb technológiai megoldás ipari és logisztikai környezetekbe, kifejezetten a nagy forgalmú tehergépjárművek precíz mérésére és az üzemi folyamatok automatizálására tervezve. A készülék robusztus, kompakt kialakítása (IP54 vagy IP65 védettségi szinttel) és integrált hídmérleg firmware -je garantálja a megbízható működést a legigényesebb körülmények között is.
Key Features and Advantages
The GI450 is not just a measuring instrument, but a central unit that optimizes the entire logistics process through the efficient management of vehicle entry and exit.
Graphical Display and Intuitive Operation
- High Contrast TFT Display: An optimally sized, high-resolution graphic screen ensures excellent readability even in changing lighting conditions.
- Intuitive Menu System: A completely thought-out, user-friendly menu structure minimizes handling time and reduces the possibility of user errors.
- Alphanumeric Keypad: The 24-button keypad equipped with quick access functions aids in fast data entry and function retrieval.
- Multilingual Support: The user can directly select from languages on the screen, further enhancing usability in international environments.
Integrated Truck Weighing Functions
The built-in truck scale firmware is the core strength of the GI450, offering numerous advanced functions:
- Tare Management: Manuális vagy tárolt tára értékek bevitele.
- Digital Pre-calibration: Quick and accurate setting of the measurement.
- Weight Management: Possibility to manage vehicles and weights.
- Ticket Format Customization: A bizonylatok (jegyek) nyelvezete és formátuma teljes mértékben testre szabható a felhasználói igények szerint.
Automation and Connectivity
The GI450 is a key component in setting up automated weighing stations. It can be directly connected to Giropes truck scales, P16 repeaters, computers equipped with management software, and other industrial devices. This integrated system enables centralized management and real-time visualization of weighing data, maximizing the efficiency and accuracy of industrial facilities.
Data Management and Reporting
- File Management: Akár 2000 kód tárolása 4 különböző kategóriában, amely lehetővé teszi a mérések részletes kategorizálását (pl.: termék, rendszám, stb.).
- Measurement Memory: Akár 4500 mérés tárolására alkalmas memória, 80% -os telítettség esetén figyelmeztetést ad.
- Selectable Lists: Users can create lists based on stored codes according to their own needs. Reports can be viewed on screen or printed.
- Documents (Tickets): Documents configurable by code, language settings, and subsequent printing and content customization options.
Technical Specifications
| Parameter |
Detail |
| Model |
GI450 |

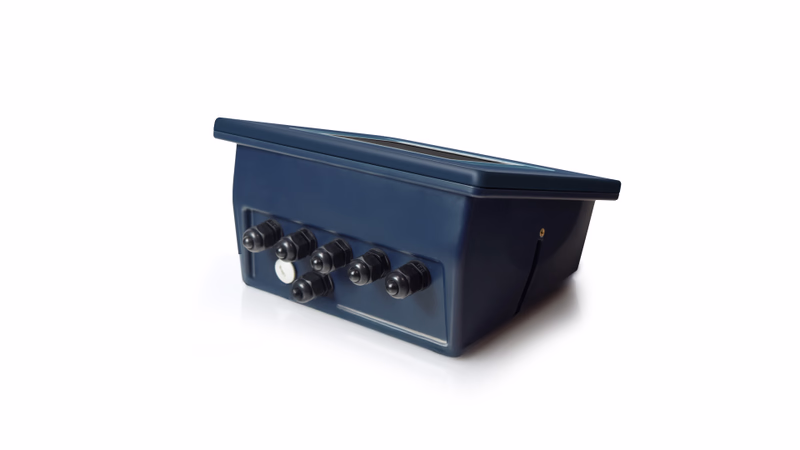

| Ingress Protection (IP) Rating |
IP54 or IP65 (depending on the model) |
| Operating Temperature |
Between -10°C and +40°C |
| Display |
TFT, 320 x 240 felbontás |
| Keyboard |
24-key alphanumeric, with function keys |
| External Keyboard |
Standard PC keyboard, connectable via USB port |

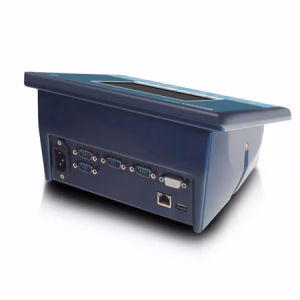

| Serial Communication |
2 x RS-232 (bidirectional), 1 x RS485, 1 x Ethernet, 1 x USB |
| Átviteli Sebesség |
115200, 57600, 38400, 19200, 9600 and 4800 |
| Tápellátás |
110-230 VAC, 50-60 Hz |
Connectivity and Accessories
The GI450 indicator can be flexibly integrated into existing systems thanks to standard protocols. The Ethernet connection allows data to be forwarded according to standard market protocols.
Available Accessories (Examples):
- Ethernet cable (0.5 m)
- USB keyboard
- RS232 cables for computer (1.5 m, 9F-9F / D) and printer (1.5 m)
- Repeater connection cable (10 m)
- Különböző típusú nyomtatók (pl.: LX-350, ORIENT BTP-M300 / IMP 27, POS76 / IMP 28)
- Hálózati adapterek különböző régiókhoz (pl.: BS1363 (UK) – IP54, SEV1011 (CH) – IP54, B Type (USA) – IP54)
Ideal Application Areas for the GI450
The GI450 indicator is the perfect choice for all locations where precise vehicle weight control is required, maximizing productivity:
- Logistics Centers
- Industrial plants and production lines
- Construction material plants
- Agricultural processing units
- Any facility that requires effective vehicle traffic control.
The GI450 is part of the complete automation solution offered by Giropes, which, in conjunction with the GISCALE management software, ensures efficient data management and analysis.
