TP410i Series Multipurpose Weighing Pallet Truck
The TP410i series weighing pallet trucks represent an excellent choice for the most demanding industrial environments where precise measurement, robust design, and reliability are essential. These devices are made of stainless steel and are available in two main versions: with a built-in printer and without a printer. The main strength of the devices is
hivatalos mérésre true capability, which ensures broad applicability where certified weight data is critical.
The TP410i series can best be described with the adjectives „multipurpose, resistant, reliable”, offering an ideal solution for logistics, manufacturing, and warehousing tasks.
Key Features and Advantages

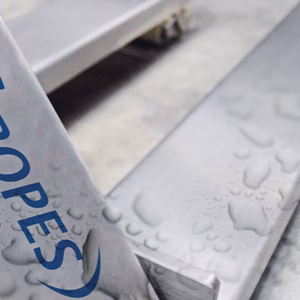

- Stainless Steel Design: The full stainless steel construction ensures excellent resistance to corrosion and harsh cleaning agents, making the device ideal for use in food, chemical, or any wet, contaminated environment.
- Hivatalos Mérésre Alkalmas: A készülékek rendelkeznek a jogi mérésre vonatkozó tanúsítvánnyal, ami lehetővé teszi a súlyadatok közvetlen felhasználását kereskedelmi tranzakciókban és minőség-ellenőrzési folyamatokban, ahol a pontosság jogilag kötelező.
- Two Versions:
- Version with Printer: It has an IP54 protection rating, which ensures protection against dust and splashing water. Ideal for immediate printing of on-site documents.
- Version without Printer: A higher, IP65 protection level, which provides total dustproofness and protection against strong water jets, ideal for the most aggressive cleaning procedures.

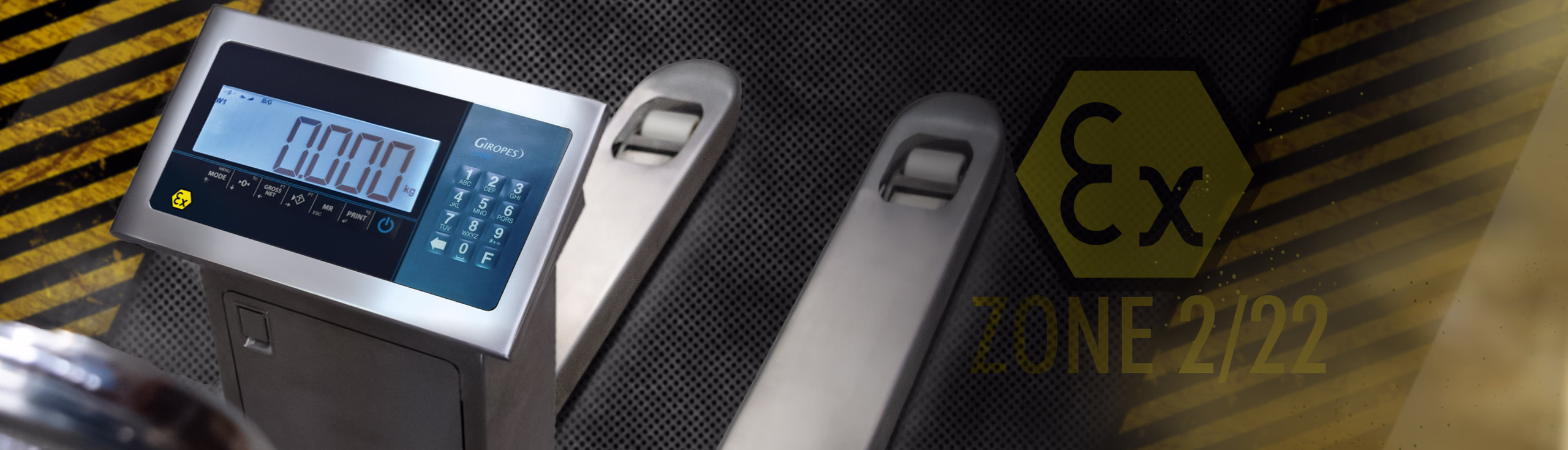

- GI410i Digital Indicator: The built-in digital display ensures easy readability and accurate display of weight data.

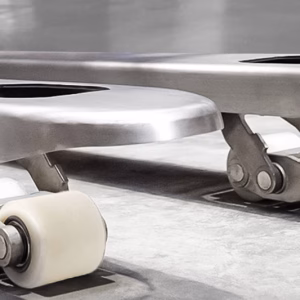

- Excellent Mobility: Nejlon kerekekkel és poliuretán futófelülettel szerelve a csendes és sima mozgatás érdekében, még nehéz terhek alatt is.
Technical Specifications
The TP410i series offers various capacity and resolution (increment) options tailored to user needs.
| Capacity (kg) |
Resolution (g) |
Printer |
Official Measurement |
| 1000 – 2000 |
200 – 500 |
No |
No |
| 1000 – 2000 |
500 – 1000 |
No |
No |
| 1000 – 2000 |
200 – 500 |
Yes (M) |
Yes |
| 1000 – 2000 |
500 – 1000 |
Yes (M) |
Yes |
Megjegyzés: Az ‘M’ jelölés a hivatalos mérésre alkalmas modelleket jelöli.
General Technical Parameters
| Parameter |
Value |
| Series |
TP410i |
| Construction |
Stainless steel |
| Display |
GI410i digital indicator |
| Wheel Material |
Nejlon |
| External Housing |
Polyurethane |
| Maximum Lifting Height |
19 cm |
| Capacity Range |
1000 kg – 2000 kg |
| Readout Range |
200 g – 1000 g |
Protection Levels (IP Rating)
Protection varies depending on the device version:
- With TP410i Printer: IP54 (Por tömített, fröccsenő víz ellen védett)
- Without TP410i Printer: IP65 (Completely dust-tight, protected against strong water jets)
Application Areas
Due to the flexibility and robustness of the TP410i series, it is ideal for the following areas:
- Food Industry and Cold Stores: The stainless steel and high IP protection (especially IP65) resist wet cleaning and corrosive substances. Certified weighing ensures accurate accounting of raw materials and finished products.
- Pharmaceutical Production: Weighing and material handling that meet strict hygiene and precision requirements.
- Chemical and Pharmaceutical Warehousing: Reliable weight data is essential for accurate recipes and inventory management.
- Logistics Hubs: Heavy-duty, reliable device for moving pallets and instantly checking shipping weights.
The TP410i is not just a simple pallet truck; it is an integrated weighing device that increases the efficiency and accuracy of workflows even in the harshest industrial environments. The model equipped with a printer enables immediate documentation of weight data, while the version without a printer, offering higher protection, guarantees maximum durability.
