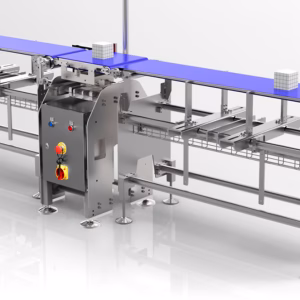

GCW-50ST Ipari Ellenőrző Mérleg Integrált Ipari PC -vel és Futószalaggal
A GCW-50ST egy statikus ellenőrző mérleg, amelyet kifejezetten a modern gyártósorok igényeinek kielégítésére terveztek. Az integrált ipari PC -vel és a precíziós futószalaggal felszerelt rendszer garantálja a rendkívül pontos és teljes körűen nyomon követhető mérést a termelési folyamatok során. Moduláris felépítése lehetővé teszi a gyors adaptációt, beleértve a kilökő rendszerek, vezetők és a Giscale Pro szoftverrel, valamint ERP/MES platformokkal való zökkenőmentes összekapcsolást, ezzel biztosítva a teljes folyamatkontrollt.
Intelligent Weighing Solution: Advantages of the GCW-50ST
The GCW-50ST is not just a scale, but an intelligent data acquisition and control unit that optimizes quality assurance and production efficiency.
High-Precision Weighing
The system is capable of inspecting every single product with millimeter precision, ensuring compliance with strict industrial quality requirements. Reliability and consistency are guaranteed throughout the entire production cycle.
Intelligens Vezérlés Ipari PC -vel
The built-in industrial PC and dedicated Giscale Pro software provide the user with complete control:
- Real-Time Data Display: Measurement results are instantly visible on the touchscreen.
- Report generation: Option to generate detailed reports on production batches.
- System Integration: Seamless connection to existing corporate (ERP) or manufacturing execution (MES) systems, facilitating data-driven decision-making.
Adaptable Conveyor Belt System
The conveyor belt is designed to be easily integrated into any existing production line. Simple adaptation to different product dimensions requires minimal changeover time.
Full Integration and Connectivity Options
The GCW-50ST checkweigher can be connected to enterprise management systems via Ethernet or RS232 interface, maximizing process traceability across the entire production chain.
GCW-50ST Technical Data Sheet
The table below details the key technical specifications of the GCW-50ST industrial checkweigher:
| Category |
Parameter |
Spezification |
| Weighing Basics |
Type of Weighing |
Static |
|
Capacity |
1,5 kg – 30 kg (modelltől függően) |
|
Accuracy (Resolution) |
0,5 g – 10 g (modelltől függően) |
|
Maximum Flow Rate |
Up to 20 ppm (pieces/minute) |
| Electrical Data |
Tápellátás |
230 V AC |
|
Rated Power |
600 W |
| Environmental Conditions |
Operating Temperature |
0 ºC – 40 ºC |
| Protection and Certifications |
Protection Class |
Standard IP65 |
|
Certifications |
MID 2014/32/EU (Optional „e” net content check according to 76/211/EEC) |
| Conveying System and Structure |
Measuring Conveyor Dimensions (L × W) |
300×200 / 400×280 / 400×400 / 600×400 mm (selectable) |
|
Working height |
800 – 950 mm (állítható) |
|
Conveyor Direction |
Right-to-left or reversed (to be specified when ordering) |
|
Conveyor Belt Material |
FDA standard, high adhesion or sliding (depending on application) |
|
Load Cell Type |
High resolution IP67 load cell |
|
Frame Structure |
Stainless steel AISI 304L / Anodized aluminum |
|
Guides |
Stainless steel, anodized aluminum or APM (optional) |
| Interface, Software and Connectivity |
Display |
10.4” capacitive touchscreen (1024×768 px), IP65 protection |
|
Software |
Giscale Pro (Optional): ERP/MES integration, multi-viewer, traceability |
|
Data Export |
Excel or CSV (grouped by item or by product) |
|
Communication |
Ethernet |
Customization Options and Optional Modules
The GCW-50ST can be flexibly adapted even to the most complex production requirements. With the help of optional modules, the equipment easily meets Industry 4.0 standards.
Display and Visual Feedback
- Light/Sound Indicator: Two-color visual and acoustic status indication for fast operational feedback.
Sensors and Detectors
- Additional Sensors: Barrier- (álló) vagy portál típusú detektorok a termék helyzetének és jelenlétének ellenőrzésére.
Rejection Systems
Solutions for automatic removal of non-compliant products:
- Rejection Systems: Pneumatic, piston, or flap rejection (outlet conveyor belt required for connection).
Guides and Grates
- Guides and Grates: APM or stainless steel guides, ramps, and polycarbonate protective covers for safe product guiding.
Giscale Software Modules
The Giscale Pro software can be further expanded for deeper analysis of production processes:
- Statistics Module: Collection of detailed statistical data.
- Real-Time Production Panel: Instant overview of production parameters.
- „e” Regulatory Module: Software support for mandatory precision checks.
Further Integration Possibilities
- Labeling System Integration: Possibility to print key data (item, code, weight) using industrial printers and the Giscale system, ensuring full traceability.
- Metal Detector: High-sensitivity detectors for the detection of ferrous and non-ferrous metals, increasing quality and safety without slowing down production.
- Reject Container: Collection unit made of stainless steel with polycarbonate doors, ensuring quick access for cleaning and maintenance.
Giscale Pro: The Engine for GCW-50ST Operation
The Giscale Pro software makes the GCW-50ST a true Industry 4.0 compatible device. It allows monitoring, recording, and analyzing measurements in seconds.
Main Functions:
- Multiple Display Connection: Management of data from multiple measurement points simultaneously.
- Access to Historical Data: Access to data from previous production runs.
- Export: Data export in PDF, XLS or CSV format.
- Real-Time Process Control: Comprehensive monitoring of the production process.
Giscale Pro is the perfect partner to leverage the performance of the GCW-50ST checkweigher.
Note: The GCW-50ST model is part of a product family that also includes other equally effective checkweighing and labeling solutions, such as the GLM-1000, GLM-3000, GLM-2000, and GLM-0100 label dispensers, which offer further automation possibilities.
