PTX Series ATEX Weighing Platforms – Robust Solutions for Ex-Zones
The PTX series weighing platforms are specifically designed to meet the stringent safety requirements in
ATEX Zones 2 and 22 in case of application. These platforms combine high load capacity, precise measurement, and the durability expected in industrial environments, ensuring safe and reliable operation in explosive atmospheres.
A system based on an extremely stable,
csőszerkezet which guarantees a long service life and mechanical resistance. For measurement, the platforms can optionally be connected to the
GI400i-EX multifunctional indicator which is also certified for ATEX zones and ensures precise data processing.
Key Features and Advantages
A PTX platformok kulcsfontosságú eleme a testre szabhatóság. A kiegészítők széles választéka lehetővé teszi, hogy a mérlegrendszert pontosan az ügyfél egyedi igényeihez és a telepítési környezethez igazítsuk, maximalizálva ezzel a működési hatékonyságot.
- ATEX Compliance: Specifically designed for use in ATEX Zone 2 (gas) and Zone 22 (dust), ensuring explosion-proof operation.

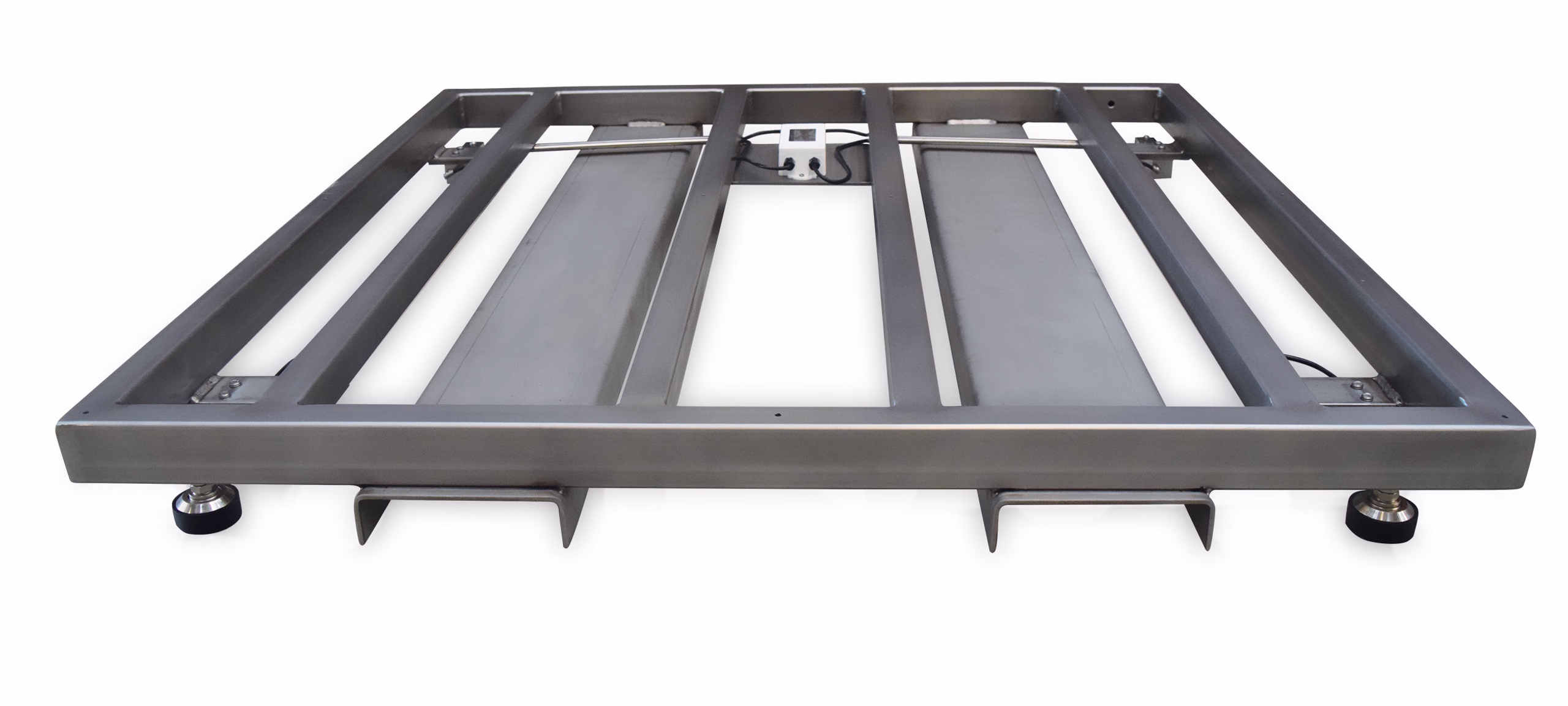

- Robust Construction: Strong, welded tubular structure that withstands heavy industrial loads.
- Customizability: Numerous accessories and options are available to optimize installation and functionality.
- Load Cell and Junction Box: The load cells and junction boxes used in the system are also designed for ATEX zones, ensuring the safety of the entire system.
Technical Specifications – PTX Platforms
The PTX series offers flexible solutions in terms of capacity and size. The platforms are available in various surface finishes, from a simple painted structure to a completely stainless steel (AISI 304) design.
| Capacity (kg) |
Dimension (mm) |
Division (g) |
Painted Structure and Plate |
Painted Structure and Stainless Steel Plate |
Fully Stainless Steel AISI 304 |
| 300 |
800 x 800 |
100 |
• |
• |
• |
| 600 |
800 x 800 |
200 |
• |
• |
• |
| 300 |
1000 x 1000 |
100 |
• |
• |
• |
| 600 |
1000 x 1000 |
200 |
• |
• |
• |
| 600 |
1250 x 1000 |
200 |
• |
• |
• |
| 1500 |
1250 x 1000 |
500 |
• |
• |
• |
| 3000 |
1250 x 1000 |
1000 |
• |
• |
• |
| 600 |
1250 x 1250 |
200 |
• |
• |
• |
| 1500 |
1250 x 1250 |
500 |
• |
• |
• |
| 3000 |
1250 x 1250 |
1000 |
• |
• |
• |
| 600 |
1500 x 1250 |
200 |
• |
• |
• |
| 1500 |
1500 x 1250 |
500 |
• |
• |
• |
| 3000 |
1500 x 1250 |
1000 |
• |
• |
• |
| 1500 |
1500 x 1500 |
500 |
• |
• |
• |
| 3000 |
1500 x 1500 |
1000 |
• |
• |
• |
| 1500 |
2000 x 1500 |
500 |
• |
• |
• |
| 3000 |
2000 x 1500 |
1000 |
• |
• |
• |
Capacity range: 300 kg -tól 3000 kg -ig.
Weighing Range: 800 x 800 mm -től 2000 x 1500 mm -ig.
Optional Accessories to Enhance Functionality
The flexibility of the PTX platforms can be further enhanced with the following accessories, which help optimize workflows and ensure safe material handling:
1. Rámpák
These ramps are specifically for
PTC-B4C-WPI Designed for [...] type of weighing platforms, facilitating access with a wheelchair or forklift onto the weighing area. This is critical for ensuring continuous material flow without overloading the weighing cell.
2. Platform Fülkék
A
PTC-WPL-B4C-WPI Cubicles available for [...] type platforms offer extra protection for the weighing system, especially in dusty or wet environments. These cubicles help isolate the weighing cell from external influences.
3. Beépítő Keret
If the platform is intended to be installed sunk into the floor (in a pit), the
mounting frame made of structural steel ensures a stable foundation. Fastening feet located at the end of the frame assist in precise and durable installation into the pit.
4. Galvanizált Görgetőhengerek
A
BMC Galvanized rollers offered for [...] type systems improve the cell's insulation against external environmental factors, thereby increasing the weighing cell's lifespan and accuracy.
5. Oszlop
Columns of various heights are available for the
GI400i-EX indicator positioning. The indicator can be placed
mounted on a column vagy
wall-mounted, for optimal readability and usability.
6. U-Szállítási Tartozék
This special
„U” shaped accessory facilitates the safe and stable transport of weighing platforms to the installation site.
Installation Options
PTX platforms offer flexible installation options tailored to user needs:
- Floor Mounting (Standing): The platforms can be floor-mounted by default.
- Installation (Pit): With the help of the installation frame, the platform can be sunk into the floor level, thus ensuring easy roll-on with the use of ramps.
- Indicator Positioning: The indicator can be placed mounted on a column or directly fixed to the wall, according to site conditions.
A PTX sorozatú ATEX mérlegplatformok ideális választást jelentenek minden olyan ipari alkalmazáshoz, ahol a robbanásveszélyes környezetben is elengedhetetlen a megbízható, nagy teherbírású és pontos mérés. A testre szabható kiegészítők révén garantáltan megtalálja az ideális megoldást a legbonyolultabb folyamatokhoz is.
