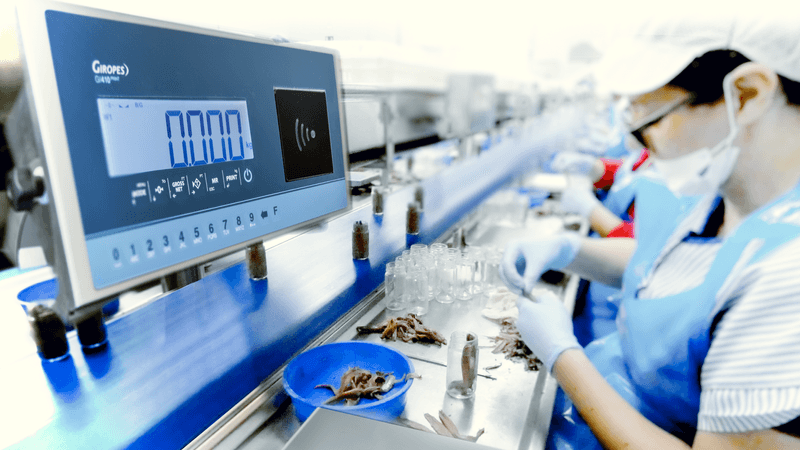

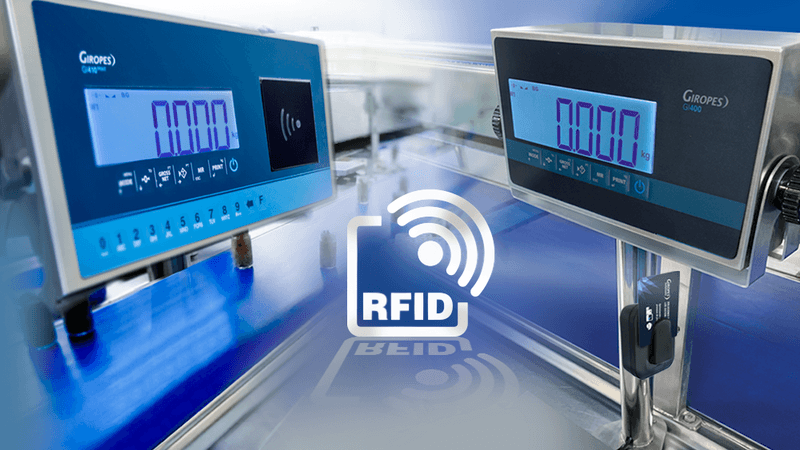

GI410i RFID Digital Weighing Indicator – Robust Solution for Production Lines

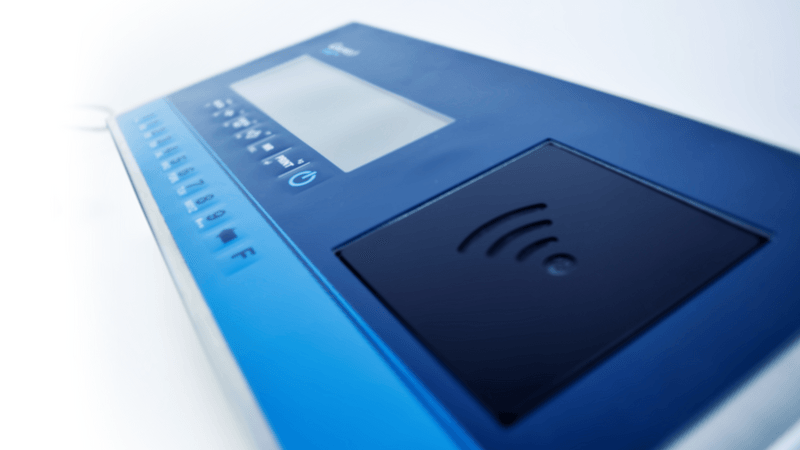

The GI410i RFID series is a versatile weigh indicator suitable for all environments, specifically designed to optimize weight registration and control on production lines. Featuring a stainless steel housing, a numeric keypad, and a built-in RFID card reader, it is the ideal choice for precise and traceable industrial measurements.
This indicator is not just a simple measuring device; through its integrated functions, it provides comprehensive production control and data acquisition capabilities.
Key Features and Advantages
The GI410i RFID indicator offers several advanced features to increase the efficiency of production processes:
1. Ellenőrző Mérés Funkció
Ez a funkció automatikusan megjelenít akár 4 súlyhatárt: 2 felső és 2 alsó határt. Az „OK” zónán belül további két al-tartományt (Min OK és Max OK) tesz lehetővé a még finomabb minőség-ellenőrzéshez.
2. Automatikus Bruttó Mérés
This special function enables checkweighing even when container weights vary (e.g., in the case of pallets or crates). The system automatically accounts for the weight of different storage devices, ensuring the accurate determination of the net weight.
3. Kivételi Súly Monitorozás
Allows for tracking the weight removed from the scale. The GI410i indicator precisely indicates whether the required amount of weight has been removed, or if the target value has been overshot/undershot.
4. Raklap Súlykezelés
Ez a funkció lehetővé teszi egy sorozatnyi súlyérték kumulatív rögzítését minden egyes raklaphoz. A rendszer automatikusan rögzíti az egyes raklapok bruttó súlyát (tára), így pontos nettó összsúly számítható ki.
5. Darabszámlálás
The user can count the number of pieces placed on the platform based on a pre-set average unit weight (PMU). This is critically important for fast and accurate quantity verification of finished products.
6. Összesítés
This function allows for summing the weights accumulated in memory, as well as displaying the total count of weighed items.
7. Relay Functions (Optional Accessories)
- Limit Values with Relay Function: The indicator is capable of handling an initial weight and 3 additional limit values that activate 4 relays based on the weight registers. This automates processes, such as starting/stopping filling or emptying.
- Dosing with Relay Function: Designed for automatic dosing of one product at two speeds, or dosing of two products at one speed, with a discharge zone. The user can program a discharge zone where the end of dosing can be defined.
8. Ismétlő Funkció
It is capable of repeating the weight display up to a distance of 16 meters via an RS232 output. Optionally, with an RS485 output, a distance of up to 1200 meters is achievable (the appropriate output is required on both devices).
9. Production Control Capabilities
The GI410i RFID model optimizes the operation of production lines with the following controls:
- Termék szerinti Termelésirányítás: Enables the scale operator to control by product.
- Operator-Specific Production Control: Enables the optimization of production lines with checks linked to the scale operator.
Software Integration and Management
The GI410i RFID indicator can be excellently integrated with the dedicated GISCALE software package, which provides complete supervision over all weighing stations on the production line.
GISCALE Pro (For Multiple Weighing Stations)
This software is for managing and controlling the entire production line:
- Production and performance control.
- Productivity summary by operator, scale, measurement, etc.
- Továbbfejlesztett ellenőrző módok a hatékonyabb kontroll érdekében.
- Data import and export, as well as configurable reports.
GISCALE One
Free to install, fast, and intuitive interface software:
- Production and performance control.
- Performance summary by operator, scale, completed measurements.
- Továbbfejlesztett ellenőrző módok.
- Csatlakozás megjelenítőkhöz Etherneten és RS232 -n keresztül.
Configuration and Update Tools
- Konfigurációs Eszközök: Allows configuration and parameter setting of GI400/GI410 family displays. The software helps customize the content of document headers.
- Szoftverfrissítési Eszközök: Lehetővé teszi a GI400/GI410 kijelzők firmware -jének frissítését anélkül, hogy a készüléket vissza kellene küldeni a gyárba.
GI410i RFID Technical Specifications
| Characteristic |
Description |
| Display |
LCD, 6 digits, 40 mm high. Configurable backlight (off/on/auto) and color change function for weight checking. |
| Keyboard |
Integrated alphanumeric keyboard. |
| Protection |
IP54 (Display Housing) |
| Housing Material |
Stainless steel |
| Operating Temperature |
Between -10°C and +40°C |
| Minimum Input Voltage (For Verification Step) |
0.3 µV |
| Support |
Tilting wall mount (optional) |
| Units of Measure |
Selectable (e.g. kg) |
| Clock and Calendar |
Built-in |
| Documents |
Configurable (with the accompanying software) |
| Internal Memory |
Capable of storing up to 1000 measurements in the display. |
| Communication |
1 Ethernet port, 2 RS232 ports |
| Tápellátás |
110-230V AC, 50/60 Hz |
| Protocols |
Compatible with RFID and EAN protocols |
Available Models and Accessories
The GI410i RFID model is available in several configurations and can be expanded with several accessories for installation:
Models
- GI410i RFID Digital Indicator
- GI410i RFID Digitális Indikátor Ethernet -tel
- RFID tags (pack of 10)
Optional Accessories
- Kommunikáció – Wi-fi modul
- Alibi Memory (Data Security Unit)
- Wall mount for the GI410i RFID indicator
- Ethernet cable (1m / 2m)
- RS232 cable (1.5m)
- Printers: ORIENT BTP-M300 / IMP 27 Printer, POS76 Printer / IMP 28
The GI410i RFID indicator is the ideal choice for all industrial environments where reliable, fast, and digitally traceable weight management during production processes is essential.
