BPP Pallet Weighing Platform – A New Dimension of Efficiency and Mobility

The BPP series pallet weighing platform is specifically designed to facilitate the fast and accurate weighing of pallets, combining a robust design with outstanding mobility. This scale offers an ideal solution for logistics, warehousing, and industrial environments where product movement and weight monitoring are critical.

Key Features and Advantages

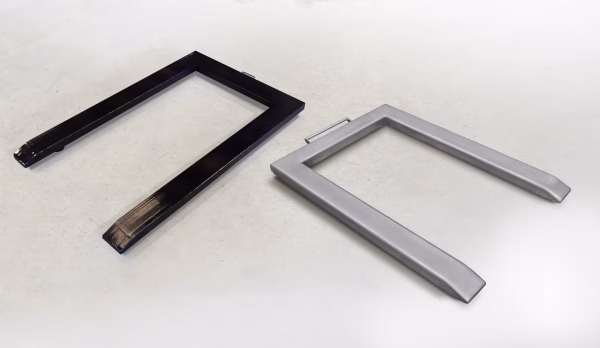

The U-shaped design of the BPP platforms allows for easy placement and removal of pallets, minimizing handling time. The built-in drawbar and solid wheels guarantee easy and comfortable movement in any space.

Outstanding Mobility and Stability

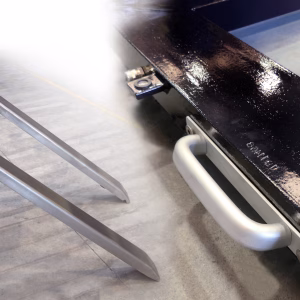

The platform's agile movement is ensured by the built-in wheels and the easily accessible handle. Stability is provided by the 60 mm diameter, height-adjustable swivel feet, which feature a built-in spirit level for perfect horizontal adjustment, ensuring measurement accuracy under all conditions.

Robust Design and Durability

The basis of the weighing system consists of four extremely durable, IP68 protected shear beam (bending cell) load cells it. This high level of protection guarantees reliable operation even in dusty or wet environments. During the design, special attention was paid to avoiding damage: the corners of the forklift tines have a slight bevel, which significantly reduces the risk of breakage during frontal impacts when contacting the load.

Format Flexibility

BPP platforms are available in two main sizes, ideally suited for the most common pallet types:

1. For European pallets (EUR)
2. For American pallets (Standard)

Especially noteworthy is the 1250 x 1010 mm model, which is suitable for weighing both pallet types, significantly speeding up processes involving mixed inventory.

Customization and Accessories

BPP platforms can be enhanced with a wide range of accessories and options to meet every individual customer requirement:

• Optional Columns: Columns of various heights are available for positioning the display (indicator).
• Surface Treatments: Available finishes range from the standard painted surface to options meeting higher hygiene requirements, AISI 304 or the extremely corrosion-resistant AISI 316 stainless steel finish.
• ATEX Preparation: Special variants suitable for use in potentially explosive atmospheres (ATEX) are also available.

Technical Data and Configurations

The BPP weighing platforms are available in a wide range of capacities and sizes, flexibly adapting to various load requirements.

Basic Specifications

Parameter	Value
Number of Load Cells	4 pcs bending cell reinforcement
Protection (Load Cells)	IP68
Construction	U-shape, with lift handle and wheels
Synthesis	Adjustable height feet, with built-in spirit level
Load surface dimension	60 mm
Capacity Range	From 300 kg to 3000 kg

Available Dimensions, Capacities and Versions

The following tables detail the specifications for the standard dimensions (for a single pallet) and the double-chassis versions. The „•” symbol indicates the available material thickness/version.

Standard Dimensions (1250 mm width)

Dimensions (mm)	Capacity (kg)	Division (g)	Painted	Stainless AISI 304	Stainless AISI 316
1250 x 850	300	100	•	•	•
1250 x 850	600	200	•	•	•
1250 x 850	1500	500	•	•	•
1250 x 850	3000	1000	•	•	•
1250 x 1000	300	100	•	•	•
1250 x 1000	600	200	•	•	•
1250 x 1000	1500	500	•	•	•
1250 x 1000	3000	1000	•	•	•
1250 x 1010	300	100	•	•	•
1250 x 1010	600	200	•	•	•
1250 x 1010	1500	500	•	•	•
1250 x 1010	3000	1000	•	•	•

Double Chassis Version (Higher load capacity and stability)

Dimensions (mm)	Capacity (kg)	Division (g)	Painted	Stainless AISI 304	Stainless AISI 316
1350 x 1050	600	200	•	•	•
1350 x 1050	1500	500	•	•	•
1350 x 1050	3000	1000	•	•	•

Related Products and Solutions

The BPP platforms can be complemented with special weigh trolleys featuring integrated indicators, which can also be suitable for legal metrology:

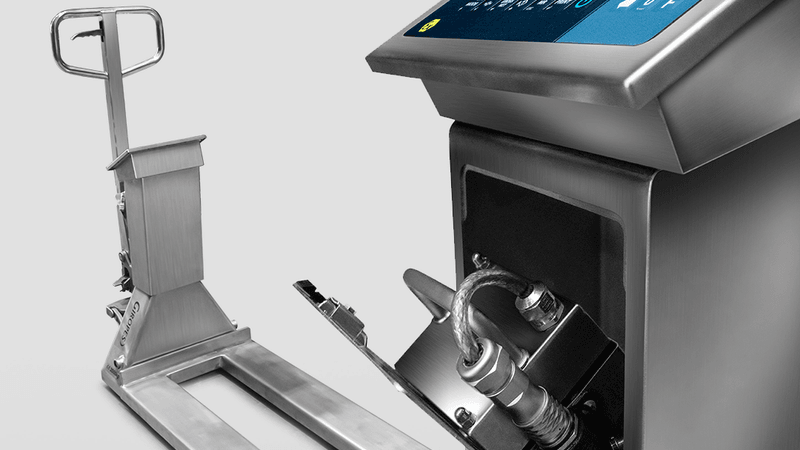

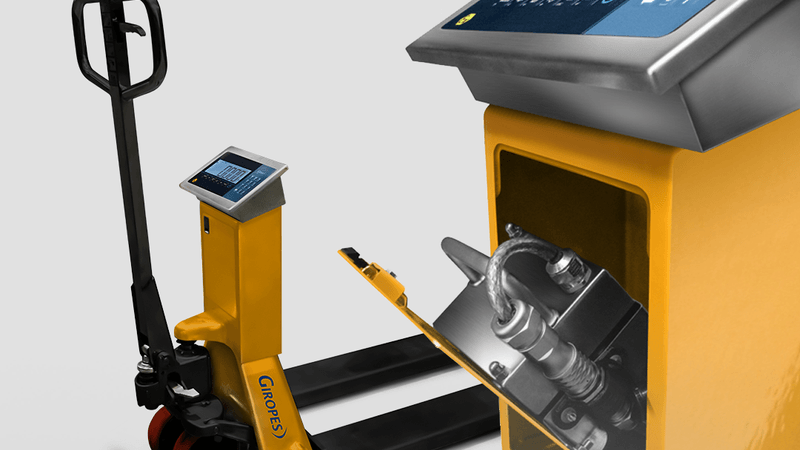

• TP410 WIDE: Forklift designed for American pallets, with built-in GI410i indicator and painted steel version. Suitable for legal weighing.
• TP410i ATEX: ATEX certified weigh forklift in stainless steel version, with digital LCD display. Valid for legal weighing.
• PAINTED TP410 ATEX: ATEX certified weigh forklift in painted version, with numerical LCD display. Valid for legal weighing.

The BPP series is the perfect synthesis of precision, durability, and user-friendly design, optimizing material handling and weighing processes in your company. Customization of the platforms according to individual needs (through accessories and options) guarantees the most suitable solution.
