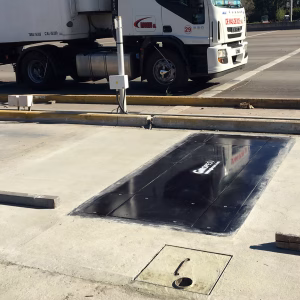

BPPEM Axle Scales: Compact Solution with Maximum Reliability
The BPPEM series axle scales combine the latest technology with a compact structure, making them ideal for use on road surfaces where space-saving is crucial. These measuring systems are perfectly suited for both static and mobile measurements, guaranteeing maximum reliability. BPPEM systems have proven themselves worldwide, successfully implemented in numerous countries, including Argentina and Tajikistan.
Key Features and Advantages
The primary consideration in the design of BPPEM axle scales was space optimization, without compromising measurement accuracy or durability.
-
Compact Design: The small size allows for easy installation and integration into existing infrastructures.
-
Maximum Reliability: The built-in chip technology ensures consistent and accurate measurements even under changing conditions.
-
Optional Diamond Plate Surface: A special diamond plate surface design is optionally available. This texture increases grip, which is particularly advantageous in environments with high humidity or frequent precipitation, minimizing the risk of vehicle slippage during measurement.
-
Customizability: Available accessories and options for the weighing system allow for complete customization of the product, ensuring that the solution precisely meets the customer's individual needs and provides the most optimal result.
Technical Specifications
BPPEM axle scales are available in different capacities and sizes to meet the most diverse load requirements.
| Capacity (t) |
Length (m) |
Width 0,75 m |
Width 1 m |
Width 1,5 m |
Height (mm) |
| 15 |
3 |
• |
• |
• |
270 |
| 30 |
3 |
• |
• |
• |
310 |
| 40 |
3 |
• |
• |
• |
330 |
Basic Technical Parameters:
-
Capacity Range: 15 t – 40 t
-
Length: 3 meters (standard)
-
Width Options: 0.75 m, 1 m, 1.5 m
-
Height: 270 mm, 310 mm, or 330 mm (depending on capacity)
-
Load Cell Type: 12G8R type load cells ensure measurement accuracy.
Digital Indicators and Software Solutions
The performance of BPPEM axle scales is further enhanced by advanced digital indicators and software offered by Giropès, which aid in the recording, processing, and reporting of measurements.

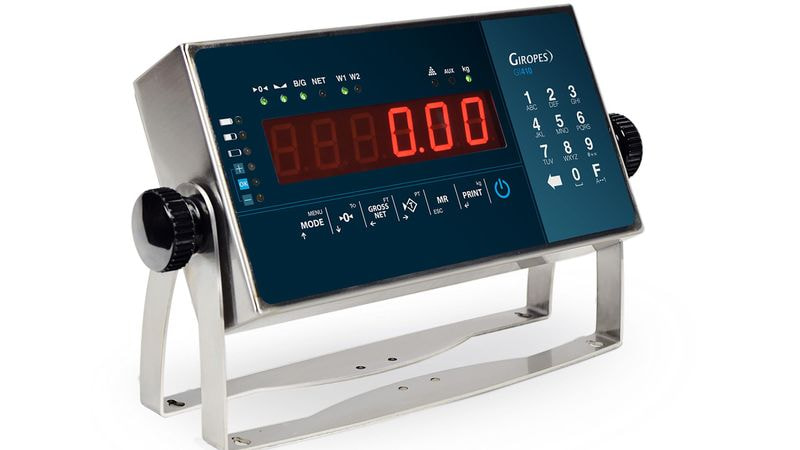

GI410i Series (Stainless Steel Housing)
The GI410i series indicators feature a stainless steel housing, which provides excellent resistance against corrosion, making them ideal for industrial and outdoor environments.
| Model |
Display Type |
Storage Capacity |
Pre-set Tare Values (Tare) |
| GI410i LCD STAINLESS STEEL |
LCD |
400 pcs item 1, 400 pcs item 2 |
10 |
| GI410i LED STAINLESS STEEL |
LED |
400 pcs item 1, 400 pcs item 2 |
10 |
These units feature a digital tare function, significantly accelerating continuous measurements.

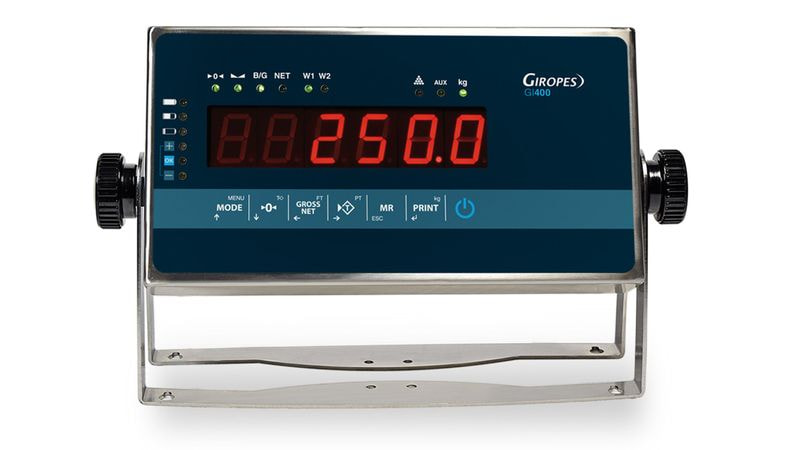

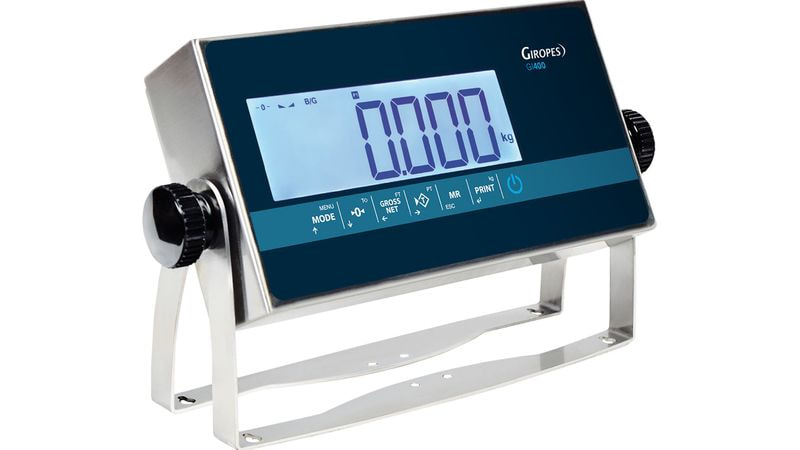

GI400i Series (Stainless Steel Housing)
The GI400i series focuses on handling manually entered tares, complemented by flexible printing options.
| Model |
Display Type |
Storage Capacity |
Print Formats |
| GI400i LCD STAINLESS STEEL |
LCD |
6 manually entered tares (tare memory) |
Up to 8 different formats |
| GI400i LED STAINLESS STEEL |
LED |
6 manually entered tares (tare memory) |
Up to 8 different formats, multi-language support |
These indicators enable customized printing of measurement tickets, which is essential for fulfilling various administrative and logistical requirements.

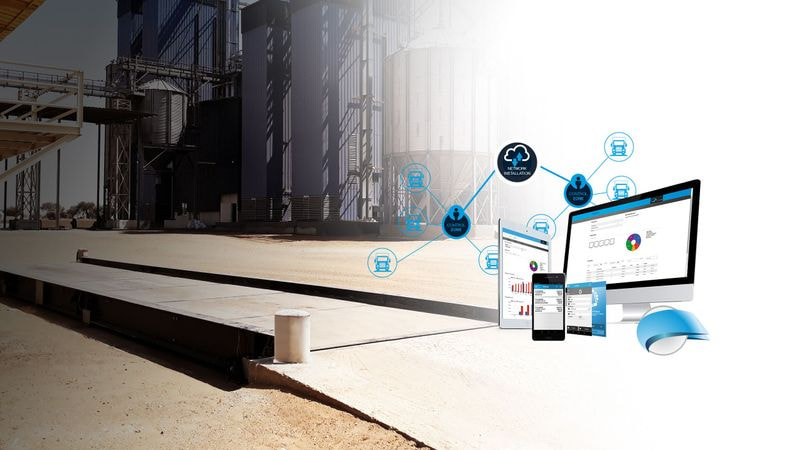

Software Solutions
The hardware measurement accuracy is complemented by software that ensures complete control over vehicle weighing operations.
GesTruck 2 Software
A
GESTRUCK 2 The software provides comprehensive control over vehicle weighing operations.
-
User-Friendly Interface: Easy-to-understand user interface that minimizes training time.
-
Data logging: Enables the collection of desired information with maximum accuracy and speed.
-
Control: Provides complete control over the weighing processes.

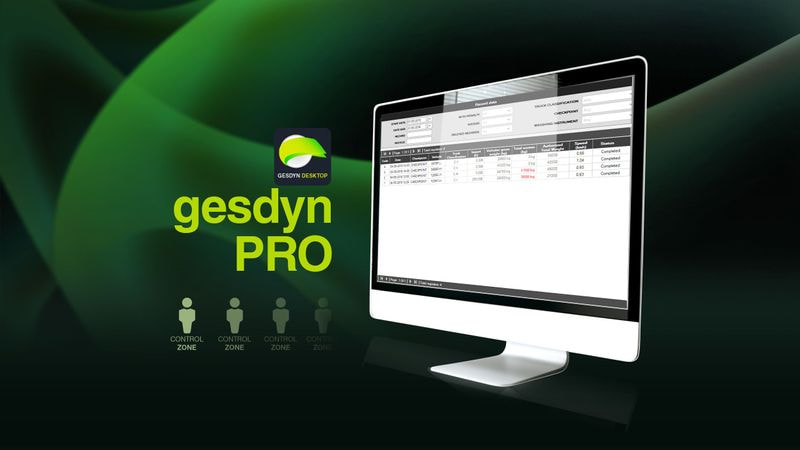

GesDyn Software
A
GesDyn Software developed by Giropès, specifically designed for
weighing in motion (weighing in motion system).
-
Traffic Enforcement: Ideal for systems that detect the weight of vehicles in traffic and sanction overweight vehicles.
-
Dynamic Measurement: Capable of measuring vehicles in motion, thereby increasing inspection efficiency.

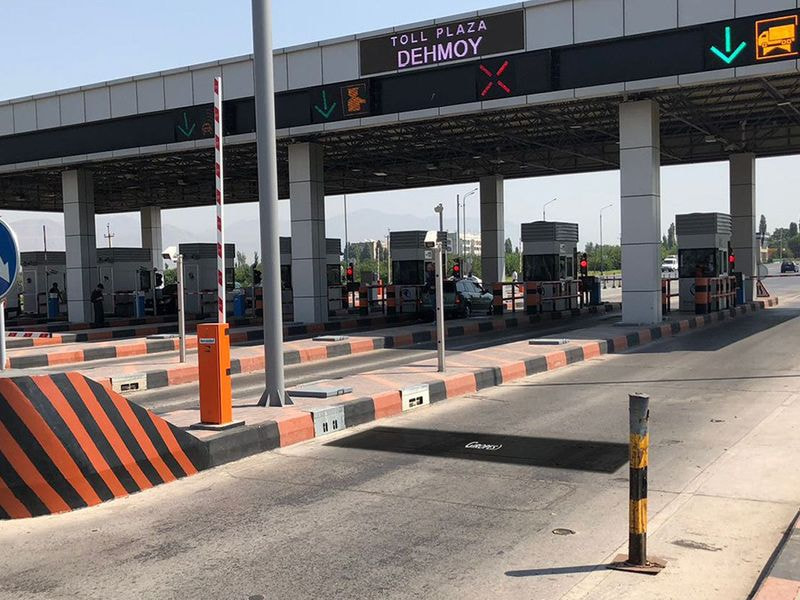

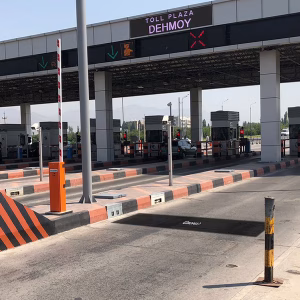

Case Study: GIRWIM System Installation in Tajikistan
The reliability of BPPEM axle sensors is well illustrated by the
GIRWIM successful installation of the weighing system in Tajikistan. Giropès has installed new vehicle weighing systems based on BPPEM technology at several points along this Asian country's highway network, contributing to the protection of the road network and compliance with traffic regulations. This project also demonstrates the global applicability and robustness of BPPEM systems.
The BPPEM series is the perfect synergy of space-saving design, advanced technology, and customizability, meeting every professional weighing requirement.
