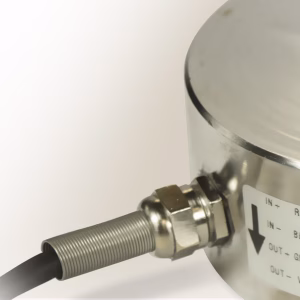

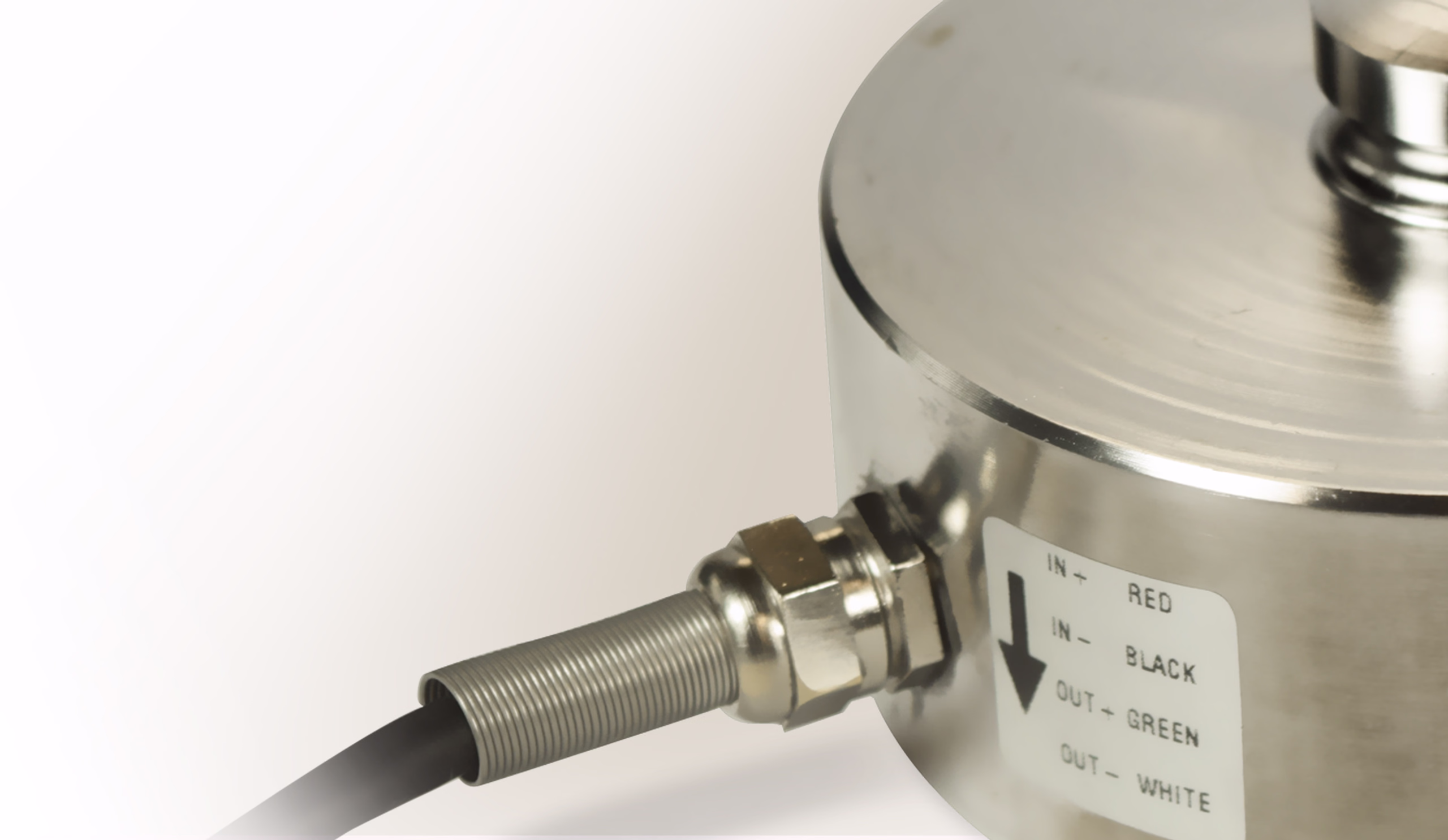

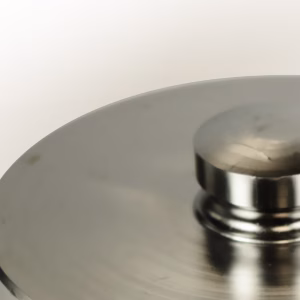

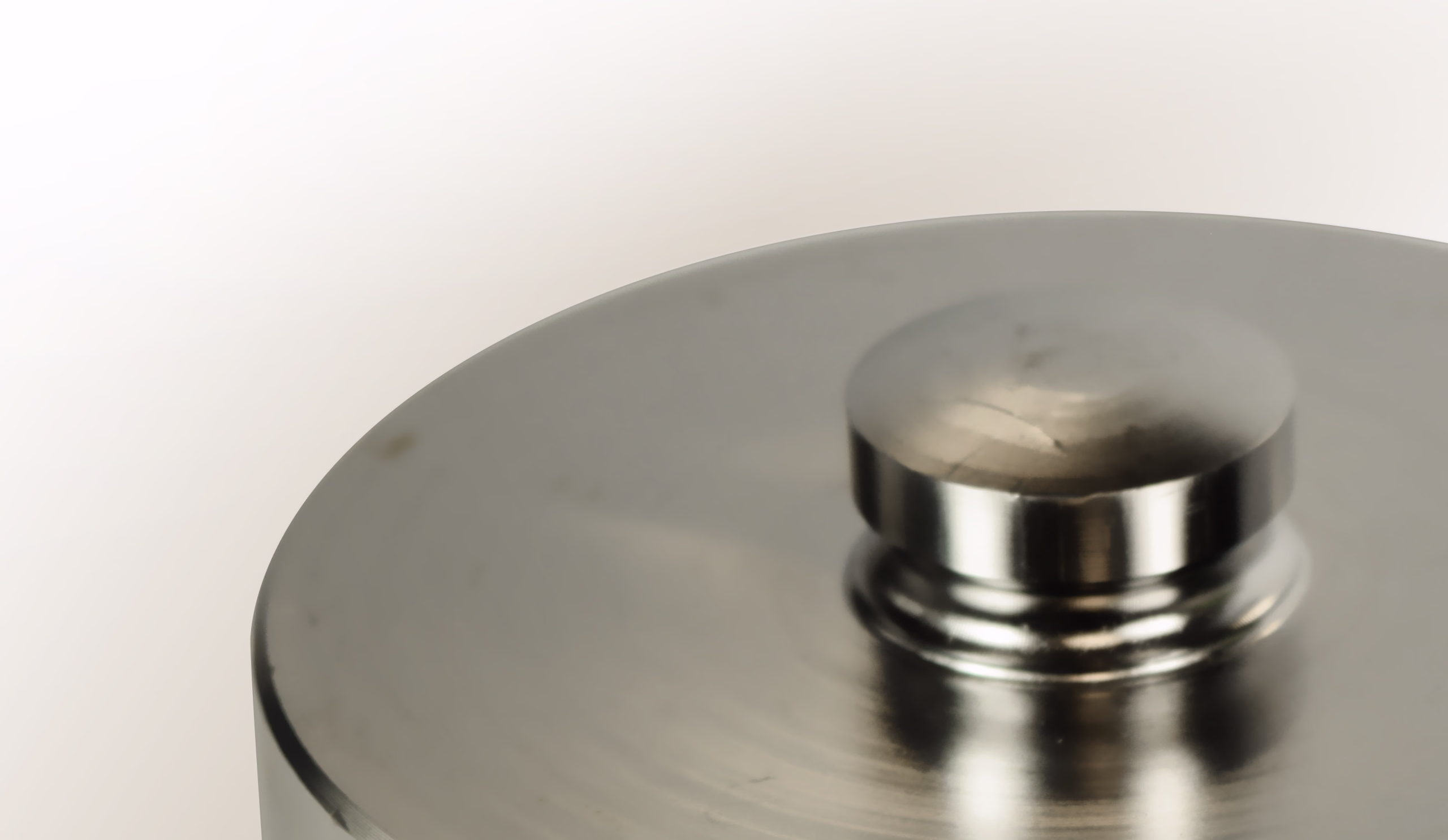

GTD Type Load Cell: High Capacity, Hermetically Sealed Solution for Silos and Hoppers
The GTD type load cell is a robust, high-capacity solution specifically designed for industrial applications, particularly for the precise measurement of silos, hoppers, and tanks. Its outstanding reliability is ensured by the use of high-quality materials and a design that resists extreme environmental conditions.
Key Features and Advantages
Extreme Environmental Protection (IP68)
The surface treatment of the load cell guarantees a
IP68 protection rating. This degree of sealing allows for the safe and reliable operation of the cell even in environments with high humidity, wetness, or other adverse conditions. This is critically important in agricultural, food processing, or chemical storage systems where corrosion and moisture are a constant threat.
High Capacity and Accuracy
A GTD sorozat széles kapacitástartománya (2,5 t -tól 30 t -ig) lefedi a legtöbb nagyméretű tárolórendszer igényeit. A mérőcella az
OIML certified accuracy class tartozik, biztosítva a jogi mérésre is alkalmas, hitelesített eredményeket.
Szakértelem és Részlet Orientált Kivitelezés
A gyártó nagy hangsúlyt fektet a részletekre, amelyet a szakképzett mérnökök és szakemberek biztosítanak a tervezéstől a gyártásig. Ez a részlet orientált megközelítés garantálja a terhelésmérő cella maximális hatékonyságát és hosszú élettartamát a legnehezebb ipari terhelések alatt is.
Flexible Installation Solutions
Specialized
mounting kits are available for the load cells, enabling the adaptation of weighing solutions to almost any type of silo or hopper. These kits optimize installation and ensure optimal load distribution on the load cell.
Emelésgátló Szerelési Készlet
A special
lift-off restraint device, made of zinc-plated steel or stainless steel, is available as an optional accessory. This accessory is essential when weighing tanks and silos, as it prevents the tanks or the materials inside them from lifting (e.g., due to wind or internal pressure), thus ensuring the continuity and accuracy of the measurement.
Technical Data Summary
The technical parameters of the GTD series have been determined as follows:
| Capacity (Nominal Load, $T$) |
Accuracy Class (OIML) |
Osztályozási Tényező (ymax / vmin) |
Material |
Protection |
Jogi Mérésre |
| 2.5 t |
C3 |
10000 |
Stainless steel |
IP68 |
Yes |
| 5 t |
C3 |
10000 |
Stainless steel |
IP68 |
Yes |
| 7.5 t |
C3 |
10000 |
Stainless steel |
IP68 |
Yes |
| 10 t |
C3 |
10000 |
Stainless steel |
IP68 |
Yes |
| 12.5 t |
C3 |
10000 |
Stainless steel |
IP68 |
Yes |
| 20 t |
C1 |
10000 |
Stainless steel |
IP68 |
Yes |
| 25 t |
C1 |
10000 |
Stainless steel |
IP68 |
Yes |
| 30 t |
C1 |
10000 |
Stainless steel |
IP68 |
Yes |
Detailed Technical Parameters
- Area of Application: Weighing of industrial silos, hoppers, tanks, and other large-volume storage systems.
- Capacity range: Between 2.5 tons (t) and 30 tons (t).
- Protection: IP68 – Complete protection against dust ingress and resistant to prolonged submersion in water (according to manufacturer specifications).
- Material: High-quality stainless steel construction that resists corrosion and chemical effects.
- Accuracy: The C3 and C1 accuracy classes ensure a high level of measurement reliability.
- OIML Classification: A ymax / vmin arány 10000, ami standard ipari pontossági követelményeknek felel meg.
- Legal for Trade Suitability: A megjelölt modellek alkalmasak kereskedelmi célú, jogilag hitelesített mérésekre.
Installation Flexibility and Accessories
Installation versatility was key in the design of the GTD load cell. Available
mounting kits lehetővé teszik a mérőcella integrálását meglévő vagy új építésű tárolóstruktúrákba.
A szerelőkészletek célja, hogy:
- Ensure even load transfer onto the load cell.
- Prevent the effect of horizontal or lateral forces that could distort the measurement.
- Facilitate maintenance and cell replacement.
Especially important for
emelésgátló kiegészítő, which mechanically fastens the tank to the base of the load cell, preventing unwanted vertical movement, which can occur, for example, in the event of pressure changes or strong winds. This function is essential for maintaining continuous and accurate measurement.
The GTD load cell is the ideal choice for all industrial sectors that require a reliable, high-capacity, and extreme-condition resistant weighing system. The stainless steel design and IP68 protection guarantee long-term, trouble-free operation.
