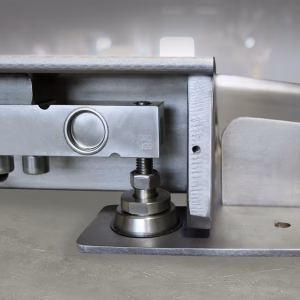

G3S Load Cell: Versatility and Reliability for Precision Weighing
The G3S load cell is the result of continuous research and development aimed at maximizing accuracy and durability even in the most demanding industrial environments. This technological investment guarantees reliable performance across a wide capacity range, making it ideal for many different applications.
Key Features and Advantages
The exceptional versatility and robust design of the G3S cell make it an excellent choice for all types of platforms and weighing systems.
- Wide Capacity Range: A G3S cellák 150 kg -tól egészen 5000 kg -ig terjedő névleges terhelések kezelésére képesek, rugalmas megoldást nyújtva a könnyű kereskedelmi alkalmazásoktól a nehéz ipari mérésekig.
- Excellent Protection (IP68): The nickel-plated steel construction and IP68 protection guarantee the cell's resistance against the ingress of dust and water. This makes it ideal for demanding wet environments on painted platforms, as well as for stainless steel platforms where regular contact with water may occur.
- Certifiability: A G3S sorozat alkalmas kereskedelmi célú mérésekre, mivel megfelel a jogi metrológiai követelményeknek, biztosítva a mérések pontosságát és elfogadottságát.
- High Accuracy: The cells belong to the C3 accuracy class according to the requirements of OIML (International Organization of Legal Metrology), which enables extremely reliable and accurate measurement.
Technical Specifications
The technical specifications of the G3S load cell ensure long-term, trouble-free operation under various industrial conditions.
| Parameter |
Value |
Note |
| Kapacitás (In) |
150 kg – 5000 kg |
The entire available range |
| Protection |
IP68 |
Dust and water resistant design |
| Accuracy Class (n.) |
C3 |
According to OIML |
| OIML Classification |
M3000 |
|
| Minimum Division (vmin) |
10000 |
|
| Material |
Alloy steel |
With nickel-plated surface treatment |
| Verifiability |
Yes |
For commercial applications |
Detailed Capacity and Accuracy Table
Every model in the G3S family is precisely calibrated for the specified load range:
| Nominal Load (In) [kg] |
Accuracy Class |
OIML Class |
Minimum Division (vmin) |
Material |
Protection |
| 150 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 300 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 750 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 1500 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 2000 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 2500 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 3000 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
| 5000 |
C3 |
M3000 |
10000 |
Alloy steel |
IP68 |
Application Areas
The G3S load cell offers an ideal solution for all weighing platforms that require reliable and accurate weight data. The 4-cell configuration (per platform) ensures even load distribution and measurement stability.
Ideal application areas:
- Weighing of industrial measuring systems and tanks.
- Commercial scales where legal verification is required.

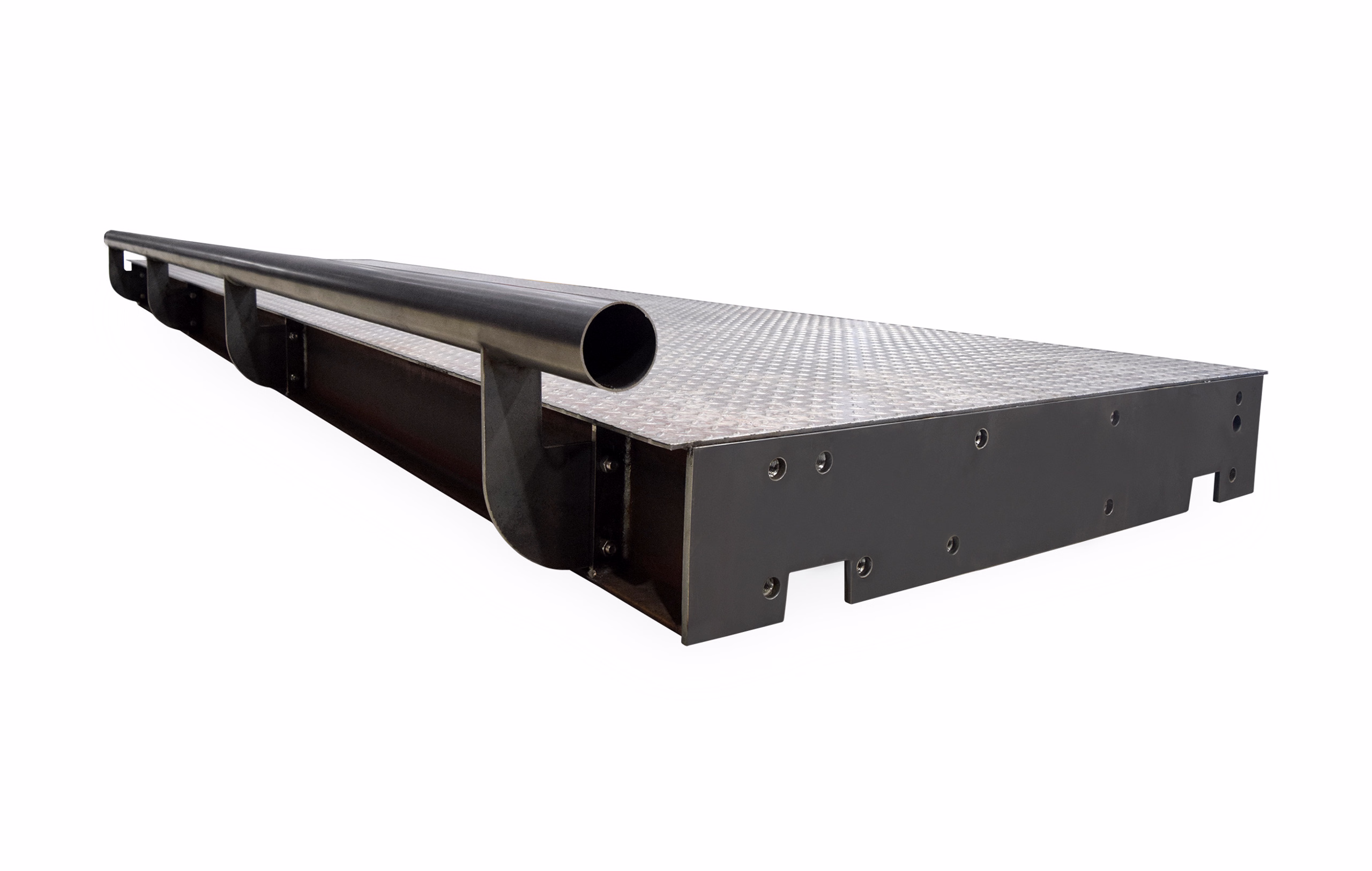

- Platforms requiring heavy load bearing capacity, in painted or stainless steel versions.
- Environments where dust and moisture are regularly present.
A G3S sorozat a tartósság és a pontosság ötvözetével biztosítja, hogy beruházása hosszú távon is megtérüljön a precíz mérések révén. További részletes dokumentációért kérjük, tekintse meg a termékhez tartozó műszaki adatlapot.
