GY18 Aluminum Load Cell – For High-Performance Industrial Weighing
A GY18 típusú alumínium mérlegcella a precíziós súlymérés elkötelezett eszköze, amelyet kifejezetten a legigényesebb ipari környezetek követelményeinek kielégítésére terveztek. Ez a terhelésérzékelő kiválóan ötvözi a robusztus konstrukciót a kiemelkedő mérési pontossággal, névleges terhelhetősége 200 kg -tól egészen 500 kg -ig terjed.
A GY18 modell a GY sorozat tagjaként a megbízhatóság és a hatékonyság szinonimája, ideális választás olyan alkalmazásokhoz, ahol a terhelés eloszlása nem mindig ideális, de a mérési eredményeknek mégis rendkívül pontosnak kell lenniük.
Key Features and Advantages
Excellent Construction and Durability:

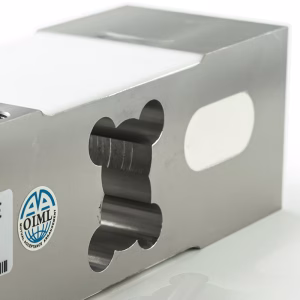

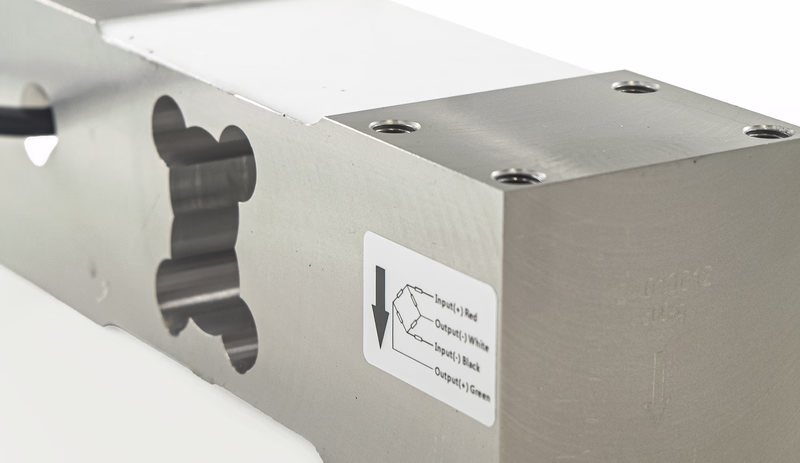

The load cell is made of first-class aluminum. This material choice guarantees not only a long service life but also excellent corrosion resistance, which is essential in harsh industrial areas exposed to moisture or chemicals.
High Accuracy Even with Load Distribution:
The GY18 is optimized to ensure a high level of accuracy even in cases of eccentric (off-center) loads. This is critically important for large platform scales where the weight is often not placed exactly in the center of the cell.
IP65 Protection:
The cell has an IP65 protection rating, which provides full protection against dust ingress and resistance to low-pressure water jets. This ensures reliable operation in dusty or wet environments.
Certifiability:
The GY18 is suitable for commercial use as it complies with legal metrological (OIML) requirements, which increases the transparency and reliability of business transactions.
Application Areas
The GY18 load sensor is an ideal choice for use in the following areas:

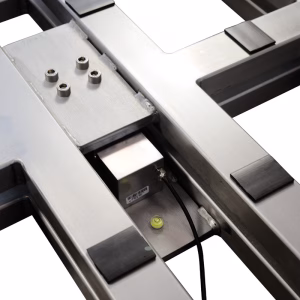

- Platform Scales: Especially suitable for large, single-cell platforms.
- 200 kg kapacitás esetén: 600 x 600 mm platformmérethez.
- 500 kg kapacitás esetén: 600 x 800 mm platformmérethez.
- Industrial Checkweighing: Minőség-ellenőrzési folyamatok, ahol a pontos adatok elengedhetetlenek.
- Material Handling and Dosing: Precise quantity measurement in processes.
Technical Data Summary
The specifications for the GY18 model are as follows:
| Parameter |
GY18 (200 kg) |
GY18 (500 kg) |
Note |
| Névleges Terhelés (In) |
200 kg |
500 kg |
Maximum Load Capacity |
| Accuracy Class (OIML) |
C3 |
C3 |
For medium accuracy industrial applications |
| Minimális Osztás (y=emax/vmin) |
200000 |
170000 |
Measure of Accuracy |
| Material |
Alu |
Alu |
Excellent Corrosion Resistance |
| Protection |
IP65 |
IP65 |
Dust and water protection |
| Application |
Approved for Legal Metrology |
Approved for Legal Metrology |
Verifiable design |

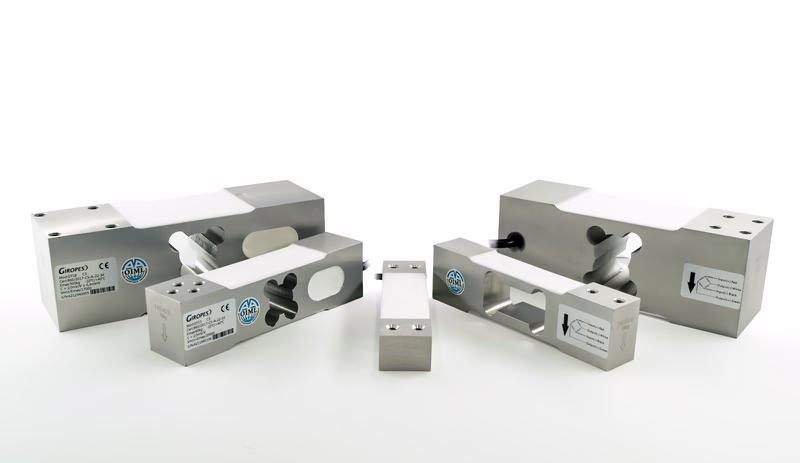

GY Series Overview
The GY series comprises four different models offering a flexible solution for a wide range of projects:
- GY18: 200 kg – 500 kg capacity, aluminum design, IP65 protection.
- GY17: 100 kg – 500 kg capacity, made of high-quality aluminum, protected by silicone rubber.
- GY15: 50 kg – 300 kg capacity, precise design, ideal for various industrial applications.
- GY13 & GY13L: 3 kg – 100 kg capacity, optimized for lighter and specific loads, ensuring constant accuracy.
Integrated Weighing Solutions
In addition to load cells, we offer comprehensive solutions for modernizing and optimizing weighing systems. Our expert team provides assistance with system integration, which may include:
- Weighing Instruments: Various displays and indicators, such as the GI400i LCD STAINLESS STEEL (tare memory function, up to 6 tare entries, print formats in multiple languages) or the GI400 BAT LI ION (LCD display, ABS or stainless steel housing, lithium-ion battery providing 8 hours of operation time).
- Industrial Scales: Robust BMC industrial bench scales, available in painted or stainless steel versions.
- Software Integration: A GISCALE programmal történő integráció, amely lehetővé teszi a súlyadatok hatékony kezelését és elemzését, testre szabva az Ön specifikus igényeihez.
We pay attention to every detail from design through manufacturing to servicing to deliver the highest quality and most reliable products. Our expert team is ready to advise you on the selection, installation, and maintenance of measuring systems, ensuring that industrial measurement reaches the next level.
