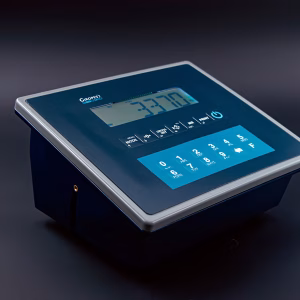

GI620 Compact Desktop Weighing Indicator – For Wheel and Axle Weighing
The GI620 Compact weighing indicator is designed to fit perfectly anywhere while providing outstanding performance. Ideal for portable and field applications, this device combines a robust design with high levels of precision and flexibility. The CE-M approval (according to OIML R-76 / OIML R-134 standards) guarantees reliability, while the dedicated wheel and axle weighing firmware allows for vehicle weight measurement in both static and dynamic modes.
Key Features and Advantages
Excellent Design and Portability
The GI620 Compact model features a portable and easily transportable design, making it ideal for mobile and field measurements. Its compact dimensions make it exceptionally suitable for use in environments where mobility is crucial. The IP54 protection rating ensures resistance to dust and protection against splashing water.
Metrological Approval and Accuracy
The device is equipped with
CE-M approval for static measurements according to
OIML R-76 standard, and for dynamic measurements according to
OIML R-134 standard. This dual certification ensures accuracy and versatility. It is capable of performing dynamic measurements at speeds up to 10 km/h (certified limit is 5 km/h).
Flexible Connectivity

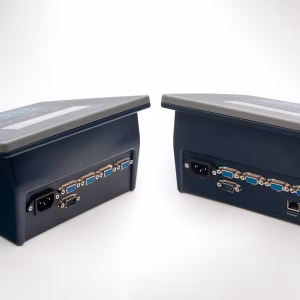

As standard equipment, the GI620 Compact offers
4-channel RS232 input and output . For even greater flexibility, it can optionally be expanded
with USB + Ethernet connectivity, facilitating data uploading and downloading, as well as integration into other systems.
Advanced Measurement Functions
1. Static or Dynamic Measurement
The system is extremely versatile, allowing the determination of vehicle weight in both static and dynamic operating modes.
- Wheel Weighing Mode: The measurement is always performed in static mode.
- Tengelysúlymérési Mód: The measurement can be performed in static or dynamic mode, at speeds up to 10 km/h (certified limit: 5 km/h).
2. Memory and Data Management
A készülék átfogó lehetőségeket nyújt a mérési adatok testre szabott rögzítésére és kezelésére:
- Internal memory: With 1000 measurement records capable of storing.
- Custom codes: Minden mérési rekord társítható szerkeszthető kódokkal, amelyek ügyfél- vagy jármű-információkat tartalmazhatnak.
- Time and date management: Integrated clock-calendar ensures accurate time stamping.
3. Súlypont kalkuláció
This function (only available in wheel weighing mode) allows the calculation and printing of the vehicle's center of gravity for 2, 3, or 4 platform arrangements. The results can be displayed as coordinates or on a graph.
- Center of gravity coordinates and graph printing.
- Weight per platform and the sum of active combinations during the measurement.
Firmware Specifications
| Function |
Wheel weighing |
Axle weighing |
| Required number of platforms |
Number of vehicle wheels |
Two platforms required per axle |
| Max. reading channels |
4 channels |
N/A |
| Max. platforms |
2 units/channel (in case of wired connection, without center of gravity function) |
N/A |
| Measurement mode |
Always static |
Static or dynamic (manual or automatic) |
Function Comparison
| Function |
Wheel Weighing* |
Axle Weighing** |
| OIML certificate of conformity |
✔ |
✔ |
| Zeroing on all platforms |
✔ |
✔ |
| Weight display per platform (static axle weighing) |
✔ |
✔ |
| Axle weight display (axle weighing) |
✖ |
✔ |
| Total platform weight display (max. 4 channels for wheel weighing) |
✔ |
✔ |
| Total vehicle or vehicle+trailer weight display |
✖ |
✔ |
| Date and time programming (integrated calendar) |
✔ |
✔ |
| Weighing point calculation and printing (on 2, 3 or 4 platforms) |
✔ |
✖ |
| Coordinate or graphical display |
✔ |
✖ |
| Nyomtatási mód konfiguráció (GiManager -en keresztül) |
✔ |
✔ |
| Re-printing of receipt |
✔ |
✔ |
| List of measured vehicles |
✔ |
✔ |
| List of total weights |
✔ |
✔ |
* Only for static measurement.
** OIML R76 statikus módban specifikus kerék- és tengelysúlymérő platformokkal. OIML R134 dinamikus módban a BPRG kerékmérő platformmal – Sebesség akár 10 km/h, tanúsítva 5 km/h -nál.
Software Support
The GI620 Compact can be fully integrated with dedicated software for maximum data management:
GesDynRoad Weighing Software
This software is ideal for static and dynamic weighing, traffic detection, and fine assessment.
- Vehicle pre-selection, traffic statistics, and data management.
- Compatible with third-party devices (hardware and software).
- A súlypont megjelenítése kerékmérési módban.
- Integration of all modules and control of peripherals.
GI Manager Software
GI Manager is used for configuring and displaying the GI620 indicators.
- Search and management of connected devices.
- Firmware download and backups.
- Advanced configuration (metrological settings, communication, calibration).
- Ticket configuration and ticket reprint.
- Real-time weight display.
- System requirements: Windows 8/10, 2GB RAM, 10GB storage.
Technical Specifications
| Parameter |
Detail |
| Display |
LCD, 6 digits, 27 mm high, 14 segments for easy readability |
| Keyboard |
With 12 alphanumeric keys and 7 function keys |
| Input |
4 channels |
| Outlet |
1 x RS232 output (standard). 1 x Ethernet-USB output (optional) for data download |
| Protection |
IP54 |
| Units of Measure |
kg |
| Ticket |
Fully configurable (with the help of GiManager) |
| Certificate |
CE-M certified (OIML R-76 / OIML R-134) |
| Supported Languages |
Spanish, English, French, Italian, Portuguese, German |
| Firmware |
Axle weighing / Wheel weighing (to be selected at time of order) |
| Tápellátás |
110-240V AC 50/60Hz |
| Battery (Optional) |
Rechargeable Lithium (7.4V-2.6Ah). Approx. 5 hours operating time with intensive use |
| Dimensions (mm) |
237 x 201 x 124 |
| Weight (kg) |
4 |
| Operating Temperature |
Between -10ºC and +40ºC |

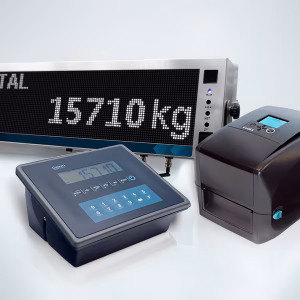

Available Models and Optional Accessories
A GI620 Kompakt alapmodell (ABS IP54 RS232 -vel) mellett bővített verziók is elérhetők:
- GI620 COMPACT ABS IP54 RS232
- GI620 COMPACT ABS IP54 RS232 and Ethernet + USB
Optional Accessories
For a complete system setup, several accessories are available:
- ALIBI Memory: Data security solution.
- Pót akkumulátor: For ensuring extended operating time.
- Load cells:
- GI400 R45 Load cell (6 digits, 45 mm).
- P16 Load cell (high density LED matrix).
- Printers:
- IMP 27 Matrix printer (Paper widths: 76, 69, 57 mm).
- IMP 28 Matrix printer (Paper width: 76.2 mm).
- IMP 29 Matrix printer (Paper widths: 57.5, 69.5, 76 mm).
- IMP 27.4 Hőnyomtató (Papírméret: 72 mm széles).
Software Options
Further levels of measurement and data processing:
- GImanager
- Gesdyn PRO
- Gesdyn WEB (web platform)
- Gesdyn CLOUD

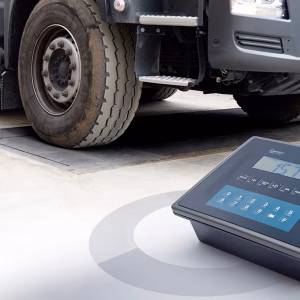

Compatible Measuring Platforms
The GI620 COMPACT works excellently with the manufacturer's portable measuring platforms:
- PMS: Portable wheel weighing platforms (700 x 450 mm), with anti-slip rubber.
- PMR: Portable wheel weighing platforms (500 x 400 mm), with anti-slip rubber.
- PMT: Portable wheel weighing platforms (900 x 500 mm), with anti-slip rubber.
- BPRG: Low profile, portable platforms for static and/or dynamic weighing of wheels.
The GI620 COMPACT is a reliable, certified, and extremely flexible solution for professional vehicle weighing tasks that can be easily integrated into any existing infrastructure.
