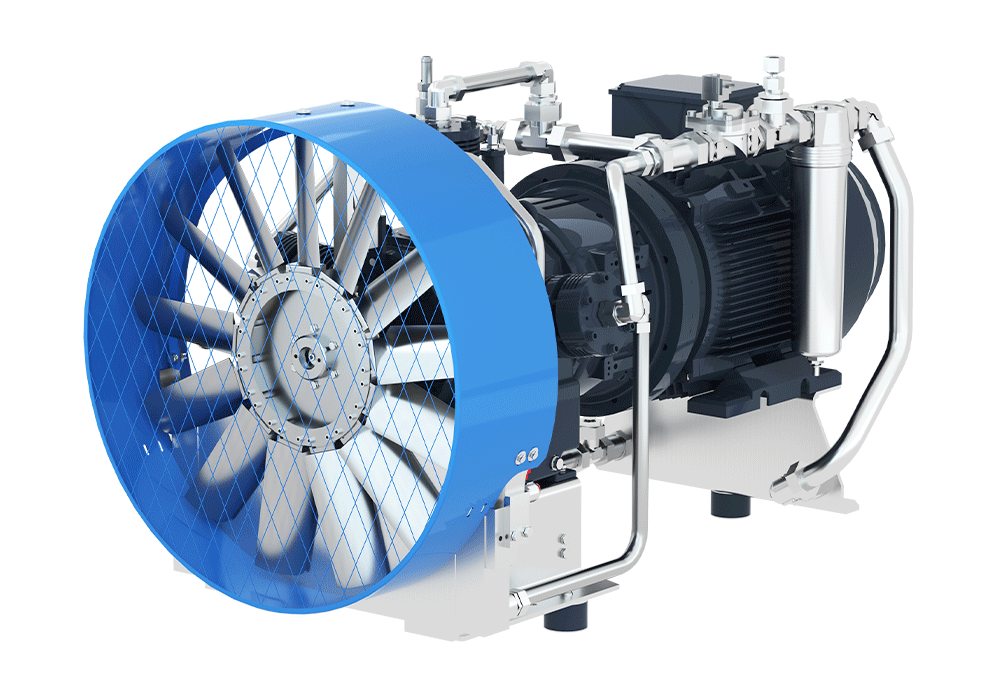

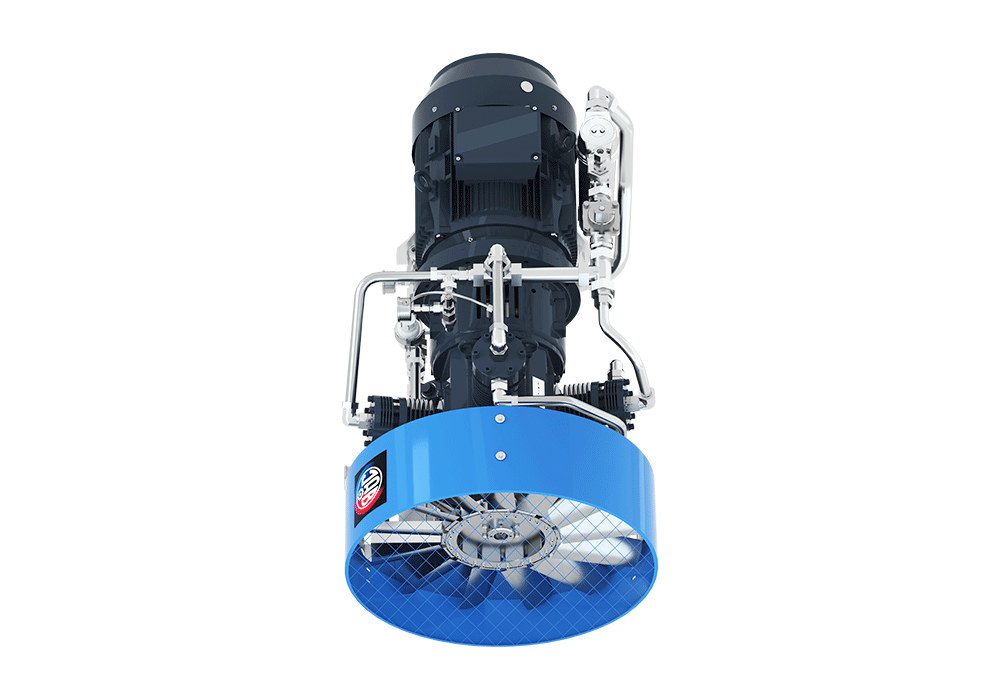

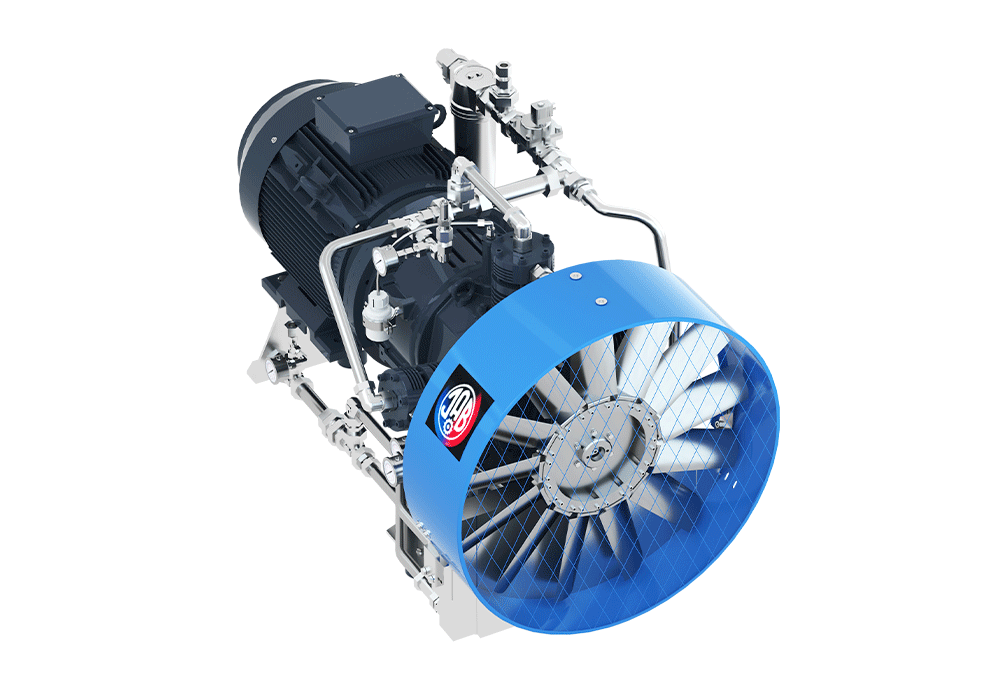

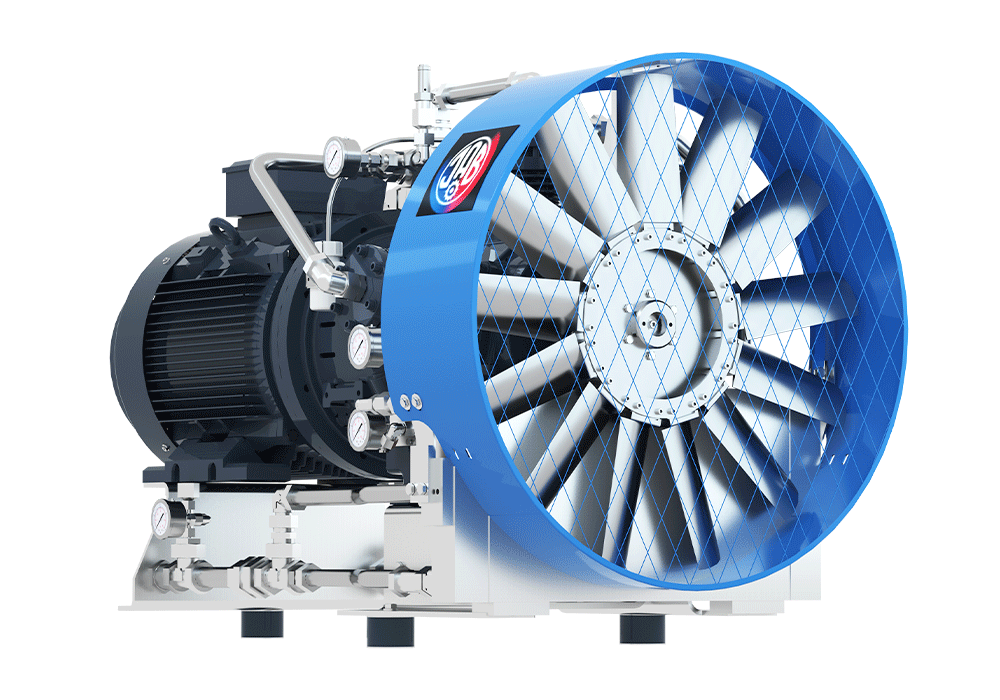

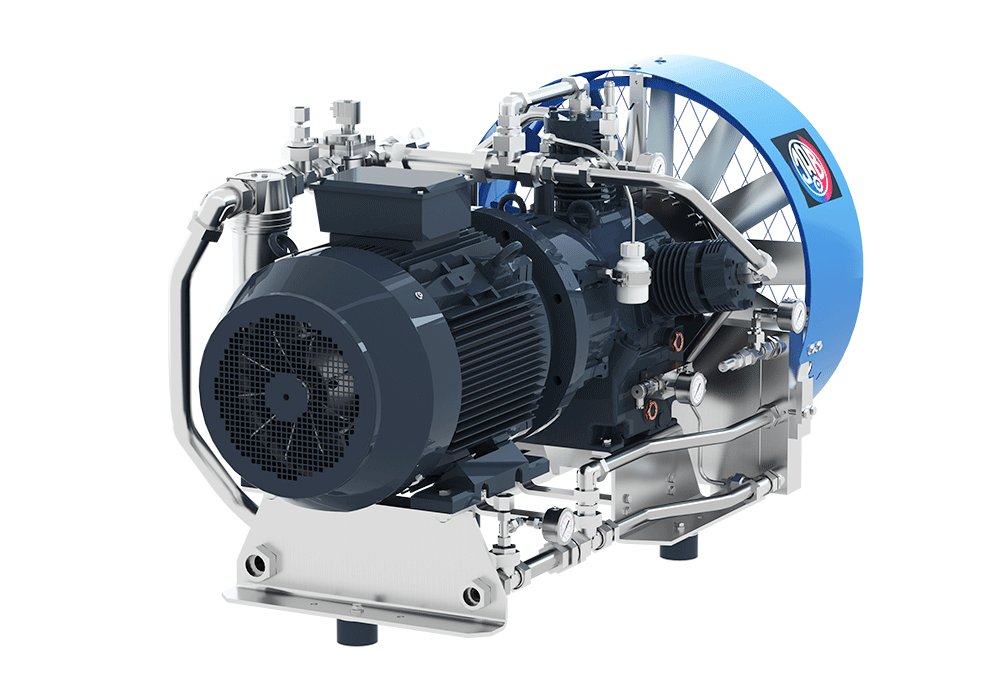

The J.A. Becker & Söhne V 5461-3/40 type, 22 kW single-stage air compressor is a screw-technology based, high-performance unit designed specifically for the most demanding industrial applications. This model offers a perfect blend of reliability, efficiency, and longevity, ensuring a continuous and stable supply of compressed air.
This compressor is not a „mass-produced item” (NO 08/15 PRODUCTS), but rather a premium category solution that represents first-class quality in every aspect. It is particularly suitable for areas requiring high-pressure air, such as driving pneumatic tools, operating high-pressure systems, or for special manufacturing processes.
The outstanding features of the V 5461-3/40 compressor guarantee economical and trouble-free operation:
Outstandingly Efficient Cooling: The advanced cooling system ensures optimal operating temperature, minimizing heat loss and increasing the compressor's lifespan. This effective heat management is crucial for maintaining continuous performance under high load.
Teljesen Automatikus Kiürítés: The built-in automatic discharge function ensures regular and reliable removal of condensate and excess pressure, thereby preventing system corrosion and performance reduction. This feature significantly reduces the need for operational intervention.
Long Maintenance Cycles: As a result of the robust construction and use of high-quality components, maintenance intervals have been significantly extended. This ensures lower operating costs and maximum availability.
High Pressure Capacity: Thanks to the maximum operating pressure of 20 bar, it is an ideal solution for applications that would not be achievable with conventional compressors.
The precise technical parameters of the V 5461-3/40 model are as follows:
| Parameter | Value | Note |
|---|---|---|
| Típus | V 5461-3/40 | Single-stage air compressor |
| Performance (Electric Motor) | 22 kW | High-power drive |
| Inlet pressure | 7.5 bar | Standard input conditions |
| Volume flow rate (Suction side) | 6,400 l/min | Extremely high delivery capacity |
| Maximum Operating Pressure | 20 bar | For high-pressure applications |
| Compression Stages / Cylinder | 1 / 3 | Single-stage, three-cylinder design |
| Speed (Rotational speed) | 1.500 U/min | Optimized operating speed |
This compressor flexibly adapts to various requirements in the following ranges:
Volumetric flow rate: 348.9 – 666.0 m³/h
Operating pressure: 20 – 40 bar (Note: The technical data mentions 20 bar, while the main title indicates a range of 20-40 bar, which may vary depending on the configuration.)
A V 5461-3/40 egyfokozatú kialakítása ideális választás, amikor a sűrített levegő előállításának utolsó lépéseként van szükség a nyomás jelentős növelésére.
Application areas:
High Pressure Pneumatics: Systems that operate at pressures above 20 bar.
Industrial Processes: Production lines where high-pressure air is required for precise operation.
Energy-Intensive Workshops: Vehicle repair where the continuous supply of high-power pneumatic tools is essential.
Durability and ease of servicing were the main considerations during the design of the unit. The robust structure guarantees that the compressor will operate reliably even in the harshest industrial environments.
J.A. Becker & Söhne is committed to excellent quality. The V 5461-3/40 model is a first-class product in every respect, representing a long-term investment in increasing productivity. Detailed technical documentation (data sheets and brochures) can be downloaded, providing further in-depth information on installation, operation, and maintenance.
This compressor is synonymous with efficiency and reliability in the field of high-pressure compressed air generation.
