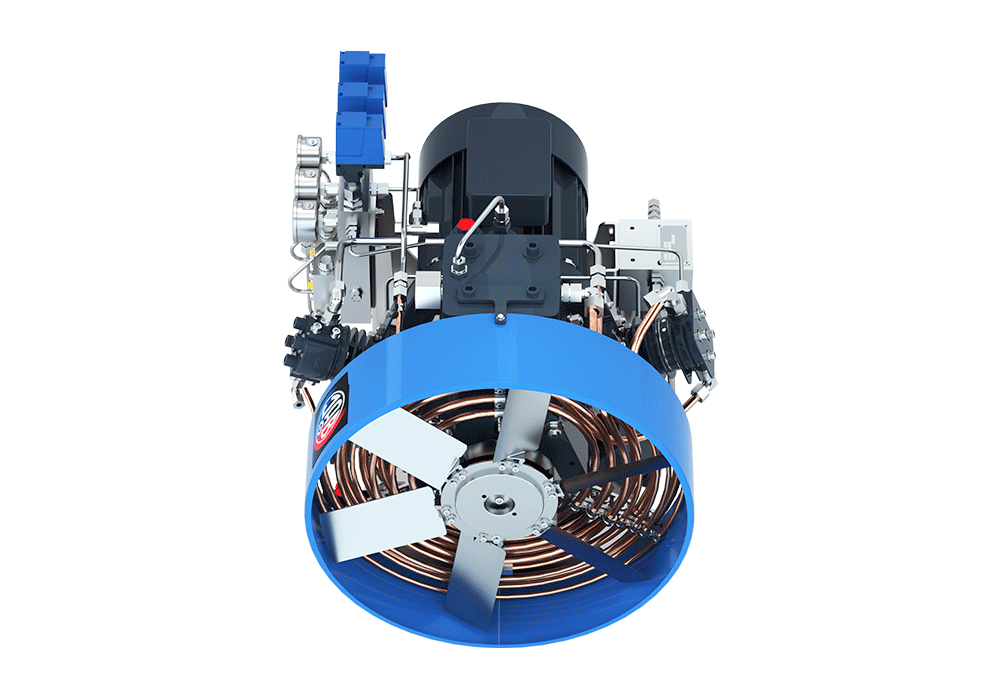

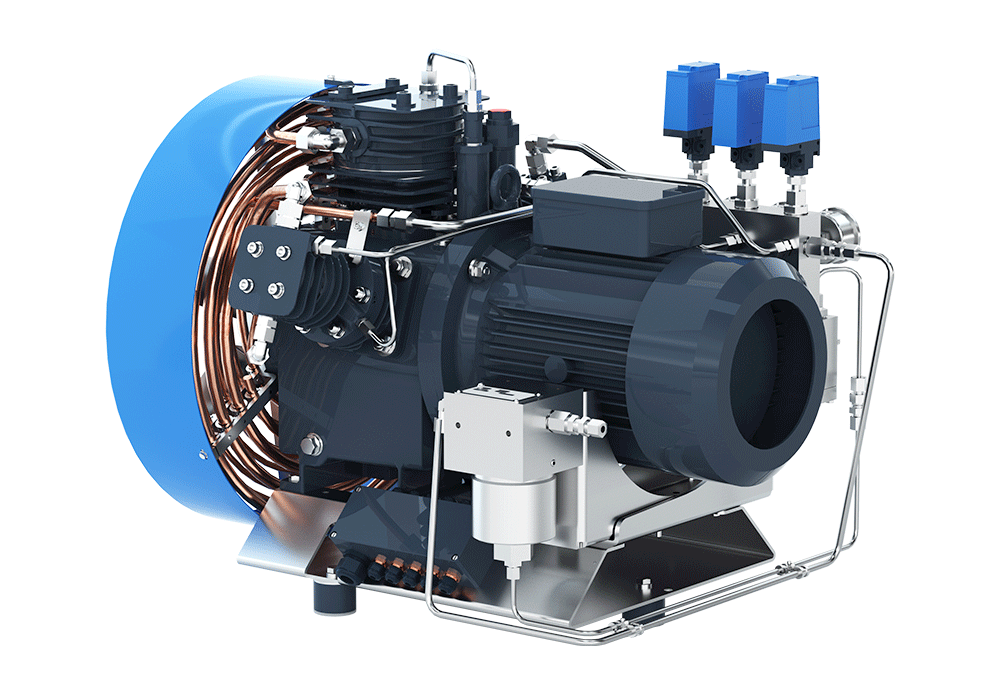

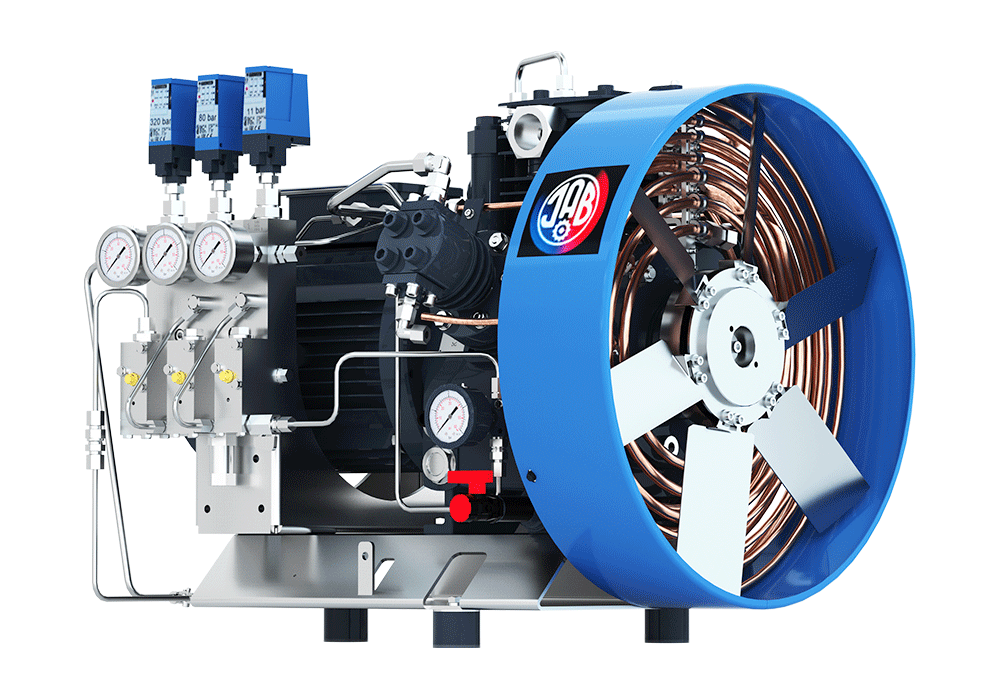

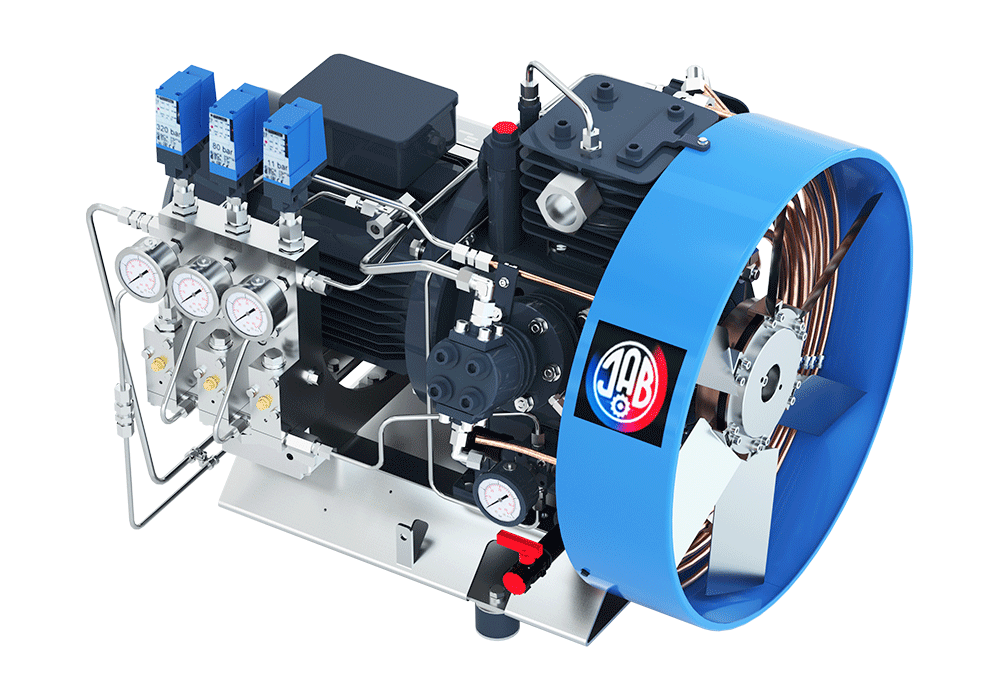

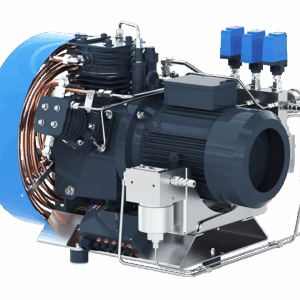

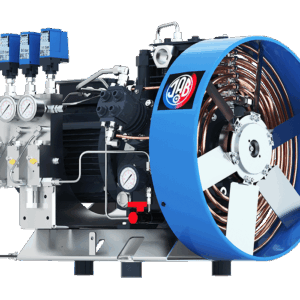

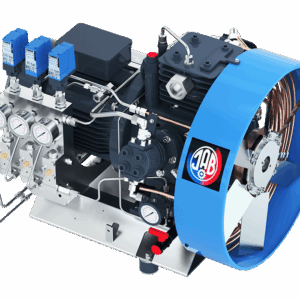

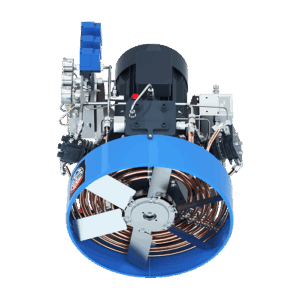

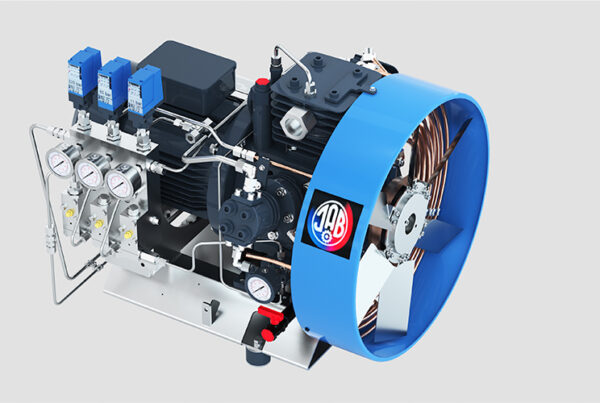

The SV 1000/40 air compressor is the flagship product of J.A. Becker & Söhne, designed for the generation of high-capacity, reliable compressed air, especially for high-pressure industrial applications. This two-stage piston compressor ensures excellent efficiency and a long service life, minimizing maintenance requirements.
The SV 1000/40 is not a „standard product” (NO 08/15 PRODUCTS), but a premium quality, carefully designed machine that delivers first-class performance in every respect.
Outstanding Efficiency: The machine's design guarantees high-efficiency cooling, which is essential for durable operation under heavy load. This reduces energy consumption and increases system reliability.
Fully Automatic Discharge: The built-in automatic draining function simplifies operation and ensures the efficient removal of condensate from the system, preserving the quality of the compressed air.
Long maintenance intervals: The robust construction and the use of quality components significantly extend the necessary maintenance intervals, thereby reducing downtime and operating costs.
High-Performance Electric Drive: The 15 kW electric motor provides sufficient power to achieve the specified parameters, guaranteeing stable and reliable operation.
The specifications of the SV 1000/40 compressor meet even the most demanding industrial requirements:
| Parameter | Value | Note |
|---|---|---|
| Maximum Ultimate Pressure (Max. Ultimate pressure) | 40 bar | Extremely high operating pressure |
| Volume flow (Volume flow) | 990 l/min | Corresponds to a volumetric flow rate of 59.4 m³/h |
| Pressure stages / Cylinder | 2 / 2 | Two-stage compression |
| Electric Motor Power (Electric motor) | 15 kW | Powerful Drive |
The two-stage design of the compressor means that the air is compressed in two steps, which significantly improves efficiency and reduces the thermal load in each stage, contributing to a longer service life. The maximum pressure of 40 bar makes it ideal for special applications such as high-pressure filling equipment, special pneumatic systems, or certain testing procedures.
The volume flow of 990 liters/minute (59.4 m³/h) ensures that a large amount of compressed air is available continuously, even at high pressure. The 15 kW electric motor is optimally sized for this performance, ensuring economical operation.
Further detailed information regarding the product, including the complete technical data sheet and product brochure, is available for download:
Technical Data Sheet Download: Detailed technical specifications regarding the compressor's operation and construction.
Brochure Download: Overview of product information and application areas.
The SV 1000/40 model is a symbol of J.A. Becker & Söhne's engineering precision and commitment to quality, guaranteeing reliable operation even in the harshest industrial environments. Thanks to its excellent cooling solutions and automated functions, this compressor offers a long-term, cost-effective solution for meeting high-pressure compressed air demands.
