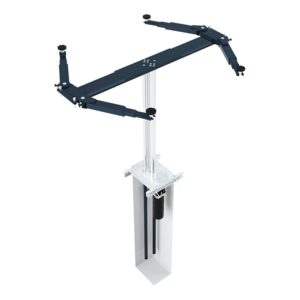

A J.A. Becker & Söhne DuoRam K 35-S2 egy kiemelkedő minőségű, padló alá süllyeszthető szerelőállvány, amelyet kifejezetten a járművek alvázának és padlójának teljes körű hozzáférését igénylő munkálatokhoz terveztek. A berendezés a külső-belső irányú, dupla teleszkópos billenőkaroknak köszönhetően olyan szabad hozzáférést biztosít a jármű aljához, amely vetekszik a hagyományos kétoszlopos emelők nyújtotta lehetőségekkel, miközben a keresztgerenda hiánya maximális munkaterületet garantál.
This premium category lift is the ideal choice for any service where precision, safety, and quick access are crucial during maintenance and repair tasks.
The DuoRam K 35-S2 is not just a lift, but a technological solution that optimizes workshop workflows. The slogan „Not an off-the-shelf product” perfectly reflects the engineering approach that focuses on reliability and long service life.
Redundant Design: Two independent hydraulic cylinders secure the system, which doubly guarantees safety and reliability even under exceptional loads.
Full Stroke Anti-Rotation System: It prevents unwanted rotation along the entire travel path during vehicle lifting and lowering, ensuring a stable position.
Additional Guide Rods: A szerkezetet kiegészítő vezetőrudakkal látták el, amelyek hatékonyan elnyelik az összes fellépő terhelést, növelve ezzel az emelő élettartamát és stabilitását.

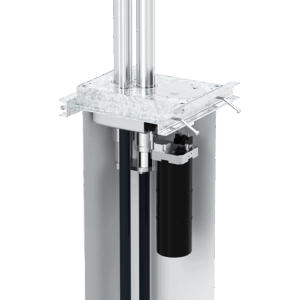

Direct Flanged Hydraulic Unit: The hydraulic unit is directly flanged onto the lift, which minimizes connection points, reduces the possibility of potential leaks, and simplifies maintenance.
Optimal Access: Provides excellent access to wheels, braking systems, engine bonnet, vehicle cabin, and bodywork for any repair and maintenance purpose.
Optimal Undercarriage Accessibility: The absence of a crossbeam and the design of the telescopic arms guarantee the best possible access to the entire underside of the vehicle.
The precise engineering data of the DuoRam K 35-S2 ensures high performance and reliable operation during daily service work.
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting Height | 1,880 mm | Ensuring a comfortable working height for the user. |
| Installation Depth (In-Ground Pit) | 2,350 mm | The minimum depth required for in-ground pit installation. |
| Travel Height (Minimum Height) | 50 mm | Extremely low profile, facilitating vehicle approach. |
| Oil quantity | 10 liter | The quantity required for the operation of the hydraulic system. |
| Connection Power | 2 kw | Power consumption of the electric drive. |

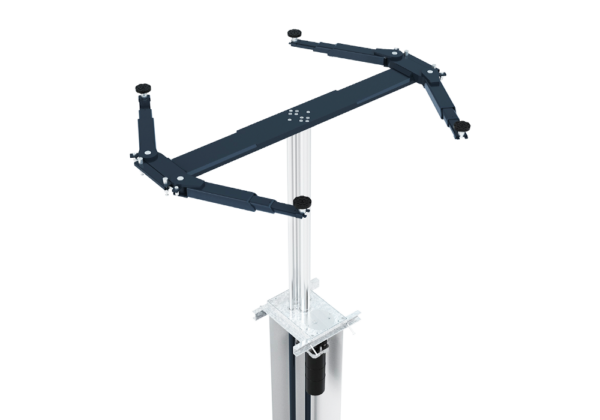

The DuoRam K 35-S2 symbolizes the engineering excellence of J.A. Becker & Söhne. The external-internal arrangement of the double telescopic tilting arms allows the lift arms to extend under the vehicle and then rise from there, meaning the crossbeam typical of conventional lifts does not obstruct the work. This design is particularly advantageous during complex underbody repairs, exhaust system replacements, or complete chassis/running gear maintenance work.
The structure is designed to support the vehicle at its most stable points, while the hydraulic system distributes the load evenly. The 1880 mm lifting height allows even taller technicians to comfortably perform work standing under the raised vehicle.
The 2350 mm installation depth is required for in-ground sinking, which means that when not in use, the lift almost completely disappears into the floor plane, ensuring the workshop floor surface remains maximally usable. The 50 mm minimum height guarantees that even the lowest-slung sports cars can be easily positioned onto the lift.
Safety is the primary consideration in the design of JAB products. In the case of the DuoRam K 35-S2, the redundant hydraulic system, the anti-rotation mechanism, and the auxiliary guide rods collectively create an exceptionally safe lifting environment. This complex mechanical protection ensures that the lift maintains its precision and safety parameters even over long periods of intensive use. The 2 kW connection power provides sufficient force for the fast and even movement of 3.5-ton loads.
This lift is the ideal choice for premium automotive workshops, authorized dealerships, and specialized underbody repair centers where quality and efficiency are non-negotiable factors. The product offers a first-class solution in every aspect for the challenges of modern vehicle servicing.
