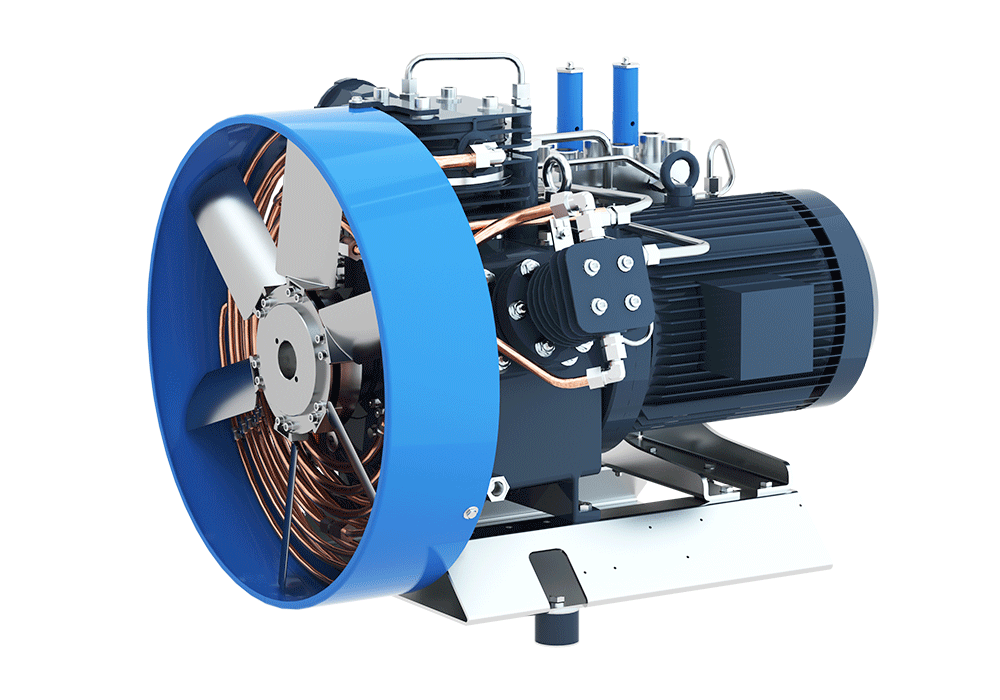

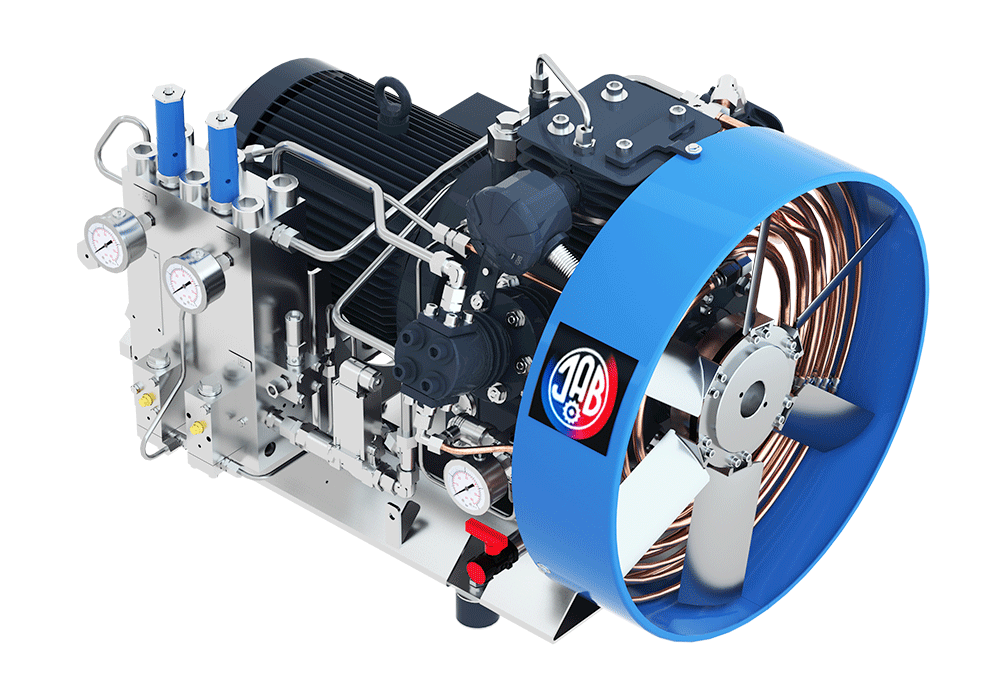

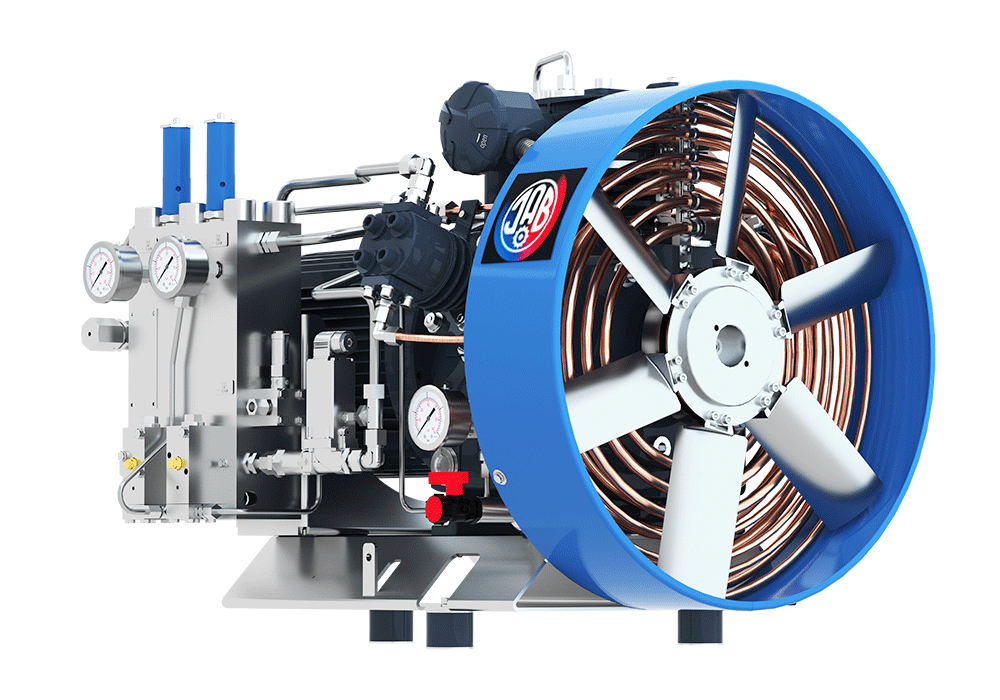

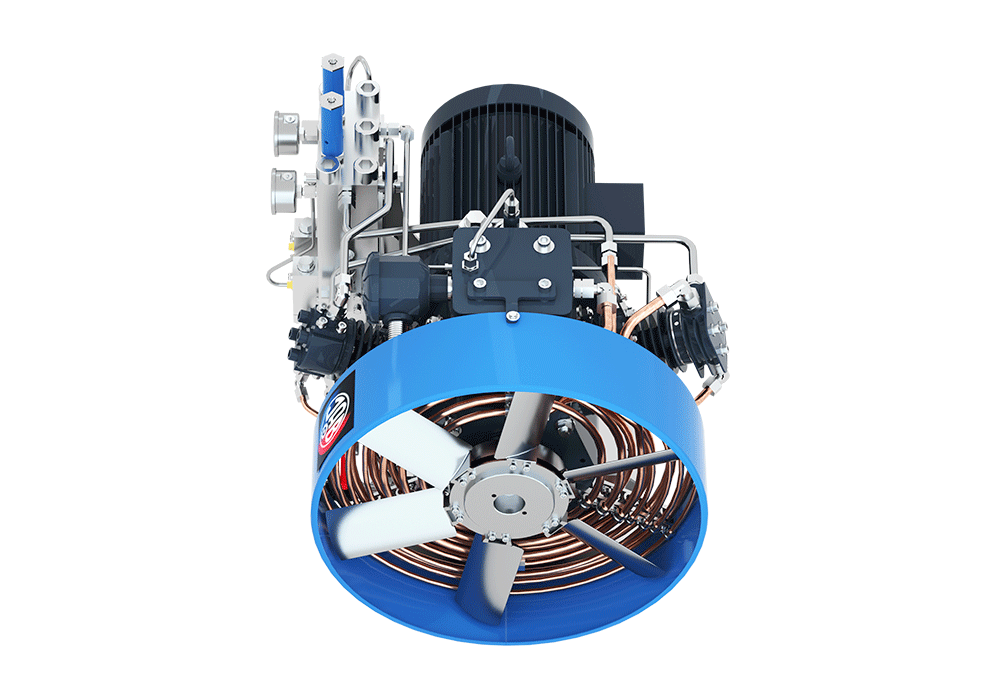

The SV 225/250 type air compressor represents the peak performance of J.A. Becker & Söhne's engineering precision and reliability. This three-stage, high-performance compressor offers an ideal solution for industrial applications requiring extremely high compressed air pressure, up to 350 bar. The unit excellently combines high volumetric flow with long service life and low maintenance requirements.
The SV 225/250 is not an average, „zero-twenty-four” (NO 08/15) product; it was designed to meet the highest quality and efficiency requirements.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This is critically important for maintaining compressed air quality and long-term system reliability.
Fully Automatic Draining (Condensate Removal): The built-in, fully automatic condensate drain system ensures the system always remains dry, minimizing corrosion risk and the need for maintenance interventions.
Long Maintenance Intervals: The robust construction and use of high-quality components have significantly extended maintenance intervals, resulting in reduced downtime and operating costs.
High Performance in a Compact Design: The unit is capable of providing significant volumetric flow at extremely high pressure, while its mechanical construction is optimized for space-saving.
The specifications of the SV 225/250 model guarantee precise and reliable performance even in the most demanding areas of application.
| Parameter | Value | Note |
|---|---|---|
| Volume flow rate (Suction side) | 225 l/min | Corresponds to 13.1 m³/h |
| Maximum Operating Pressure | 250 bar | For extremely high-pressure applications |
| Compression Stages / Cylinder | 3 / 3 | Three-stage compression system |
| Electric Motor Power | 5.5 kW | Energy-efficient drive |
| Rotational speed | 1.500 U/min | Optimized operating speed |
Note: The maximum pressure of 350 bar mentioned in the introductory text may apply to other members of the series, but the specific SV 225/250 specification is 250 bar.
The SV 225/250 compressor is excellently suited for specialized fields where compressed air quality and high pressure are essential conditions. These include, among others:
High-Pressure Gas Filling Stations: Ideal for systems where air needs to be compressed to high pressure (e.g., filling scuba tanks, air reservoirs).
Industrial Processes: Manufacturing processes that require high-pressure air for operation.
Laboratory and Research Applications: Ensuring precise and stable high-pressure air supply.
The unit is a first-class product in every respect, manufactured by J.A. Becker & Söhne under strict quality control processes. The robust design and carefully selected materials guarantee long-term, trouble-free operation.
More detailed technical descriptions and brochures regarding the product are available in the following documents:
Datasheet Download: Detailed technical specifications.
Download Brochure: Comprehensive product information and application examples.
This compressor is synonymous with reliability, efficiency, and high-pressure technology.
