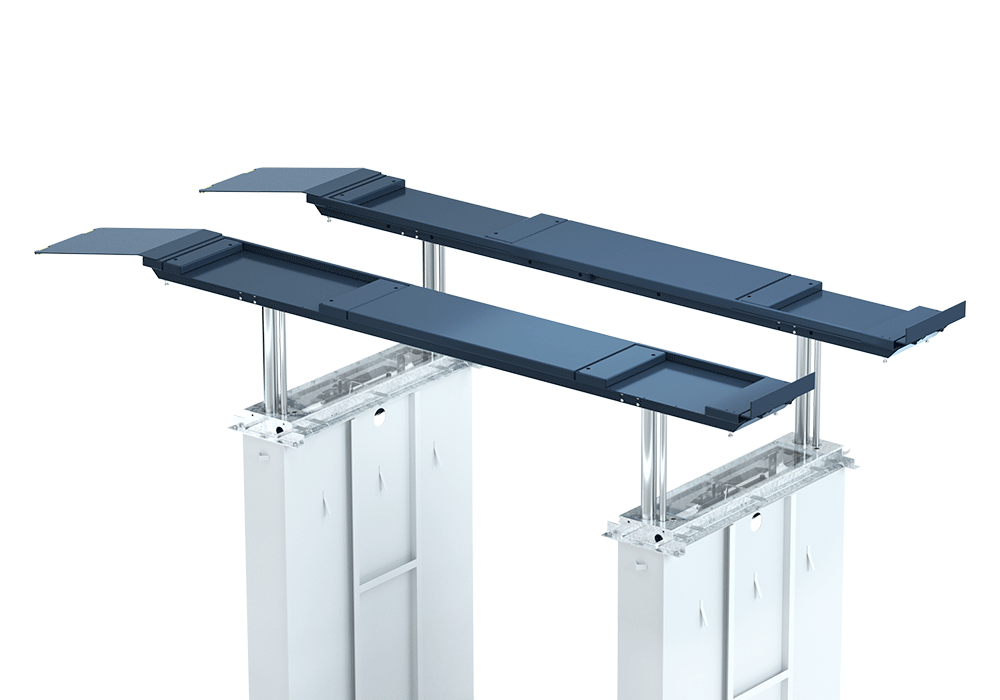

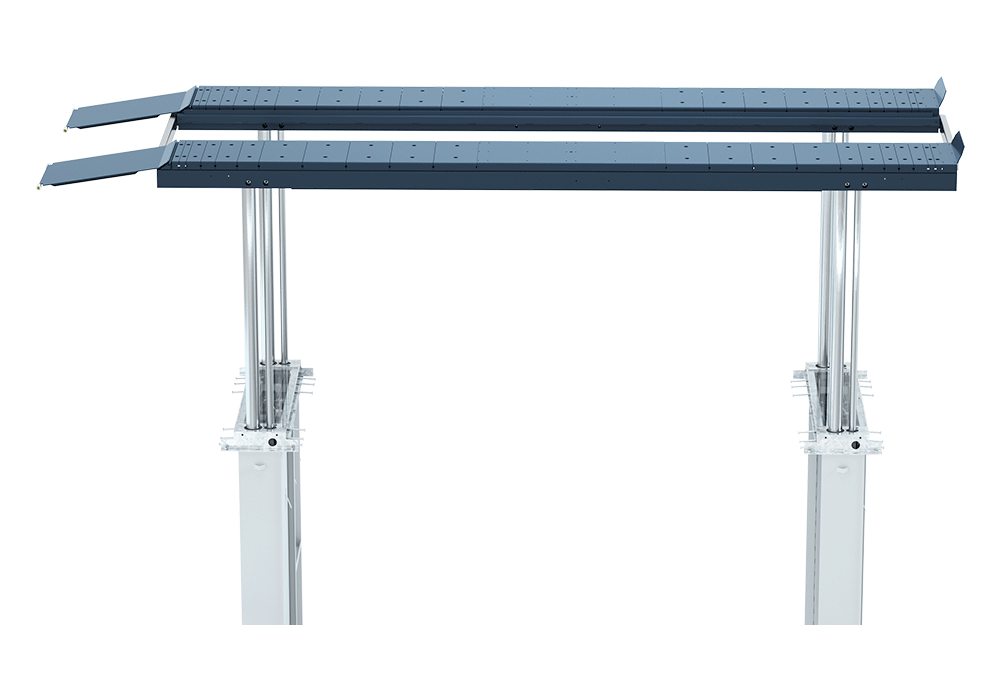

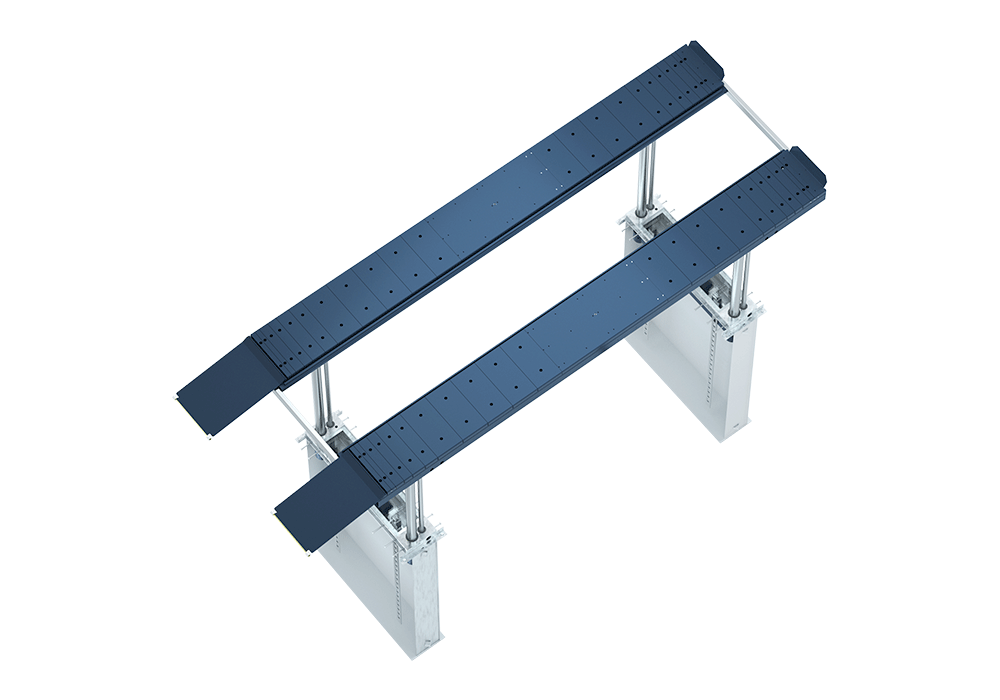

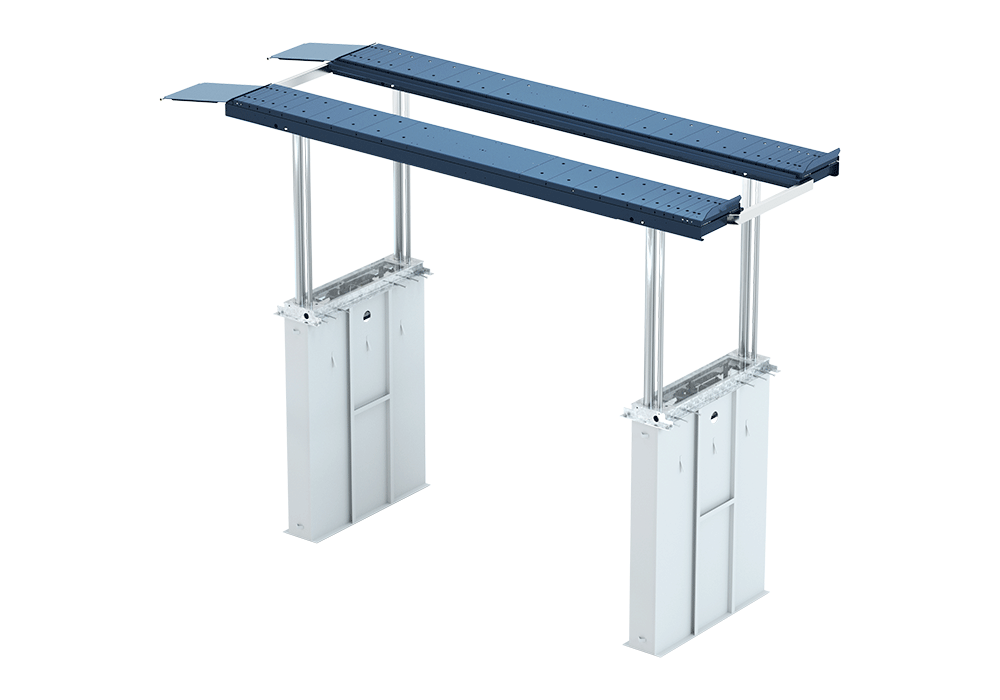

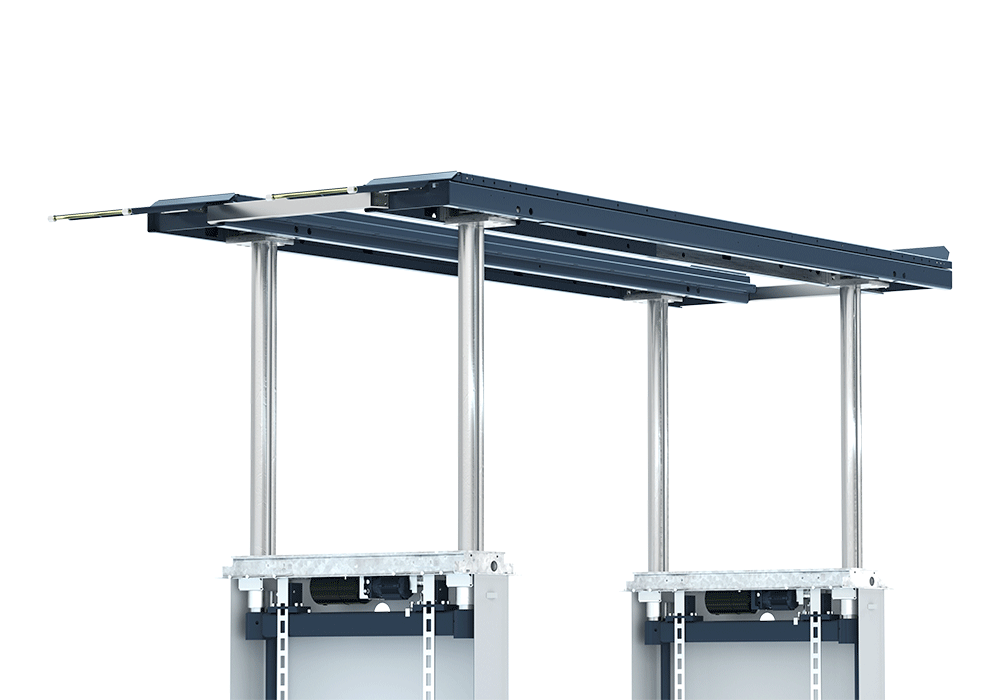

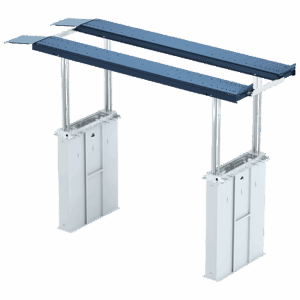

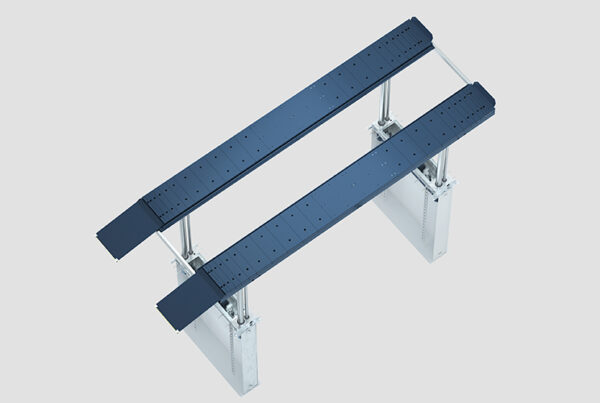

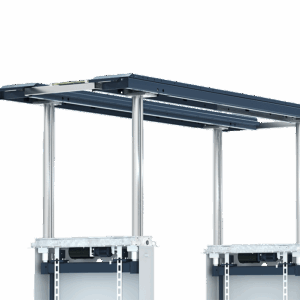

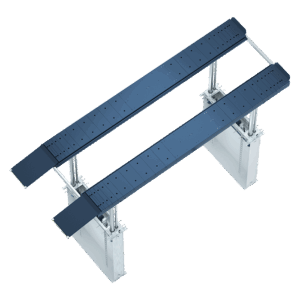

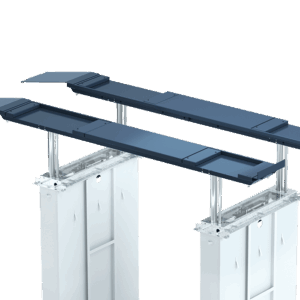

The J.A. Becker & Söhne QuattroRam 65 A-Align Its hydraulic four-post lift was developed to meet the alignment requirements of the most modern passenger vehicles. This precision lifting system meets the highest standards of the world's leading vehicle manufacturers, especially in terms of extremely precise height positioning.
The QuattroRam A-Align series hydraulic lifts are suitable not only for standard lifting tasks but are also specifically for wheel alignment optimized, whether it is traditional or non-contact measuring techniques.
The QuattroRam 65 A-Align is not an „average” (08/15) product, but a specially designed, state-of-the-art technological solution for workshops:
Specially developed for wheel alignment: The construction is designed to support the most precise adjustment processes.
Precise lowering onto laser-perforated leveling strips: This feature ensures exceptional accuracy in vehicle positioning during measurement.
Precise synchronization with flow rate control: The volume flow-based synchronization control of the hydraulic system guarantees that the lift columns always move in perfect synchrony, minimizing errors arising from load distribution.
Anti-rotation system over the entire stroke length: Prevents the vehicle from turning or shifting during the entire lifting and lowering process, which is critical for accurate measurements.
Force absorption via the base frame: All load forces are absorbed by the base frame, which increases the stability of the lift and reduces the load on the floor.
Easily accessible drive unit and components: For the ease of maintenance and potential servicing, the drive unit and all important components are located in an easily accessible position.
A QR 65 A-Align The model is also available in a special combined version, which is ideal for accommodating long-wheelbase vans:
Rail length: 5.5 meters.
This length enables the safe and precise lifting of longer wheelbase commercial vehicles while retaining the functions required for passenger car alignment.
The table below details the technical parameters of the QuattroRam 65 A-Align lift:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 6,500 kg | Maximum Load Capacity |
| Toe element distance (transverse) | 1,500 mm | Distance between wheel alignment elements |
| Toe element distance (longitudinal) | 4,500 mm | Distance between wheel alignment elements |
| Installation depth | 2,350 mm | Depth to be submerged below floor |
| Oil quantity | 20 liter | The amount required to fill the hydraulic system |
| Connection power | 2 x 2 kw | Performance of the drive units |
The QuattroRam 65 A-Align hydraulic four-post lifts have been developed according to the latest standards for passenger car wheel alignment. Precise height positioning and a stable, robust construction guarantee reliable and repeatable measurement results.
This lift is the ideal choice for any service that wishes to offer top-tier wheel alignment and diagnostics to its customers, ensuring the optimal driving characteristics and safety of the vehicles. High-quality components and careful engineering ensure a long service life and minimal downtime.
