TP410 Weighing Pallet Truck – Versatile, Robust, and Reliable Solution
The Giropes TP410 series weighing pallet truck offers a combination of precise weighing and efficient material handling. This model is the result of Giropes' continuous development philosophy, which guarantees durability and reliability even in the most demanding industrial environments. The TP410 is an excellent choice for anyone who needs equipment that not only lifts and transports but also provides certified weighing.
The TP410 series is available in two main versions, offering different levels of protection and functionality: the version with a printer and the version without a printer.
Key Features and Advantages
A key advantage of the TP410 pallet truck is its
hitelesített mérésre való alkalmasság, which ensures wide application possibilities in areas where accurate weight data is required for commercial transactions.
- Versatility: Due to its suitability for legal metrology, the TP410 is much more versatile than traditional pallet jacks.
- Excellent Workmanship: The frame is made of painted steel, ensuring a long service life and resistance to the physical stresses encountered during daily use.
- Advanced Technology: The high-quality GI410 digital display is responsible for the weighing, providing accurate and easily readable results.

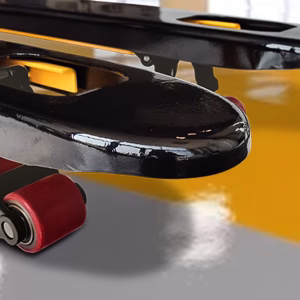

- Excellent Mobility: A kerekek poliuretán külső réteggel rendelkeznek, ami csendes működést és kiváló kopásállóságot biztosít különféle padlófelületeken.
Technical Data and Configurations
The capacity and weighing resolution of the TP410 series can be flexibly adapted to different load requirements.
General Technical Specifications
| Parameter |
Value |
Note |
| Construction |
Painted steel |
Robust construction |
| Wheel Material |
Poliuretán külső réteg |
Quiet and durable running |
| Maximum lifting height |
19 cm |
Standard lifting range |
| Design basis |
Giropes design and technology |
Result of continuous improvement |
Capacity and Precision Variations
The TP410 is available in two main capacity ranges, with different weighing (resolution) values:
| Capacity (kg) |
Resolution (g) |
| 1000 – 2000 |
200 – 500 |
| 1000 – 2000 |
500 – 1000 |
Details by Variant
The TP410 is available in two main configurations, featuring different IP protection ratings:
| Variant |
Print |
Legal Metrology |
IP Protection |
| TP410 (Basic) |
No |
Not always (optional M marking) |
IP65 |
| TP410 with Printer |
Yes |
Yes (M marking) |
IP54 |
Note on Legal Metrology: Models suitable for legal-for-trade weighing (marked with ‘M’) meet stricter calibration and accuracy requirements, which is essential for commercial transactions.
| Capacity (kg) |
Resolution (g) |
Printer |
Legal Metrology |
| 1000-2000 |
200 – 500 |
No |
No |
| 1000-2000 |
500 – 1000 |
No |
No |
| 1000-2000 |
200 – 500 |
Yes |
Yes (•) |
| 1000-2000 |
500 – 1000 |
Yes |
Yes (•) |
Detailed Comparison of the Two Main Configurations
1. TP410 Version Without Printer (IP65)
This version focuses on maximum environmental protection, ideal for use in dustier or wetter environments where the printing function is not primary.
- IP65 Protection: Excellent protection against dust and protection against water jets, increasing the device's reliability even under extreme conditions.
- Focus: Robust, reliable measurement and delivery, with digital readout on the GI410 display.
- Application: Warehouses, production lines where measurement data is manually recorded or transferred to another system.
2. TP410 Version With Printer (IP54)
This model prioritizes on-site documentation, enabling immediate printing of measurement results.
- IP54 Protection: Provides protection against dust ingress (to a limited extent) and against splashing water, which is sufficient for most indoor industrial applications.
- Built-in Printer: Enables immediate production of weight certificates, which is critical for traceability of logistics processes and legal compliance (if the model is certified for this purpose).
- Legal Metrology: The printer models often fall into the certified (M) category, ensuring commercial accuracy.

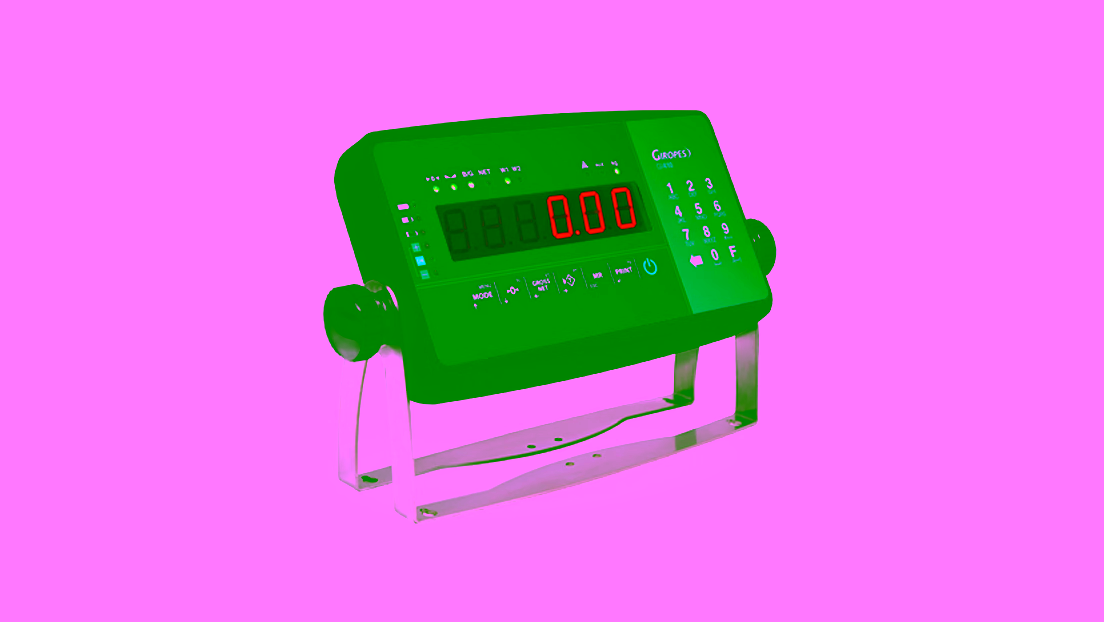

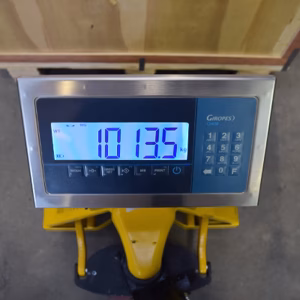

The GI410 Digital Indicator
The heart of the TP410 is the GI410 indicator. This digital unit ensures user-friendly operation and accurate data processing. Although the input data does not detail the indicator's functions, its suitability for legal weighing presupposes stable, reliable, and calibratable measurement algorithms. Considering the indicator's height (19 cm), it provides an optimal viewing angle for the forklift operator on the operator panel.
Summary
The Giropes TP410 weighing pallet truck is a device that takes traditional pallet handling tasks to a new level with its built-in weighing capability. Whether it is the version without a printer with higher IP65 protection, or the model supporting documentation, with a printer, and legally certified, the TP410 provides reliable, robust, and precise performance in modern logistics and manufacturing environments. The motto „versatile, robust, reliable” perfectly summarizes this advanced industrial solution.
