BM Wall-Mounted and Platform Scale System – with GI400/GI410 Multifunction Indicator

This detailed description presents the BM series wall-mounted and platform scale system, which, when paired with the GI400/GI410 multifunction indicator, offers an excellent solution for commercial weighing. The robust design of the system and the use of high-quality materials guarantee reliable and accurate weight management.

Overview and Key Features

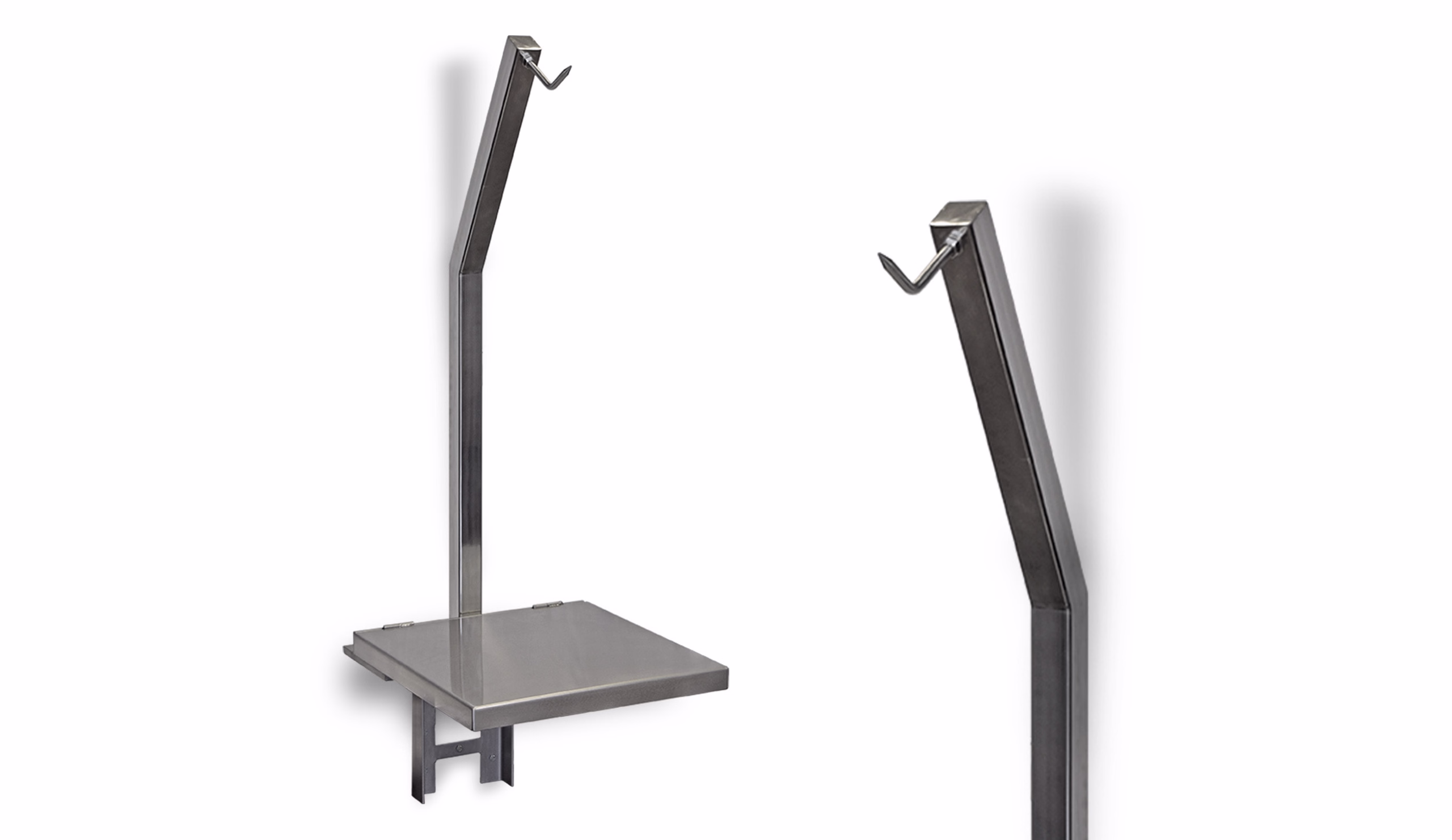

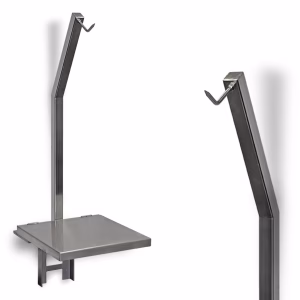

The BM series scales are available in two main configurations: wall-mounted (platform) and platform versions, providing flexibility in the installation environment. The central element of the system is the GI400/GI410 multifunction indicator, which ensures wide-ranging functionality and ease of use. Key advantages:

• Two Weighing Systems: The platform and plate design allows for the selection of the solution that best fits user requirements.
• Excellent Material Quality: The entire structure is made of AISI 304 stainless steel, which provides excellent corrosion resistance and hygienic properties, making it ideal for the food industry or other demanding environments.
• High Capacity: A mérlegek széles kapacitástartományban elérhetők, 150 kg -tól egészen 300 kg -ig.
• Greater Accuracy: The load cells are made of stainless steel, ensuring long-term reliability and accurate measurement.

Technical Specifications

The precise technical data for the BM series scales are presented in tabular form below, highlighting the details of the models with different capacities:

Platform Size (mm)	Capacity (kg)	Readability (g)	Material (Full Stainless Steel)	Cell Material
500 x 500	150	50	AISI 304	Stainless Steel
500 x 500	300	100	AISI 304	Stainless Steel

Further Details:

• Platform Dimensions: For all models, the size of the weighing surface is uniform 500 x 500 mm.
• Configuration: The entire structure made of AISI 304 stainless steel is made, which guarantees excellent resistance to moisture and cleaning agents.
• Measuring Cell: The load cells are also from stainless steel made, which increases the durability and accuracy of the system.

GI400/GI410 Multifunction Indicator

The GI400/GI410 series indicator is the intelligent center of the weighing system, offering numerous functions for processing and displaying weight data. Although the exact list of functions can be found on the separate product page, below we summarize the capabilities typical for this series:

• Multifunctionality: Képes lehet különböző mérési módok kezelésére (pl.: darabszámlálás, nettó/bruttó mérés, tartálytöltés felügyelet).
• Display: Features a high-resolution, easily readable display, ensuring quick and accurate data retrieval.
• Connectivity Options: Általában támogatja a külső eszközökkel való kommunikációt (pl.: nyomtatók, PC-k), ami elengedhetetlen a kereskedelmi és ipari alkalmazásokban az adatrögzítéshez.
• Calibration and Settings: Simplified calibration procedures and a user-friendly menu system for fast commissioning.

Application Areas

Due to the robust construction of the BM series scales and the use of stainless steel, they are ideal for the following areas:

1. Food Industry: Meeting excellent hygiene requirements where regular cleaning and corrosion resistance are crucial.
2. Commercial Weighing: For precise weighing of larger items, sacks, or containers.
3. Logistics and Warehousing: For checking the weight of packages and pallets.
4. Chemical and Pharmaceutical Environments: Where the measuring device must also withstand more aggressive substances.

Further Information and Documentation

Érdeklődés esetén, kérjük, tekintse meg a termékhez tartozó részletes műszaki adatlapot, amely további információkat tartalmaz a telepítésről, a karbantartásról és a teljes körű műszaki paraméterekről. Also discover more information about our load cells to fully optimize your weighing solutions!
