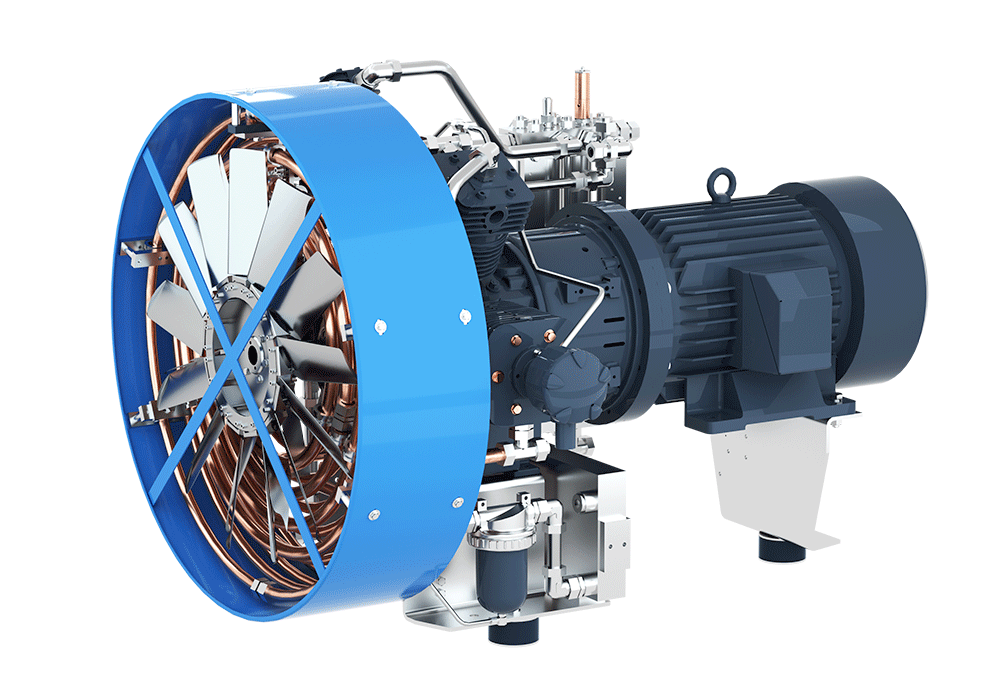

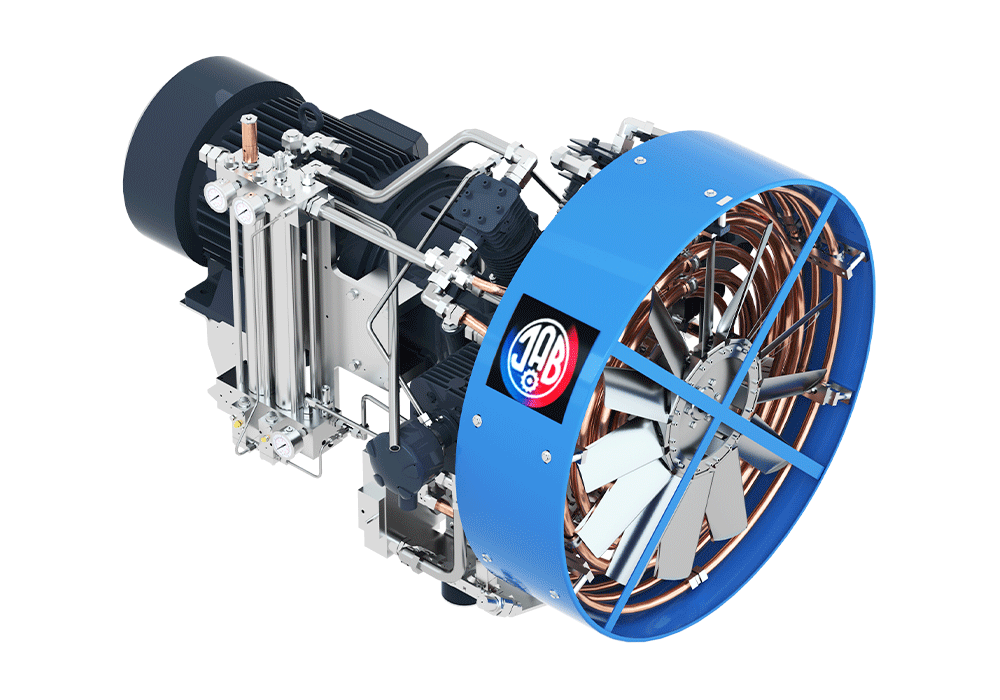

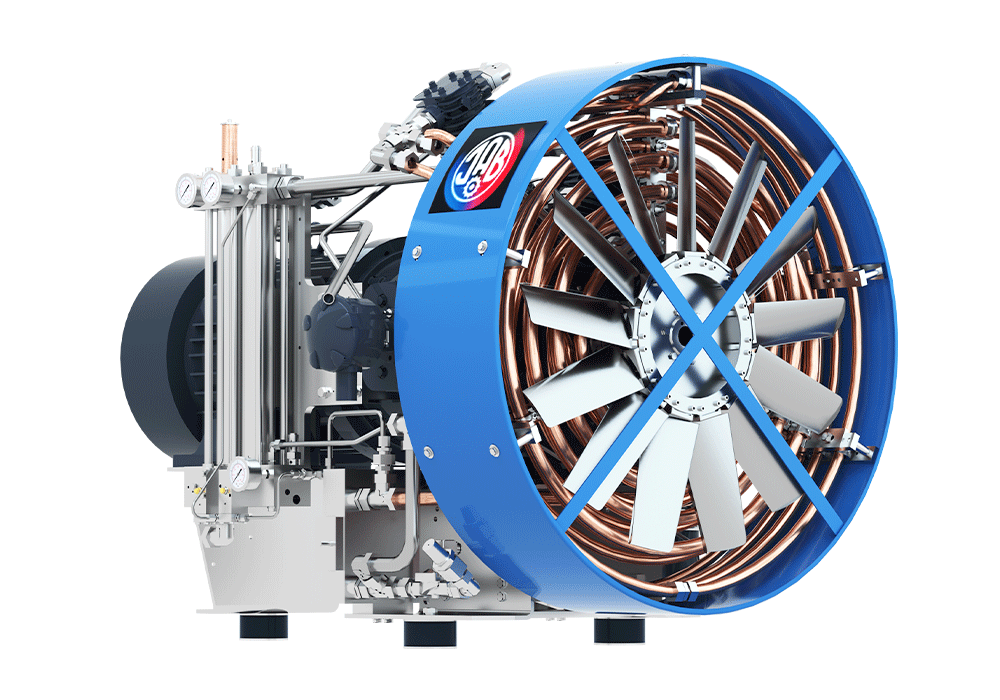

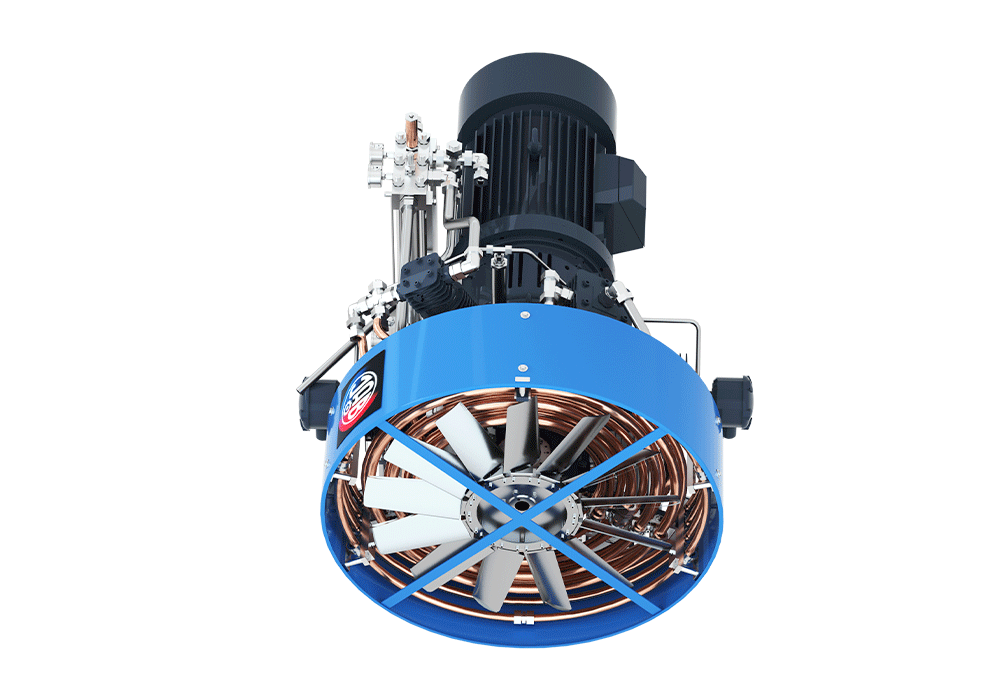

J.A. Becker & Söhne proudly presents the SV 3000/70 type, a three-stage air compressor that provides exceptional performance and reliability for the most demanding industrial applications. This high-performance unit is the ideal solution for areas requiring extremely high-pressure compressed air with a large volume flow rate. JAB's commitment to quality is reflected in this product, which is not just a standard solution but a premium, durably reliable piece of equipment.
The SV 3000/70 compressor offers advanced technological solutions tailored to user needs, ensuring efficient and economical operation.
In line with the JAB philosophy, this compressor is not a „mass-produced product” (NO 08/15 PRODUCTS). During design, we focused on maximum efficiency and service life.
High Volume Flow Rate: Extremely high, 180.0 m³/h (or 3000 l/min) volume flow rate ensures continuous and high-demand air supply.
Extreme Operating Pressure: Capable of achieving an impressive can be subjected to an operating pressure of maximum operating pressure, making it ideal for special pneumatic systems, high-pressure testing, or specific machining processes.
Three-stage Compression: The air is compressed in three separate stages, which guarantees efficient heat dissipation and the achievement of stable, high pressure.
High-pressure compression generates significant heat. The SV 3000/70 manages this challenge in a professional manner:
For user convenience and minimization of operating costs, the SV 3000/70 features several automated functions:
Fully Automatic Draining: The system automatically manages the discharge of condensate and excess pressure, minimizing the need for human intervention and ensuring continuous, uninterrupted operation.
Long Maintenance Intervals: Thanks to the robust construction and high-quality components, the maintenance requirement is minimal, resulting in significant uptime increase and lower maintenance costs.
The SV 3000/70 compressor is the result of precise engineering work, featuring the following technical parameters:
| Parameter | Value | Note |
|---|---|---|
| Volume flow | 3.000 l/min | Corresponds to 180.0 m³/h |
| Maximum Operating Pressure | can be subjected to an operating pressure of | Extremely High Pressure Value |
| Compression Stages / Cylinder | 3 / 4 | Three-stage compression, with four cylinders |
| Electric Motor Power | 45 kW | Powerful Drive |
| Rotational speed | 1,500 RPM | Optimized operating speed |
The SV 3000/70 is a first-class product in every respect. The robust structure and reliable operation guarantee that the equipment will meet the highest expectations in the long term.
This high-pressure compressor may be the ideal choice for:
Special Industrial Processes: Manufacturing processes that require air at 70 bar pressure.
High Pressure Testing: Pressure tests for hydraulic or pneumatic systems.
Gas Supply and Storage: Preparation of large quantities of air for storage systems.
Heavy Industry: Any application where conventional compressors cannot reach the required pressure levels.
J.A. Becker & Söhne is committed to ensuring all its products meet the highest quality standards. The SV 3000/70 is the perfect fusion of German engineering precision and long-lasting industrial solutions.
Further detailed product information, datasheets, and brochures can be downloaded from the manufacturer's official sources.
