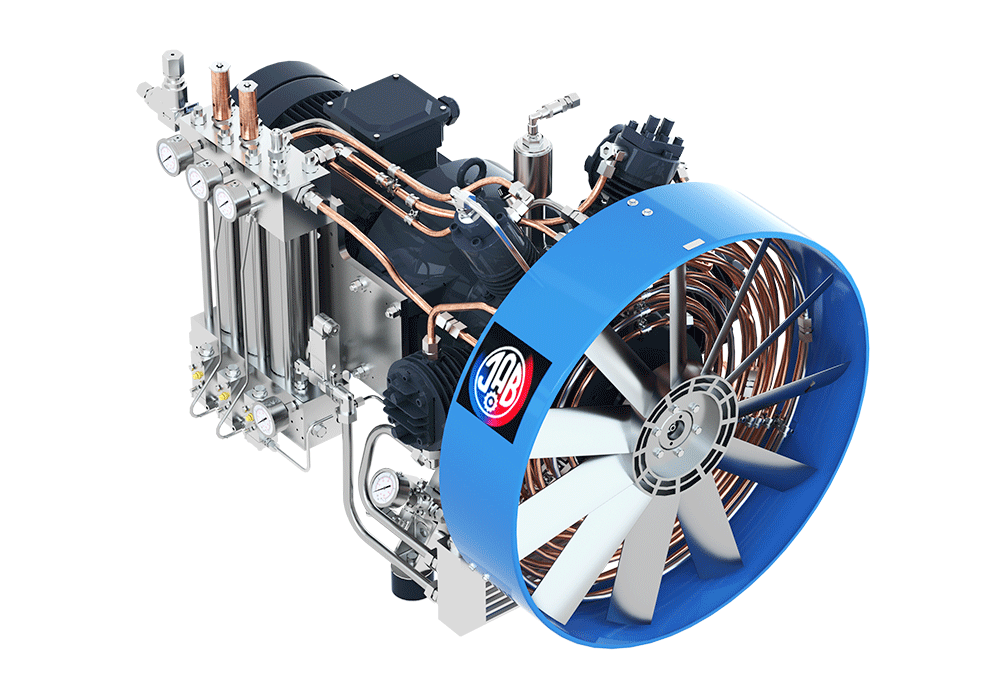

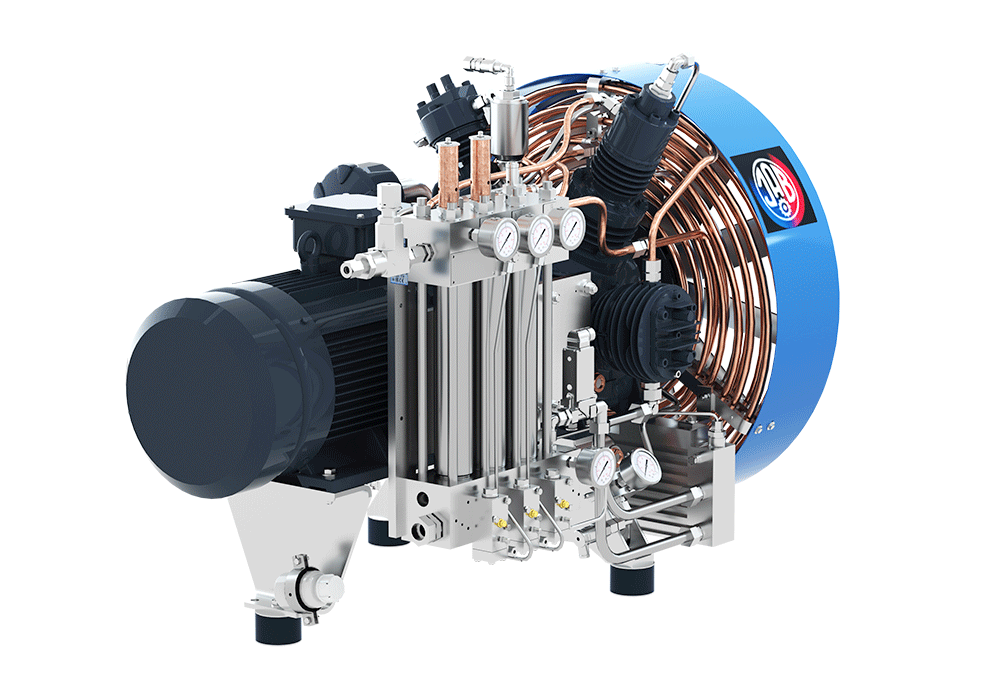

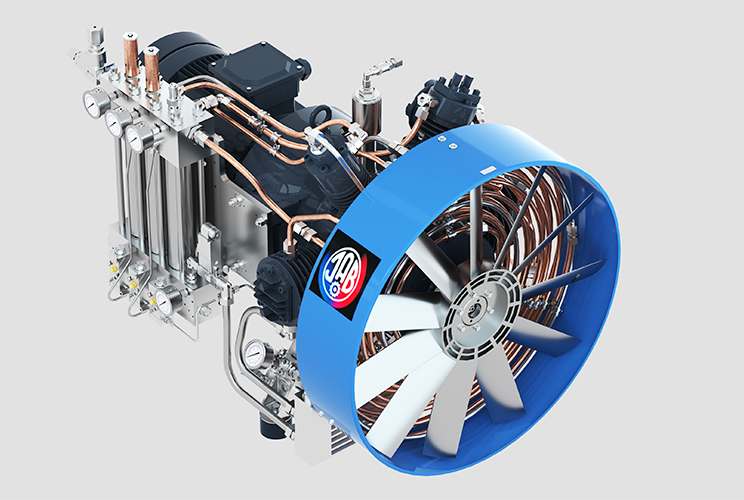

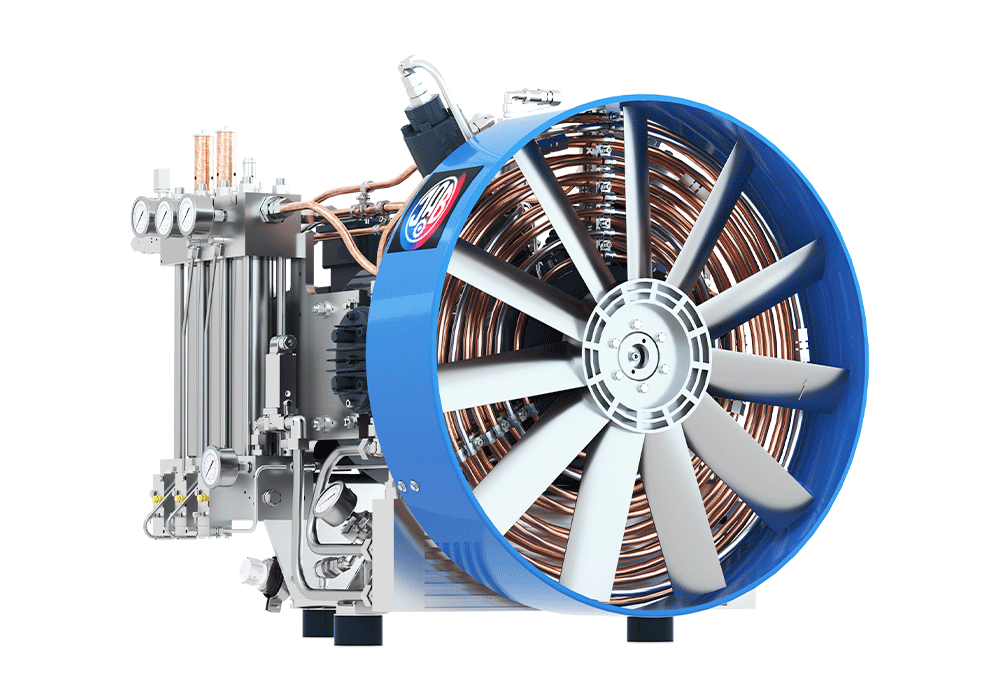

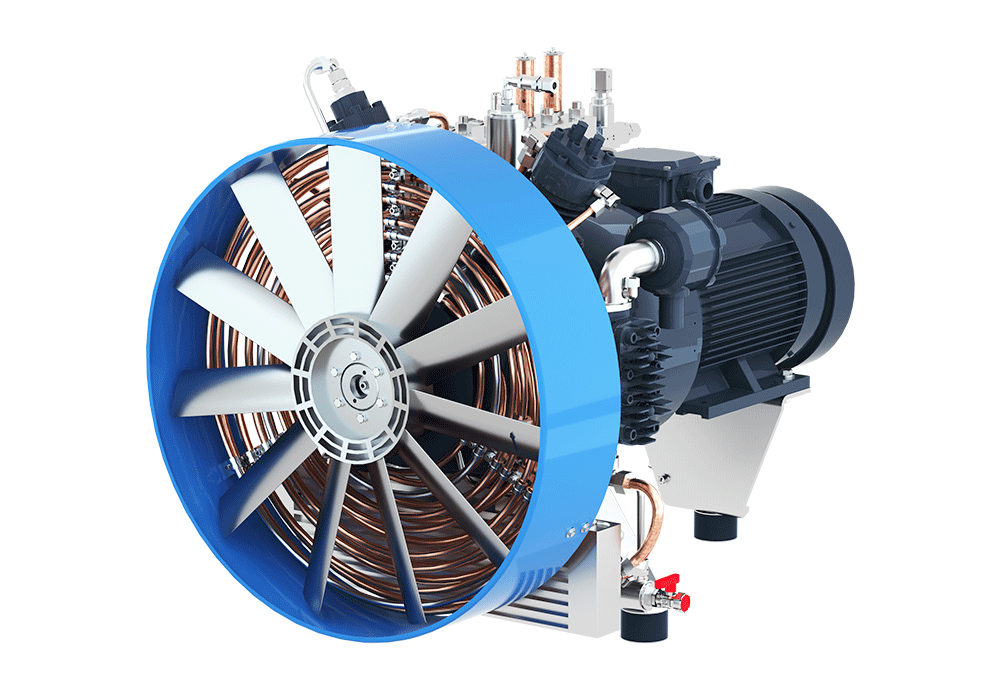

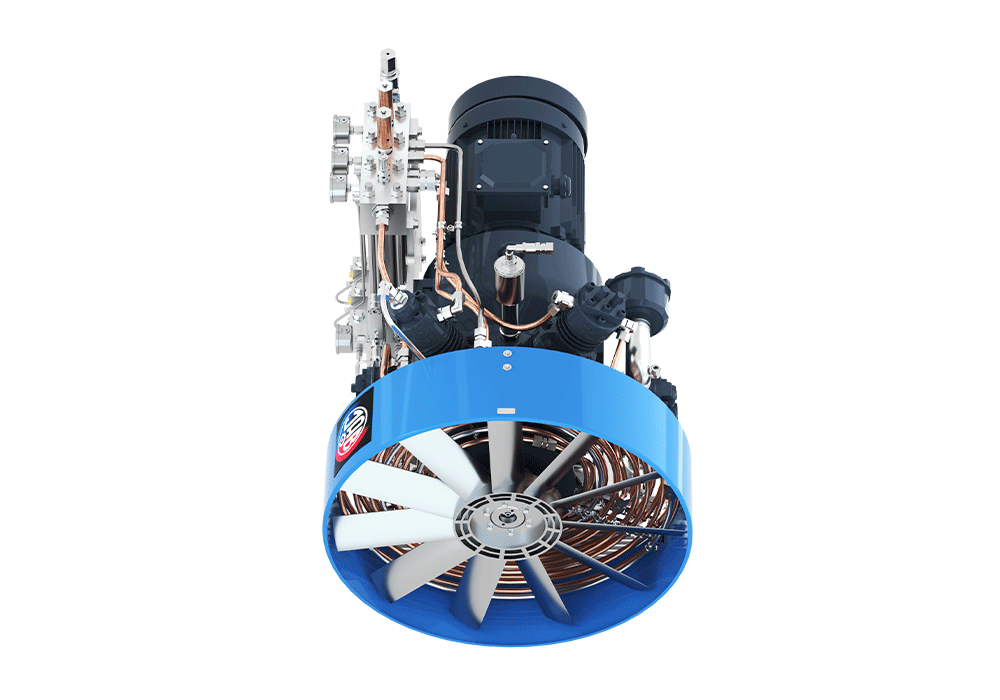

The SVC 300/350 air compressor represents the pinnacle of J.A. Becker & Söhne's engineering precision, specifically designed to meet the highest pressure requirements. This four-stage piston compressor is ideally suited for industrial applications requiring reliable, high volumetric flow, and extremely high-pressure air supply. This unit is not an „off-the-shelf product,” but a premium-category solution guaranteeing a long service life and minimal maintenance requirements.
The SVC 300/350 series was developed with efficiency and durability in mind, delivering outstanding performance even in the most demanding environments.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This is critically important for maximizing the compressor's lifespan and maintaining performance stability.
Fully Automatic Valve Draining: The built-in, fully automatic draining system ensures the efficient removal of condensate and unwanted by-products from the system. This minimizes the need for manual intervention and increases operational safety.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, maintenance intervals have been significantly extended. This reduces downtime and optimizes operating costs.
High-Power Drive: The 9 kW electric motor provides sufficient power for the four-stage compression, operating at a stable speed of 1500 revolutions/minute.
Excellent Pressure Ratings: The unit is capable of reaching an impressive maximum operating pressure of 350 bar, making it ideal for filling high-pressure air reservoirs or for special industrial processes.
The precise technical parameters of the SVC 300/350 compressor guarantee reliable and efficient operation.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow | 290 | l/perc | Equivalent to 17.4 m³/h capacity |
| Maximum Operating Pressure | 350 | bar | Extremely High Pressure Capability |
| Compression Stages / Cylinder | 4 / 4 | – | Four-stage compression system |
| Electric Motor Power | 9 | kW | Powerful Drive |
| Rotational speed | 1.500 | revs/min | Stable Operating Speed |
The SVC 300/350 model represents the cutting edge of the J.A. Becker & Söhne product range, offering first-class quality in every respect. The four-stage design enables the gradual compression of air, which reduces the load on individual stages and increases thermal efficiency.
The compressor's construction is extremely robust, and its design is optimized for long-term, uninterrupted operation. The configuration with 4 cylinders ensures an optimal balance between flow rate and pressure. The operation of the 9 kW electric motor at 1500 revolutions per minute offers an ideal compromise between performance and component wear.
A 350 bars achieving maximum pressure is particularly important in special applications such as filling high-pressure air storage tanks, testing procedures, or operating special pneumatic systems.
A 290 liters/minute (17.4 m³/h) The volumetric flow ensures that the system can meet even large-scale air demands, while the cooling technology guarantees that the quality of the compressed air remains adequate. Efficient cooling reduces water condensation in the system, which is essential for preserving the quality of the compressed air.
A fully automatic draining function is one of the most important convenience and safety features. This system continuously monitors the condensate level and automatically removes it, preventing water-laden air from reaching user points, which could damage piping and end devices.
The SVC 300/350 compressor is an ideal choice for industrial sectors where reliability and high pressure are essential:
High-Pressure Gas Storage: Ideal for filling systems where storage of high-pressure air is required.
Industrial Testing Applications: Precise and stable high-pressure air supply for test benches.
Special Manufacturing Processes: Support for processes that require extreme pressure values.
Filling of Breathing Air and Fire Fighting Equipment: Although the specific air purification grade is not mentioned in the excerpts, the 350 bar pressure can be a fundamental requirement for certain filling stations.
This compressor reflects J.A. Becker & Söhne's commitment to quality, durability, and technological innovation. The carefully designed mechanics and high-quality materials ensure that the SVC 300/350 will be a reliable partner in the long run for solving the toughest industrial challenges.
