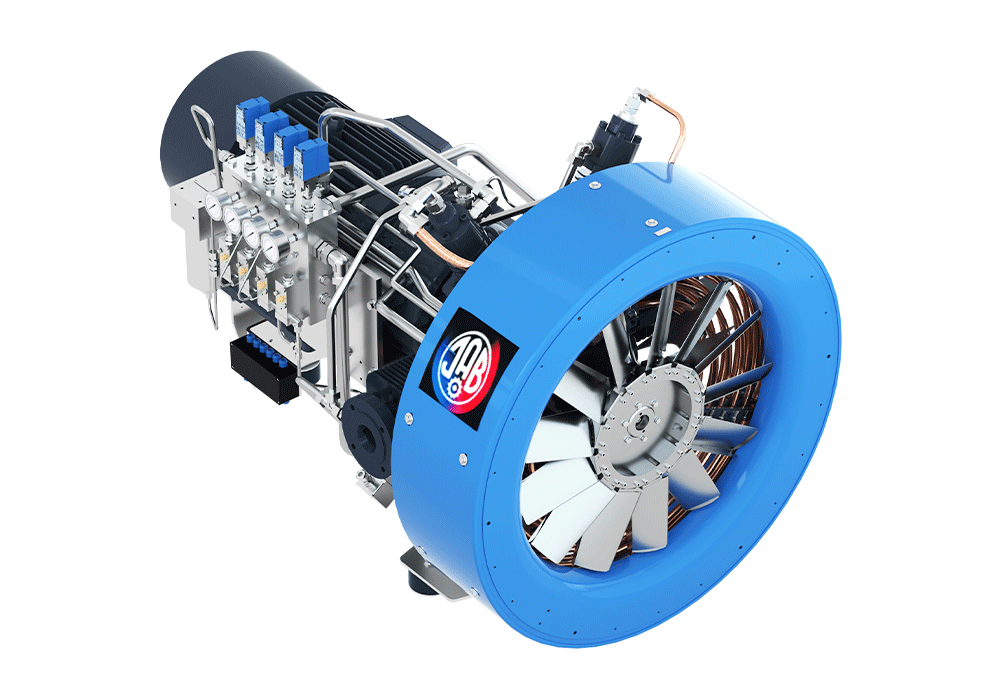

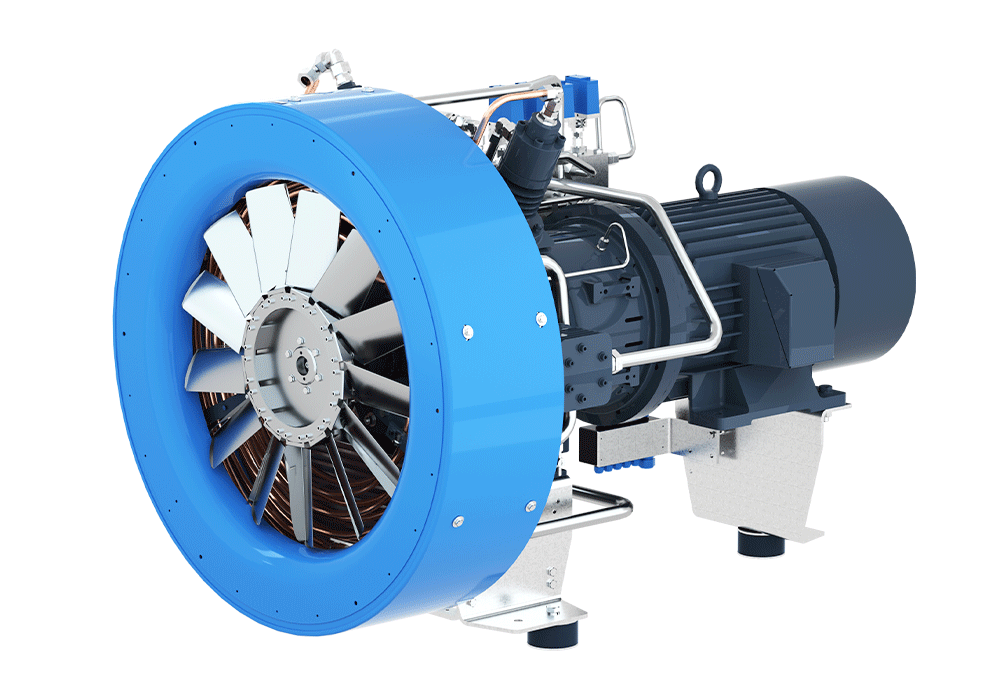

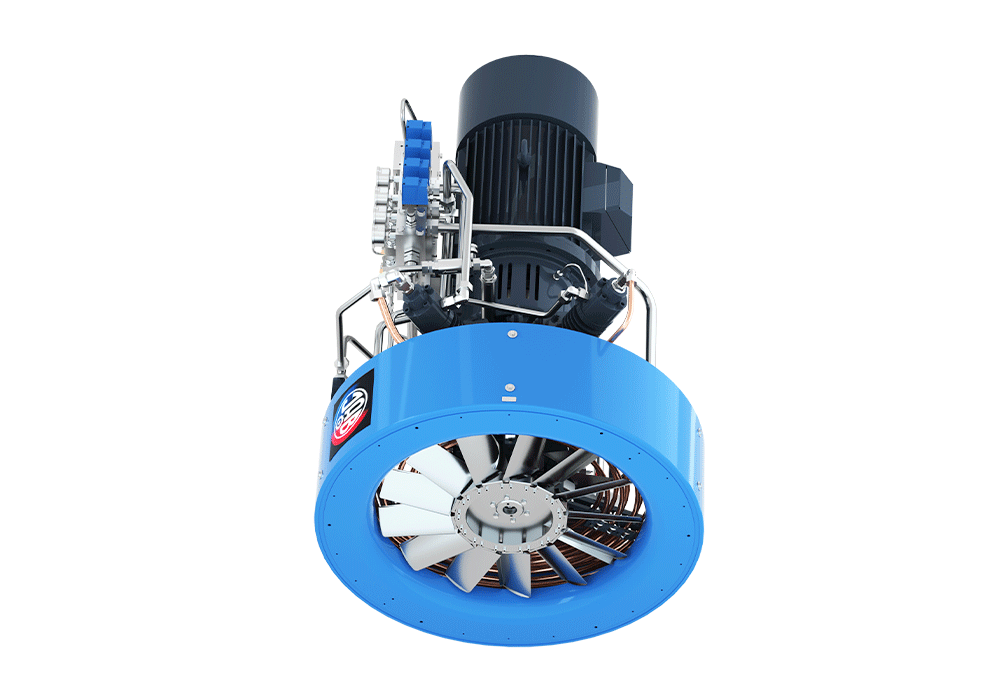

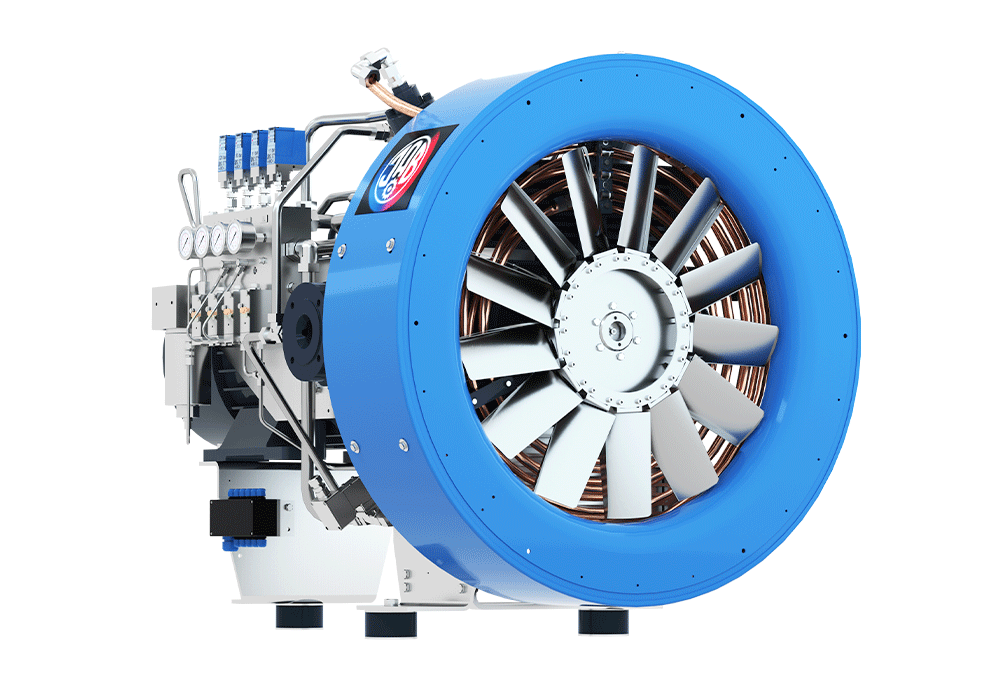

J.A. Becker & Söhne proudly presents the SVB 1300/350 He type, a four-stage helium compressor specifically developed for high-performance, high-pressure gas compression tasks. This model features outstanding technical parameters, making it an ideal choice for industrial applications requiring reliable, high-throughput, and extremely high-pressure helium supply.
This compressor is not a „standard” (NO 08/15) product; J.A. Becker & Söhne is committed to superior quality, custom solutions, which guarantee long service life and optimal operational efficiency.
The SVB 1300/350 He compressor has several outstanding features that ensure efficient and trouble-free operation:
Excellent Efficient Cooling: The advanced cooling system ensures optimal dissipation of heat generated during the compression process, which is critically important when condensing helium. This function contributes to the long-term reliability and energy-efficient operation of the machine.
Fully Automatic Discharge: The system features a fully automated venting function, minimizing the need for human intervention, increasing safety, and optimizing process control.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, maintenance intervals have been significantly extended, thereby reducing downtime and operating costs.
First-Class Quality In Every Respect: From design to execution, the product complies with the highest quality standards, ensuring precise and durable performance.
The detailed technical specifications for the SVB 1300/350 He compressor are as follows:
| Parameter | Value | Note |
|---|---|---|
| Típus | SVB 1300/350 He | Four-stage Helium Compressor |
| Volume Flow (Volume Flow) | 1.390 l/min | Corresponds to 83.4 m³/h |
| Maximum Operating Pressure | 350 bars | Extremely High Pressure Value |
| Compression Stages / Cylinder | 4 / 4 | Four compression stages |
| Electric Motor Power | 45 kW | Powerful Drive |
| Speed (Speed) | 1,500 RPM | Standard operating speed |
Further detailed information and technical documentation are available to users:
Datasheet Download: Detailed technical data on helium compressors.
Brochure Download: Comprehensive product overview.
These documents assist with system integration and a deeper understanding of performance data.
This high-pressure helium compressor is the ideal choice for critical areas such as:
Scientific Research & Development: High-pressure helium supply for laboratory experiments.
Industrial Gas Supply: Helium recycling systems where high-purity and high-pressure gas is required.
Special Welding Applications: Where helium is used as a shielding gas in extremely high-temperature processes.
The SVB 1300/350 He is the pinnacle of J.A. Becker & Söhne's engineering expertise, guaranteeing continuous, safe, and efficient operation even in the most demanding industrial environments.
