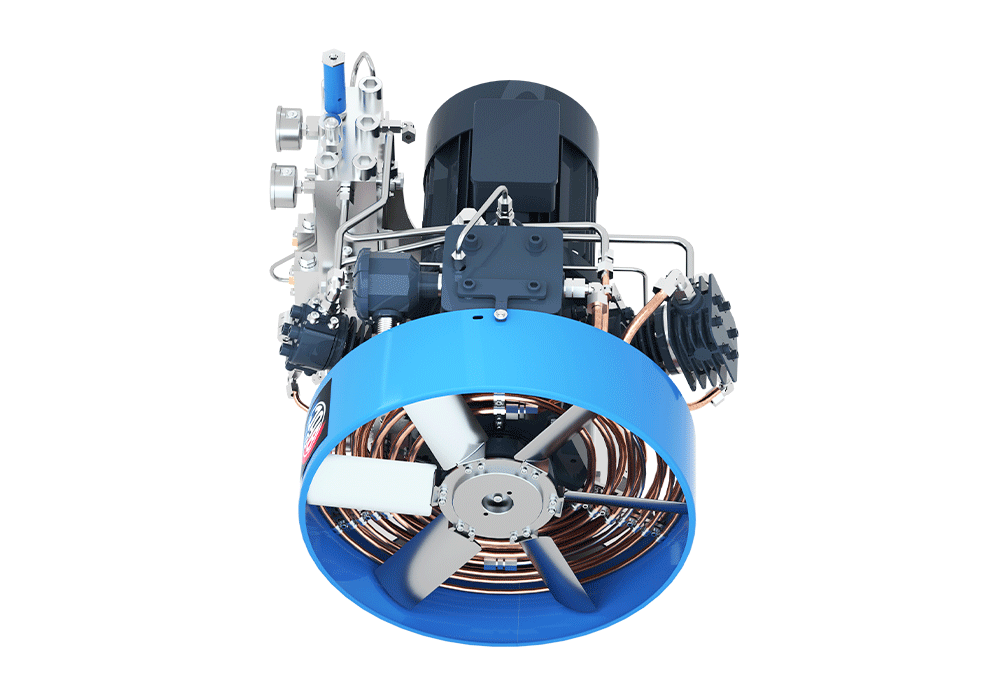

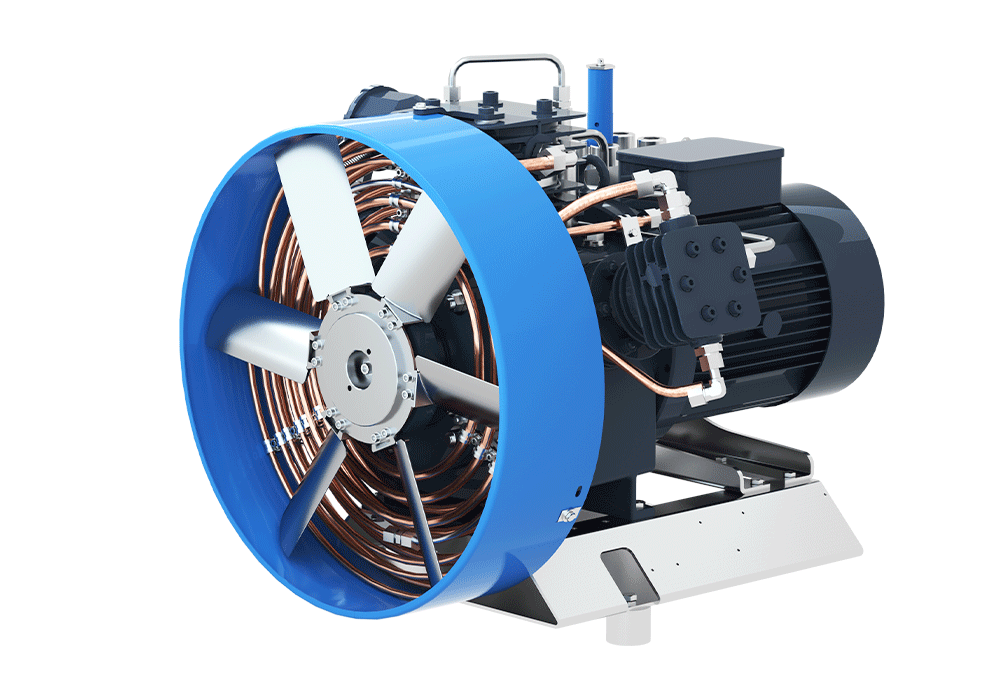

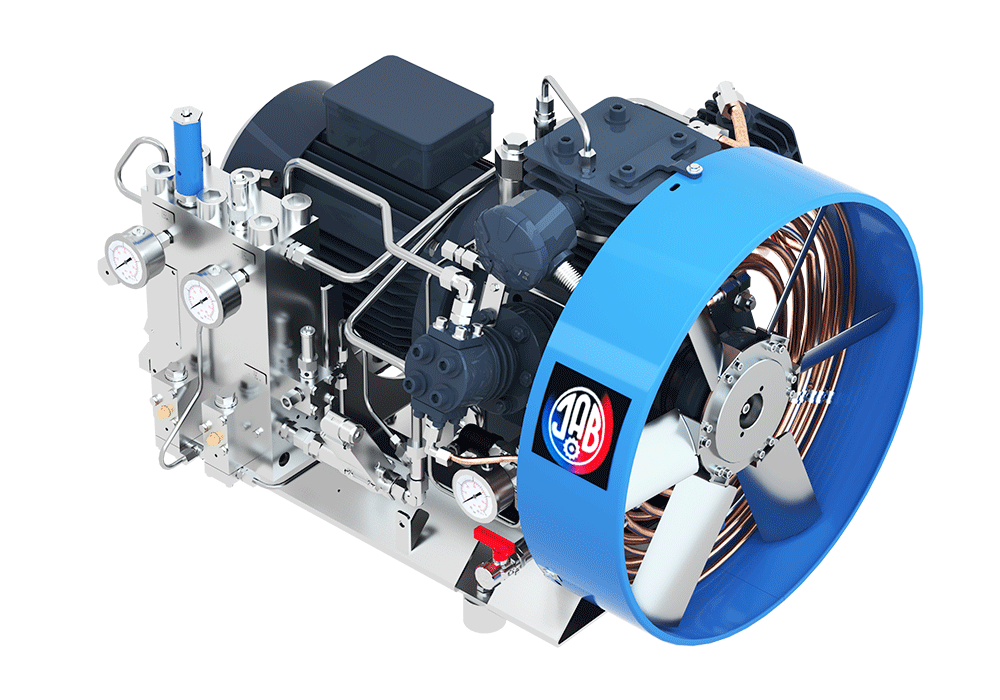

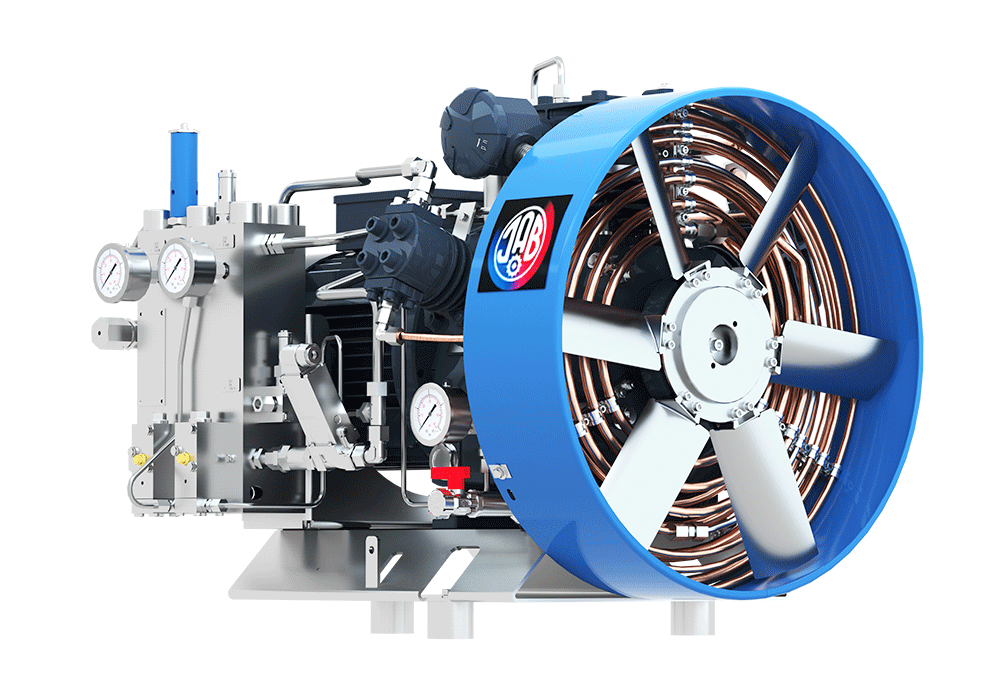

The SV 270/150 compressor occupies a place among the J.A. Becker & Söhne top-tier lifting technology and compressor solutions. This three-stage, high-performance air compressor is the ideal choice for industrial applications requiring reliable, high-pressure air supply. The unit ensures outstanding efficiency, a long service life, and minimal maintenance requirements.
The SV 270/150 is not a „standard product” (NO 08/15 PRODUCTS), but a carefully designed, premium quality device that delivers first-class performance in every aspect.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This not only increases the lifespan of the unit but also improves the quality of the compressed air by minimizing condensate formation.
Fully Automatic Discharge: The built-in, fully automatic pressure relief system facilitates compressor start-up and shutdown, reduces mechanical stress, and contributes to a longer service life.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, maintenance intervals have been significantly extended, which reduces downtime and operating costs.
High Performance in a Compact Design: The unit is capable of achieving a maximum operating pressure of 150 bar while providing a flow rate of 16.2 m³/h (270 l/min).
The precise technical parameters of the SV 270/150 compressor guarantee reliable and efficient operation even in the most demanding environments.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow | 270 | l/perc | Corresponds to 16.2 m³/h |
| Maximum Operating Pressure | 150 | bar | For high-pressure applications |
| Compression Stages / Cylinder | 3 / 3 | – | Three-stage compression |
| Electric Motor Power | 5,5 | kW | Powerful Drive |
| Rotational speed | 1.500 | RPM (revolutions/minute) | Optimized operating speed |
The SV 270/150 is a three-stage piston compressor specifically designed for high-pressure air generation. The three-stage design allows for gradual compression of the air, which reduces the thermal load on individual stages and increases system efficiency.
The key to the compressor's efficiency is excellent heat management. Significant heat is generated during the compression process, which the specially designed cooling system effectively dissipates. This cooling ensures that the compressor heads and valves remain at optimal temperatures, minimizing wear and performance loss. The optimization of cooling fins and airflow guarantees stable operation.
The 5.5 kW electric motor drives the compressor at 1500 revolutions/minute. This speed creates an ideal balance between performance, noise level, and service life. Achieving a maximum pressure of 150 bar makes the unit extremely versatile, whether for special industrial processes or filling high-pressure storage systems.
Great emphasis was placed on user-friendly operation and long-term reliability during the design phase. The fully automatic discharge function (which automatically vents the pressure from the pipes upon shutdown) prevents backflow and excessive motor load during startup. Long maintenance intervals mean the system spends less time in service and more time producing.
The SV 270/150 compressor is excellently suited for areas where standard pressure air is insufficient:
Industrial pneumatic systems that require extremely high pressure.
Compression of special gases (where applicable according to specifications).
Filling of high-pressure air storage systems.
Workshops and production lines where reliability is critical.
This unit is a symbol of the engineering precision and quality awareness of J.A. Becker & Söhne, ensuring continuous, uninterrupted operation in the long run.
