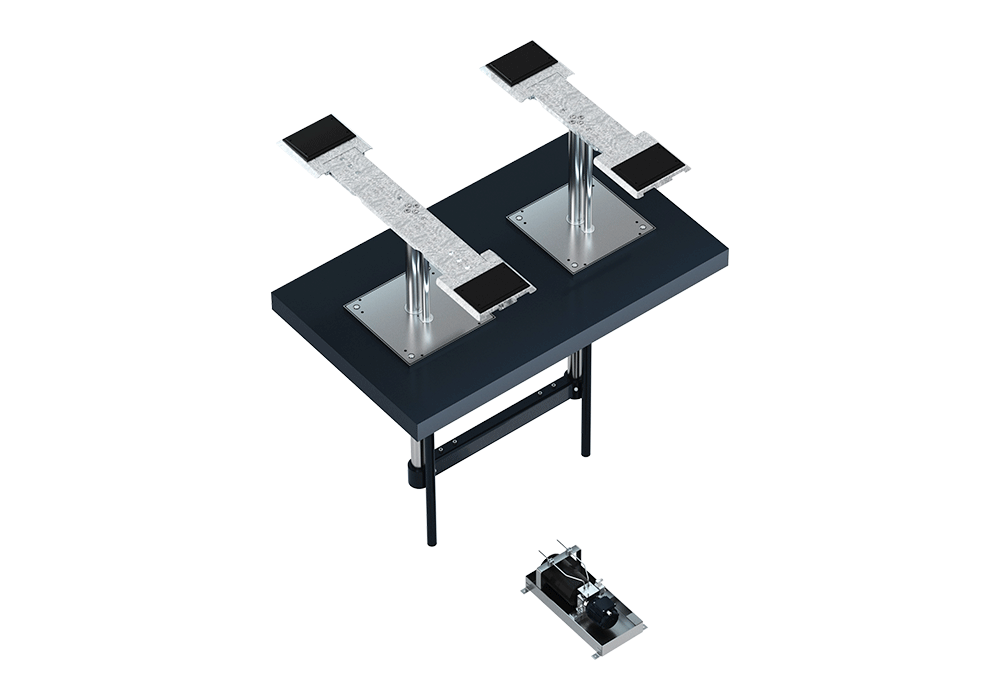

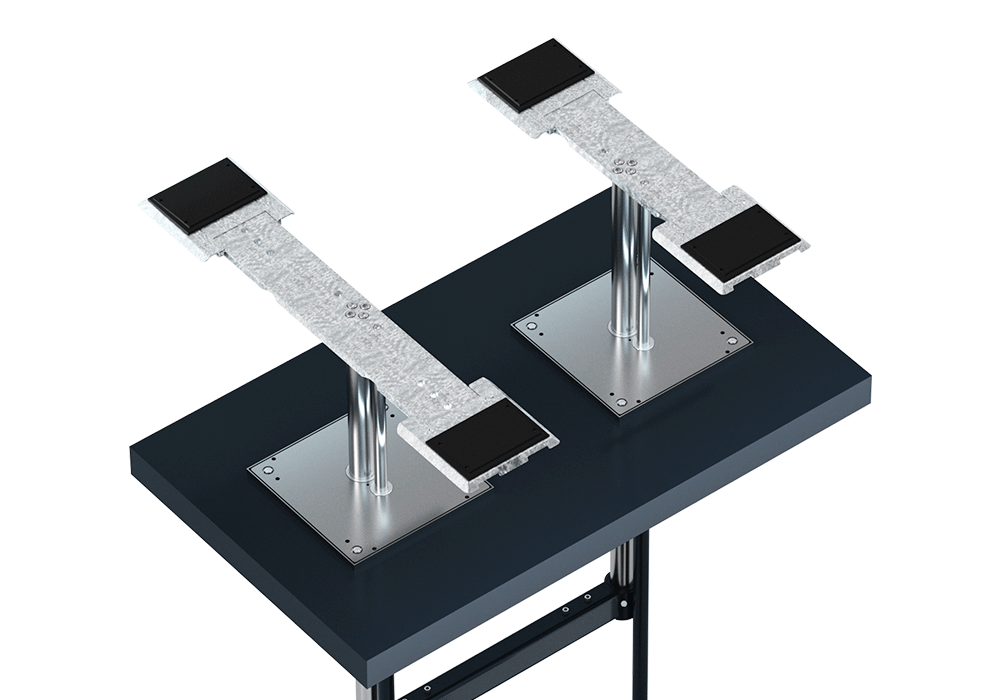

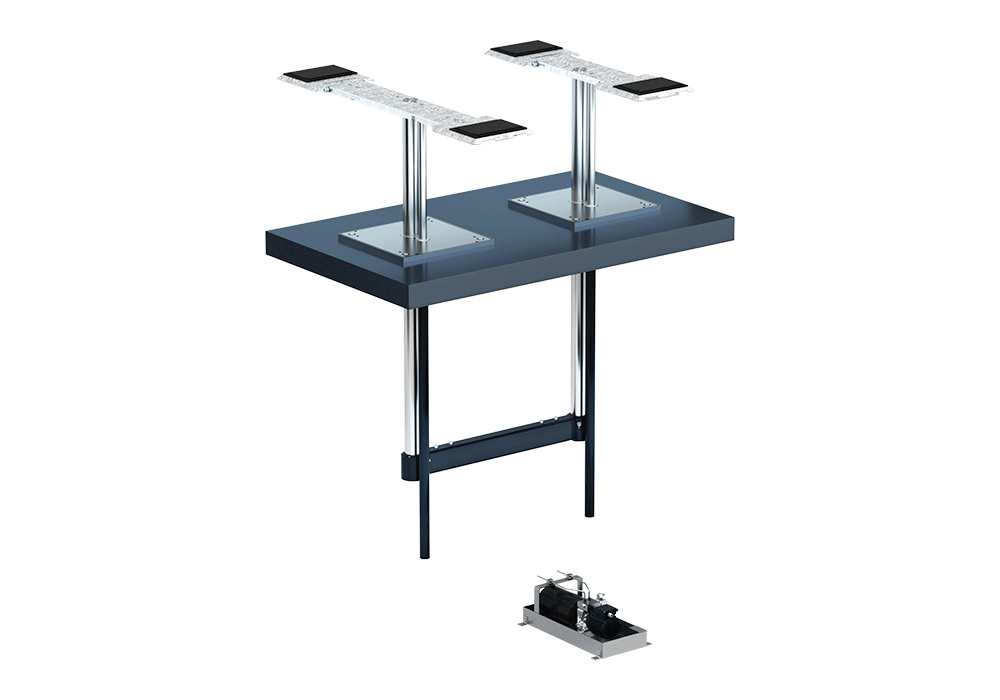

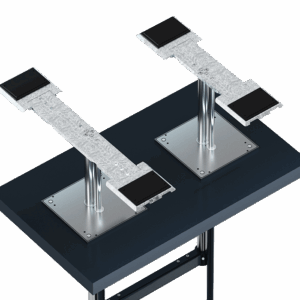

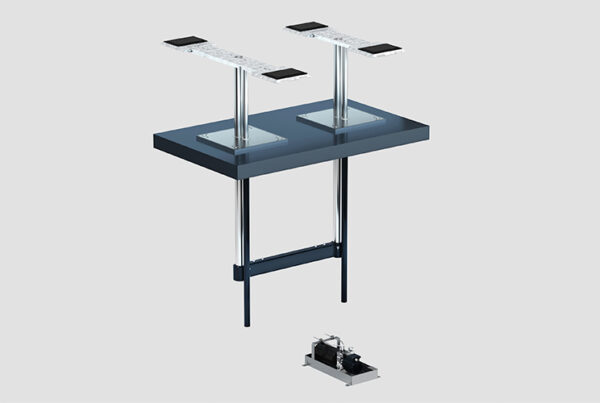

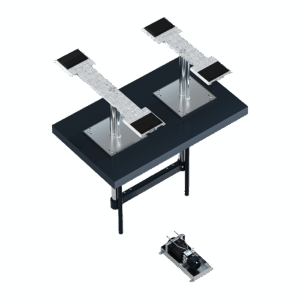

J.A. Becker & Söhne is proud to present the TwinRam built-in lifting system, which has been specifically developed for discreet and efficient integration into floor slabs and pits. This special lifting platform offers a solution for situations where the lifting equipment must be recessed into the floor structure, ensuring minimal space requirement on the workshop floor level.
The TwinRam systems offer the highest level of flexibility and reliability while ensuring that vehicle servicing can be performed under the most optimal conditions.
The TwinRam in-floor recessed lifting system is not an „easy” (NO 08/15) product, but a carefully designed, customizable solution that brings numerous advantages for modern service workshops:

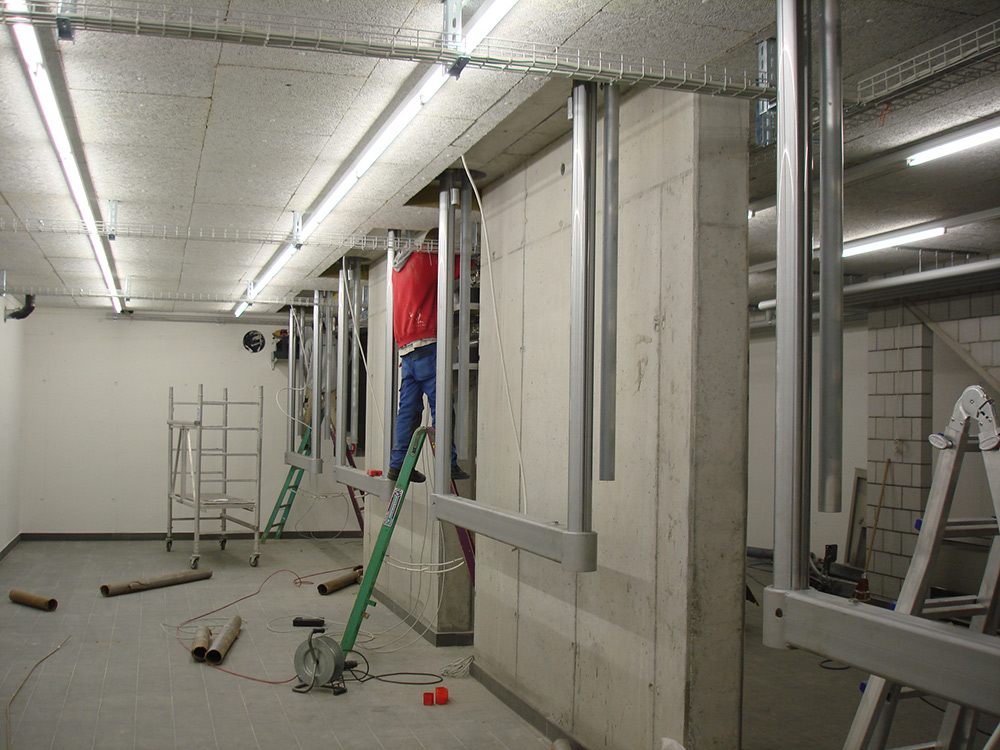

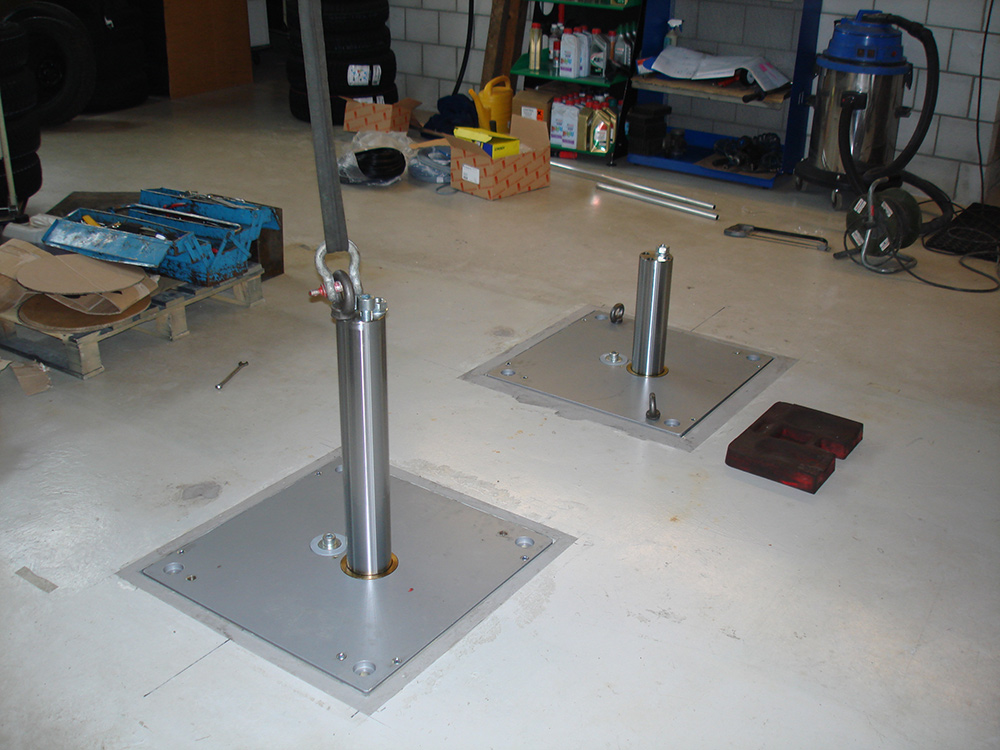

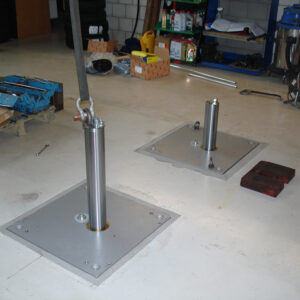

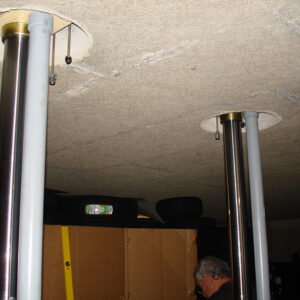

Only Core Drilling Required: Installation only requires core drilling in the floor slab, which significantly simplifies and speeds up the construction process in existing or newly built structures.

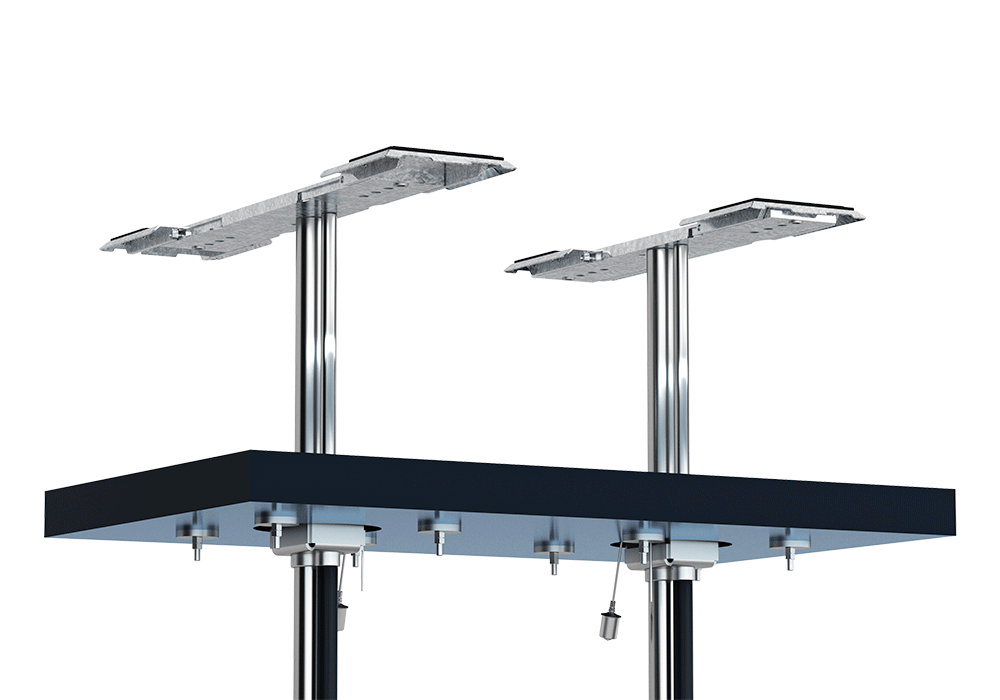

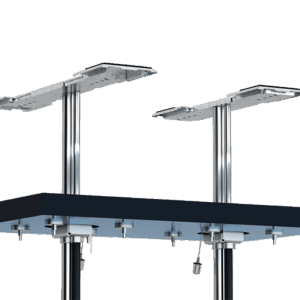

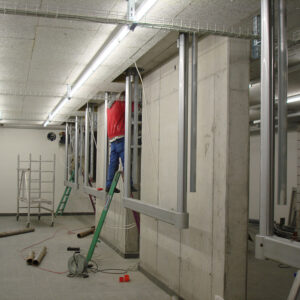

Load Introduction into the Pit: The system is designed to introduce the vehicle load directly into the pit structure, ensuring maximum stability and safety during lifting.

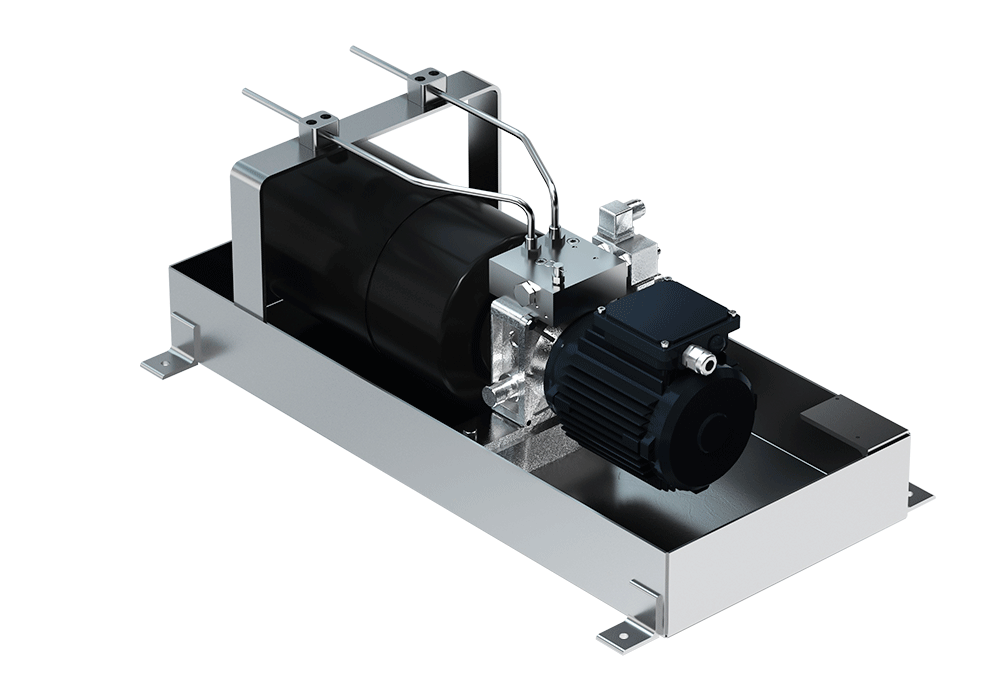

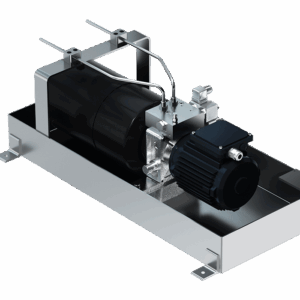

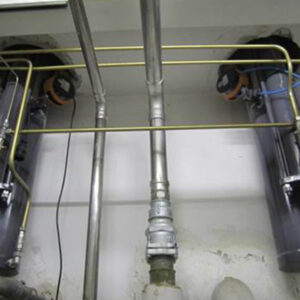

Full Access from Workshop Level: All components of the lift – including hydraulics and controls – are freely accessible from the workshop floor level. This extremely facilitates maintenance, servicing, and operation.
Customized Solutions: Since every construction environment is unique, TwinRam systems can be individually configured for your specific needs. Please contact us to find the ideal solution for your requirements.
Synchronization Options: The synchronization of the two lifting columns can be achieved in several ways, ensuring flexibility during the design phase:

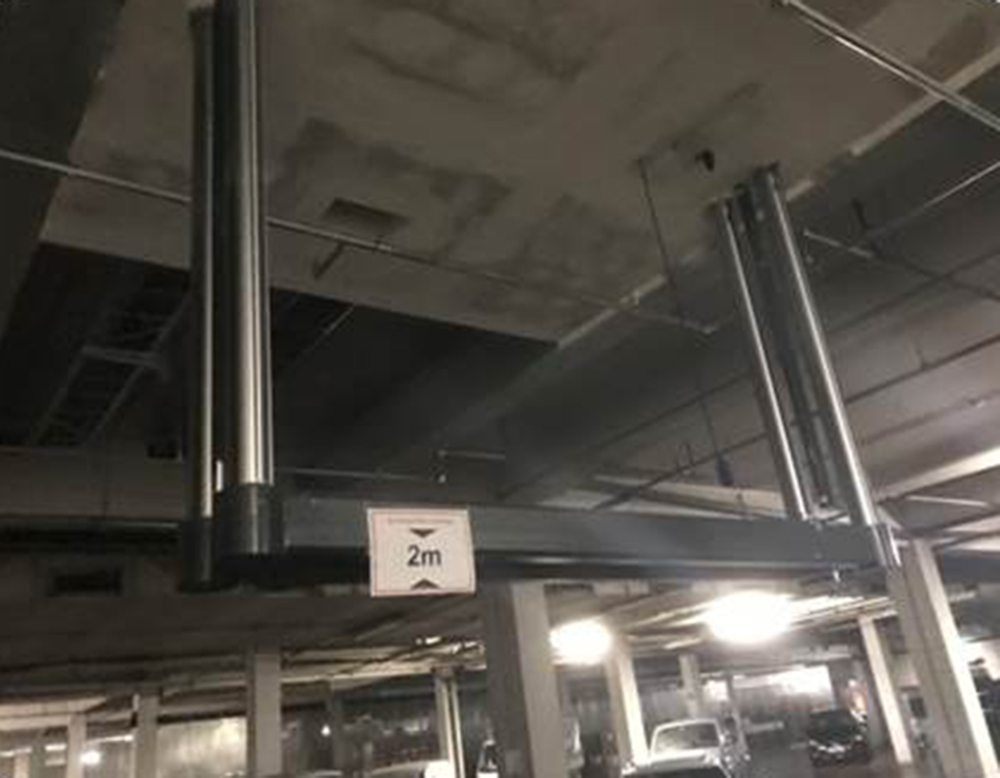

Cross yoke synchronization.
Gearbox synchronization.

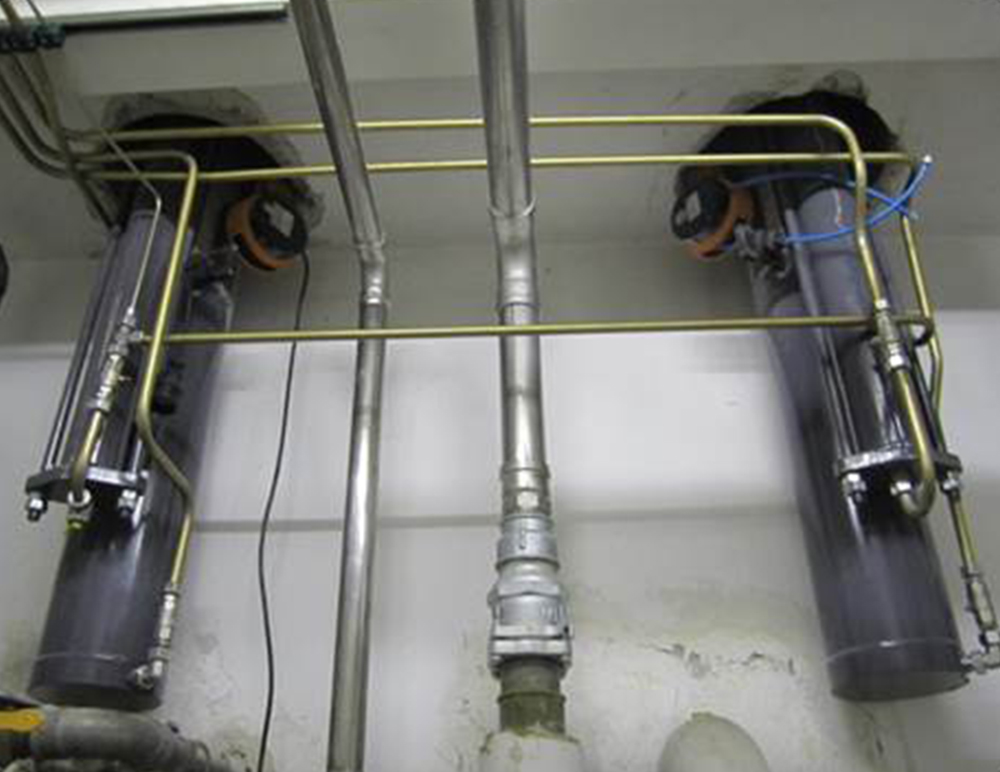

Fully hydraulic synchronization.
J.A. Becker & Söhne has developed special lifting platforms for pit installation. This solution is an ideal choice for workshops where space-saving and discreet integration are crucial. The excellent quality construction of the lifting system guarantees a first-class product in every respect.
Since this product is individually configurable, the exact technical data depends on the selected synchronization method and the installation environment. The table below summarizes general specifications and configuration options.
| Parameter | Description / Feature |
|---|---|
| Product Family | Installation TwinRam |
| Installation Location | Pits / Floor Slabs |
| Installation Method | Only core drilling required |
| Load Introduction | Directly into the concrete structure |
| Maintenance Access | Fully accessible from shop floor level |
| Synchronization Types | Crossbeam, Speed converter, Fully hydraulic |
| Configuration | Individually configurable |
| Quality | Premium, first-class design |
For further detailed technical data and to agree on specific configurations, please contact our experts.
In-ground lifts significantly improve workshop workflows:
Space optimization: When the lift is not in use, the floor remains flat, so the workshop area can be used freely for other purposes or for the unobstructed movement of vehicles.
Ergonomics: It provides a more comfortable and safer working environment for service work, as the lift columns do not obstruct movement in the workshop.
Aesthetics: The discreet installation contributes to the creation of a modern, professional workshop image.
This system is an ideal choice for high-quality auto repair shops, authorized dealerships, and special vehicle maintenance facilities where precision and space utilization are paramount.
