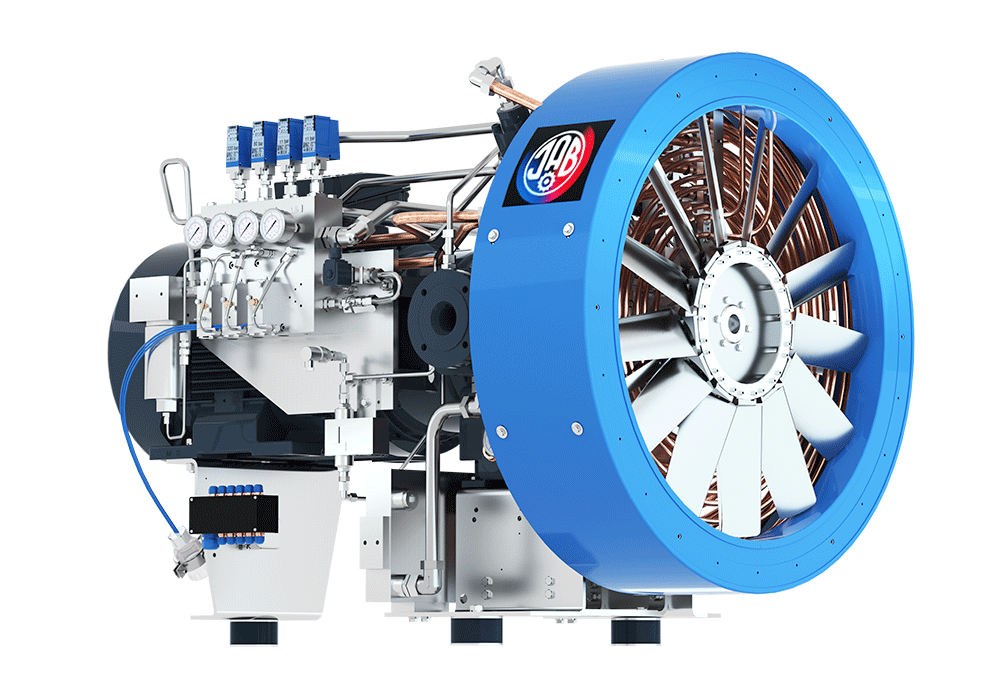

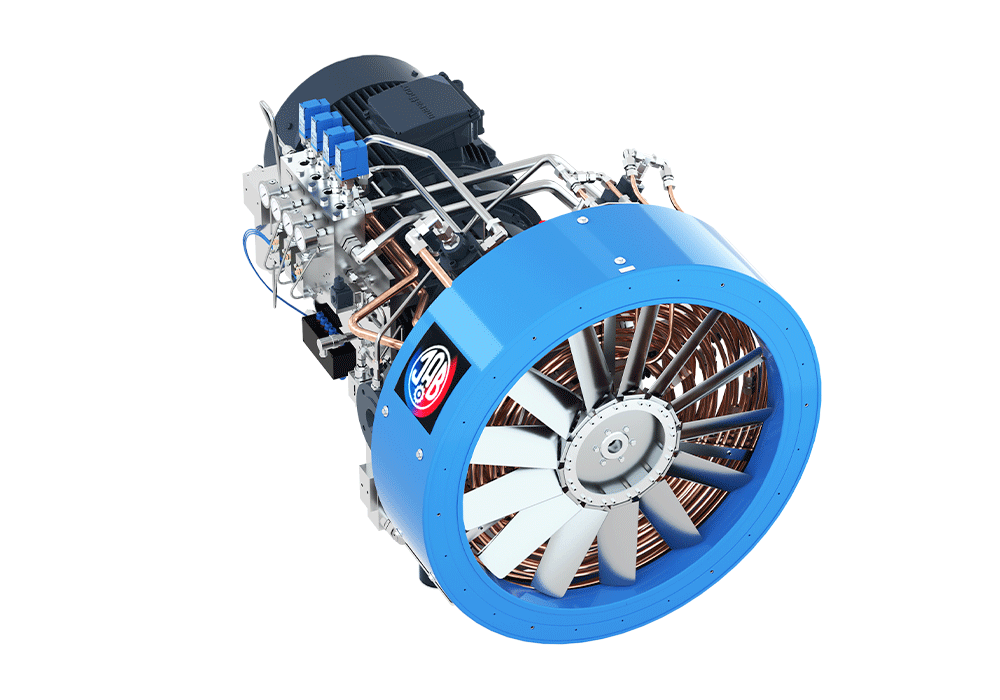

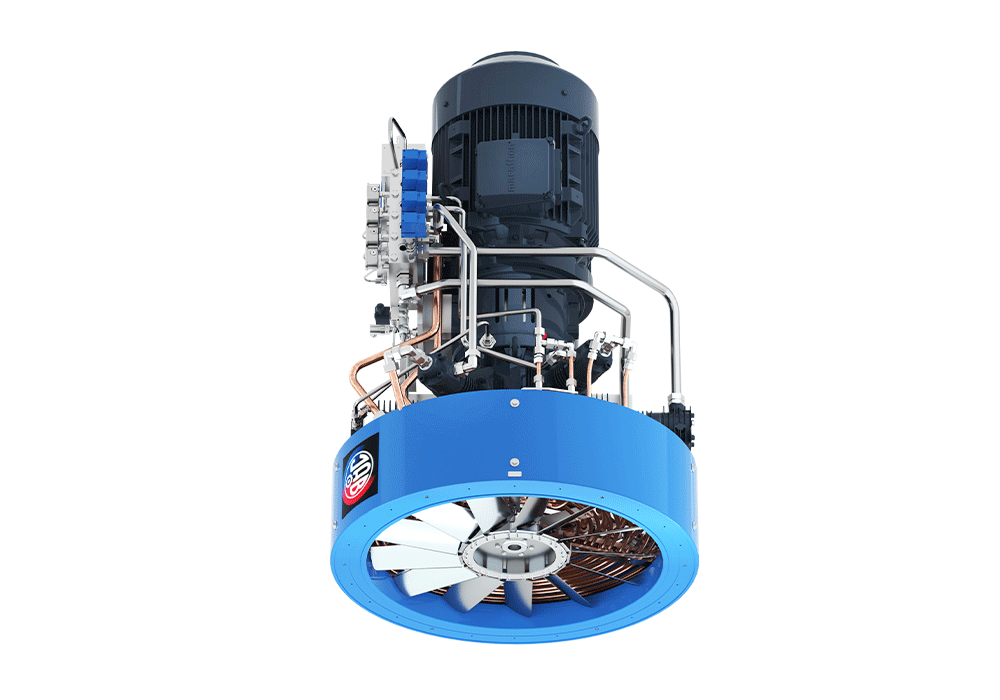

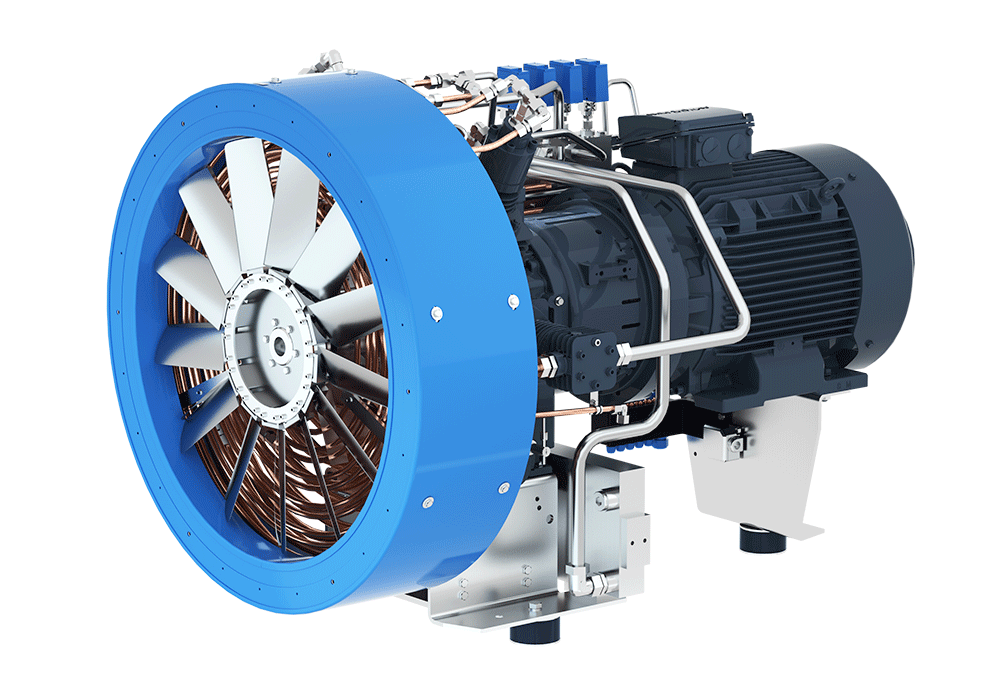

The J.A. Becker & Söhne V 5650/300 NG6 model is a reciprocating, three-stage natural gas compressor specifically designed for high-pressure applications. This equipment is excellently suited for industrial and commercial use where reliable, high-performance gas compression is required, especially for natural gas post-compression tasks. The unit is a distinguished piece of the JAB product range, prioritizing durability, efficiency, and long maintenance intervals.
The V 5650/300 NG6 compressor is not a „common” product (NO 08/15 PRODUCTS), but a premium solution with numerous advantageous features:
Excellent Efficient Cooling: The unit's advanced cooling system ensures optimal operating temperature even under intensive load. This not only increases the lifespan of the components but also contributes to energy efficiency.
Fully Automatic Discharge: The fully automated pressure reduction and venting system simplifies operation, minimizes the need for human intervention, and increases safety during pressure management.
Long Maintenance Intervals: The robust design and quality components guarantee exceptionally long maintenance cycles, significantly reducing downtime and operating costs.
First Class Quality: The V 5650/300 NG6 is a first-class product in every respect, meeting the strictest industrial requirements.
The performance and capabilities of the compressor are supported by the following detailed technical parameters:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Inlet Pressure | 6 | bar | Inlet gas pressure to the compressor. |
| Volumetric Flow Rate (Suction Side) | 629 | l/min | The volume of gas processed by the compressor per minute. |
| Flow Rate (Converted) | 37.7 | m³/h | The equivalent value of the flow rate in hourly units of measurement. |
| Maximum Operating Pressure | 300 | bar | Maximum outlet pressure achievable by the compressor. |
| Compression Stages / Cylinder | 3 / 3 | – | Compression occurs in three separate stages, with 3 cylinders. |
| Electric Motor Power | 10 | kW | Nominal power of the drive motor. |
| Rotational speed | 1.500 | rpm | Operating speed of the drive motor and the compressor. |
The V 5650/300 NG6 compressor is an ideal choice for natural gas aftercompression (Nachverdichter) tasks, where existing low-pressure natural gas needs to be boosted to higher pipeline pressure or for storage purposes.
The three-stage design ensures efficient pressure increase from the 6 bar inlet pressure up to the final pressure of 300 bar, minimizing heat generation in each stage. The 10 kW electric motor provides sufficient power to maintain a capacity of 37.7 m³/h.
Further detailed information regarding the product (datasheets and brochures) can be downloaded from the official sources of the manufacturer.
This compressor reflects the engineering precision of J.A. Becker & Söhne, guaranteeing reliable and economical operation even in the most demanding gas handling environments.
