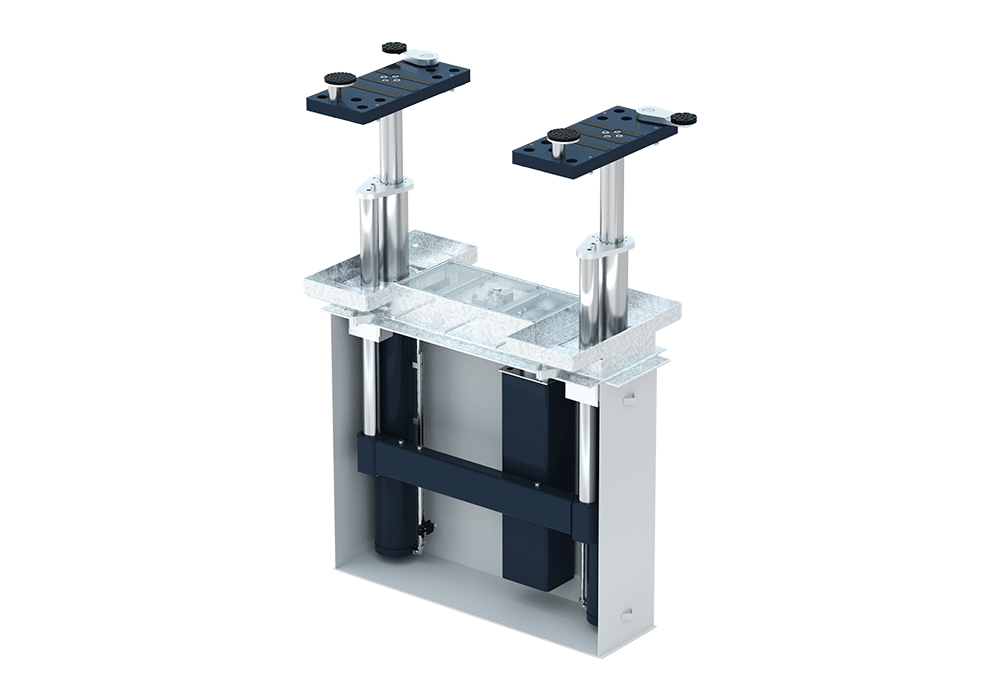

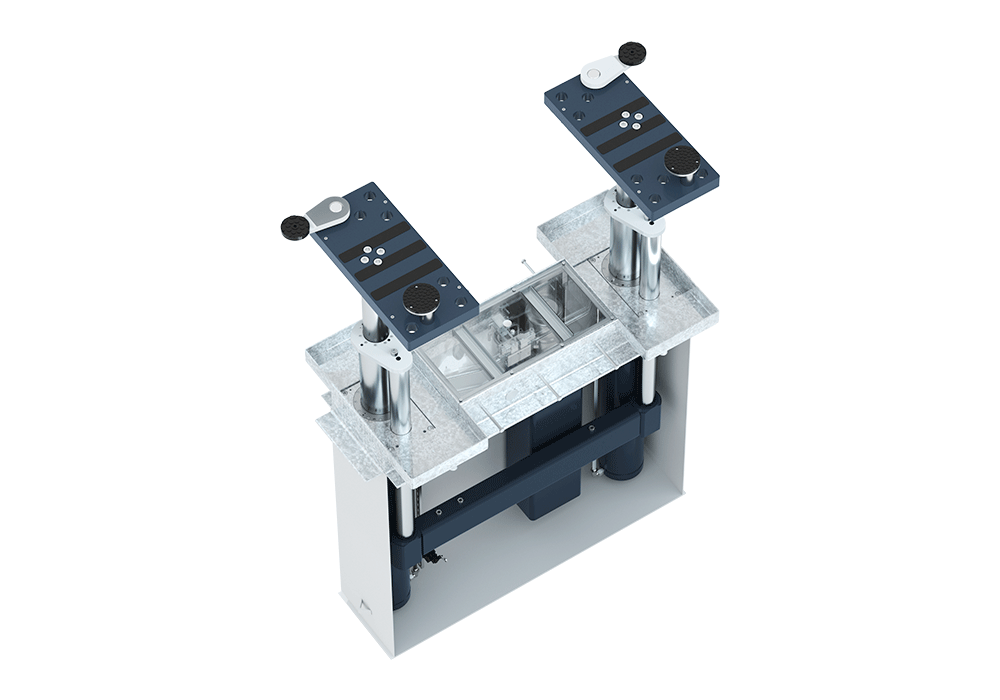

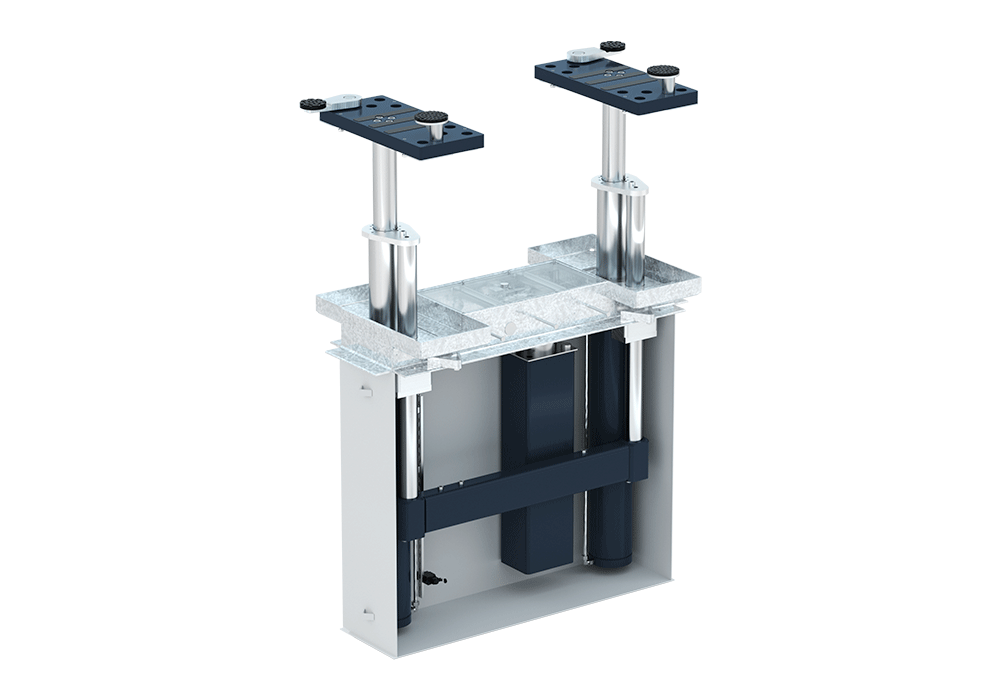

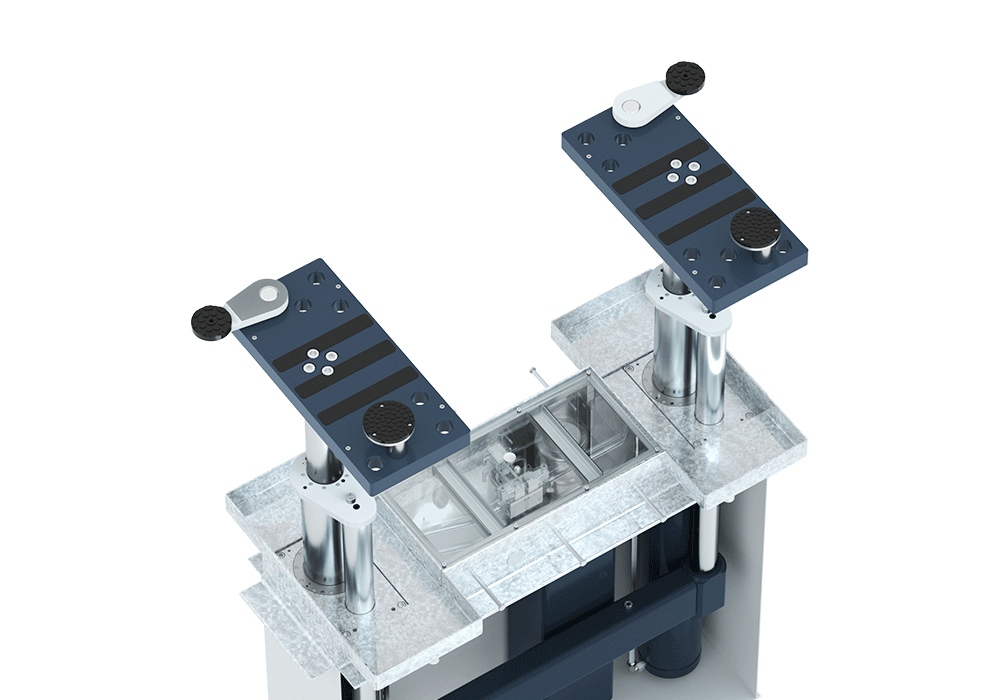

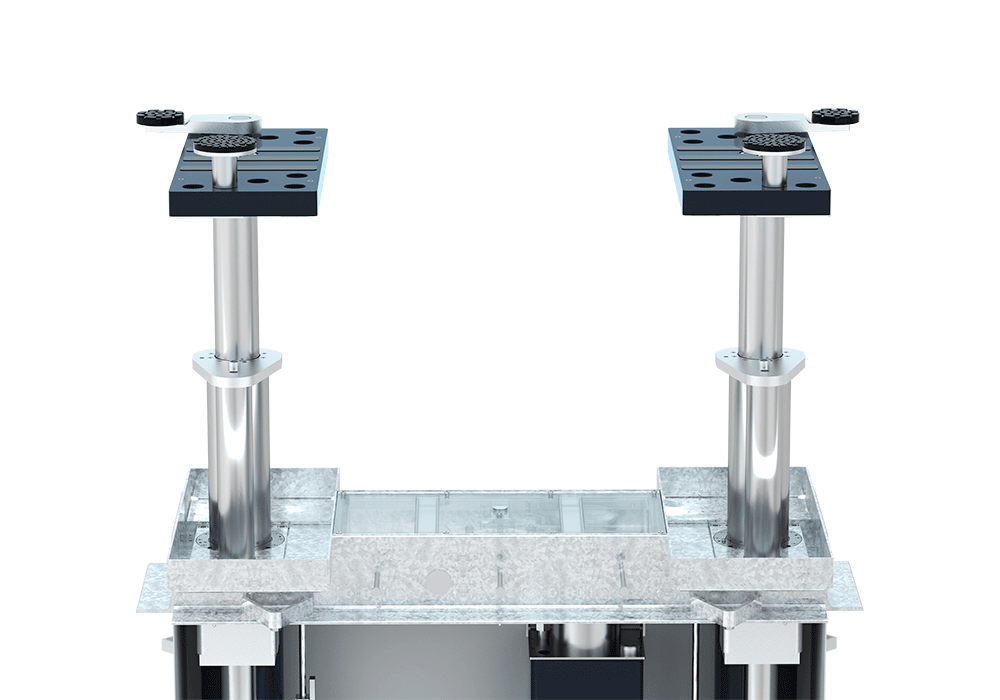

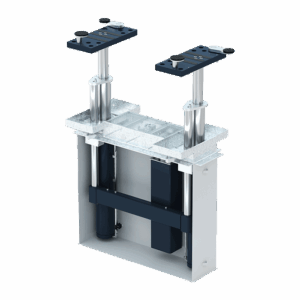

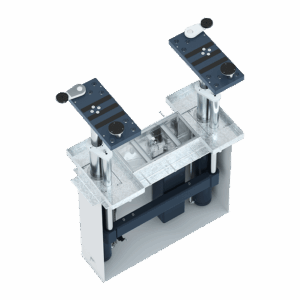

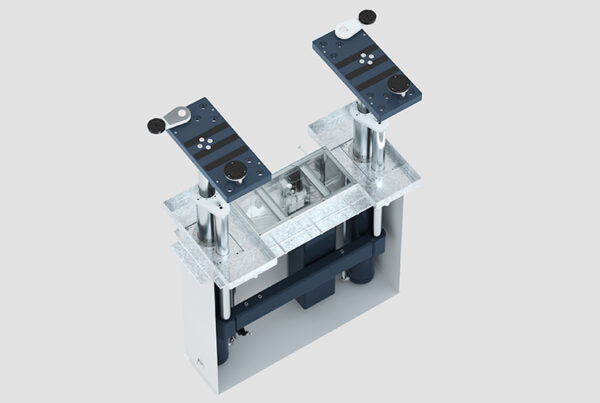

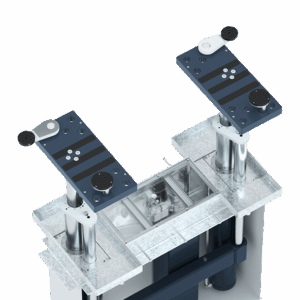

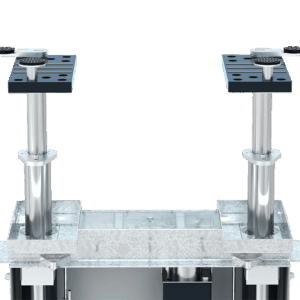

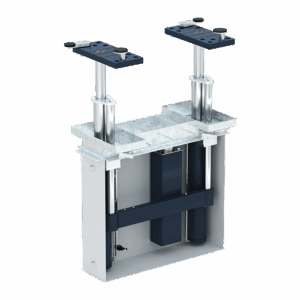

J.A. Becker & Söhne proudly presents the HF 5 Flush model, which is a compact class, hydraulic, twin-post, telescopic design, in-ground lift system. This system is specifically optimized for lifting industrial vehicles, forklifts, and other large warehouse vehicles, guaranteeing maximum safety and space-saving operation.
The HF 5 Tele is not an average solution; in line with the J.A. Becker & Söhne philosophy, this is a „not 08/15” product representing the highest technical standard on the market. The telescopic design allows for an extremely compact installation depth, while the load-bearing elements can be completely sunk flush with the floor, so the lift remains completely invisible when not in use, ensuring an unobstructed operating area.
The HF 5 Tele lift incorporates several innovative solutions that set it apart from competitors:
Excellent Load Capacity: With a nominal load capacity of 5,000 kg, it is ideal for the safe lifting of heavy industrial vehicles.
Telescopic Design: The two hydraulic cylinders operate telescopically, which allows for an extremely small installation depth.
In-Ground Load-Bearing Elements: The load-bearing units can be sunk completely below floor level, so the lift disappears completely when not in use, facilitating traffic in the workshop.
Anti-Tilt System: An efficient anti-tilt mechanism, effective over the entire stroke length, ensures the stability of the vehicle during lifting.
Additional Guide Rods: All torque resulting from the load is absorbed by additional, specially designed guide rods, thereby increasing the lift's service life and safety.
Galvanized Base Frame: The installation takes place in a hot-dip galvanized base frame, which provides excellent corrosion protection and long-term stability in the floor.
The HF 5 Tele lift is the result of precise engineering work, whose detailed technical parameters can be found in the table below:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 5.000 kg | Maximum Load Capacity |
| Lifting Height | 1,850 mm | Total Lifting Height |
| Installation Depth | 1,550 mm | Extremely Compact Size |
| Oil quantity | 70 liters | Hydraulic system capacity |
| Connection Power | 2.2 kW | Electric Drive Requirement |
| Construction | Hydraulic, 2-post, telescopic | |
| Base Frame | Hot-dip galvanized | Excellent corrosion protection |
The HF 5 Tele is a two-post, hydraulic, in-ground lift whose load-bearing equipment can be retracted flush with the floor level. This feature is crucial for modern, efficiently organized service and maintenance facilities where space utilization and operational safety are paramount concerns.
The telescopic design allows the lift structure to occupy very little space below the floor. The installation depth of only 1,550 mm offers a significant advantage in locations where the groundwater level or existing infrastructure restricts deeper construction. The hydraulic system is designed to reliably and evenly provide the full lifting height (1,850 mm).
Safety is paramount in the design of J.A. Becker & Söhne products. In the case of the HF 5 Tele, this is realized as follows:
Anti-Tilt: Over the entire stroke length of the lift, an integrated anti-tilt system guarantees that the vehicle cannot move sideways during lifting. This is especially important for heavily loaded forklifts lifted high up.
Torque Absorption: To absorb the torques that occur on conventional lifts and stress the structure, the HF 5 Tele auxiliary guide rods are used. These rods take over the lateral components of the load, allowing the main hydraulic cylinders to concentrate solely on vertical lifting tasks, which increases the system's lifespan and reliability.
The installation of the lift is performed in a specially designed, hot-dip galvanized base frame. This galvanizing process provides excellent protection against corrosion, which is essential for equipment continuously exposed to moisture and sub-floor environmental effects. After installation, the load-bearing equipment fits perfectly flush with the floor, minimizing the risk of accidents and facilitating the forklift's approach and exit.
The HF 5 Tele is a first-class product in every aspect, satisfying even the highest level of industrial requirements, ensuring efficient and safe operation in the field of vehicle maintenance.
