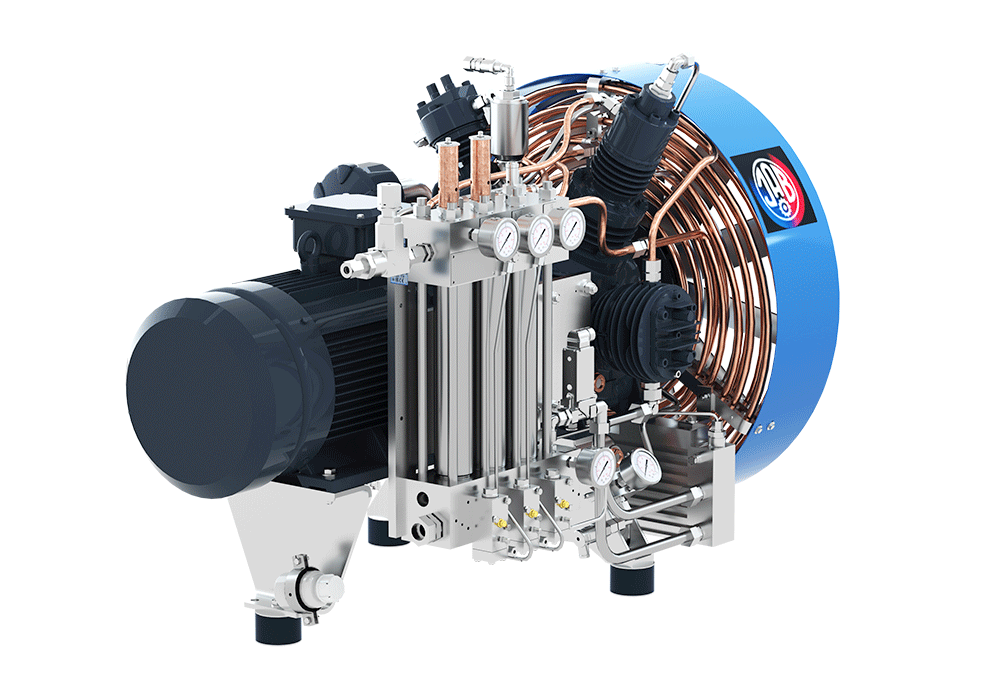

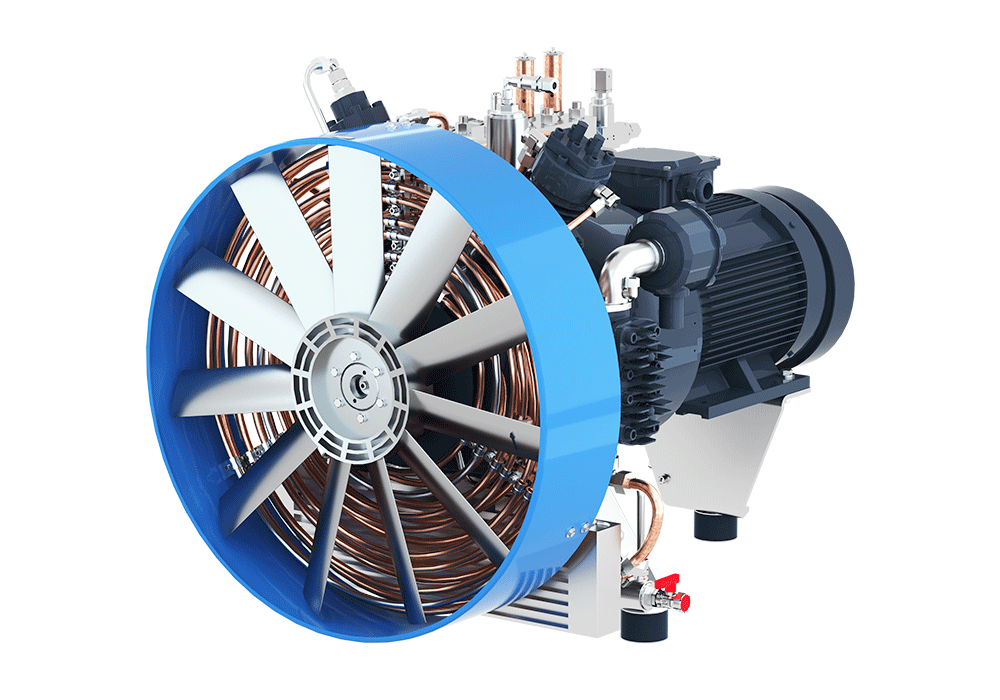

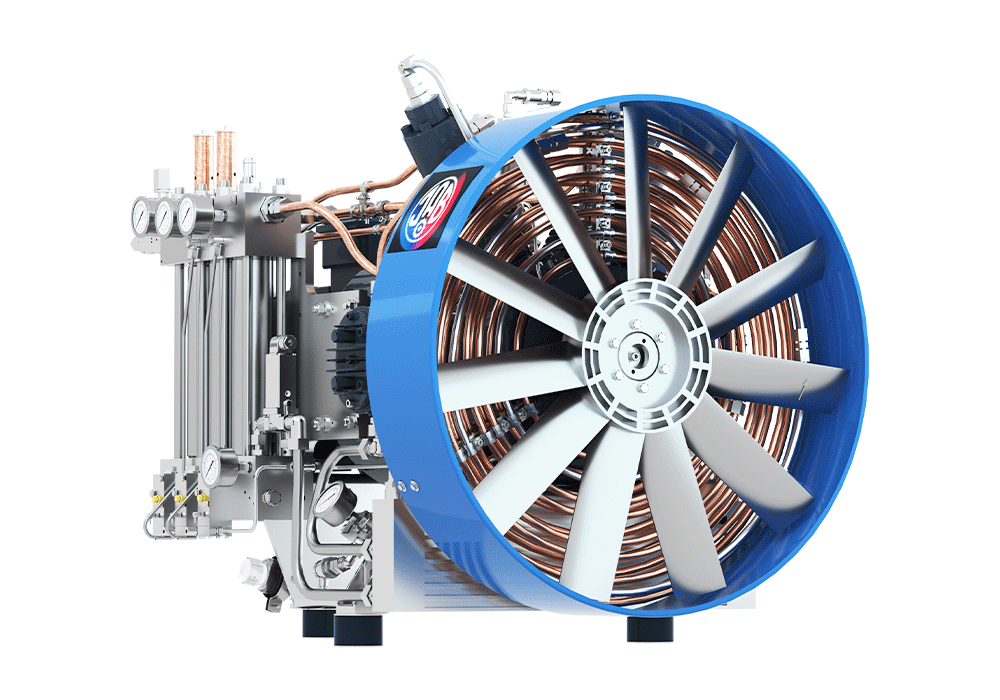

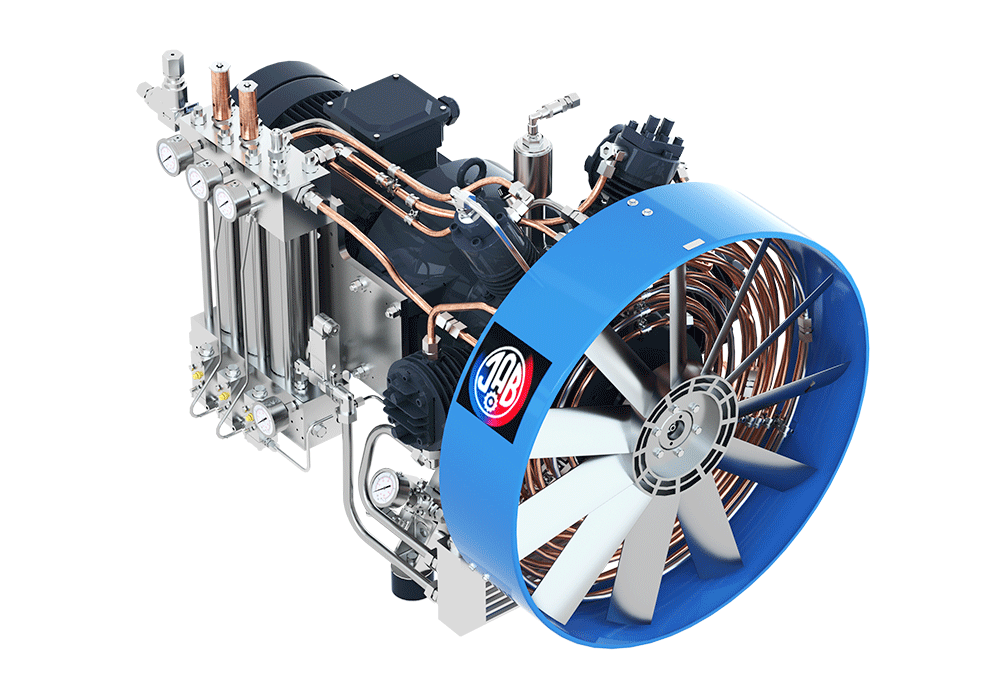

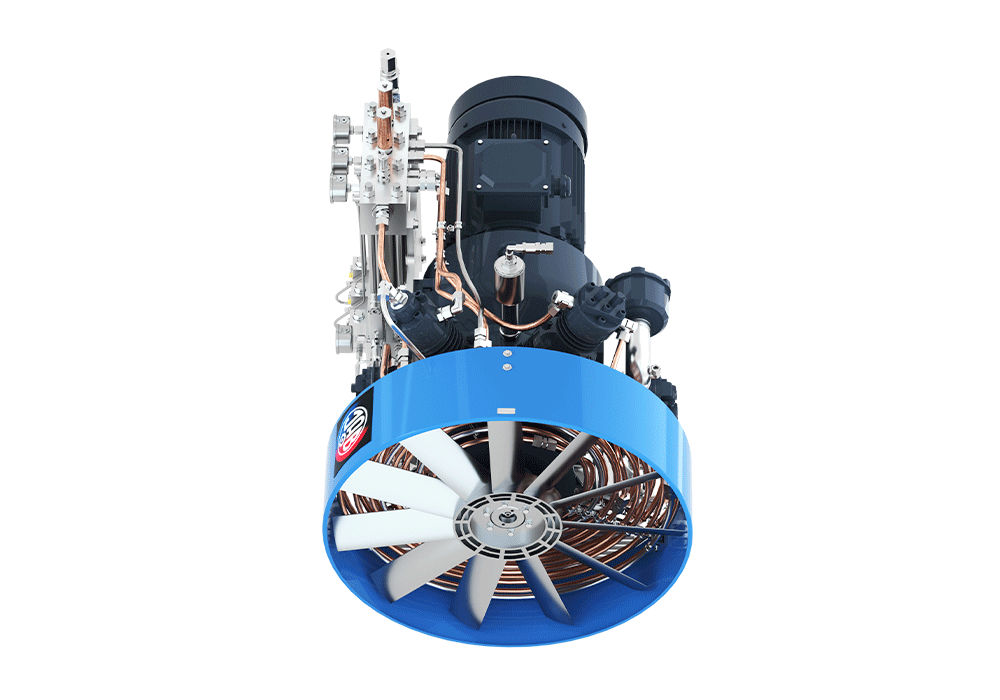

The J.A. Becker & Söhne SVB 450/250 model is a pinnacle-class, four-stage air compressor specifically designed to meet the highest pressure requirements. This high-performance unit is the ideal choice for industrial applications requiring reliable, high-purity air supply, up to 250 bar operating pressure. Becker's commitment to quality and durability is reflected in this model, avoiding „off-the-shelf solutions” (NO 08/15 PRODUCTS).
The SVB 450/250 compressor features several outstanding properties that ensure efficient and long-term, trouble-free operation:
Outstandingly Efficient Cooling: The compressor's advanced cooling system guarantees optimal operating temperature even under intensive load. This is crucial for maintaining compressed air quality and increasing system lifespan.
Fully Automatic Condensate Draining: The built-in, fully automatic condensate draining system ensures that moisture and oil residues are continuously and reliably removed from the system. This minimizes maintenance requirements and protects the compressed air from contaminants.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, the compressor features extremely long maintenance intervals, significantly reducing downtime and operating costs.
High Performance: The flow rate of 27.3 m³/h (or 455 l/min) and the maximum pressure of 250 bar enable the servicing of high-volume, high-pressure applications.
The technical parameters of the SVB 450/250 model showcase a design optimized for high-performance, industrial use:
| Parameter | Value | Note |
|---|---|---|
| Volume flow | 455 l/min (27.3 m³/h) | The delivery capacity of the compressed air. |
| Maximum Operating Pressure | 250 bar | Capable of achieving extremely high pressure. |
| Compression Stages / Cylinder | 4 / 4 | Four-stage compression system. |
| Electric Motor Power | 11 kW | The performance of the drive unit. |
| Rotational speed | 1.500 U/min | The rotational speed of the electric motor. |
The SVB 450/250 is a flagship product, representing first-class quality in every aspect. The four-stage design ensures gradual compression of the air, which reduces the load on individual stages and increases efficiency while optimizing heat generation.
The 250 bar pressure capability enables an extremely wide range of applications, including:
Gas Cylinder Filling: Ideal for filling high-pressure gases (e.g., breathing air cylinders, industrial gases) where fast and reliable refilling is essential.
High-Pressure Cleaning Systems: Industrial processes that require high-energy, high-pressure air.
Special Industrial Processes: Any production or research area where pressure significantly higher than the standard 10 bar is required.
Great emphasis was placed on user-friendly handling and long-term reliability in the design of the compressor. The robust construction guarantees that the machine can withstand even the harshest industrial environments.
More detailed technical documentation and brochures regarding the product can be downloaded from the manufacturer's official sources, providing deeper insight into the compressor's operating principles and installation requirements.
Datasheet Download: Detailed technical specifications.
Download Brochure: Comprehensive product information and application examples.
The SVB 450/250 is not just a compressor; it is a strategic investment in securing reliable, high-pressure air supply, minimizing maintenance needs, and maximizing productivity.
