PMU Series Portable Weighing Platforms – Robust and Flexible Solutions for Industrial Weighing

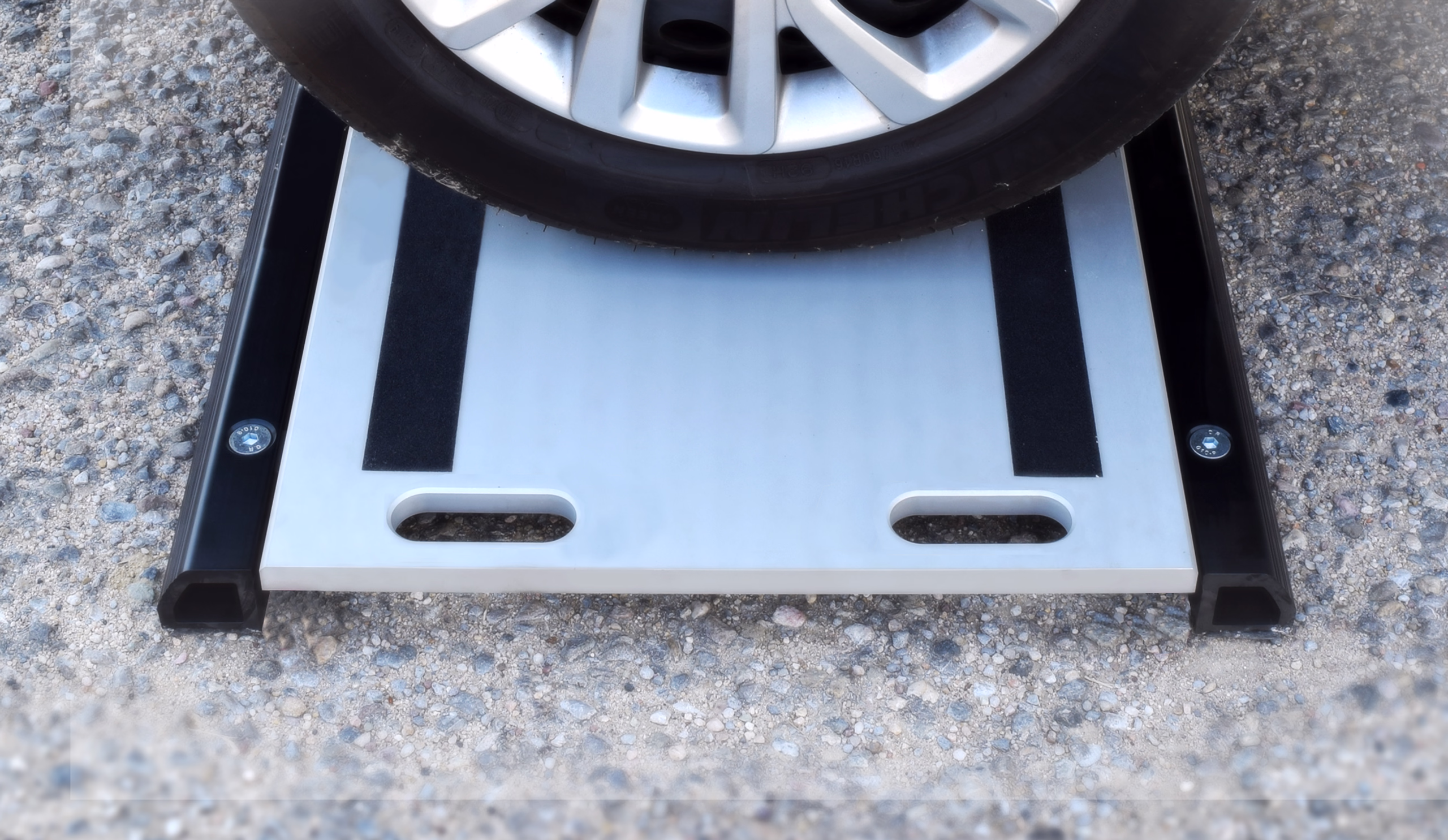

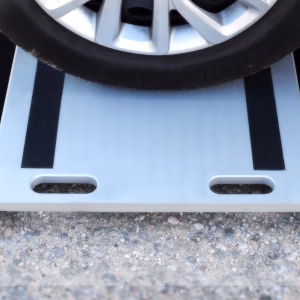

The PMU series portable weighing platforms are excellently suited for on-site measurements where flexibility and high load capacity are required. These platforms are ideal for the precise weighing of trucks, trailers, or other large objects, whether for temporary setup or permanent installation.
Key Features and Advantages
The design of the PMU weighing platforms prioritizes durability, ease of handling, and precise measurement.
Excellent Durability and Structure

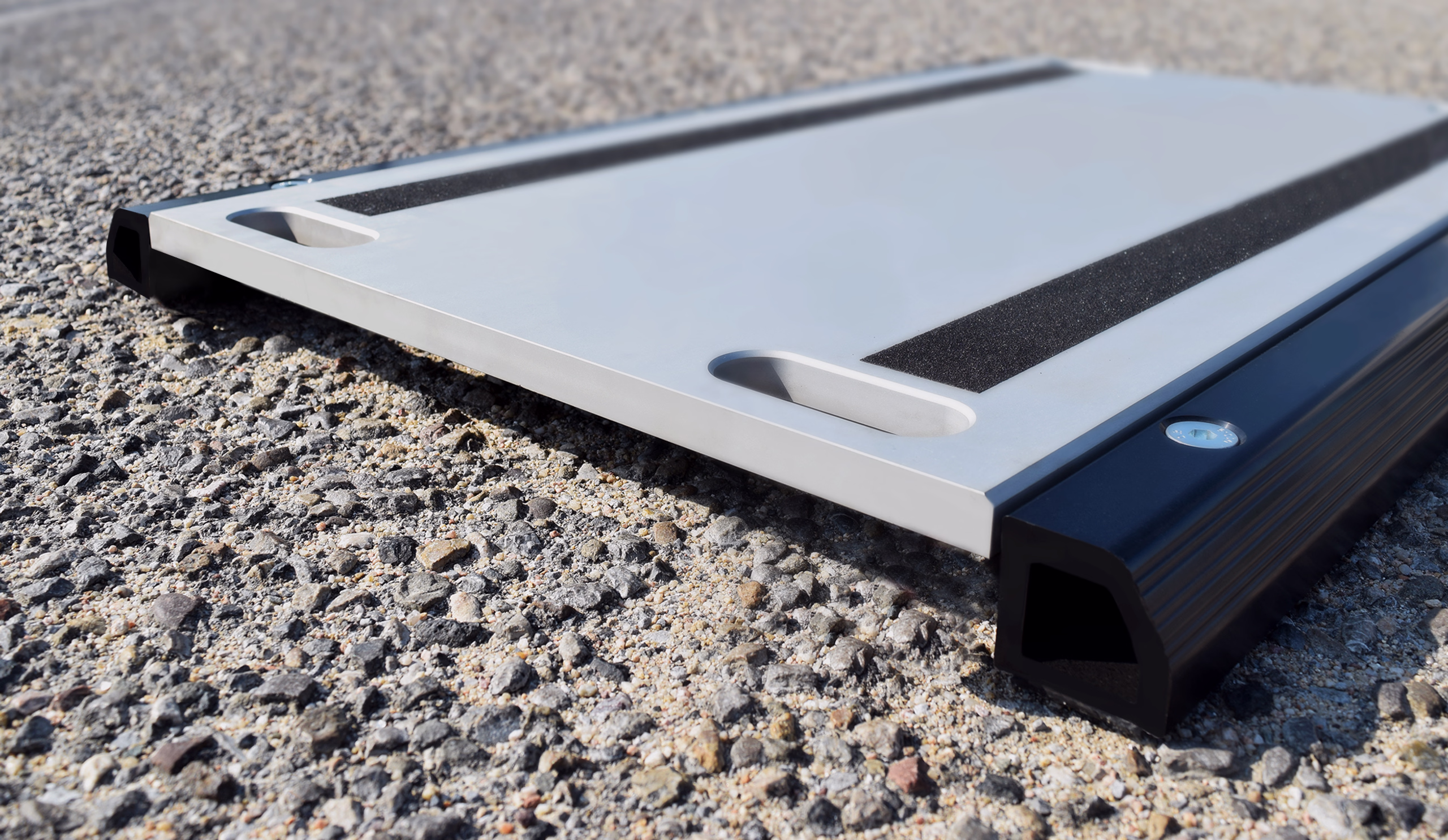

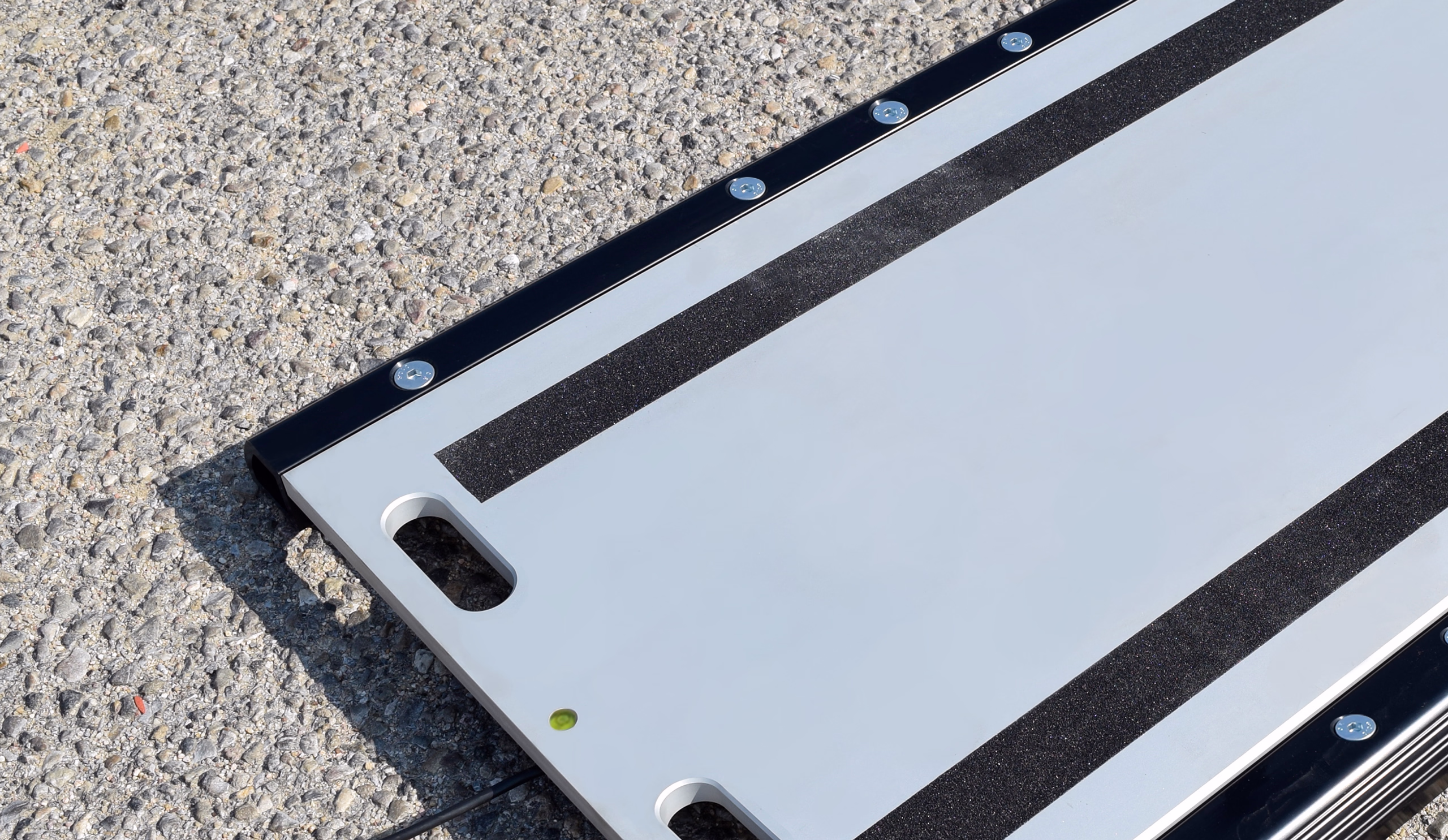

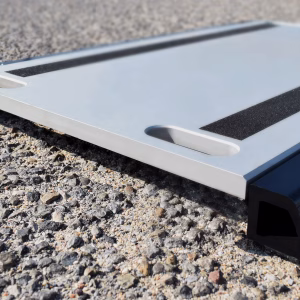

- Aluminum Structure: The platforms feature a robust yet relatively lightweight aluminum structure, which guarantees long service life and corrosion resistance.
- Anti-Slip Surface: The weighing surface is equipped with an anti-slip rubber coating, which increases safety during vehicle approach and departure, especially in wet or dusty environments.
- Stable Base: Anti-slip rubber feet placed on the underside of the base plates ensure excellent adhesion to the ground, minimizing platform movement during measurement.
Portability and Mobility
- Integrated Handles and Wheels: Transporting the platforms is made extremely easy by four built-in handles and two wheels. This design allows units weighing around 75 kg to be easily moved to the desired location.
Flexible Installation Options
The PMU platforms adapt flexibly to the installation environment:
- Placement on the Floor (Portable): The platforms can be placed directly onto an even, solid surface.
- In-ground Installation (Recessed): With the help of optional embedding frames (see Accessories), the PMU platforms can be recessed directly into the ground level. This solution provides maximum safety for vehicles during approach and enables a more aesthetic, permanent installation.
Testre szabhatóság és Egyedi Megoldások
The manufacturer's philosophy is to provide solutions tailored to customer needs. Available accessories and options allow for the comprehensive customization of the weighing system to yield the most suitable results for the user's specific applications.
Technical Data and Capacities
A PMU sorozatú mérőpadok széles kapacitástartományban érhetők el, 10 000 kg -tól egészen 25 000 kg -ig. Minden modell azonos, 900 x 700 mm -es méretű platformmal rendelkezik.
| Dimensions (mm) |
Capacity (kg) |
Increment (kg) |
Jogi Mérésügyi |
Commercial |
| 900 x 700 |
10000 |
2 |
No |
Commercial |
| 900 x 700 |
15000 |
2 |
No |
Commercial |
| 900 x 700 |
20000 |
2 |
No |
Commercial |
| 900 x 700 |
25000 |
2 |
No |
Commercial |
| 900 x 700 |
10000 |
5 |
No |
5T |
| 900 x 700 |
15000 |
5 |
No |
5T |
| 900 x 700 |
20000 |
10 |
No |
10M |
| 900 x 700 |
25000 |
10 |
No |
10M |
Note Regarding Readability (Scale Division):
- A 2 kg és 5 kg -os osztásértékű (leolvasású) modellek a pontosság eltérő szintjét jelölik, ami befolyásolja a kereskedelmi vagy jogi mérésügyi alkalmazhatóságot.
Recommended Accessories for the PMU System
Several accessories are available to transform the PMU platforms into a complete weighing system:
GI620 Portable Weight Indicator
The GI620 is a dedicated, portable weight indicator specifically designed for use with PMU series portable weighing platforms. This unit ensures accurate data acquisition and display. Discover the potential for dynamic weighing with the GI620 indicator!
Embedding Frames for PM Series Platforms
- Description: This two-piece frame set allows for the professional embedding of PMU platforms into the floor level.
- Function: The installation facilitates the driving on of vehicles and ensures the stability of the platform in case of permanent installation.
Protective Covers for PM Series Platforms
- Description: A two-piece set specifically designed to protect built-in PM series platforms.
- Function: When the scale platform is not in use, the covers protect the platform from external influences, contamination, and traffic, thereby increasing its lifespan.
Summary
A PMU hordozható mérőpadok ideális választást jelentenek azoknak az ipari felhasználóknak, akik megbízható, nagy teherbírású és könnyen telepíthető megoldást keresnek súlymérési feladataikhoz. A robusztus alumínium konstrukció, a csúszásmentes felületek és a kiváló hordozhatóság (kerekek és fogantyúk) garantálják a hatékony és biztonságos munkavégzést, míg a beépítési opciók rugalmasságot biztosítanak a telepítési környezet tekintetében. A GI620 indikátorral kiegészítve egy teljes körű, testre szabható mérési rendszert kap, amely megfelel a legszigorúbb elvárásoknak is.
