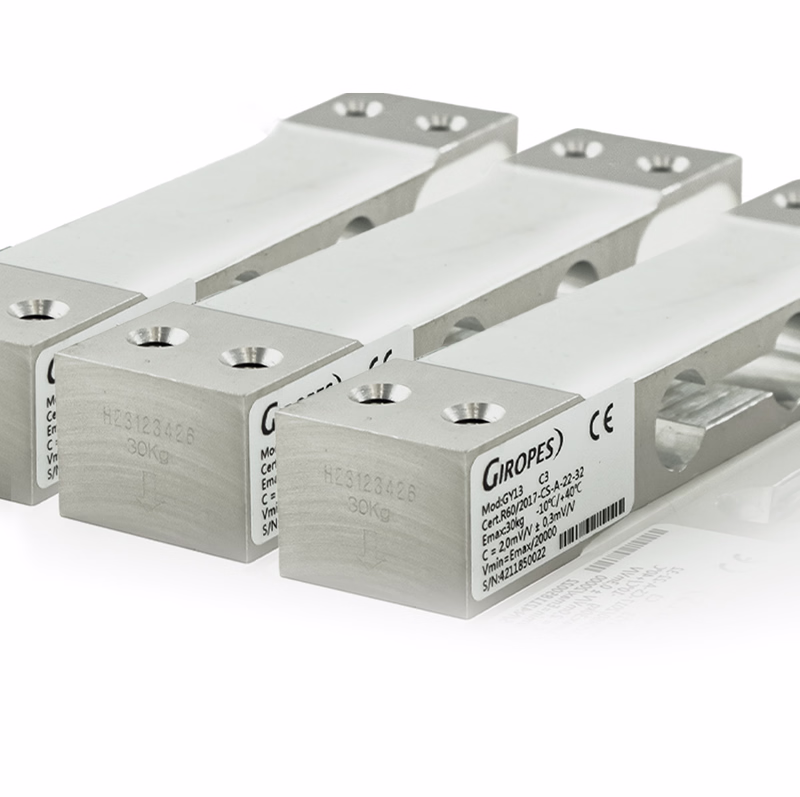

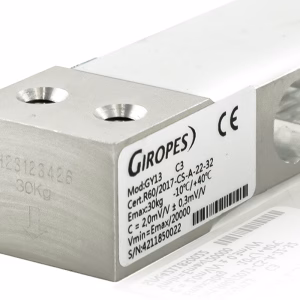

GY13 and GY13L Series Aluminum Load Cells: Precision Weighing for Light and Special Loads
The GY13 and GY13L series aluminum load cells are specifically optimized for the precise and continuous weighing of lighter and special loads. These cells offer a combination of reliability, robustness, and excellent measurement accuracy, making them ideal for applications where dependable performance is critical.
Key Features and Advantages
The GY13/GY13L series is designed to withstand even the most extreme conditions, ensuring a long service life in any environment.
- Exceptional Quality Construction: The load cells are made of high-quality aluminum, which is protected by a silicone environmental coating. This combination ensures mechanical strength and resistance to environmental influences.
- IP65 Protection: The IP65 rating guarantees protection against dust ingress and protection against water jets, allowing the cells to operate reliably even in wet or dusty environments.
- High Accuracy: The load cells belong to accuracy class C (with OIML certification), which guarantees precise and consistent measurements under all conditions.
- Handling Off-Center Loads: A kialakításuk révén magas pontosságot biztosítanak még akkor is, ha a terhelés nem tökéletesen a cella középpontjára kerül.

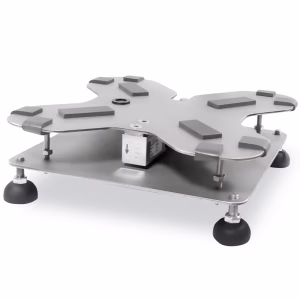

- Versatility: Ideálisak egycellás platformokhoz (például 250 x 350 mm -es méretű platformokhoz), valamint különböző ipari és kereskedelmi mérési feladatokhoz.
- Jogi Mérésre Alkalmas: A specifikus kapacitású modellek rendelkeznek a jogi mérésre vonatkozó jóváhagyással, ami elengedhetetlen a kereskedelmi forgalomban használt mérlegekhez.
Technical Data in Detail
A GY13 és GY13L sorozat a terhelési tartományok széles skáláját lefedi, a 3 kg -tól egészen 100 kg -ig.
General Technical Parameters
| Parameter |
Value |
Note |
| Construction Material |
Alu |
High Strength Design |
| Environmental Protection |
Silicone Coating |
Enhanced Durability |
| Protection Class |
IP65 |
Dust and water protection |
| Névleges Kimenet |
2 mV/V ± 0,3 mV/V |
Indicates the sensitivity of the measurement |
| Accuracy Class (OIML) |
C3, C5, C6 |
Depending on the model's capacity |
| Application Area |
Egycellás platformok |
|
Capacity and Accuracy Tables
The two models (GY13 and GY13L) have different maximum load capacities and corresponding accuracy parameters.
GY13 Series (3 kg – 50 kg)
| Névleges Terhelés – I_n (kg) |
Accuracy Class (OIML) |
y=e_max/v_min |
Material |
IP |
Legal Metrology |
| 3 |
C3 |
6000 |
Alu |
65 |
M |
| 5 |
C5 |
6000 |
Alu |
65 |
M |
| 6 |
C6 |
6000 |
Alu |
65 |
M |
| 10 |
C3 |
6000 |
Alu |
65 |
M |
| 15 |
C5 |
6000 |
Alu |
65 |
M |
| 20 |
C6 |
6000 |
Alu |
65 |
M |
| 30 |
C3 |
6000 |
Alu |
65 |
M |
| 35 |
C2 |
20000 |
Alu |
65 |
M |
| 40 |
C3 |
20000 |
Alu |
65 |
M |
| 50 |
C3 |
20000 |
Alu |
65 |
M |
GY13L Series (10 kg – 100 kg)
| Névleges Terhelés – I_n (kg) |
Accuracy Class (OIML) |
y=e_max/v_min |
Material |
IP |
Legal Metrology |
| 10 |
C3 |
14000 |
Alu |
65 |
M |
| 15 |
C3 |
14000 |
Alu |
65 |
M |
| 20 |
C3 |
14000 |
Alu |
65 |
M |
| 30 |
C3 |
14000 |
Alu |
65 |
M |
| 50 |
C3 |
14000 |
Alu |
65 |
M |
| 100 |
C3 |
14000 |
Alu |
65 |
M |
Megjegyzés: Az OIML pontossági osztályok (C3, C5, C6) és az y=e_max/v_min értékek a mérlegcellák felbontóképességét és megbízhatóságát jelzik a névleges terheléshez viszonyítva.
Extension of the GY Series
The GY13/GY13L series is part of the broader GY product family, which includes four main models to ensure the right solution is found for every project:
- GY17: Névleges terhelési kapacitás 100 kg és 500 kg között. Kiváló minőségű alumíniumból, szilikon gumivédelemmel.
- GY18: Névleges terhelési kapacitás 200 kg és 500 kg között. Kiemelkedő tervezés és fókusz a mérési pontosságon ipari alkalmazásokhoz.
- GY15: Névleges terhelési kapacitás 50 kg és 300 kg között. Precíz kialakítás, ideális a pontosságot igénylő feladatokhoz.
Integrated Solutions for Elevating the Level of Measurement
The load cells themselves offer excellent performance, but to maximize the efficiency of the entire weighing system, the manufacturer offers comprehensive solutions:
- Instruments and Software: The measurement systems can be elevated to the next level with the following components:
- GI400i Stainless Steel LCD Indicator: Ez a kijelző tára súly tárolására alkalmas (akár 6 tétel manuálisan bevezetett tára súlya). Képes jegyek nyomtatására akár 8 különböző formátumban és több nyelven.
- GISCALE Program: An expert team provides assistance in integrating and customizing the GISCALE program, enabling efficient management and analysis of measurement data according to your specific needs.
- Accessory Equipment: The system can be complemented with various types of scales, such as:
- BMS Floor and Bench Scales: Available in different sizes, for weighing boxes or medium/small items in retail, industry, or laboratories.
- GRP Industrial Stainless Steel Bench Scale: Full stainless steel construction ensuring maximum hygiene and durability.
The GY13 and GY13L series is the ideal choice for any industrial or commercial user seeking a reliable, accurate, and long-lasting solution for weighing light and medium loads, while also considering system integration.
