PMT Portable Wheel Weighing Platform
The PMT series wheel weighing platforms offer an excellent solution for measuring vehicle weight, whether for static or dynamic applications. These portable measuring devices combine robust design with easy handling and high measurement accuracy, making them ideal for flexible on-site applications.
Key Features and Advantages
During the design of the PMT platforms, mobility, stability, and durability were the central focus, ensuring reliable performance in the most diverse environments.
Excellent Portability and Stability

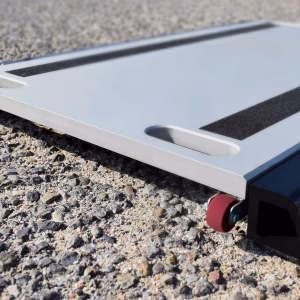

- Easy Transport: The platforms feature integrated handles and wheels, significantly facilitating the transport and installation of units weighing approximately 41 kg each.

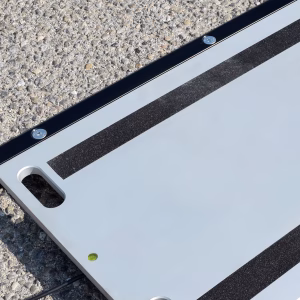

- Non-Slip Design: Special non-slip rubber placed under the feet ensures the stable positioning of the platforms on various surfaces, maximizing measurement safety.
- Robust Structure: The aluminum structure guarantees a long service life and high load capacity while maintaining a relatively low weight.
Versatile Operating Modes
PMT platforms are extremely versatile and capable of meeting numerous weighing requirements:
- Static and Dynamic Measurement: The platforms are suitable for accurately determining the weight of stationary vehicles (static measurement) and moving vehicles (dynamic measurement).
- Wired and Wireless Versions: A felhasználói igényekhez igazodva elérhetőek vezetékes és vezeték nélküli kapcsolattal rendelkező kivitelek is, növelve a telepítési szabadságot.
Legal Metrology Compliance
A platformok alkalmasak lehetnek hitelesített mérésekre is, ami elengedhetetlen kereskedelmi vagy hatósági alkalmazások esetén. A hitelesítéshez opcionálisan elérhető szintező modulok vagy beépítő keretek használata javasolt.
Kiegészítők és Testre szabhatóság
The PMT family can be expanded with numerous accessories that allow for complete system customization to specific user requirements:
- In-ground Installation Frames: Frames specifically designed for the PM series are available, allowing the platforms to be sunken into the floor level, thus facilitating vehicle drive-on.
- Védőburkolatok: Covers for protecting the embedded platforms when not in use are available as a set.

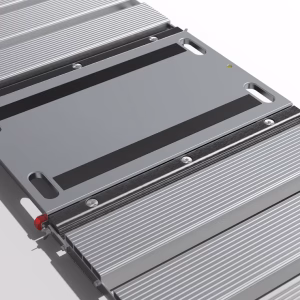

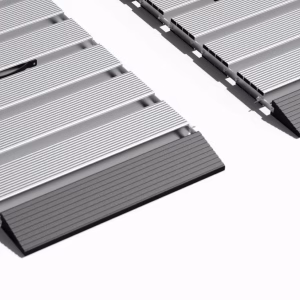

- Accessory Mats and Ramps: Various accessories are available to optimize the installation environment.
Software Support and Indicators
Advanced software solutions and portable displays are available for data processing and visualization of the measurements:
- PC Software:
- GESDYN: Software optimized for dynamic vehicle weighing.
- GESTRUCK: Software for managing static weighing systems.
- GIMANAGER: Further software solution for measuring moving vehicles.
- GI620 Portable Indicator: The GI620 is a portable weight display specifically developed for use with the PM series of portable platforms. For wireless measurement, the GI620-W indicator is recommended.
Technical Specifications
The dimensions and capacities of the PMT platforms are detailed in the following table. The base dimension of the platforms is 900 x 500 mm.
| Dimensions (mm) |
Capacity (kg) |
Resolution (kg) |
Legal Metrology |
| 900 x 500 |
6000 |
1 |
Yes |
| 900 x 500 |
10000 |
2 |
Yes |
| 900 x 500 |
15000 |
2 |
Yes |
| 900 x 500 |
20000 |
5 |
Yes |
| 900 x 500 |
6000 |
2T |
No |
| 900 x 500 |
10000 |
5T |
No |
| 900 x 500 |
15000 |
5T |
No |
| 900 x 500 |
20000 |
10M |
No |
General Capacity Range: 6000 kg -tól egészen 20 000 kg -ig terjedő mérésekre alkalmasak.
Platform Dimensions: 900 mm x 500 mm.
The Uniqueness of the PMT Family
The manufacturer's philosophy is based on continuous development and customer-specific solutions. PMT weighbridges accessories and options allow for such customization of the product that guarantees the most optimal result to meet the customer's unique requirements. The assurance of „concrete actions” and „customization” are key elements of product development.
