GI620 T8 Portable Weight Indicator

GI620 T8 Portable Weighing Indicator – Robust Solution for On-site and Fixed Axle and Wheel Weighing

A GI620 T8 A weighing indicator that combines the reliability of professional measuring systems in an extremely flexible, portable housing. This device offers an ideal solution for axle and wheel weighing, whether for on-site mobile checks, campaigns, temporary inspection points, or even fixed installations. The GI620 T8 is a connectable and easy-to-use measuring center compliant with legal regulations.

Key Features and Advantages

Operation Compliant with Legal Regulations (OIML Certificate)

The GI620 T8 fully complies with international standards, ensuring legal validity for all weighing projects:

• OIML R76: Approval for static weighing measurements.
• OIML R134: Approval for dynamic axle weighing, even at 5 km/h speed.

Portable and Robust Design

The device is designed for intensive use in varied environments:

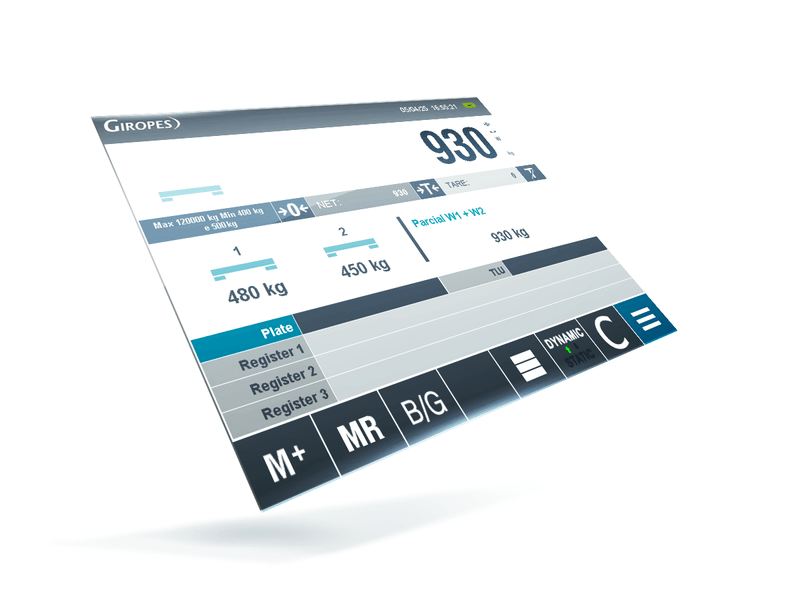

• Display: Integrated 8-inch touch screen (162 × 125 mm) virtual keyboard.
• Protection: IP54 protection rating, which with a sealed housing IP65can be increased against dust and splashing water.
• Power Supply: High-capacity, 11.1 V / 17.5 Ah lithium-ion battery, which ensures long, uninterrupted operation throughout a workday.

Flexible Connectivity

Depending on the configuration, the GI620 T8 can handle up to 4 channels via cable or Bluetooth connection:

• Standard Equipment: RS232 serial port.
• Optional: USB connection for data download.
• Wireless range: With 25 meters (Bluetooth).
• Cable length: With 10 meters (analog channels).

Operating Modes and Advanced Features

The GI620 T8 integrates advanced features for vehicle weighing, data management, and load distribution analysis, in both axle and wheel weighing modes.

Measurement Mode Configuration

The system can be flexibly reconfigured for on-site requirements:

1. Tengelysúlymérési Mód:

• Used for checking vehicles axle by axle.
• Portable axle weighing platforms or built-in weighbridges are required.
• The system sums the weights of individual axles to determine the total vehicle weight.
• Supports static and dynamic (max. 5 km/h) measurement.

2. Wheel Weighing Mode:

• Járművek kerekenkénti ellenőrzésére szolgál.
• A jármű kerekeinek számával megegyező számú platform szükséges.
• Up to 4 reading channels can be used, with a maximum of 2 platforms per channel via cable (in this configuration, center of gravity calculation is not available).
• Always static operates in mode.

Advanced Features Details

Function	Axle weighing	Wheel weighing	Description
Zero check on every platform	✔	✔	Setting the measurement baseline.
Display of weight per platform (static axle weighing)	✔	✔	Current load of individual measuring units.
Display of axle weight	✔	–	Total load of the given axle.
Total platform weight display (max. 4 channels for wheel weighing)	✔	✔	Total weight from the active platforms.
Total weight of the vehicle or vehicle + trailer	✔	✔	Display of the total mass.
Date and time setting (real-time clock is standard equipment)	✔	✔	Temporal traceability of the measurements.
Center of Gravity (CG) calculation and printing (on 2, 3, or 4 platforms)	–	✔	Load distribution analysis for wheel weighing.
Configuration of printing modes (via GiManager software)	✔	✔	Customization of document formats.
Re-printing of a document	✔	✔	Preparation of documentation for previous measurements.
List of measured vehicles	✔	✔	Overview of stored measurements.
List of total weights	✔	✔	Aggregated statistics.

Memory and Traceability

The GI620 T8 ensures simple storage and organization of measurements:

• Storage capacity: With 1000 measurement records storage.
• Data Handling: Measurements can be assigned to customer or vehicle codes.
• Time stamping: The real-time clock ensures accurate date and time data.
• Reports: It is possible to re-print documents, as well as generate vehicle and total weight lists.

Center of Gravity Calculation

Advanced function available in wheel weighing mode for load distribution analysis:

• Number of platforms: Measurement on 2, 3 or 4 platforms.
• Display: Coordinates or graphic display.
• Output: Direct printing from the display, configuration of printing modes with GiManager software.

Technical Data Sheet

Parameter	Spezification
Accuracy Class	Class III and IV (depending on the platform used)
Ingress Protection Rating	IP54 (IP65 with closed case)
Operating Temperature	-10 °C és +40 °C között
Mains Power Supply	110–240 V AC 50/60 Hz
DC Power Supply	12 V DC
Battery	Lithium-ion, 11.1 V, 17.5 Ah
Thermal Printer	CUSTOM PLUS 2B, 48 mm print width, 203 dpi resolution
Display	8" resistive touchscreen, 162 × 125 mm
Keyboard	Virtual keyboard on the touchscreen
Dimensions	450 × 425 × 160 mm
Weight	5.35 kg
Communication (Serial)	1 × bi-directional RS-232C
Communication (USB)	For optional data download
Platform Connection (Wireless)	4 Bluetooth channels (wheel measurement), 2 Bluetooth channels (axle measurement)
Wireless Range	Up to 25 m
Platform Connection (Cable)	4 analog channels (wheel measurement), 2 analog channels (axle measurement)
Cable Length	Up to 10 m

Software Extension: GESDYN

The performance of the GI620 T8 can be further increased by the GESDYN software, which provides an integrated platform for vehicle weight measurement and traffic control:

• Handling of static and dynamic operating modes.
• Detection and sanctioning of overloads.
• Management of GVW (Gross Vehicle Weight) limits and traffic statistics.
• Compatibility with third-party devices.
• Weight point display and entry system integration for complete management of weighing stations.

Compatible Portable Weighing Platforms

The GI620 T8 can be ideally paired with various portable weighing platforms to build a complete system:

• BPRG: Portable platforms for measuring low-profile wheels, in static and/or dynamic mode.
• PMR: Portable wheel weighing platforms (500 x 400 mm), with anti-slip rubber for optimal grip.
• PMT: Portable wheel weighing platforms (900 x 500 mm), with anti-slip rubber.
• PMS: Portable wheel weighing platforms (700 x 450 mm), with anti-slip rubber.

The GI620 T8 is a versatile measuring device compliant with regulatory requirements, offering maximum flexibility and reliability for mobile weighing enforcement tasks.
