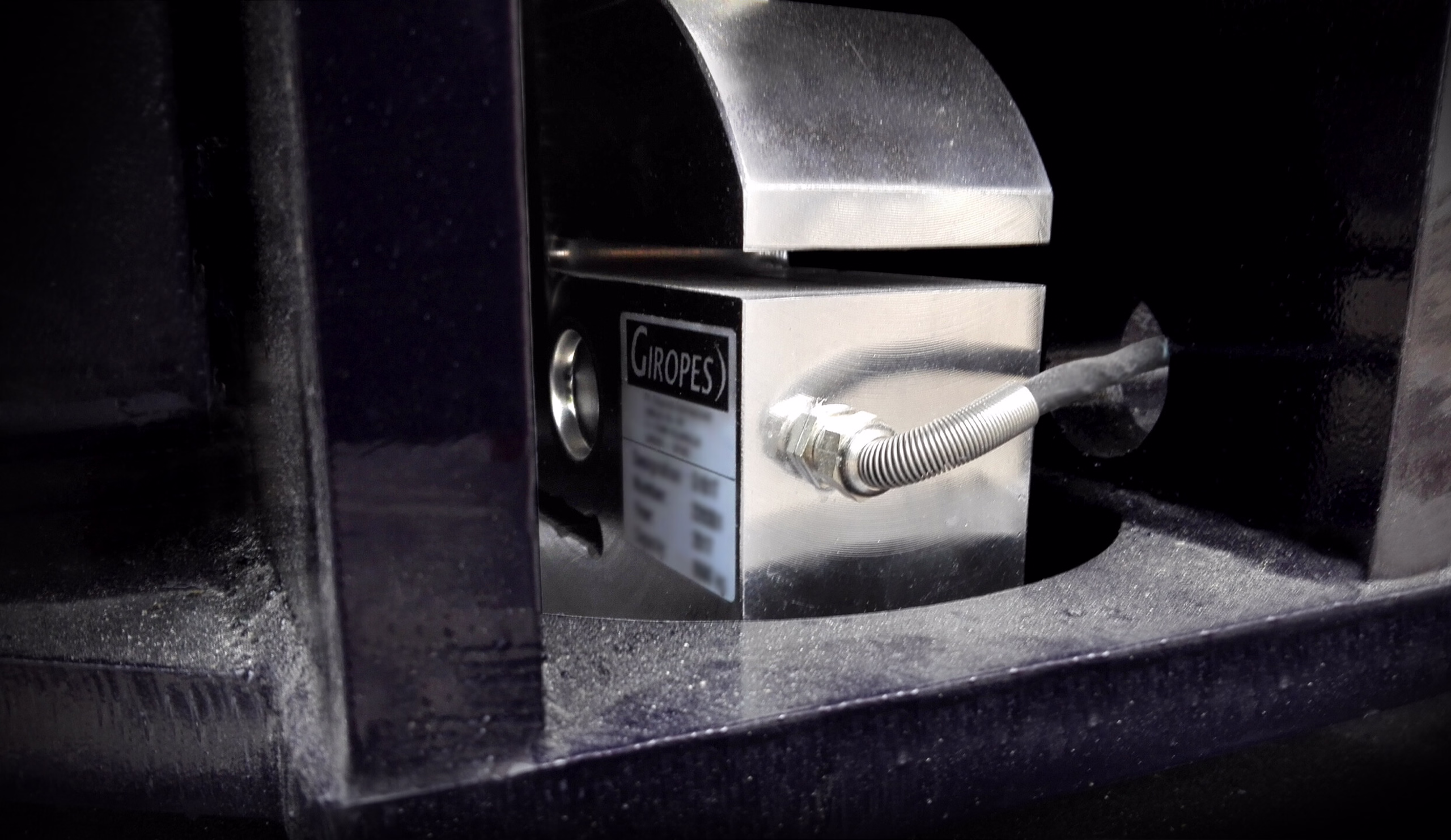

G2T Tension Link Load Cells – High Capacity, Reliable Measurement for Harsh Environments
The G2T tension link load cells offer the highest level of reliability and accuracy for high-capacity measurements, specifically designed considering the strict requirements of industrial environments. Attention to detail in every phase of production guarantees long-term, flawless operation, whether measuring the weight or tension force of silos, tanks, or other large-scale systems.
The G2T series combines excellent quality construction with a robust design, ensuring maximum performance even under the harshest conditions.
Key Features and Advantages
Exceptional Reliability and Durability:
The G2T load cells are made of stainless steel, which provides excellent resistance to corrosion and chemical effects. This choice makes them ideal for applications involving wet, dusty, or aggressive materials.
High Protection Level:
They feature an IP68 protection rating, signifying a completely sealed system against dust ingress, and also providing protection in cases of prolonged submersion in water. This feature is critically important in industrial facilities that require cleaning or have high humidity levels.
High Capacity Range:
A G2T család 750 kg -tól egészen 5000 kg -ig terjedő névleges terhelési kapacitásokat kínál, lefedve ezzel a közepes és a rendkívül nagy teherbírású mérési igényeket is.
Accuracy and Resolution:
A rúdcellák 3000 osztásos pontossági osztályt (Class C3 8000 az OIML szerint) biztosítanak, ami garantálja a mérési adatok nagyfokú megbízhatóságát és ismételhetőségét. Ez a specifikáció megfelel a kereskedelmi és a jogszabályi metrológiai követelményeknek is.
Detail-Oriented Manufacturing:
During the manufacturing process, special attention was paid to the smallest details to guarantee mechanical integrity and long-term stability. Every component is carefully crafted for maximum reliability.
Application Areas
G2T tension link load cells are ideal for use in the following areas:
- Industrial Plants: General force measurement and load monitoring.
- Silos and Bins: Level measurement and inventory control in high-capacity storage vessels (tension force measurement).
- Commercial Weighing: Applications where legal verification is required.
- Heavy Machinery Systems: Lifting equipment, test benches, and other mechanisms requiring tension force.
Technical Data Summary
The table below details the specifications of the G2T series, highlighting the differences between models with varying load capacities.
| Névleges Terhelés – I_n (kg) |
Accuracy Class (OIML) |
Felbontás (y = emax / vmin) |
Material |
IP Protection |
Metrological Application |
| 750 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 1000 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 1500 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 2000 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 2500 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 3000 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
| 5000 |
C3 8000 |
3000 |
Stainless steel |
IP68 |
Commercial |
Further Technical Notes:
- Capacity: The nominal load (In) indicates the maximum load for which the cell is calibrated.
- Accuracy: The C3 8000 class ensures the highest level of accuracy for commercial applications.
- Material: A rozsdamentes acél kiváló választás a hosszú élettartam és a higiéniai követelmények szempontjából.
Documentation and Support
Minden G2T húzóerőmérő rúdcellához részletes, egyedi dokumentáció tartozik, amely garantálja a termék teljes körű nyomon követhetőségét és a gyártási folyamatok átláthatóságát. A gyártás során minden részlet számít, biztosítva ezzel a vásárlói elégedettséget és a rendszer megbízhatóságát.
