BPTSE Weighbridge Series – Robust and Hygienic Truck Scale
The BPTSE weighbridge series is specifically designed to meet the demands of the most challenging industrial environments, where durability, accuracy, and ease of cleaning are essential. A key element of this scale family is the removable center plate, which revolutionizes maintenance and adherence to hygiene regulations.
Key Features and Advantages
At the core of the BPTSE weighbridge design are user requirements and long-term reliability. The removable center plate allows for simple and fast cleaning of the weighing pit (pit), which is critically important in environments where contaminants can accumulate. This feature significantly reduces downtime and ensures continuous, precise measurement.
Easy to Clean:
The removable center panel provides access to the inside of the weighing pit, facilitating the removal of deposits and maintaining hygiene standards.
Testre szabhatóság és Rugalmasság:
A Giropes elkötelezett a konkrét ügyféligények kielégítése mellett. A mérleghez számos kiegészítő és opció érhető el, amelyek lehetővé teszik a termék teljes körű testreszabását a legoptimálisabb eredmény elérése érdekében.
Design Selection:
The BPTSE scale is available with different surface treatments that can be adapted to the specific environmental conditions:
- Standard Painted: Provides basic protection.
- Special Painted: Enhanced protection for areas exposed to special chemical or physical stress.
- Galvanized: Provides excellent corrosion resistance, significantly extending the product's lifespan and minimizing maintenance requirements.
Technical Specifications
The BPTSE weighbridge family offers a wide selection of capacities and sizes to provide a solution for every truck weighing application.
| Capacity (t) |
Length (m) |
Width 3 m (m) |
Width 3.3 m (m) |
Height (mm) |
| 30 |
6 |
• |
• |
300 |
| 30 |
8 |
• |
• |
300 |
| 30 |
10 |
• |
• |
300 |
| 60 |
12 |
• |
• |
300 |
| 60 |
14 |
• |
• |
300 / 330 |
| 60 |
16 |
• |
• |
300 / 330 |
| 60 |
18 |
• |
• |
300 / 330 |
General Parameters:
- Capacity range: Between 30 tons and 60 tons.
- Length Range: From 6 meters to 18 meters.
- Width Options: 3 meters or 3.3 meters.
- Height: 300 mm or 330 mm (depending on the model).
The scales are equipped with high-quality
123G8R type load cells which guarantee high-precision measurement across the entire load range.
Optional Accessories and Installation Solutions
The installation and use of BPTSE weighbridges can be further optimized with available accessories:
1. Csapágyvezetők
These removable, tube-shaped frame constraints are specifically
földfelszínre telepített weighbridges where the surrounding surface is completely level. Their function is to precisely guide commercial vehicles on the weighing surface, minimizing measurement errors caused by lateral vehicle movement.
2. Peremszög
The perimeter angle elements are equipped with rooted feet and serve to close the edge of the weighbridge pit (pit). Their use is essential in both on-ground and pit installations, ensuring the stability of the structure and the aesthetic closing of the perimeter.
3. Fém Rámpák
The metal ramps ensure the safe and smooth approach of commercial vehicles onto the weighing surface, as well as driving off it. They are essential during the start and completion of the weighing process.
4. Betonozási Fejlécek
These are made of IPE profiles and must be fastened at the entrance and exit of the weighbridge. These headers serve as formwork for the concrete approach ramps (or other coatings), ensuring a solid transition between the surrounding ground level and the scale.
5. Alapozási Megoldások

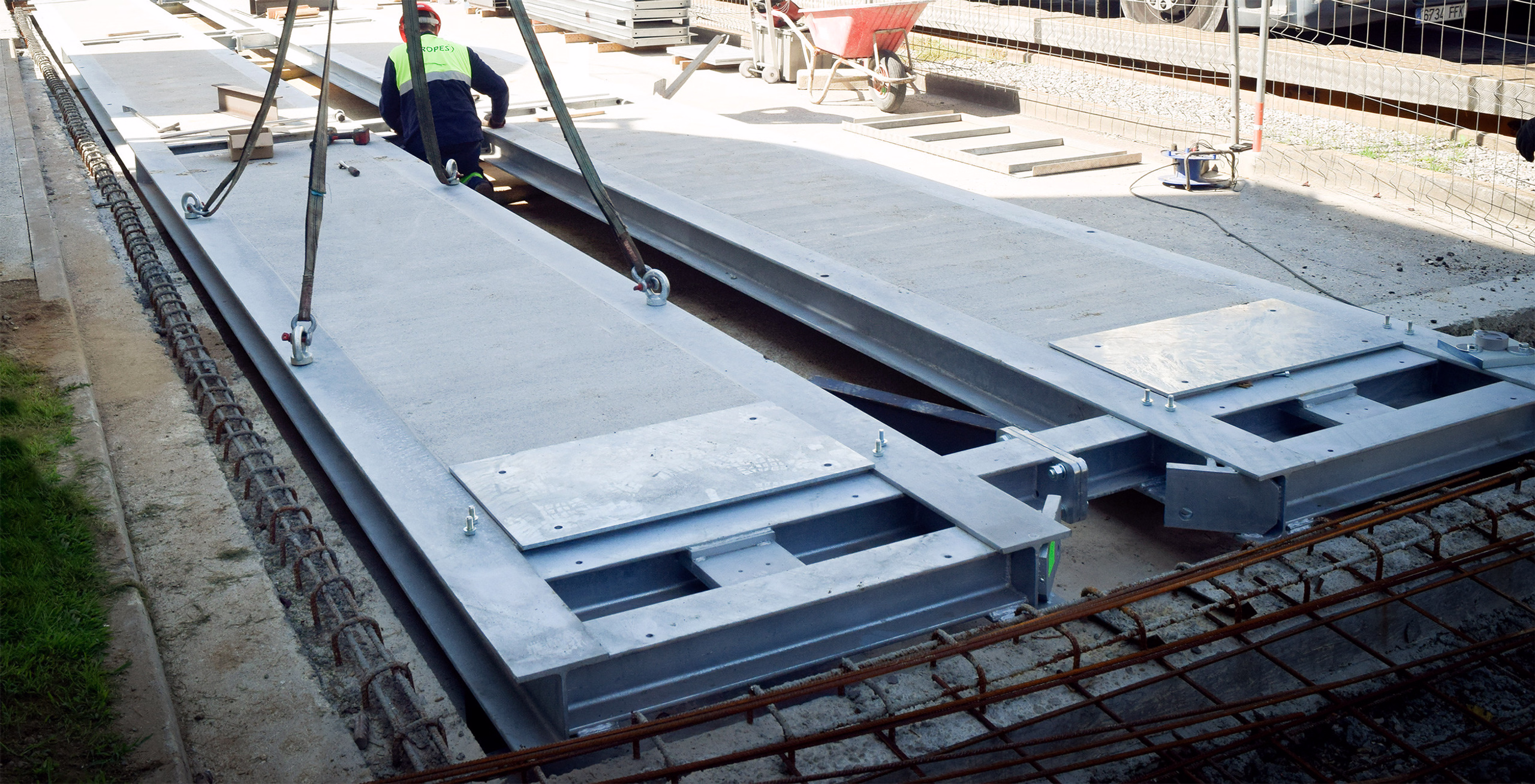

The careful engineering design of the weighbridge foundation allows for installation even in areas where soil conditions are less favorable (lower load-bearing capacity soil). The proper foundation guarantees uniform loading of the load cells, which is essential for precise and efficient weighing.
Installation and Maintenance Considerations
A horganyzott kivitel jelentősen növeli a korrózióállóságot, ami különösen nedves vagy agresszív kémiai környezetben kulcsfontosságú. Ez a felületkezelés leegyszerűsíti a karbantartást és drasztikusan meghosszabbítja a mérleg élettartamát.
Faster Assembly:
A Giropes mérlegek összeszerelésének megkönnyítésére és felgyorsítására a gyártó a Panasonic körkörös ütvecsavarozójának (akkumulátoros) használatát javasolja, ami jelentősen növeli a telepítés hatékonyságát.
A BPTSE sorozat a megbízhatóság, a higiénia és a rugalmas testre szabhatóság tökéletes ötvözetét kínálja a modern ipari mérési igények kielégítésére.
