WPO Series Floor Scale System – Versatile Platform Scale for Food and Logistics Applications
The WPO series floor scales offer an extremely versatile, bidirectional weighing solution, specifically designed to meet the highest hygiene and mobility requirements. The extra-flat weighing surface and the integrated U-profile frame make this system ideal for environments where fast and accurate weighing is essential, such as in the food industry.
Key Features and Advantages

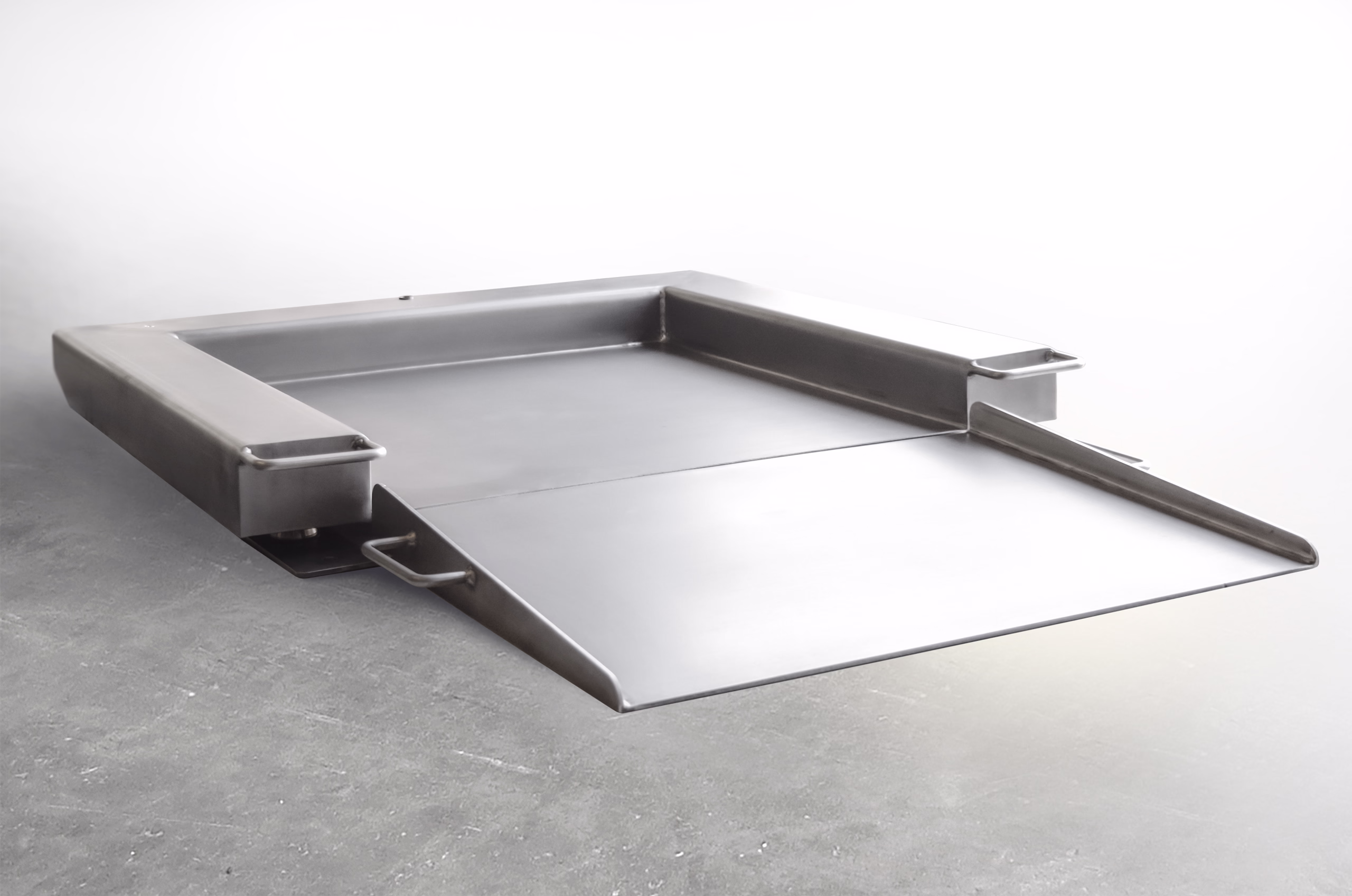

Extra Flat Design for Mobility
The WPO scales feature an extremely low-profile weighing surface, which significantly facilitates weighing with mobile equipment. This design makes the system ideal for the following:
- Hand pallet trucks (pallet jacks): Easy loading and unloading with minimal lifting effort.
- Rolling containers: Fast and accurate weighing along production lines or in warehouses.
- Smaller carts: Provides a hygienic and stable platform for transport devices of various sizes.
Pallet Weighing Capability
The robust U-profile frame design also allows for the direct weighing of standard-sized pallets, meaning the WPO platform can serve the weight control needs of both smaller and larger logistics units with a single device.
Excellent Hygiene Solutions in Stainless Steel Versions
WPO scales prioritize cleanability and durability, especially tailored to the stringent requirements of the food processing and pharmaceutical industries.
- Base Materials: Available as standard with an AISI 304 stainless steel platform. Optionally available in a version that better resists more aggressive detergents and corrosive environments AISI 316 stainless steel version.
- Surface treatment: Alapfelszereltség a szálcsiszolt felületkezelés, amely kiválóan ellenáll a mechanikai igénybevételnek és megkönnyíti a tisztítást. Opcionálisan választható a még simább, könnyebben tisztítható electropolished surface finish.
Hygienic and Ergonomic Cleaning Solution

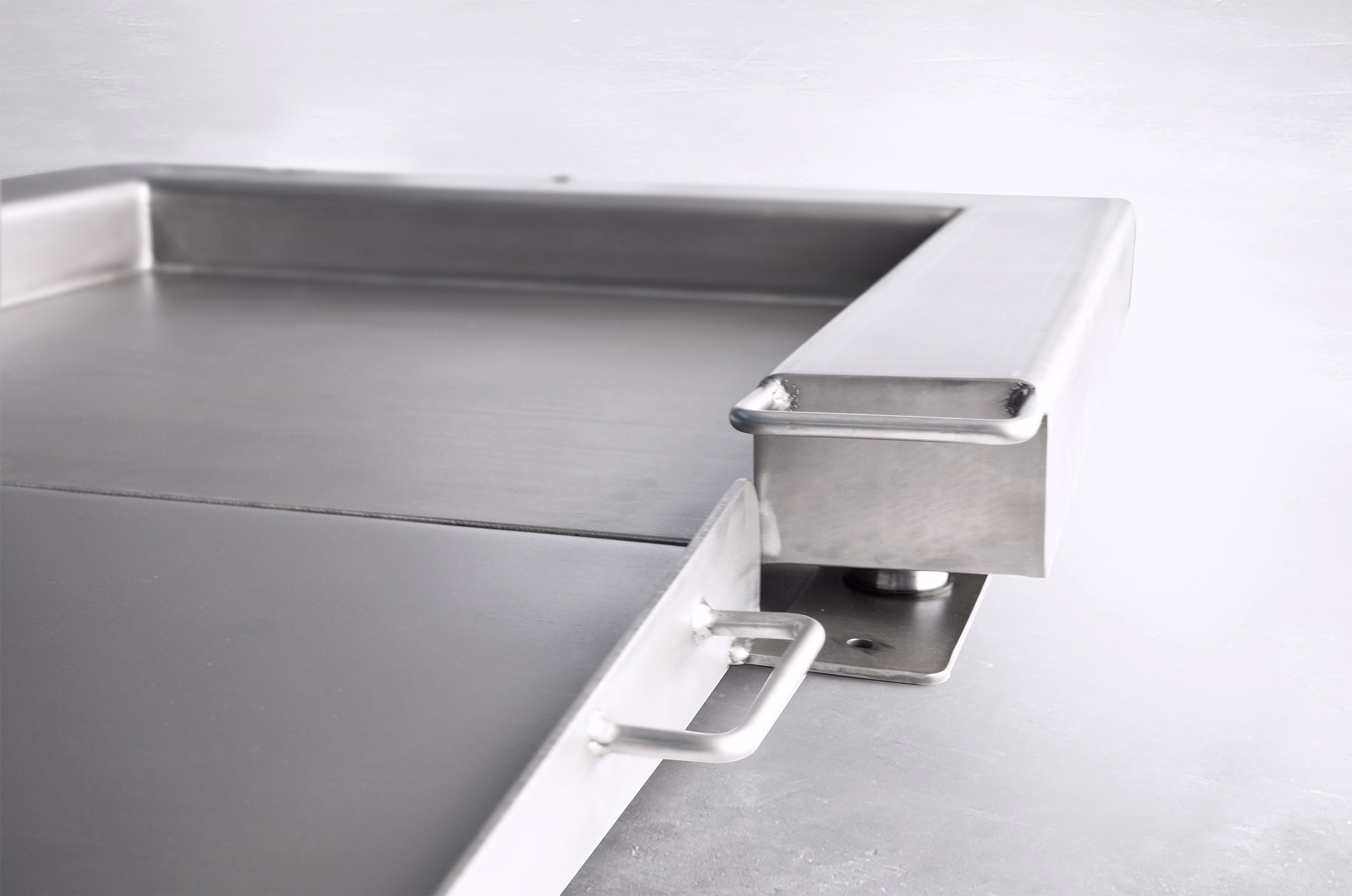

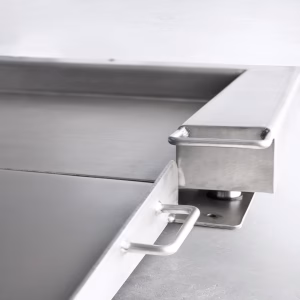

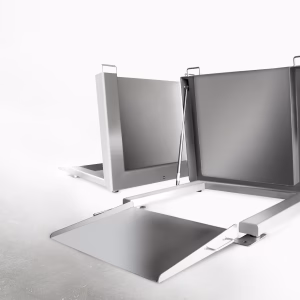

One of the outstanding features of the WPO platforms is the
removable (tiltable) weighing surface with a lifting mechanism. This function allows for:
- Thorough floor cleaning: Full access to the area under the scale, which is critical for adhering to hygiene regulations.
- Cleaning the lower part of the platform: Ensures that every element of the weighing system is easily maintainable.
Compatibility with Multifunction Indicators
WPO platforms can be flexibly paired with displays tailored to user requirements, such as the
GI400 or GI410 multifunction indicators. These displays ensure accurate measurement as well as numerous other functions (e.g., piece counting, recipe management, limit value monitoring) to optimize user processes.
Testre szabhatóság és Kiegészítők
The flexibility of the system is further enhanced by available accessories that allow the WPO platforms to be adapted to individual customer needs. Such accessories may include:
- Columns: Különböző magasságú oszlopok az indikátor (pl.: G5i) elhelyezéséhez.
- Load cells: The system is built upon G5i type load cells, which guarantee accuracy and reliability.
Technical Specifications
The WPO series offers solutions across a wide scale range in terms of capacity and size.
| Dimensions (mm) |
Capacity (kg) |
Resolution (g) |
Stainless Steel AISI 304 |
Stainless Steel AISI 316 |
| 800 x 800 |
300 |
100 |
• |
• |
| 800 x 800 |
600 |
200 |
• |
• |
| 1000 x 1000 |
300 |
100 |
• |
• |
| 1000 x 1000 |
600 |
200 |
• |
• |
General Technical Parameters
- Capacity range: 300 kg -tól 600 kg -ig.
- Platform sizes: 800 x 800 mm és 1000 x 1000 mm.
- Base Material: Stainless steel (AISI 304 standard, AISI 316 option).
- Surface treatment: Szálcsiszolt (standard), Elektropolírozott (opcionális).
- Construction: U-profile frame for pallet weighing.
- Hygiene: Tilting weighing surface for easy cleaning.
- Load cells: Use of high-precision G5i load cells.
WPO floor scales offer a combination of precision, durability, and excellent hygienic design, making them an ideal choice for modern industrial weighing tasks.
