G2i Load Cell Family – Reliable and Precise Measurement in Industrial Environments

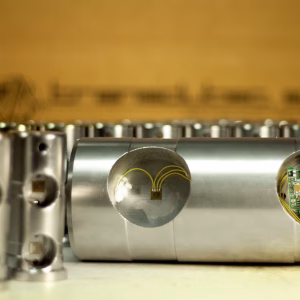

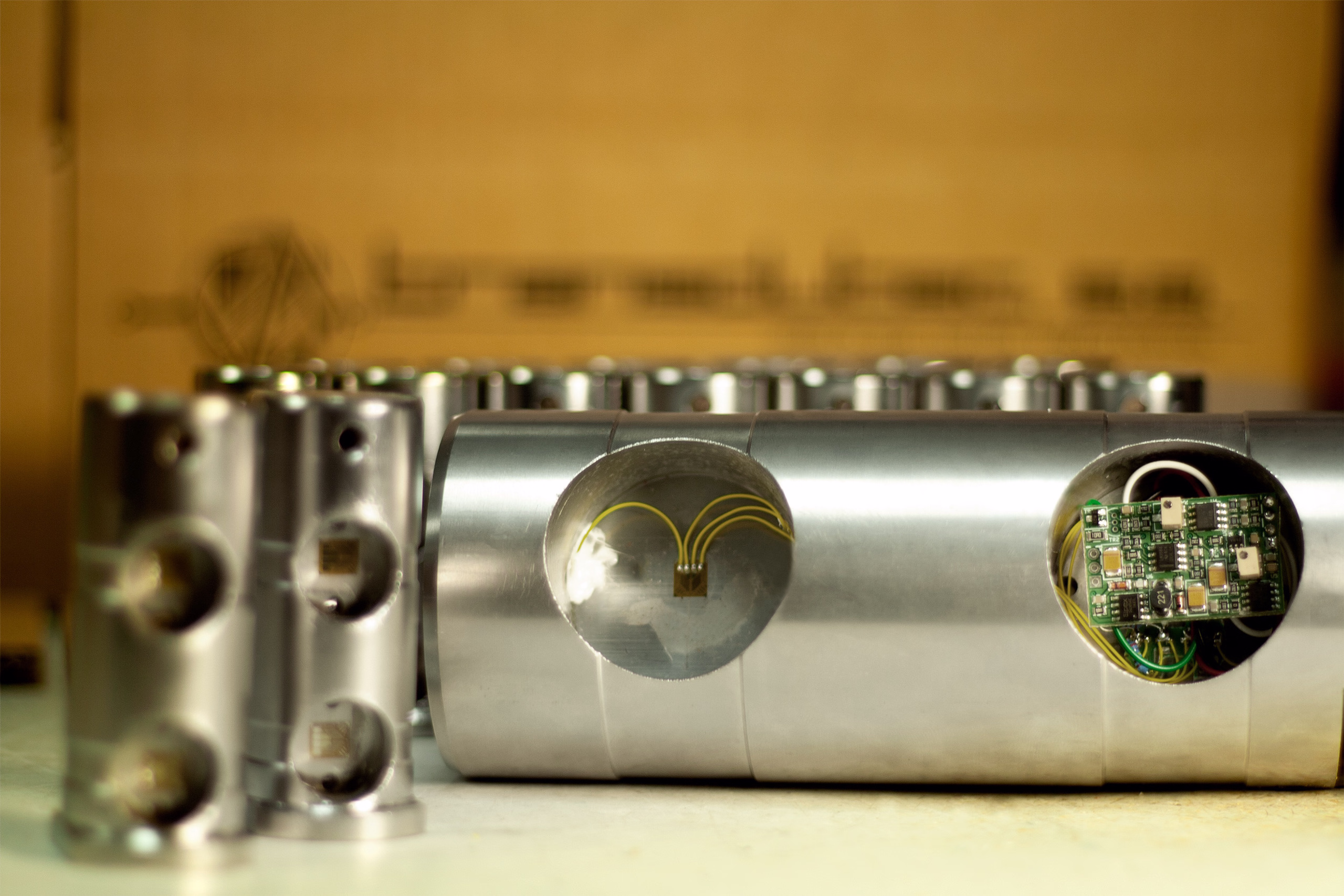

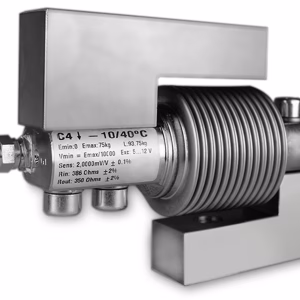

The G2i load cell family represents the latest technology in reliable and extremely accurate measurements. Thanks to engineering excellence-based developments, manufacturing processes have been optimized, guaranteeing the highest level of performance even in the most demanding industrial applications.
The versatility of G2i load cells is outstanding; with numerous accessories and mounting options, they can be adapted to the most diverse sectors and situations, whether for tanks, silos, or support systems.
Key Features and Advantages
- Outstanding Accuracy: G2i load cells are suitable for certified commercial (or legal metrology) applications, ensuring the legal compliance of measurements.
- Robust Design: The load cells are made of stainless steel, which guarantees a long service life and reliability even in harsh industrial environments.
- High Protection: Thanks to their IP68 protection rating, they offer excellent resistance to dust and water ingress, making them ideal for use in wet or dusty areas.
- Versatile Application: Optimized specifically for measuring silos, tanks, and support systems, but can also be excellently integrated into hybrid and 4-load-cell platforms.
Technical Specifications
The G2i load cell family covers a wide range depending on capacity, with every model meeting the highest quality requirements.
| Characteristic |
G2i Series |
| Nominal Load ($I_n$ [kg]) |
10, 15, 30, 50, 75, 100, 150, 250, 300 |
| Accuracy Class (OIML) |
C4 |
| Protection |
IP68 |
| Suitability |
Legal Metrology (Certifiable) |
| Material |
Stainless steel |
| Application Environment |
Industrial, Silos, Tanks, Hybrid Platforms |
Accuracy Class Determination:
A pontossági osztály (n) az OIML (Nemzetközi Törvényi Metrológia Szervezete) előírásainak megfelelően van meghatározva, ahol y = e
max / vmin. Ez biztosítja, hogy a mérések megfeleljenek a kereskedelmi és ipari szabványoknak.
Optional Accessories and Mounting Solutions
The flexibility of the G2i load cells is further enhanced by available special accessories, which allow for the optimal integration of the load cell into any structure.
1. Szerelőkészletek
Ezek a készletek speciálisan arra lettek tervezve, hogy a terhelésmérőket szilárdan és pontosan lehessen rögzíteni silókhoz vagy tartályokhoz, minimalizálva a külső erők hatását a mérésre. A készletek biztosítják a terhelésmérő megfelelő terhelési módját (pl.: nyírási vagy húzási igénybevétel).
2. Húzóerőre Alkalmazható Szerkezet
If the installation situation requires the load cell to be used for tensile force (as opposed to standard compressive force), this special structure made of galvanized steel enables the conversion of the cell to operate as a tension cell. This solution increases system flexibility during the design phase.
3. Rezgéscsillapító Tartó
A rezgéscsillapító egy létfontosságú kiegészítő, amely cinkkel bevont vagy rozsdamentes acélból készül. Fő funkciója a
absorption of vibrations during use in tanks and silos. This damping structure ensures that the measurement is not distorted due to environmental noise or content movement, thus maintaining the accuracy of the G2i.
4. Alaplemez
The base plate, made of stainless steel or zinc-plated steel, forms the basis for mounting the load cell. This structure allows the load cell to be installed on systems that are
equipped with an anti-tipping support base vagy rezgéscsillapítókkal vannak felszerelve. Az alaplemez biztosítja a stabil mechanikai kapcsolatot a mérőrendszer és a tartószerkezet között.
Application Areas
The G2i load cell family performs excellently in the strictest industrial environments:
- Material Storage: Monitoring the precise level and fill status of silos, tanks, and bunkers.
- Folyamat-ellenőrzés: Accurate measurement of material quantities in mixing systems and feeders.
- Commercial Weighing: In certified scales where accuracy is a legal requirement.
Every detail of the G2i series – from the selection of high-quality materials to the precise measuring capabilities – serves the goal of providing users with the most reliable and accurate measurement data, minimizing losses and optimizing production. Every detail counts, and the G2i embodies this philosophy in practice.
