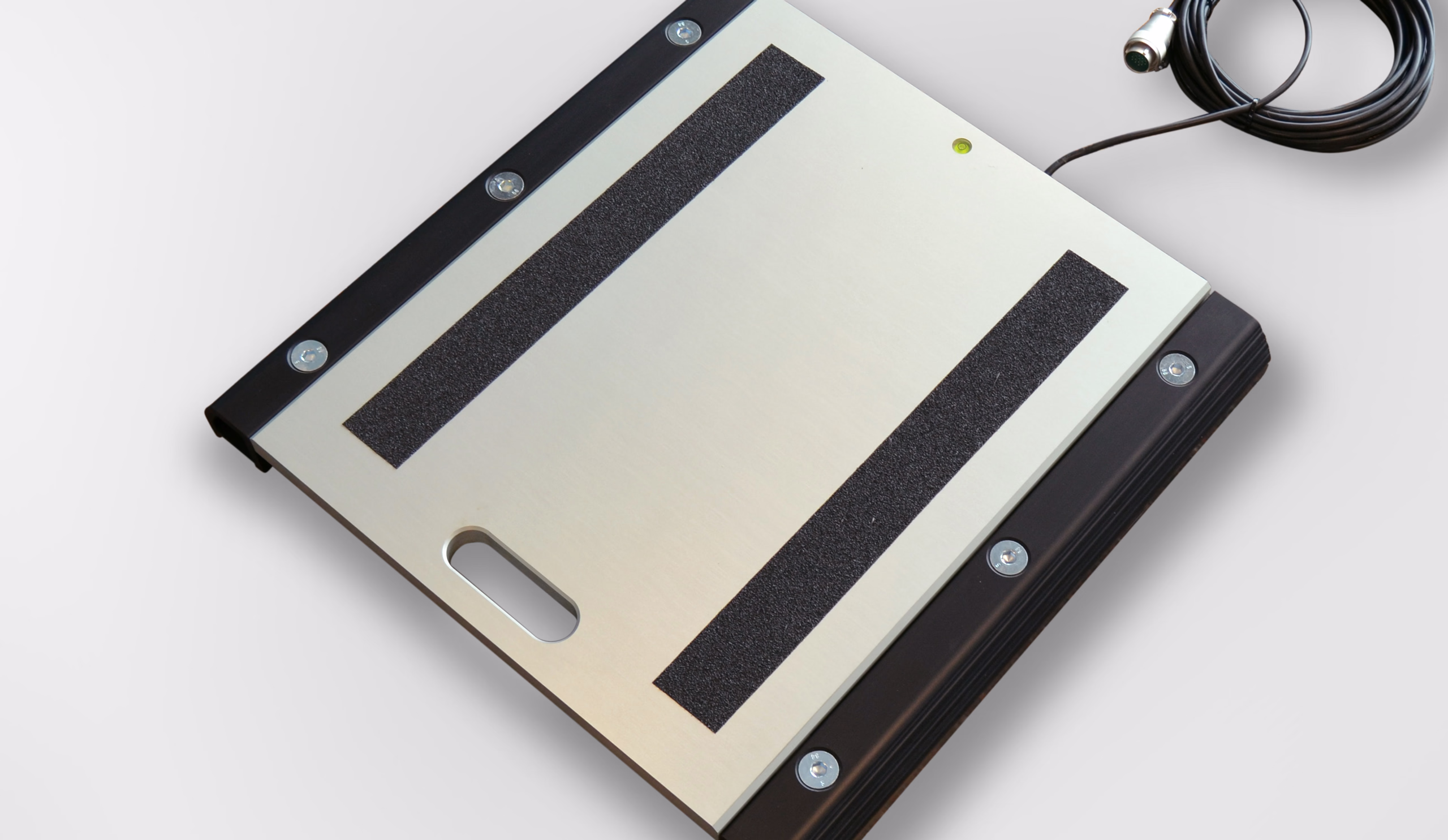

PMQ Portable Weighing Platforms – Robust Solution for Vehicle Weighing
The PMQ series weighing platforms are ideally suited for the precise weighing of light aircraft and vehicles. These portable platforms allow for flexible installation, whether for temporary placement on uneven surfaces or fixed installation sunken into the ground. The high-quality materials and reliable technology guarantee a long service life and accurate measurements.
Key Features and Advantages
In the design of the PMQ weighing platforms, the emphasis was placed on durability, portability, and maximum adaptability to user requirements.
- Portable Platform Design: The platforms are ideal for applications requiring flexible, fast setup and are easily moved between weighing points.
- High-Quality Structure: The platforms have an aluminum structure which ensures optimal rigidity while maintaining a relatively low weight.

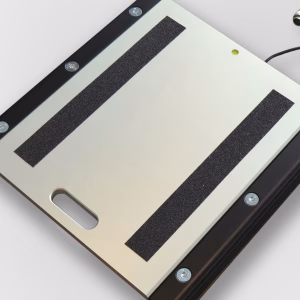

- Anti-Slip Surface: The weighing surface is equipped with anti-slip rubber which increases safety during vehicle approach and departure, especially in wet conditions.
- Stable Base: The aluminum base is fitted with anti-slip rubber feet which improve grip on the ground, minimizing platform movement during measurement.
- High Capacity Weighing Cells: The platforms nyírógerendás terhelésmérő cellákkal which provide high resistance, making them ideal for vehicle weighing.
- Customizability: A wide range of accessories and options allows for the complete customization of the system to meet specific customer requirements, in order to achieve the most optimal measurement result.
Technical Specifications – PMQ Weighing Platforms
The PMQ series is available in various capacities and accuracies to meet different industrial and commercial requirements.
| Dimensions (mm) |
Capacity (kg) |
Readability (kg) |
Törvényi Mérés |
Note |
| 400 x 300 |
600 |
0,1 |
Yes |
|
| 400 x 300 |
1500 |
0,2 |
Yes |
|
| 400 x 300 |
3000 |
0,5 |
Yes |
|
| 400 x 300 |
6000 |
1 |
Yes |
|
| 400 x 300 |
10000 |
2 |
Yes |
|
| 400 x 300 |
6000 |
0,2 |
No |
|
| 400 x 300 |
15000 |
0,5 |
No |
M |
| 400 x 300 |
3000 |
1 |
No |
M |
| 400 x 300 |
6000 |
2 |
No |
M |
| 400 x 300 |
10000 |
5 |
No |
M |
| 400 x 300 |
6000 |
2 |
No |
Commercial |

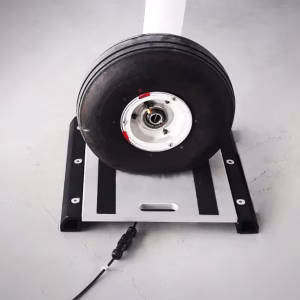

Platform Dimensions: 400 x 300 mm. This size is ideal for weighing the axle or gross weight of smaller vehicles, such as light trucks, trailers, or even light aircraft.
Capacity range: 600 kg -tól egészen 10 000 kg -ig terjedő opciók állnak rendelkezésre.
Accessory Systems and Options
The PMQ platforms can be transformed into a complete weighing system with the help of their accompanying accessories.
GI620 Portable Weight Indicator
A
GI620 a dedicated, portable weight indicator specifically developed for the PMQ portable weighing pads. This indicator ensures accurate data processing and display.
- Dynamic Measurement: With the GI620 display, dynamic weighing is also possible, meaning the vehicle can be weighed while in motion (provided the installation and software support this).
In-floor Frames (for PM series)
Special frames are available for recessing (installing) the PM series platforms into the floor.
- Set: A set consisting of 2 frames.
- Function: It enables the platforms to be installed level with the ground, making it easier for vehicles to drive onto and off without obstacles.
Protective Covers (for PM series)
When the installed PM series platforms are not in use, their protection is crucial to prevent damage and contamination.
- Set: 2 protective covers.
- Function: Using the covers, the platforms can be protected when not in use, ensuring long-term reliability.
Installation Considerations
The installation of PMQ weighing platforms is flexible, but certain conditions should be met for maximum accuracy:
- Portable Placement: The platforms must stand stably on a solid, even surface. The anti-slip rubber feet help keep them in place.
- Fixed Installation: If the platforms are to be fixed to the ground, the use of appropriate accessories (in-floor frames) is recommended for ground-level integration.
The PMQ weighing platforms offer a combination of precision and robust design, making them an ideal choice wherever a reliable, portable, or semi-fixed vehicle scale is needed.
