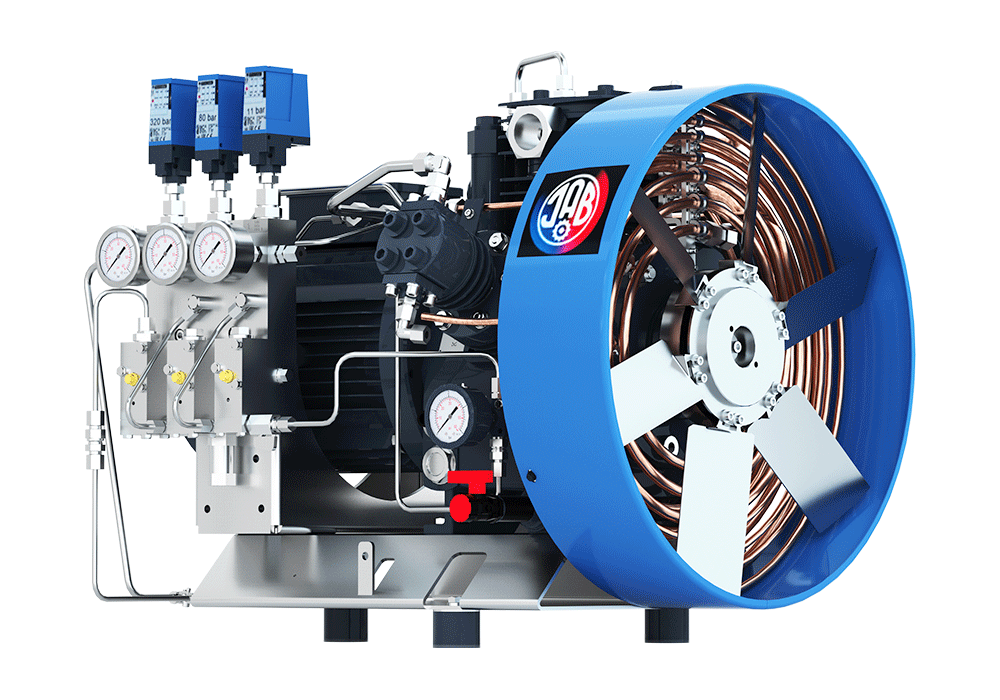

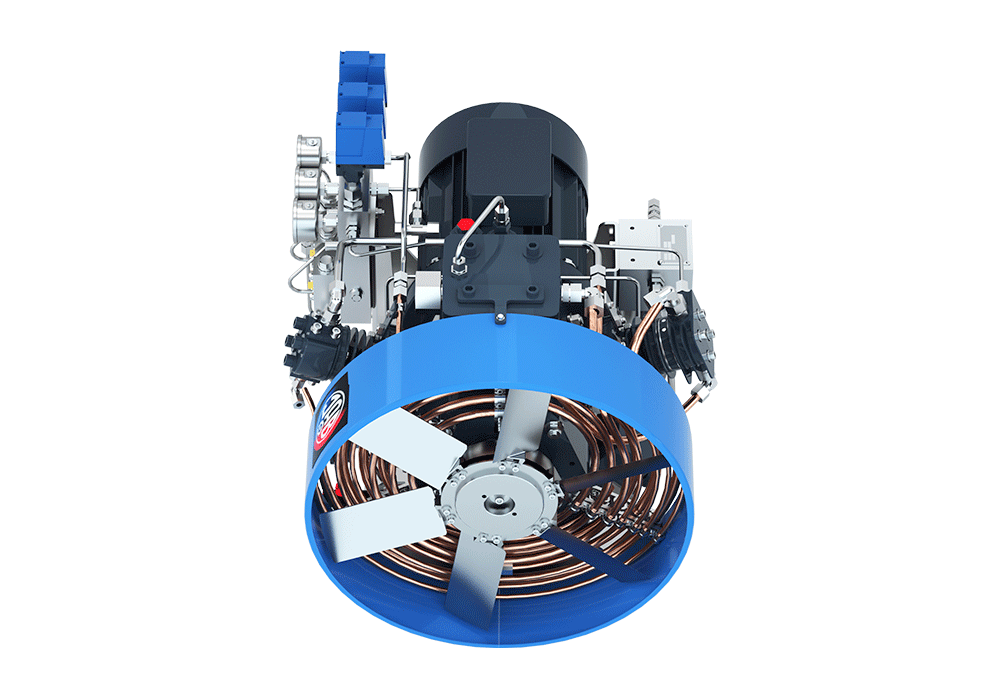

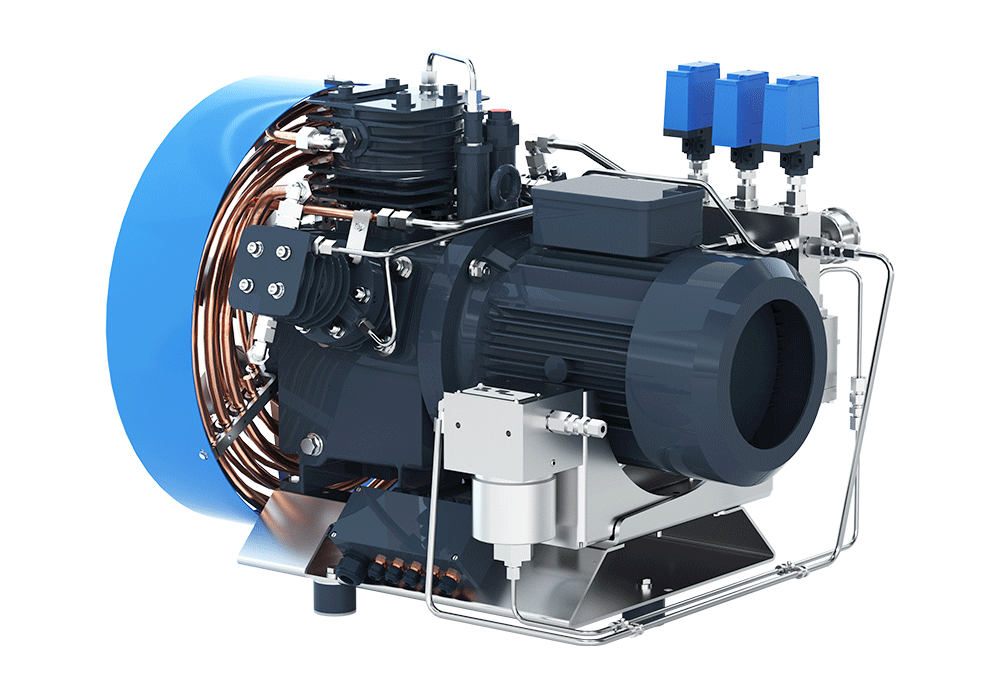

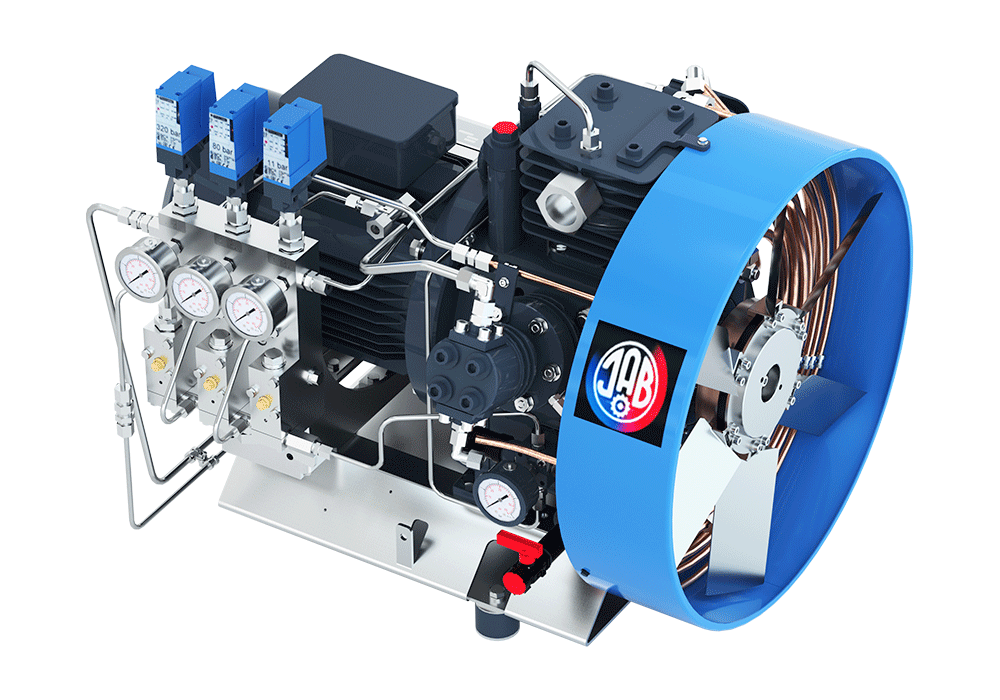

The J.A. Becker & Söhne V 215/300 NG4 model is a top-class, high-performance natural gas compressor specifically designed to meet the highest pressure requirements. This equipment offers a combination of reliability, efficiency, and long service life, providing an ideal solution for industrial applications where achieving a final pressure of 300 bar is essential.
The V 215/300 NG4 compressor is not a „standard product” (NO 08/15 PRODUCTS), but a carefully designed, premium quality machine that delivers first-class performance in every aspect.
Effective management of the heat generated during the compression process is crucial for the equipment's lifespan and energy efficiency. The V 215/300 NG4 model features an outstandingly efficient cooling system, which ensures a stable operating temperature even under intensive load. This minimizes wear and maximizes availability.
The unit is equipped with a fully automated discharge function. This function optimizes depressurization between the various compression stages, ensuring continuous, smooth operation and reducing the need for human intervention.
As a result of its robust construction and high-quality components, the V 215/300 NG4 compressor boasts exceptionally long maintenance intervals. This significantly reduces downtime and operating costs, thereby increasing the return on investment.
The following table details the critical technical parameters of the V 215/300 NG4 natural gas compressor:
| Parameter | Value | Note |
|---|---|---|
| Operating Pressure Container (Inlet) | 1.5 – 4 bar | |
| Maximum Final Pressure | 300 bar | The main performance of the unit |
| Volume Flow Rate (at 300 bar) | 1,802 l/min | Measured at 1.5 bar pre-pressure |
| Volume Flow Rate (at 300 bar) | 3,605 l/min | Measured at 4.0 bar pre-pressure |
| Compression Stages / Cylinder | 4 / 4 | Four-stage compression |
| Electric Motor Power | 44 kW | Drive unit power |
| Noise Level | approx. 90 dB(A) | Measured at a distance of 1 meter |
The V 215/300 NG4 is a four-stage, reciprocating compressor specifically optimized for compressing natural gas. The four cylinders and four compression stages ensure the gradual and efficient build-up of the gas to the desired final pressure of 300 bar.
Inlet Conditions: The compressor flexibly adapts to the inlet pressure, which can range between 1.5 bar and 4.0 bar. This wide range allows for the reception of natural gas originating from various sources.
Power: The 44 kW electric motor provides sufficient energy to achieve the high pressure. The volumetric flow rate significantly depends on the inlet pressure: at lower pre-pressure (1.5 bar), the maximum volumetric flow rate is 1,802 liters/minute, while at higher pre-pressure (4.0 bar), this value doubles, reaching 3,605 liters/minute at a final pressure of 300 bar.
Acoustic Design: The noise level of 90 dB(A) at a distance of 1 meter complies with industrial standards, but noise reduction was also considered during the design of the equipment, especially by increasing the efficiency of the cooling system.
This compressor is a symbol of the engineering precision and quality consciousness of J.A. Becker & Söhne, guaranteeing long-term, trouble-free operation during the most demanding natural gas compression tasks.
