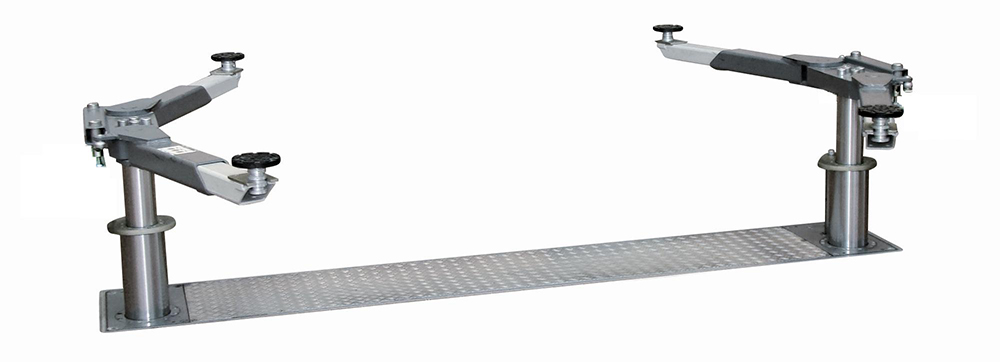

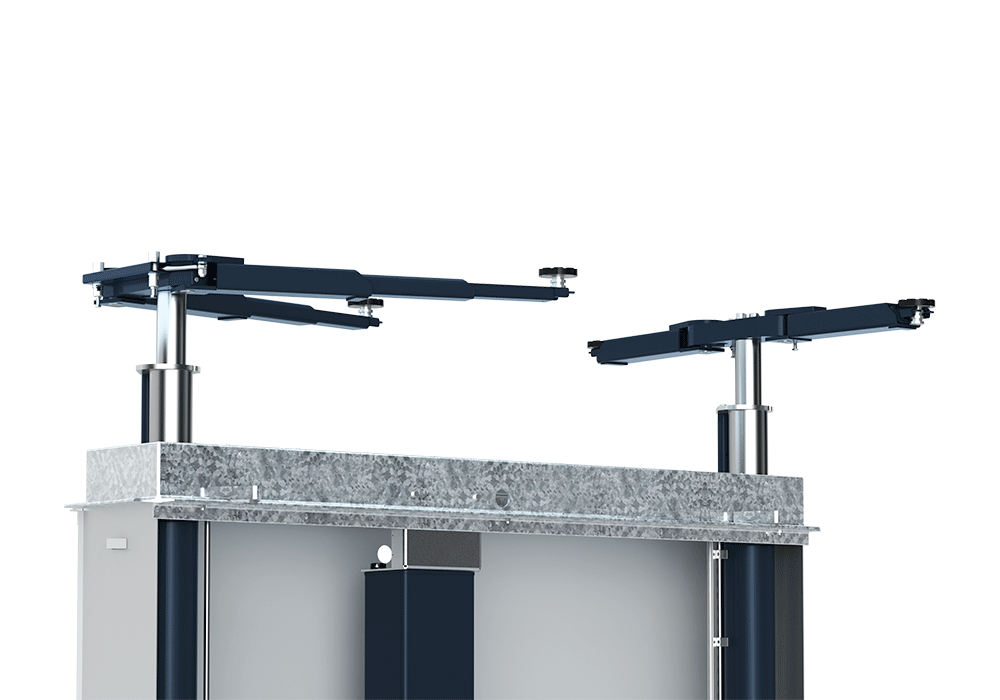

J.A. Becker & Söhne presents the TwinRam 35 S2/2300 Tele type, a patented electro-hydraulic telescopic lift specifically designed to optimally handle the most complex installation situations. Thanks to its shallow installation depth, this model offers an ideal solution for workshops where the installation of conventional lifts would be a challenge. The telescopic arms combine all the advantages of classic swing arms with the flexibility of telescopic technology, ensuring excellent accessibility and high load capacity.
This product is not an „08/15” solution; it represents JAB's engineering precision and innovation tailored to user requirements.
The TwinRam 35 S2/2300 Tele features several outstanding properties that guarantee efficient and safe operation:
Minimum Installation Depth: An exceptionally shallow installation depth of just 1300 mm makes installation possible even in locations where space is a limiting factor.
Full Stroke Stroke Actuator System: During vehicle lifting and lowering, precise and stable positioning is ensured throughout the entire range of motion, preventing unwanted displacement.

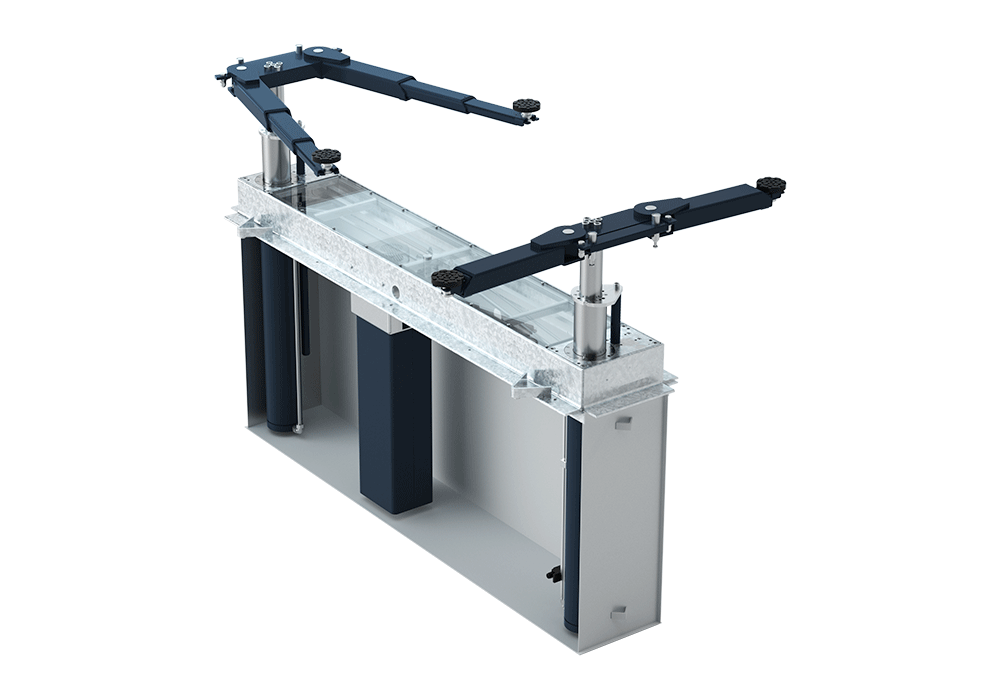

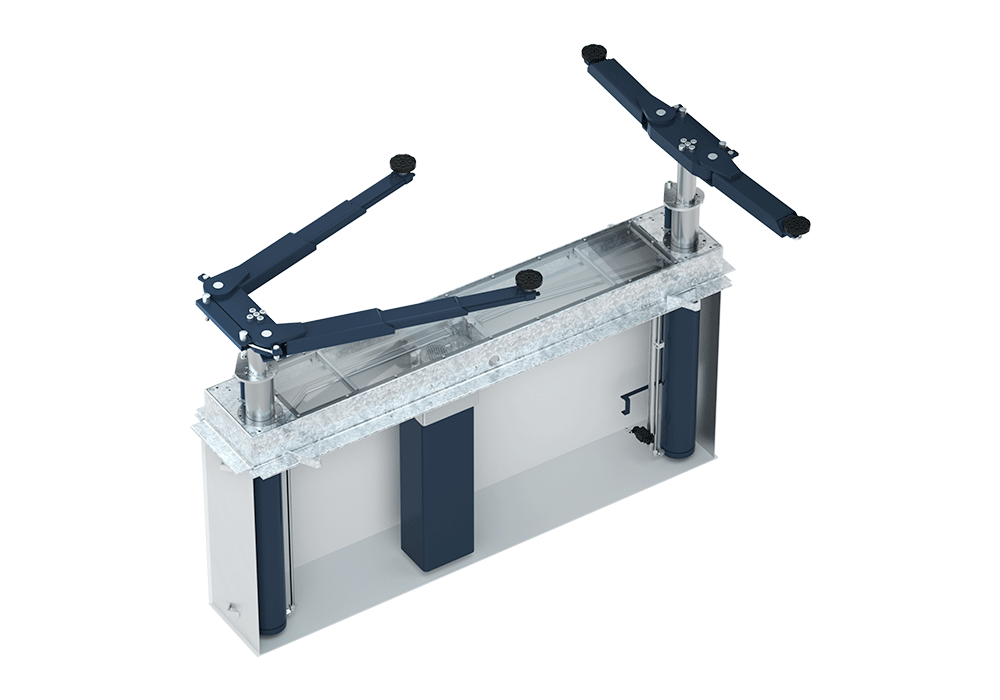

Base Frame Force Absorption: All operating loads and forces are absorbed by the base frame, which minimizes point loads on the floor and increases the system's long-term stability.
Easily Accessible Power Unit and Components: The hydraulic drive unit and all critical components are easily accessible for maintenance and servicing, reducing downtime.
Large Lifting Area: The wide range of the telescopic arms allows for the safe securing of vehicles with different wheelbases and dimensions.
Optimal Access to the Undercarriage: The design guarantees excellent access to the vehicle's underbody, which is essential for precise assembly and maintenance work.
The performance and physical parameters of the TwinRam 35 S2/2300 Tele lift are detailed in the table below:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Maximum permissible load |
| Punch distance (Punch distance) | 2,300 mm | The distance between the two lifting points |
| Underswing height | 108 mm | Minimum height from floor level |
| Installation Depth (Installation depth) | 1,300 mm | Depth to be submerged below floor |
| Oil quantity | 50 liters | The amount required to fill the hydraulic system |
| Connection power | 4 kw | Electric drive power requirement |
The TwinRam 35 S2/2300 Tele offers a unique solution for modern workshops. The patented electro-hydraulic system ensures extremely reliable and precise operation.
The advantage of electro-hydraulic operation is fast response, fine controllability, and high reliability. The 4 kW connection power provides sufficient power for the fast lifting and lowering of 3.5-ton loads, while the 50-liter oil reservoir ensures optimal system operation over the full stroke length.

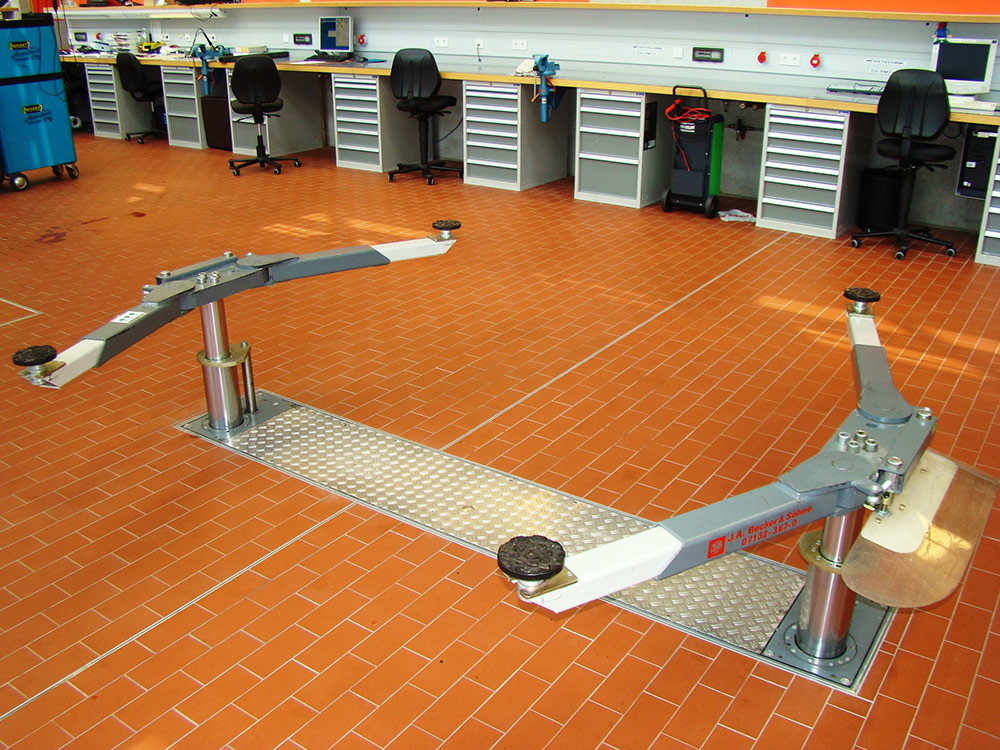

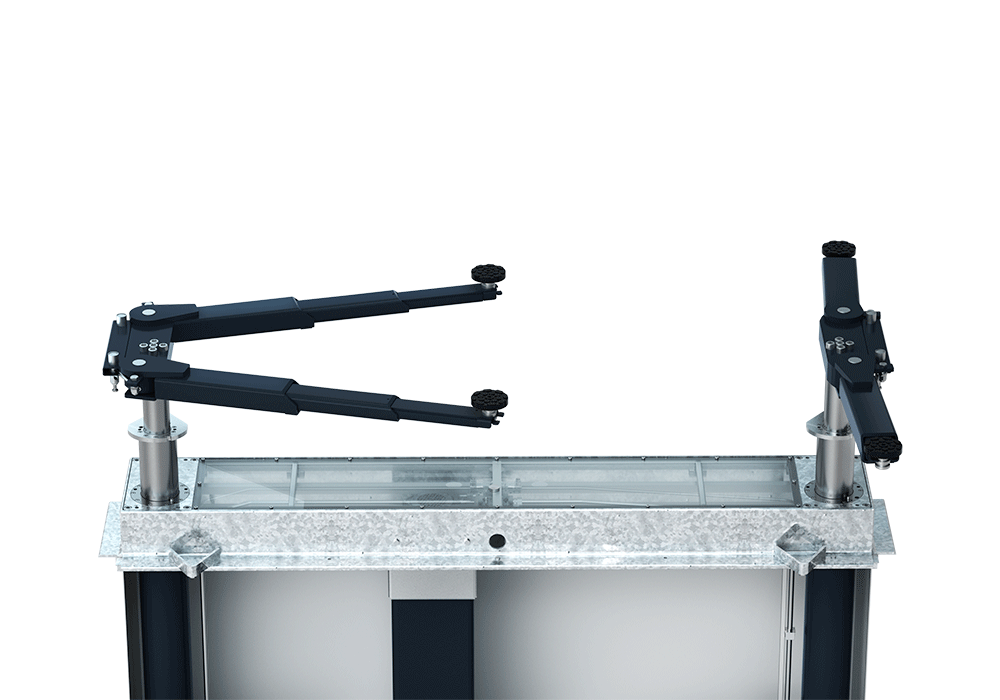

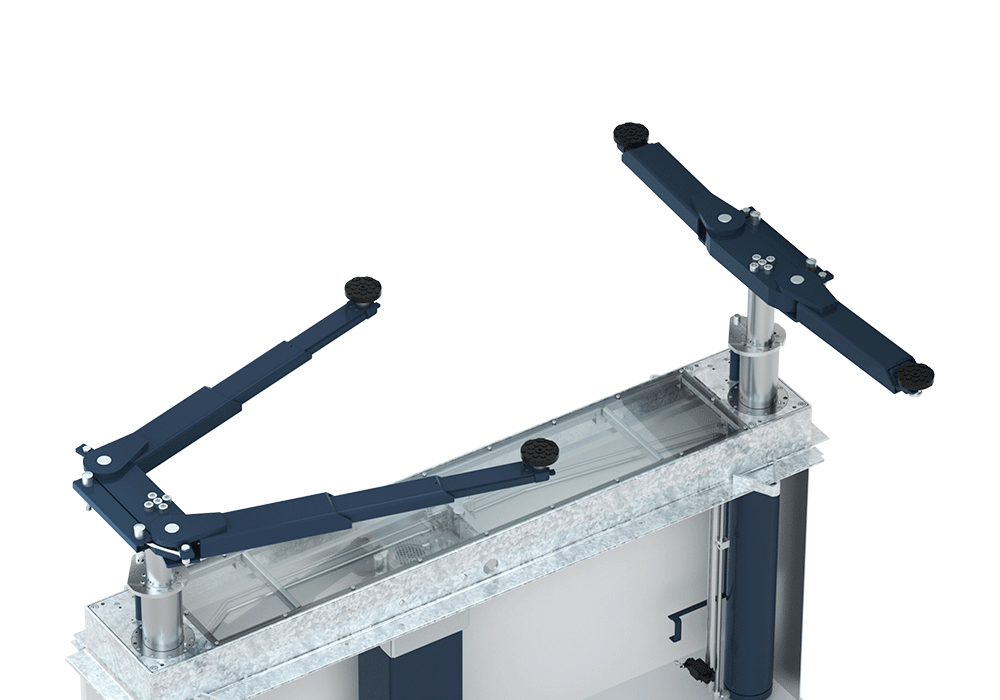

The telescopic technology allows for dynamic adjustment of the arm length. This is critically important for adapting to various vehicle dimensions, maximizing the flexibility of the securing points. The design of the arms ensures that the load is evenly distributed during vehicle lifting and that the vehicle remains stable.

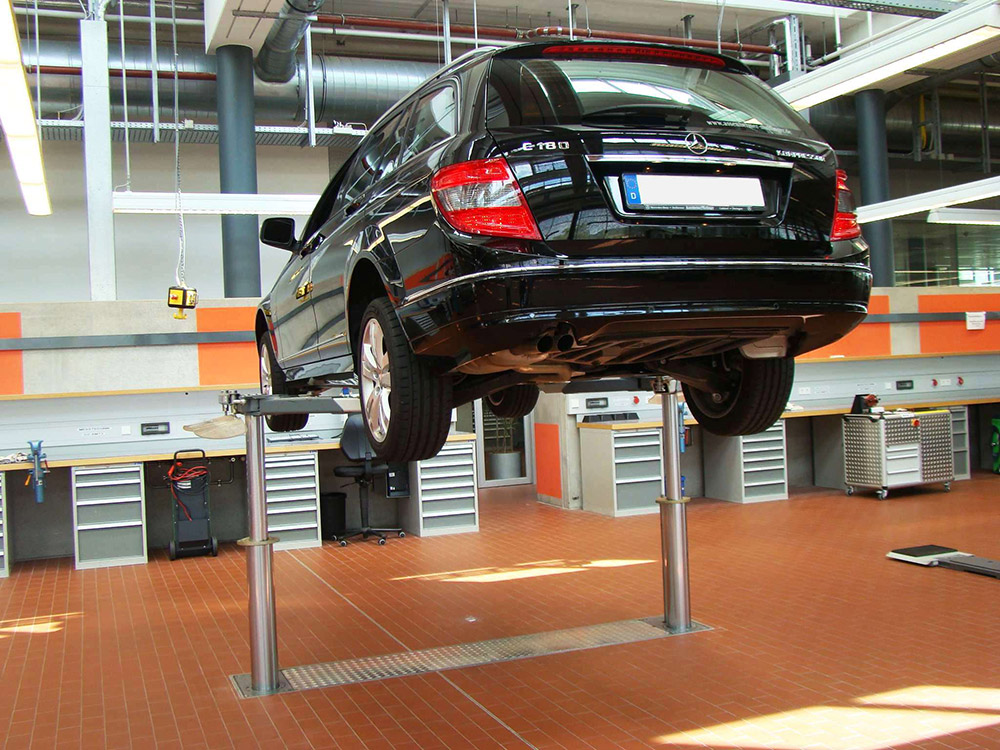

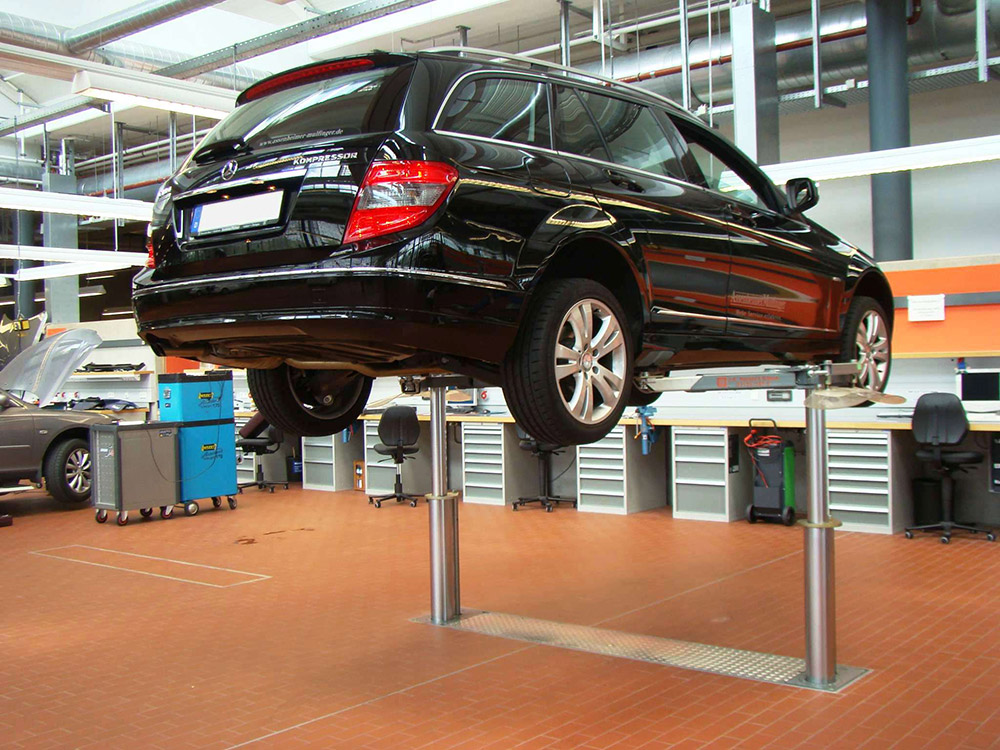

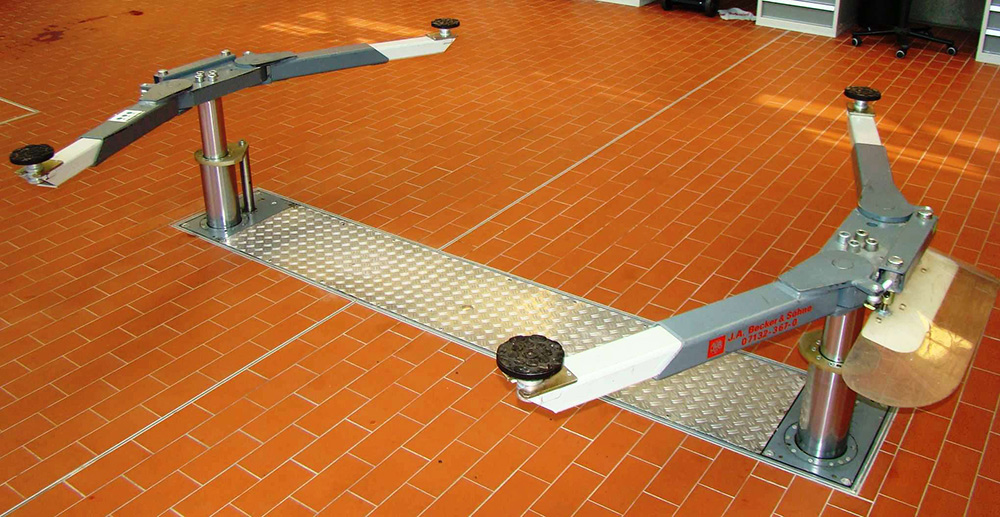

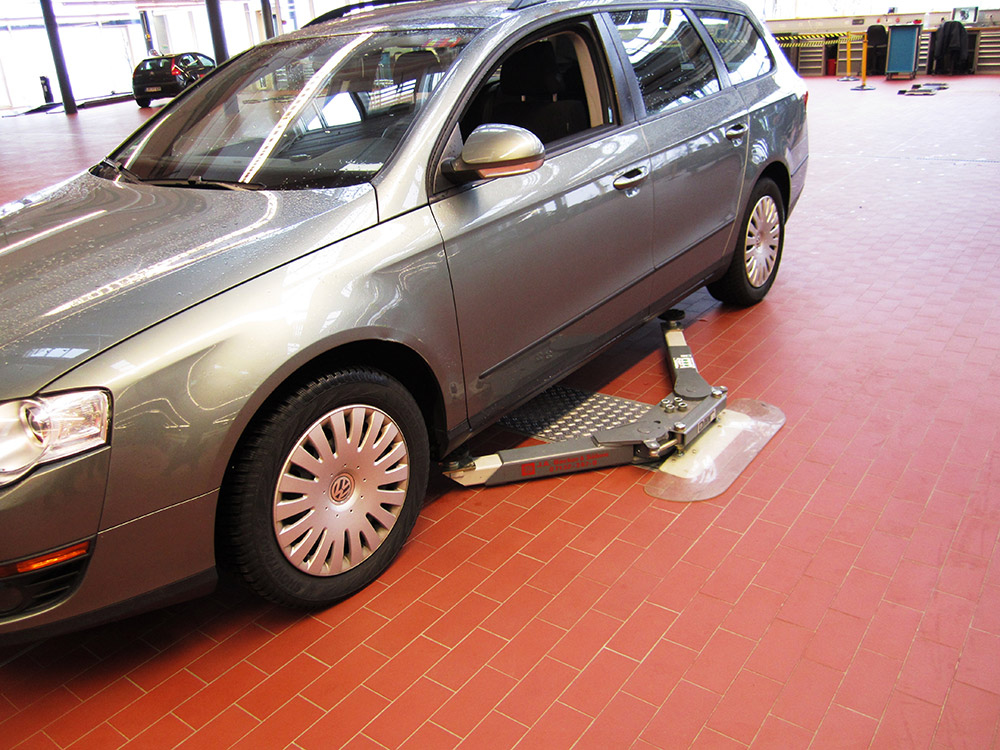

The 1300 mm installation depth is its main attraction. This depth allows the lift to sink almost completely below floor level, enabling vehicles to drive easily onto the lift, with minimal or no need for ramps. The underswing height of only 108 mm means that even the lowest sports cars can be lifted safely without the arms touching the underside of the vehicle.
Safety is the cornerstone of JAB products. In the case of the TwinRam 35 S2/2300 Tele, the anti-rotation mechanism, active over the full stroke length, guarantees that the lifted vehicle does not move laterally. Furthermore, all loads are borne by the base frame, which, together with proper foundation, provides an extremely stable platform for the work to be carried out. This design philosophy enhances the safety of service technicians and the service life of the equipment.
A TwinRam 35 S2/2300 Tele a premium category, innovative lifting solution that combines space-saving, high load capacity, and excellent accessibility. It is an ideal choice for workshops that want to meet the highest technical demands, especially in narrow or complex installation environments. This equipment is a first-class product in every respect.
