The JAB TwinRam 35 S2/2300 is a top-category, high-performance vehicle lift designed specifically for the needs of modern service centers. This model combines double telescopic tilting arm technology with height-adjustable support plates, ensuring optimal access to the vehicle undercarriage and the entire service area. It is an excellent choice for all repair and maintenance work where maximum accessibility and safety are crucial.
In designing the TwinRam 35 S2/2300, J.A. Becker & Söhne followed the philosophy of „NO 08/15 PRODUCTS” (Non-standard products), guaranteeing reliability and a long service life.
This lift system offers unparalleled flexibility and safety during workshop operations:

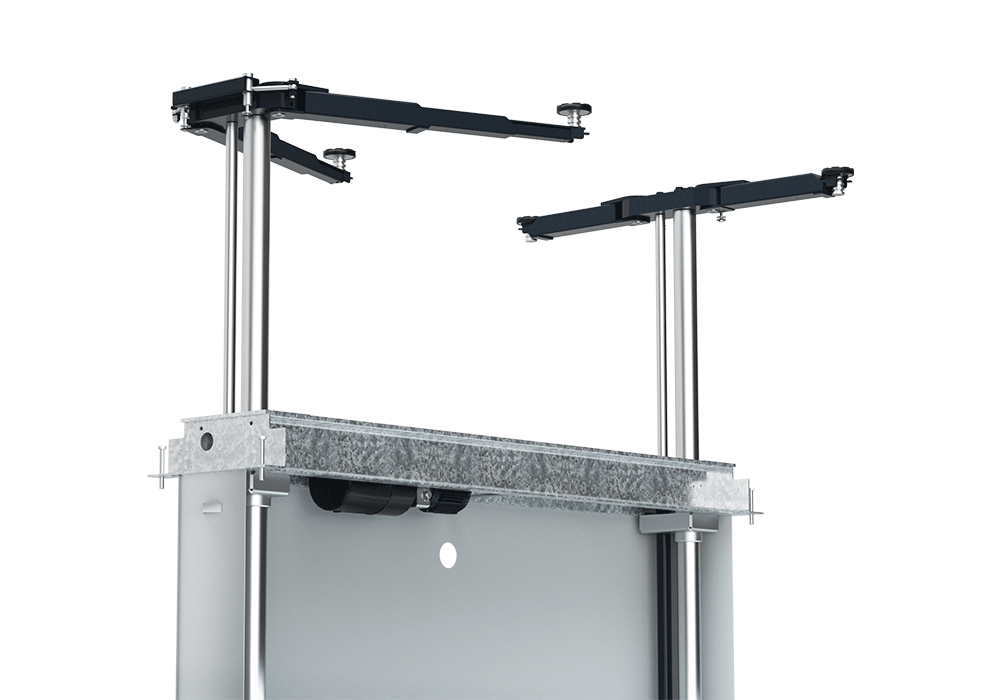

Double Hydraulic Cylinder Design: The redundant design with two independent hydraulic cylinders ensures exceptional safety and stability, even under heavy loads. This dual system minimizes the risk of failure.
Full Stroke Anti-Rotation System: A robust anti-rotation mechanism throughout the lift's full stroke range guarantees that the vehicle remains stable, avoiding unwanted lateral movements.
Base Frame Force Absorption: All operational loads and forces are absorbed by the lift's base frame, which reduces stress on structural components and increases service life.
Easy Access to Components: The drive unit and all critical parts are easily accessible, which simplifies maintenance and servicing.

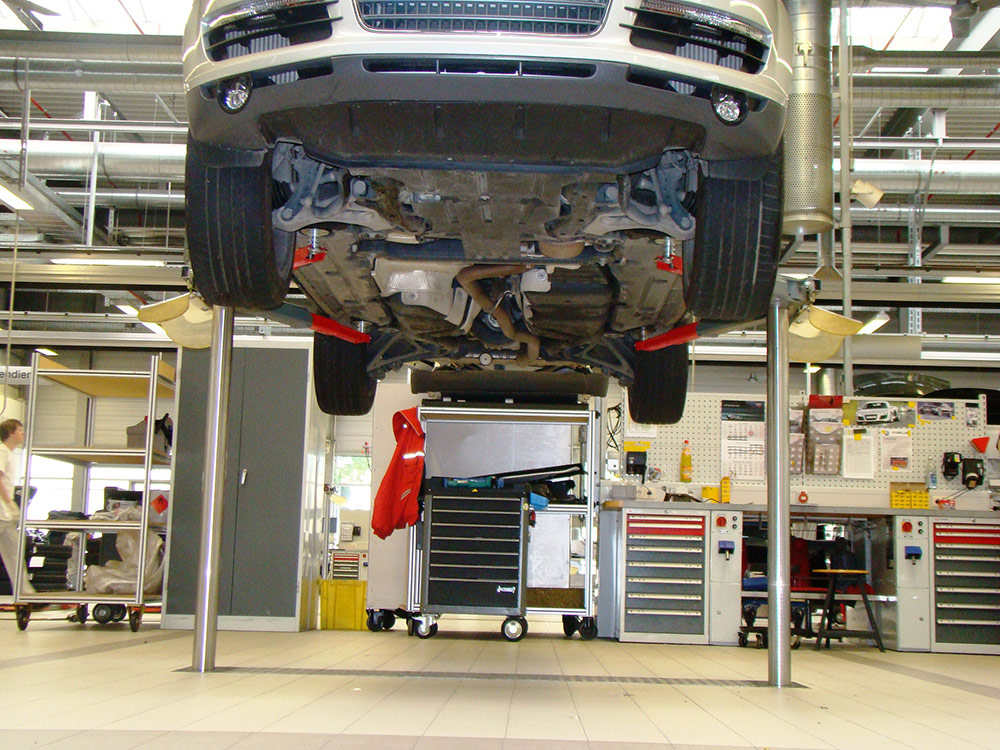

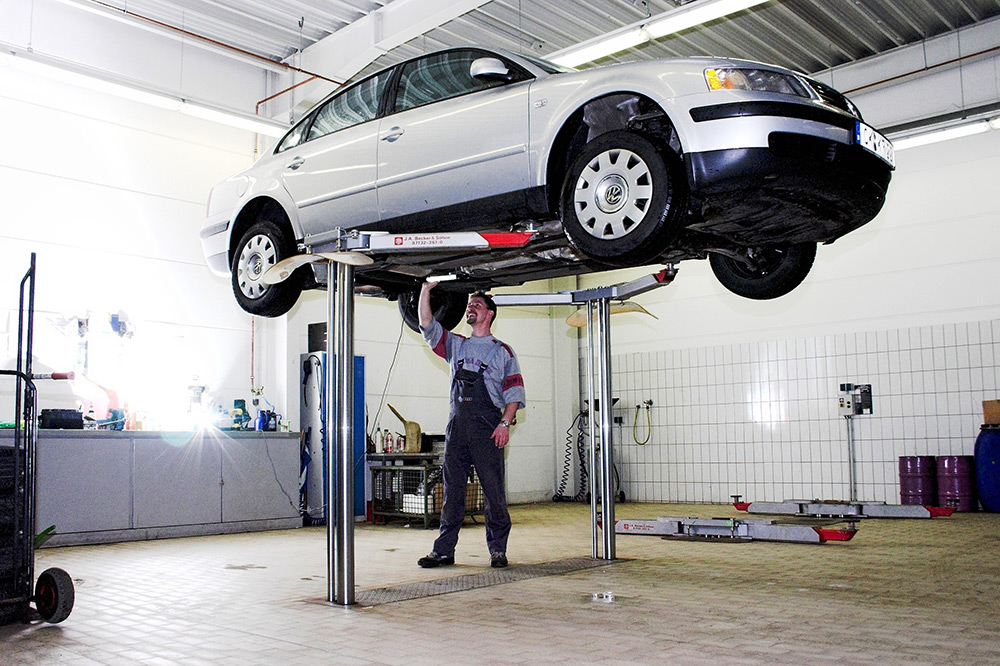

Optimal Working Conditions: The raised vehicle is accessible with almost no restrictions, creating ideal conditions for complex repair work.
Maximum Lifting Versatility: The tilting arm system offers extremely versatile vehicle lifting options, adapting to different chassis geometries.
The precisely engineered parameters of the TwinRam 35 S2/2300 ensure efficient and safe operation:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Punch distance (Punch distance) | 2,300 mm | The distance between the arms for maximum stability. |
| Underswing height | 98 mm | Extremely low installation height facilitates vehicle positioning. |
| Installation depth | 2,350 mm | The required depth below the floor for sinking in. |
| Oil quantity | 10 liter | The quantity required for the operation of the hydraulic system. |
| Connected load | 2 kw | Power consumption of the electric drive. |

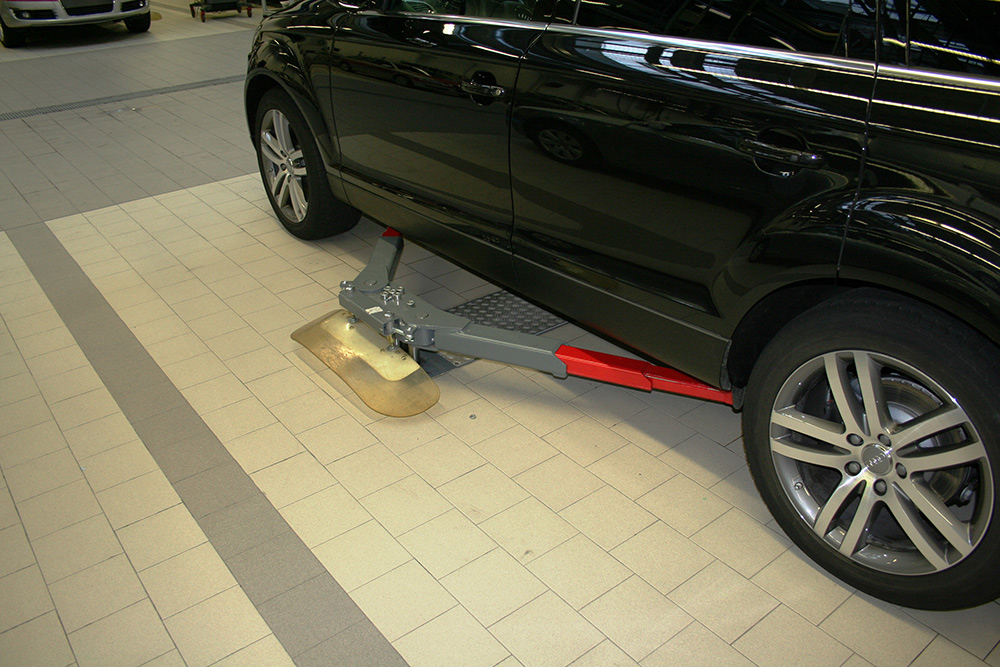

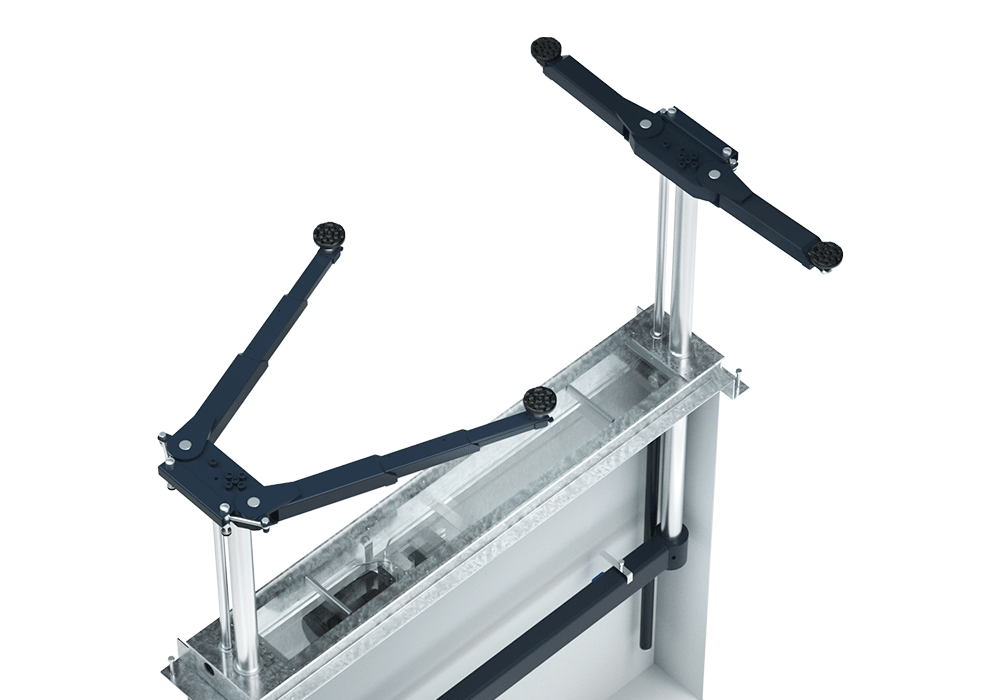

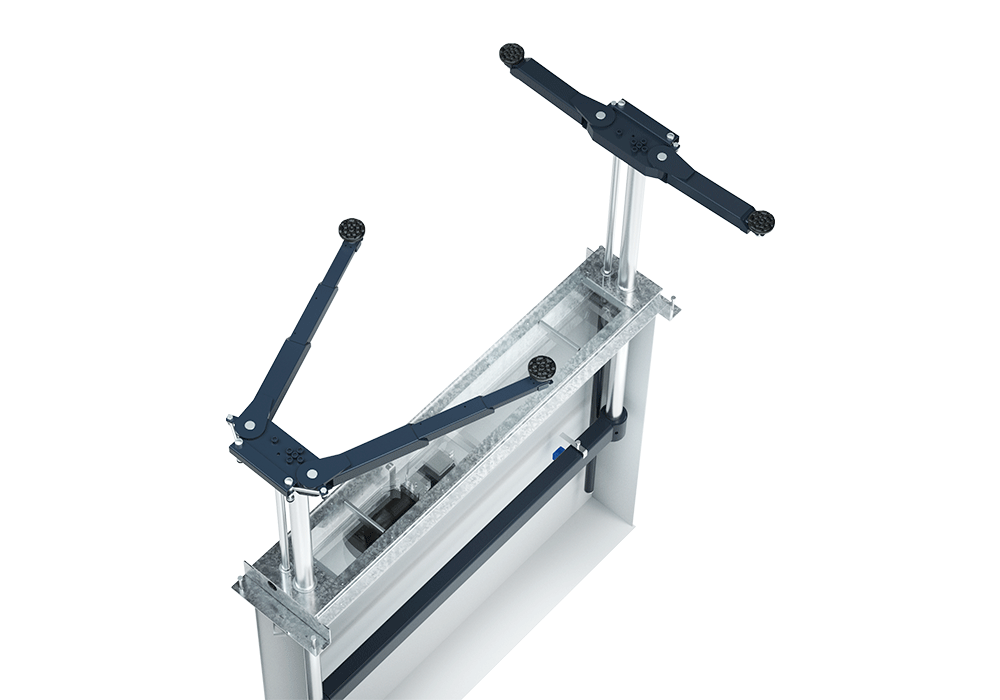

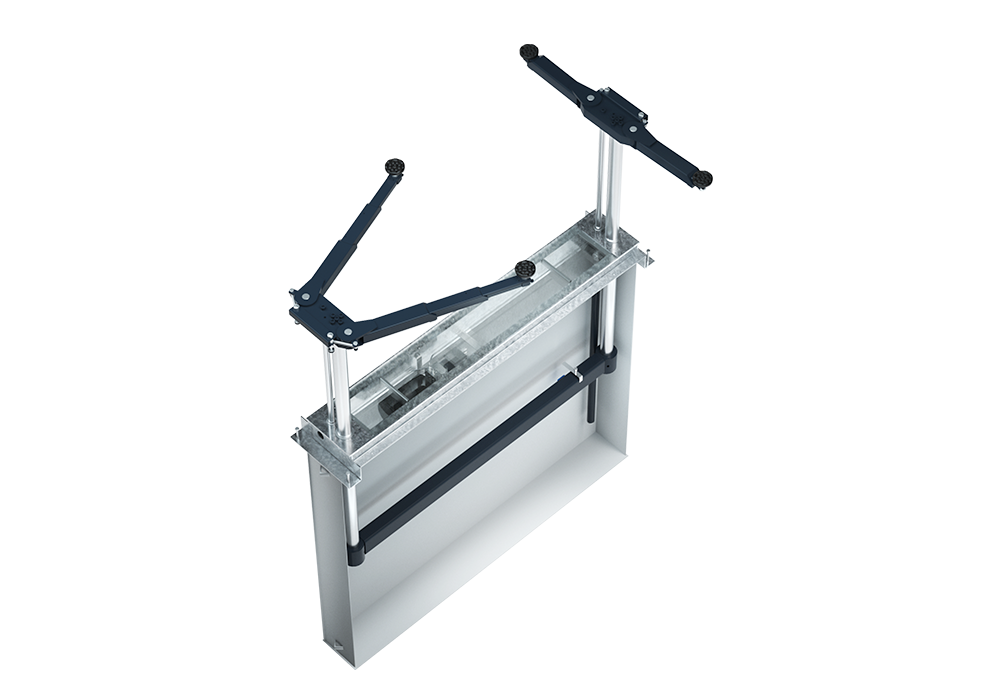

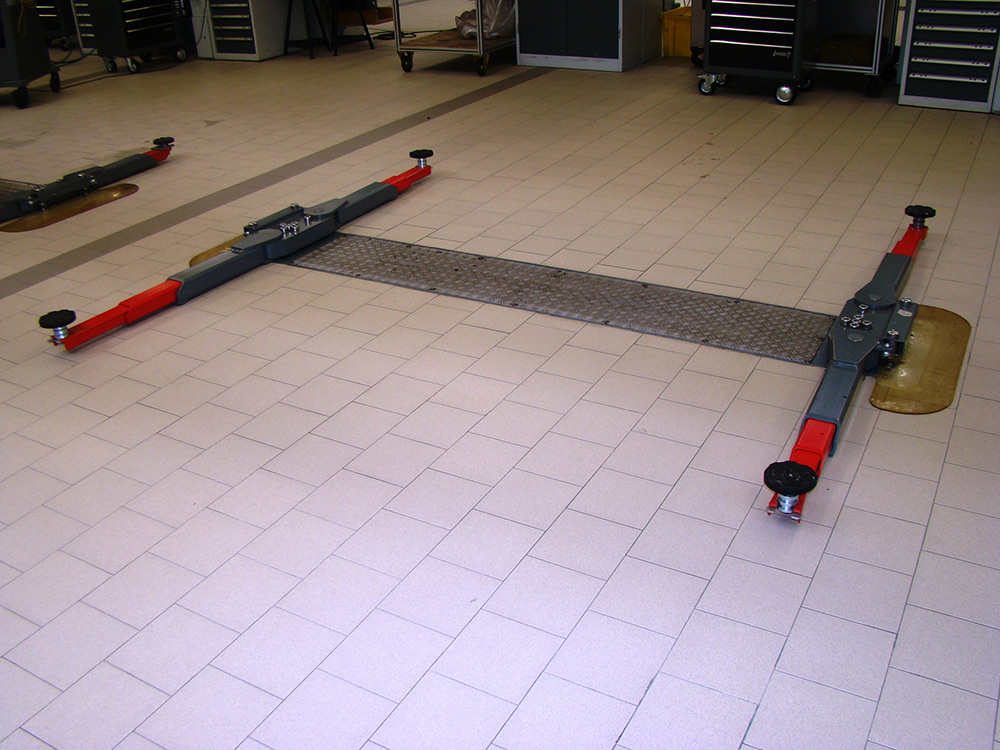

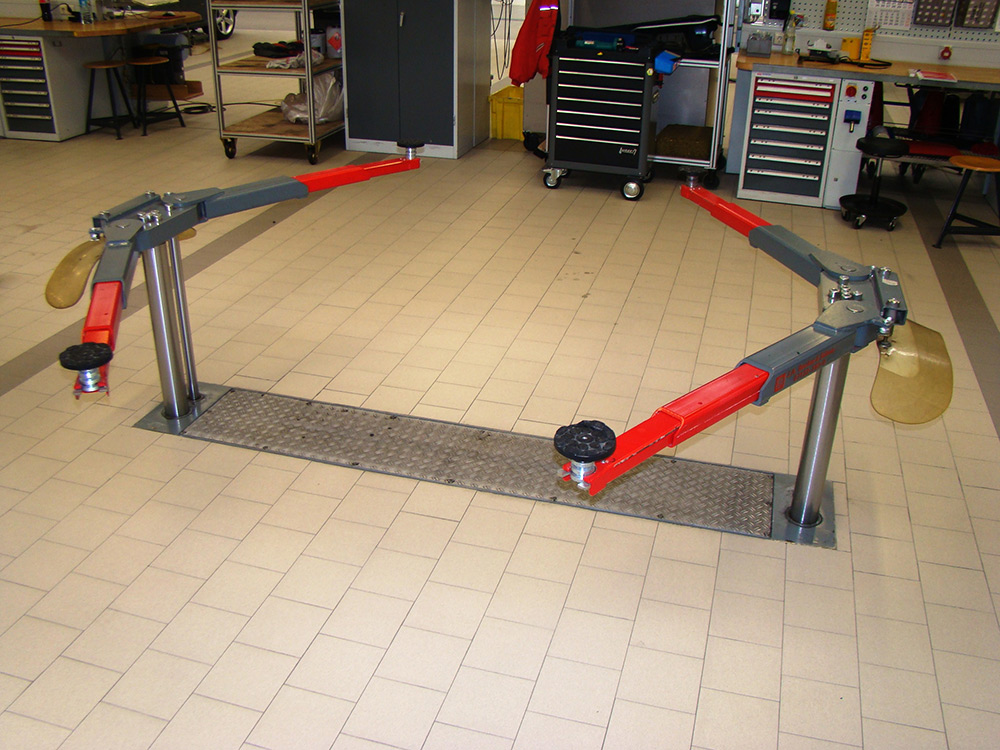

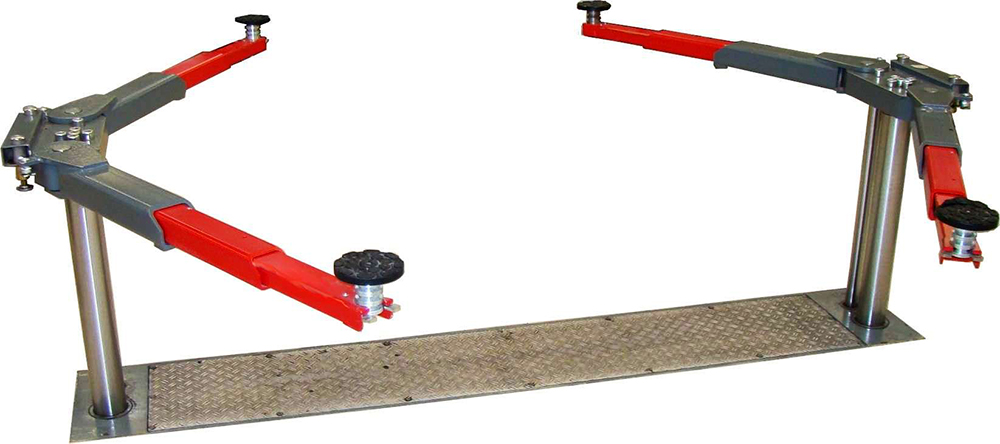

The TwinRam 35 S2/2300 is a recessed lift featuring double telescopic tilting arms and height-adjustable pick-up plates. This configuration allows the vehicle to be positioned as close to the floor as possible when not in use (98 mm lowest height), while allowing flexible positioning to the pick-up points during lifting.
The double telescopic design allows for fine-tuning of the arm length, enabling the lift to adapt to a wide range of wheelbases, from extremely short ones to longer models. This flexibility is critical for servicing the modern fleet where vehicle dimensions are constantly changing.

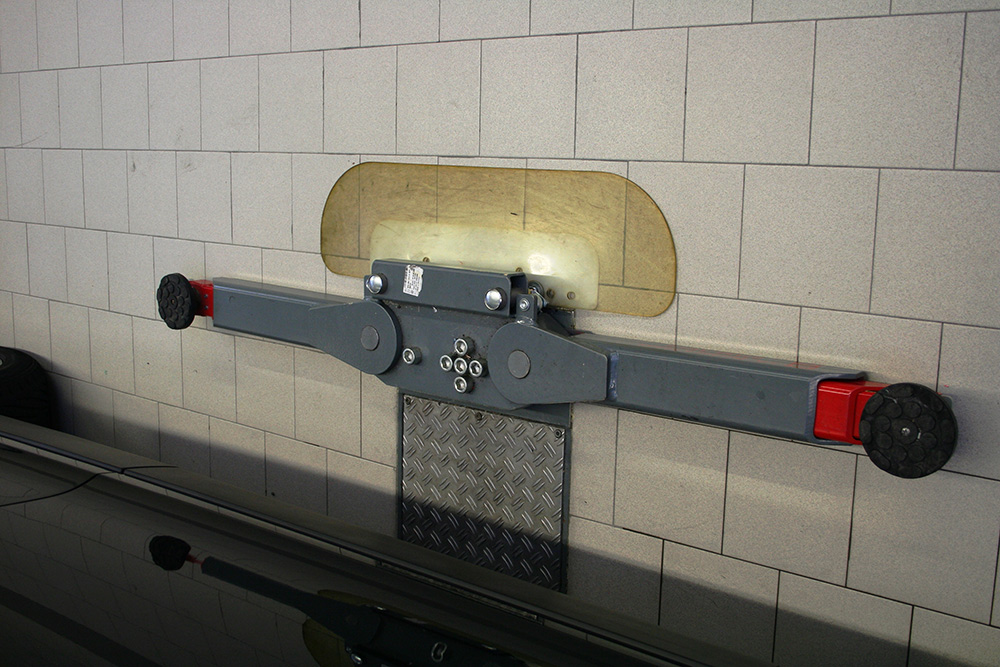

The height-adjustable support plates (pick-up plates) ensure that the vehicle's lifting points align precisely with the chassis, regardless of the vehicle's ground clearance. This feature is essential for safe lifting and avoiding damage.
The JAB TwinRam series prioritizes safety. The two independent hydraulic systems not only provide redundancy but also allow for precise synchronization. The anti-rotation system guarantees that the vehicle does not shift laterally during lifting, which is especially important for heavy vehicles raised to a height. All loads are channeled into the base frame, minimizing point loads on the floor, provided the installation is carried out according to the manufacturer's specifications (foundation drawings available).
This lift is the ideal choice for service centers seeking premium quality, long-term reliable lifting equipment capable of handling a diverse vehicle fleet while providing maximum workspace for technicians.
