The JAB TwinRam 35 S2/2500 is a top-tier, in-ground recessed, vehicle lift with double telescopic arms, specifically designed for the highest level of servicing and repair work. This model is an excellent choice for any repair task where complete and unimpeded access to the underside of the vehicle is essential. The lever arm lifting system provides maximum lifting versatility, guaranteeing optimal working conditions.
The TwinRam 35 S2/2500 is not an average (NO 08/15) product; it reflects the engineering precision and safety principles of J.A. Becker & Söhne:
Redundant Design: Two independent hydraulic cylinders ensure extremely safe and reliable operation. This redundancy increases the safety margin and minimizes the risk of failure.
Full Stroke Length Controlled Anti-Tilt System: During the lifting and lowering of the vehicle, the arms remain stable, preventing unwanted rotation, which is critically important for precision work.
Base Frame Force Absorption: All load forces are absorbed by the base frame, which relieves the floor structure and increases the service life of the lift.
Easy Access to Components: The drive unit and all hydraulic components are easily accessible, simplifying maintenance and servicing.

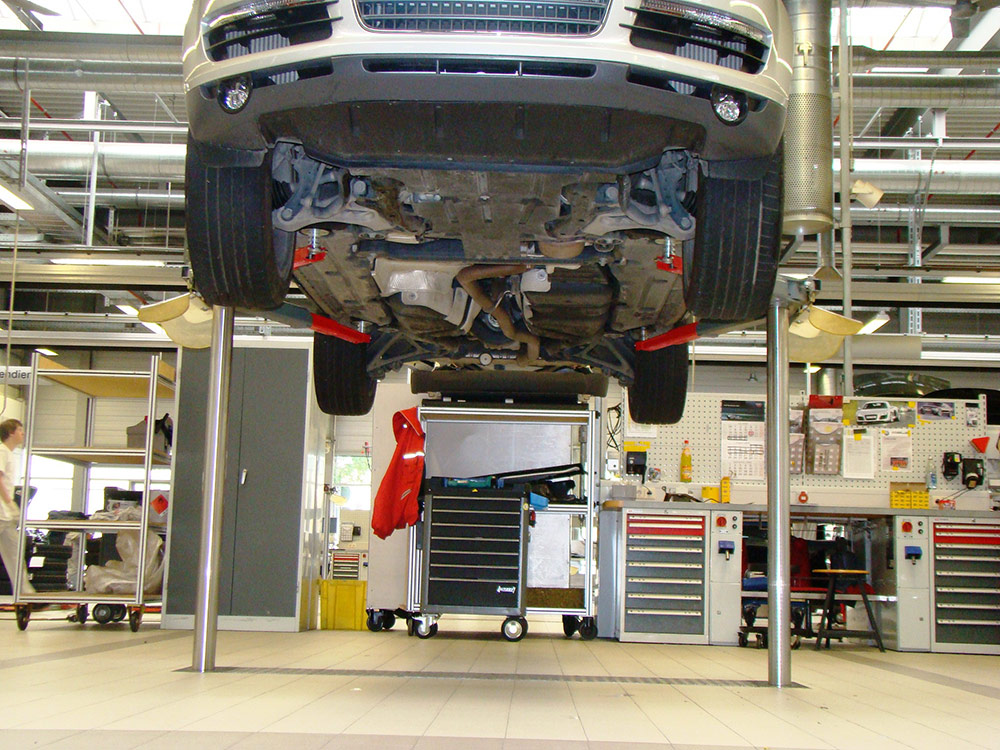

Unobstructed Access: The lifted vehicle is almost unlimitedly accessible, creating ideal conditions for comprehensive underbody and drivetrain work.
Adjustable Support Plates: The height-adjustable pickup plates provide flexibility for the safe securing of vehicles with different wheelbases and underbody heights.
The precise specifications of the TwinRam 35 S2/2500 lifting platform ensure professional performance:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Load Capacity | 3.500 | kg | Maximum safe load |
| Lyuktávolság | 2.500 | mm | The distance between the two lifting points |
| Süllyesztési Magasság | 98 | mm | Minimum installation height below the floor level |
| Installation Depth | 2.350 | mm | The depth required for fully recessing the entire structure into the floor |
| Oil quantity | 10 | liter | Quantity required for filling the hydraulic system |
| Connection Power | 2 | kW | Electric drive power |

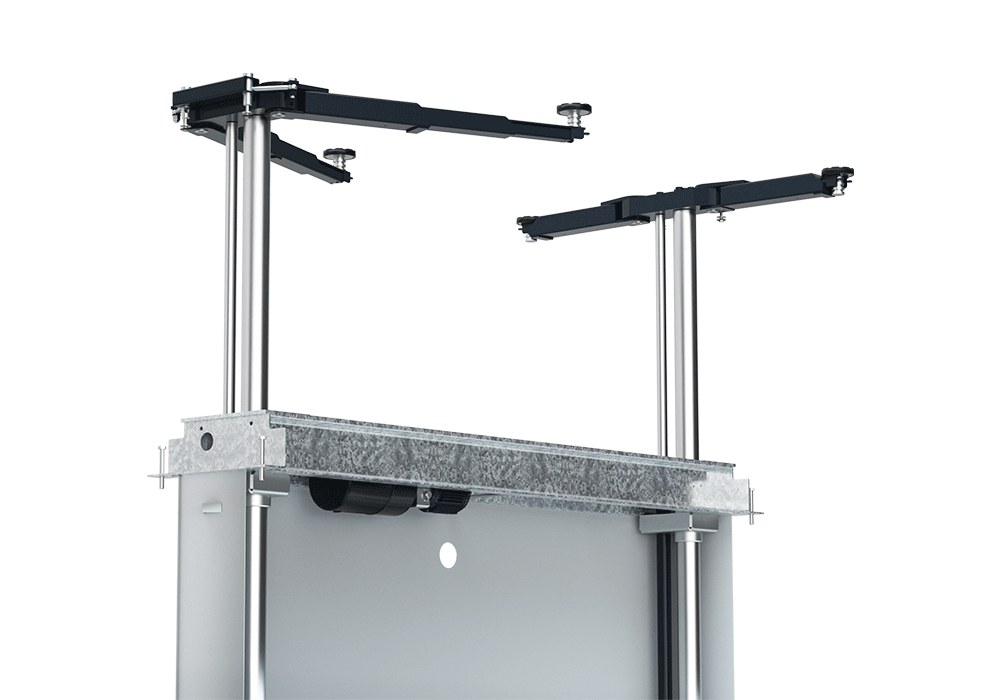

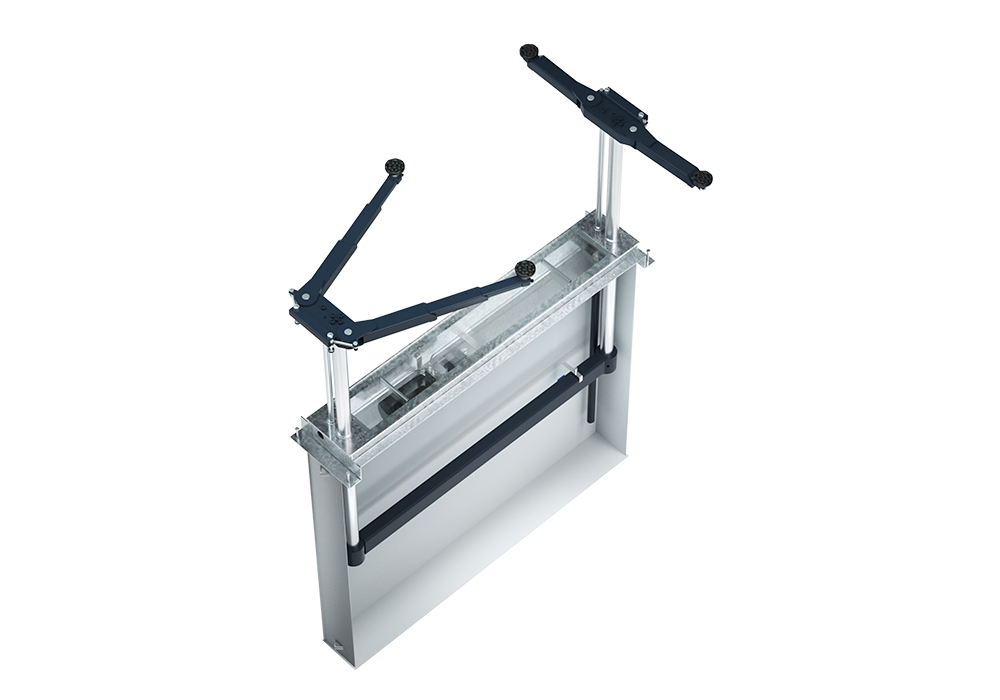

The TwinRam 35 S2/2500 is an in-ground recessed lifting platform equipped with double telescopic arms and height-adjustable lifting plates. This design offers an ideal solution for servicing passenger vehicles, where the vehicle can be sunk to floor level, leaving the workspace completely clear.
A dupla teleszkópos kialakítás lehetővé teszi a karok optimális kiterjesztését a jármű alatti támaszpontokhoz. Ez a rendszer rendkívül széles skálájú felvételi lehetőséget kínál, ami kulcsfontosságú a modern járműpark kiszolgálásában, beleértve a különböző tengelytávokat és alvázgeometriákat. A magasságban állítható támasztó lemezek finomhangolást tesznek lehetővé a pontos és biztonságos rögzítés érdekében.
The JAB engineering philosophy is built on safety. The redundant hydraulic system means that even if one cylinder fails, the lift will safely hold the load. The elmozdulás gátló mechanizmus guarantees that the arms do not move out of the designed plane during lifting, which is essential for precise work on the body and running gear.
The absorption of the total load is in the base frame ensures that the structural integrity of the lift remains intact in the long term, regardless of frequent use.
A padlóba süllyeszthető kialakítás (2350 mm) professzionális, tiszta munkakörnyezetet eredményez. Az alacsony süllyesztési magasság (98 mm) minimalizálja a jármű aláfutásához szükséges rámpák vagy emelési rásegítések igényét, bár a pontos beépítési rajzok és méretezési segédletek letölthetők a telepítés optimális előkészítéséhez.
The TwinRam 35 S2/2500 is a first-class product in every respect, prioritizing efficiency, safety, and longevity for vehicle workshops.
