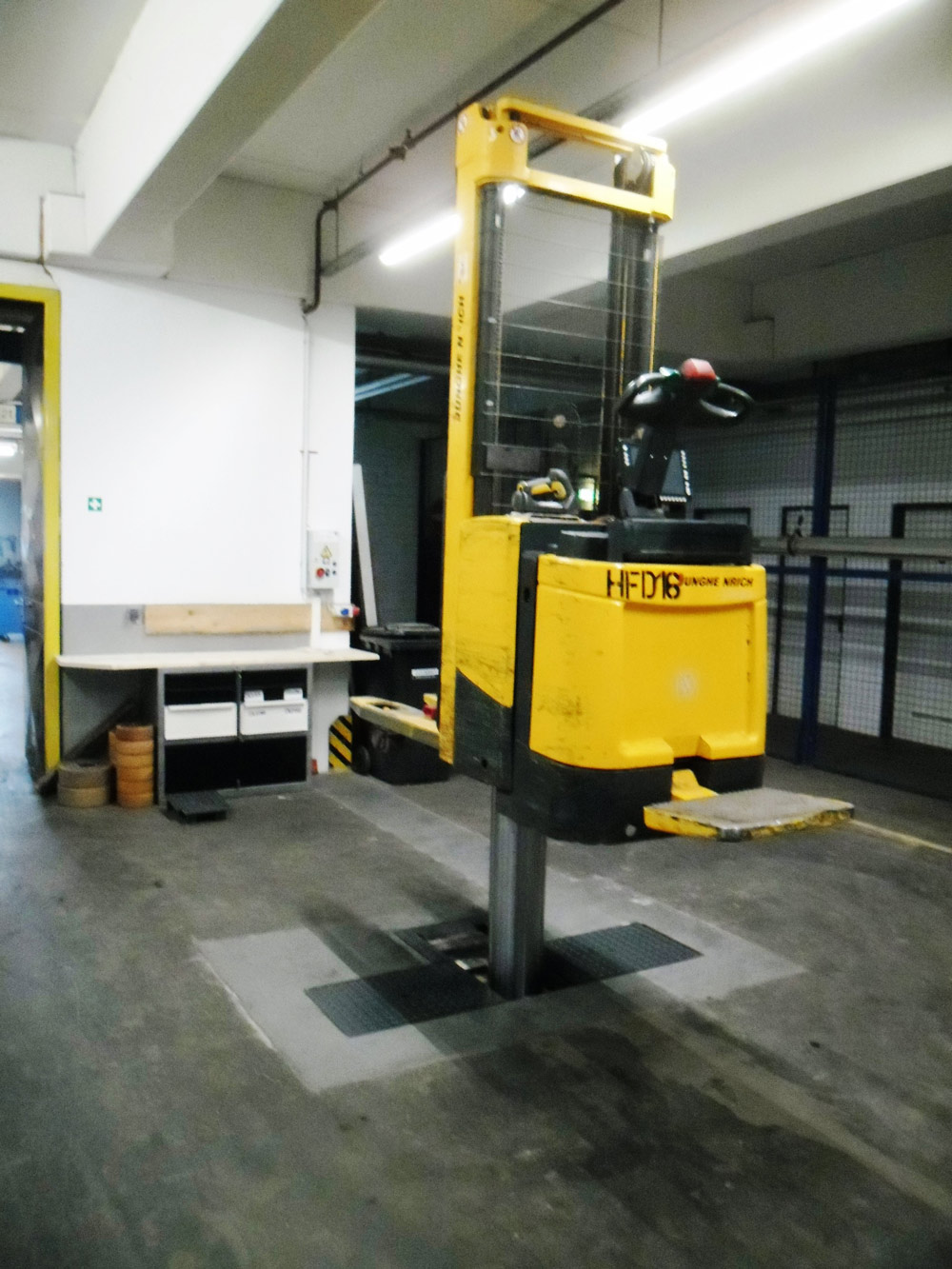

J.A. Becker & Söhne proudly presents the HF 3 Tele A hydraulic, telescopic, in-ground retractable lift, specifically designed for lifting industrial trucks and forklifts. This equipment represents the pinnacle of reliability, flexibility, and space-saving, offering an ideal solution for various logistics and maintenance tasks.
The HF 3 Tele is not just an „ordinary” lift; it is an intelligent solution that meets even the strictest industrial requirements while ensuring minimal floor space occupancy.
During the development of the HF 3 Tele, the engineers at J.A. Becker & Söhne prioritized user requirements, integrating numerous functions that significantly increase efficiency and safety:
No „Average” Solution: This product is not a template, compromise solution. J.A. Becker & Söhne is committed to premium quality equipment specifically tailored for industrial requirements.
Directly Flanged Hydraulic Unit: The hydraulic unit is mounted directly onto the lift structure (flanged), which optimizes performance, reduces connection losses, and simplifies maintenance.

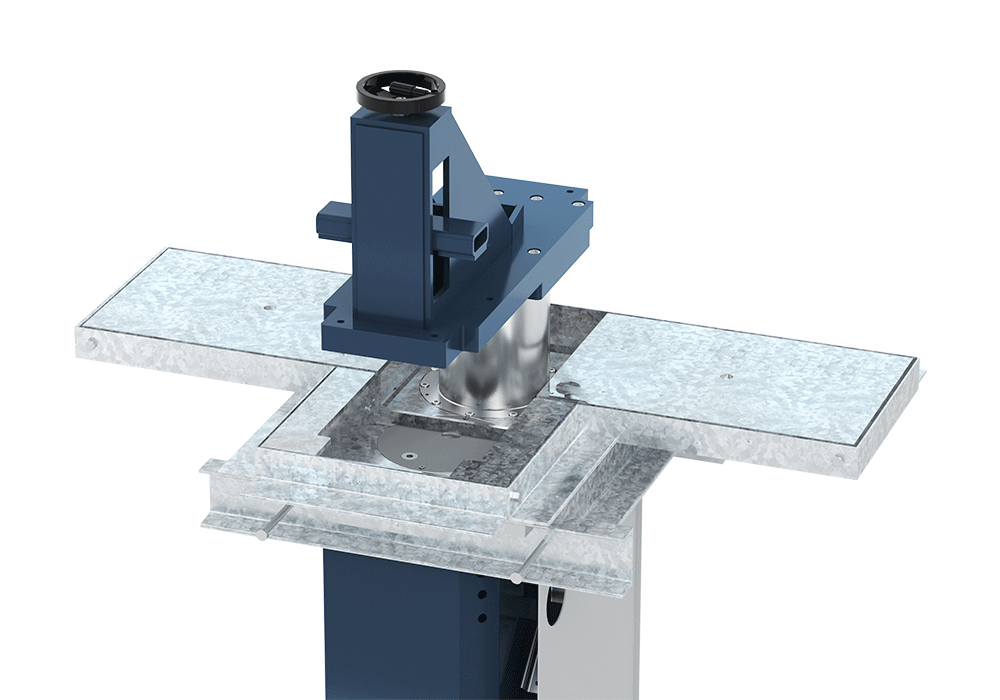

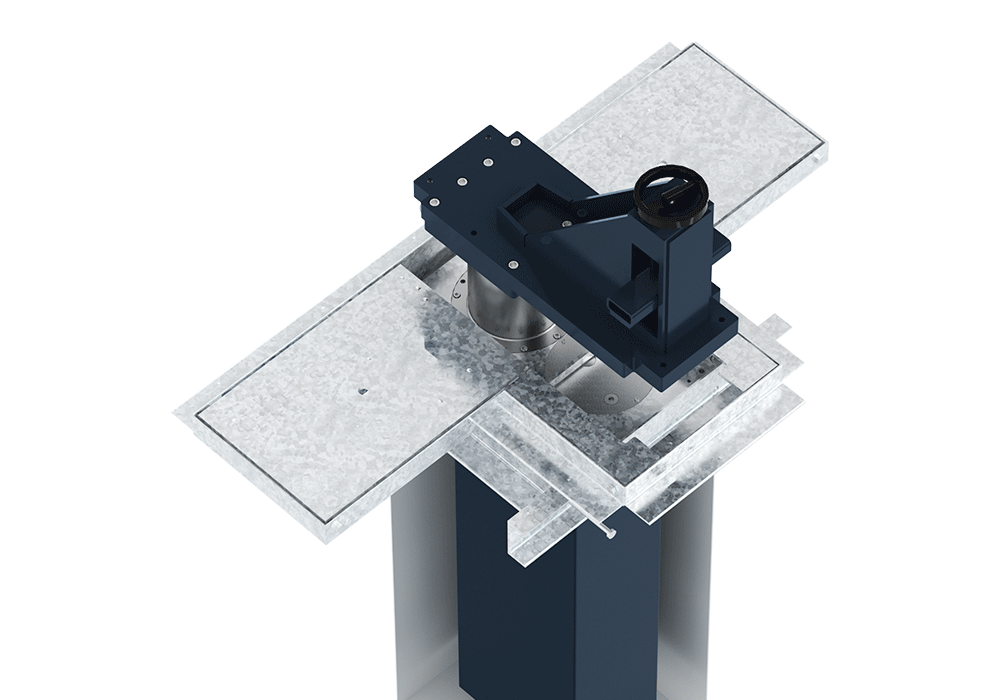

Mounting Plate with Maintenance Hatch: The structure-integrated mounting plate features a maintenance hatch, allowing direct access to the hydraulic unit from above. This drastically reduces downtime in case of repair or inspection.
Compact Installation Depth: Only 1,580 mm With an installation depth of 1,580 mm, the HF 3 Tele offers an extremely space-saving solution, especially for narrow spaces or facilities where deep construction is not possible due to ground structure.

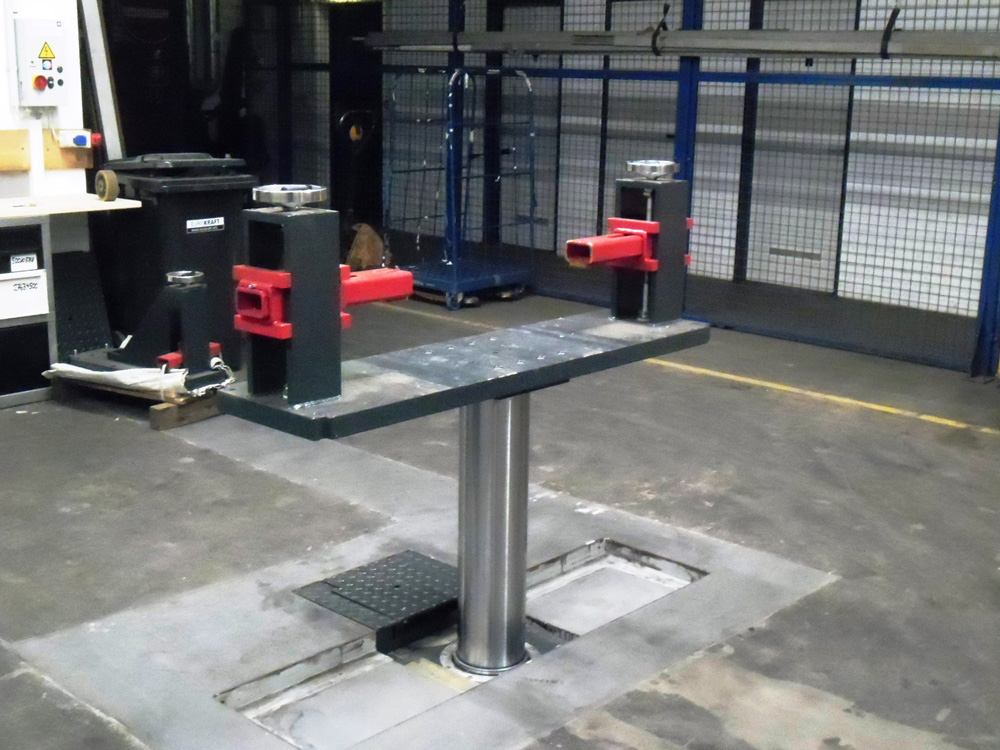

Versatile Load Handling System: Thanks to the galvanized, multi-functional frame, the lift can be equipped with various load handling devices. This ensures that the most diverse variants of industrial trucks and forklifts can be lifted safely and stably.
The basic structure of the HF 3 Tele allows the user to configure the lift with the exact load handling devices required. This modularity guarantees that the equipment optimally fits the specific fleet, whether it involves standard forklifts, special industrial vehicles, or other unique lifting requirements. The galvanized multifunctional frame offers excellent corrosion protection, ensuring a long service life even in intensive industrial environments.
The following table details the critical technical parameters of the HF 3 Tele lift:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,000 kg | Maximum safe load |
| Lifting Height | 1,900 mm | Significant working height |
| Installation Depth | 1,580 mm | Extremely compact design |
| Oil quantity | 130 liters | The necessary quantity to operate the hydraulic system |
| Connection Power | 4.1 kW | Electrical Power Requirement |

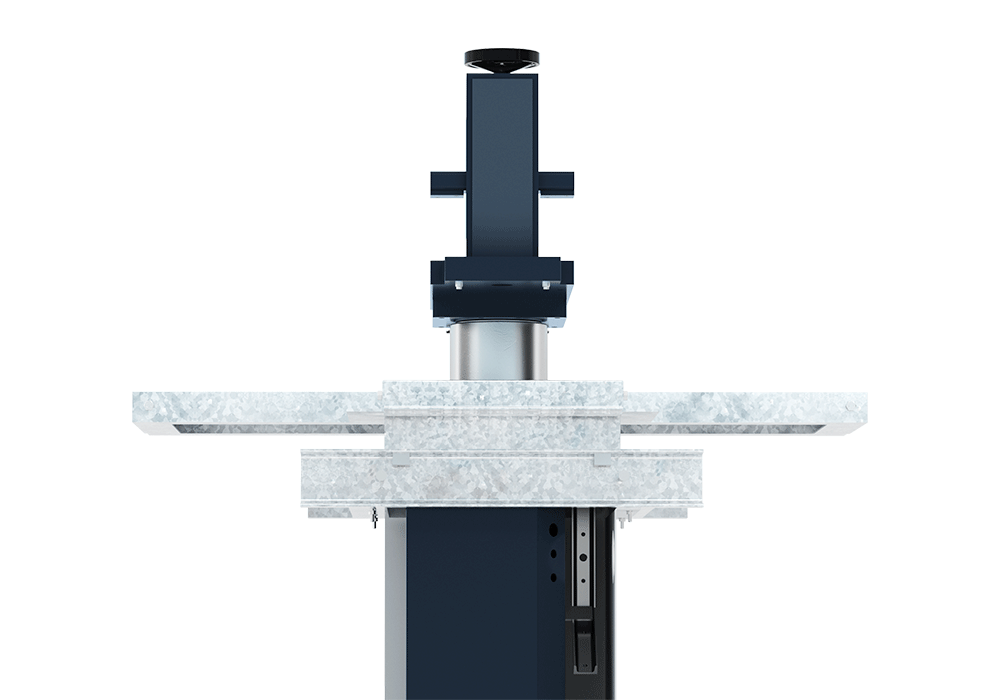

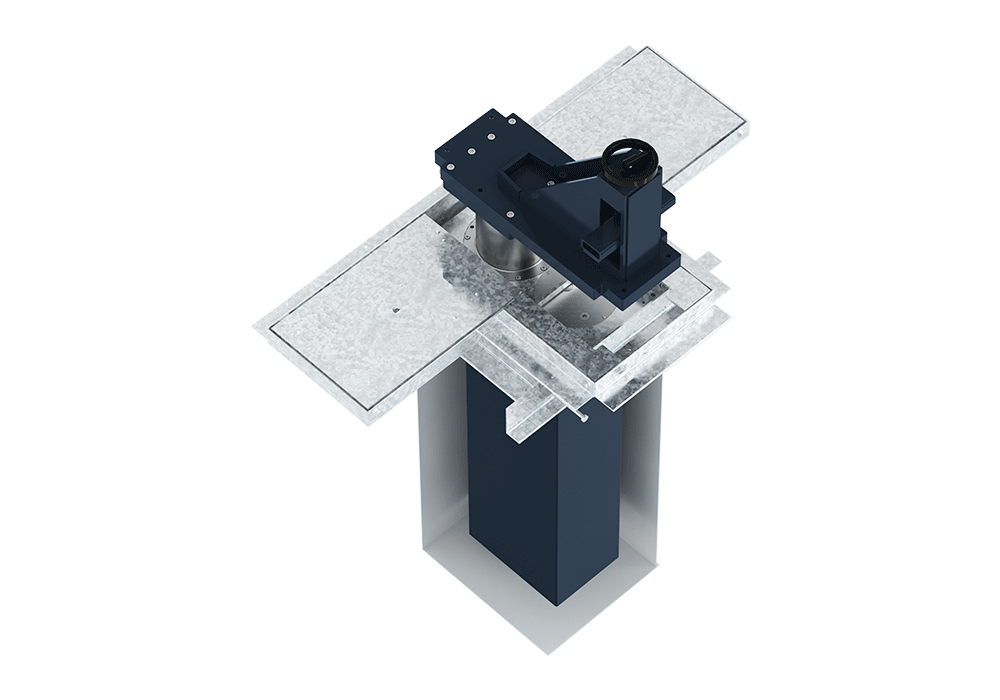

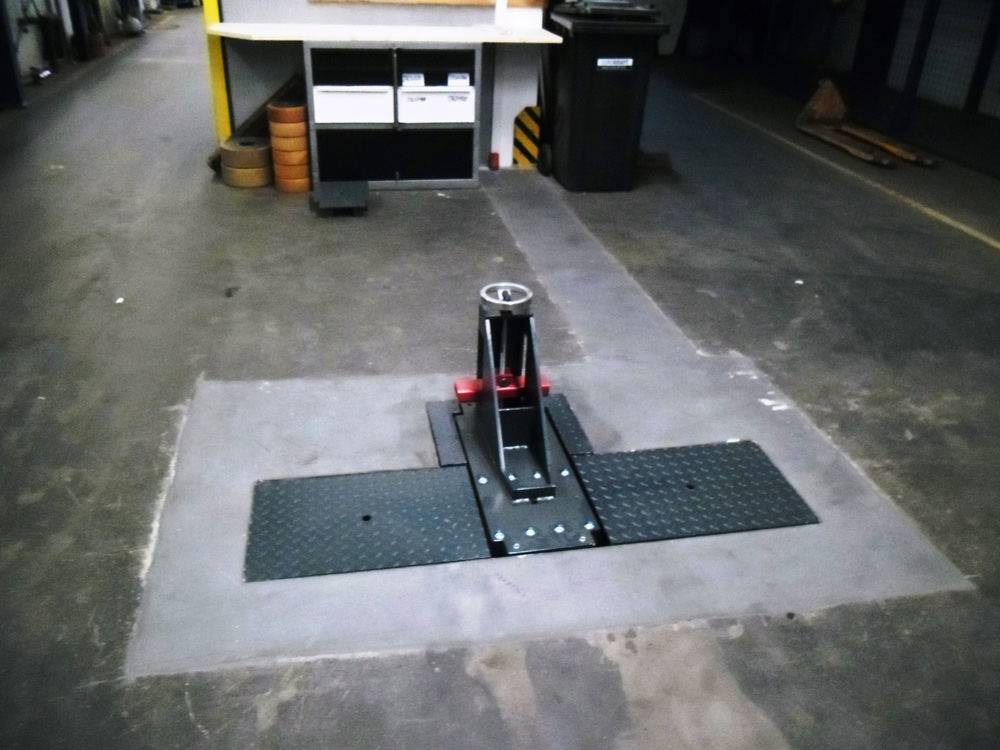

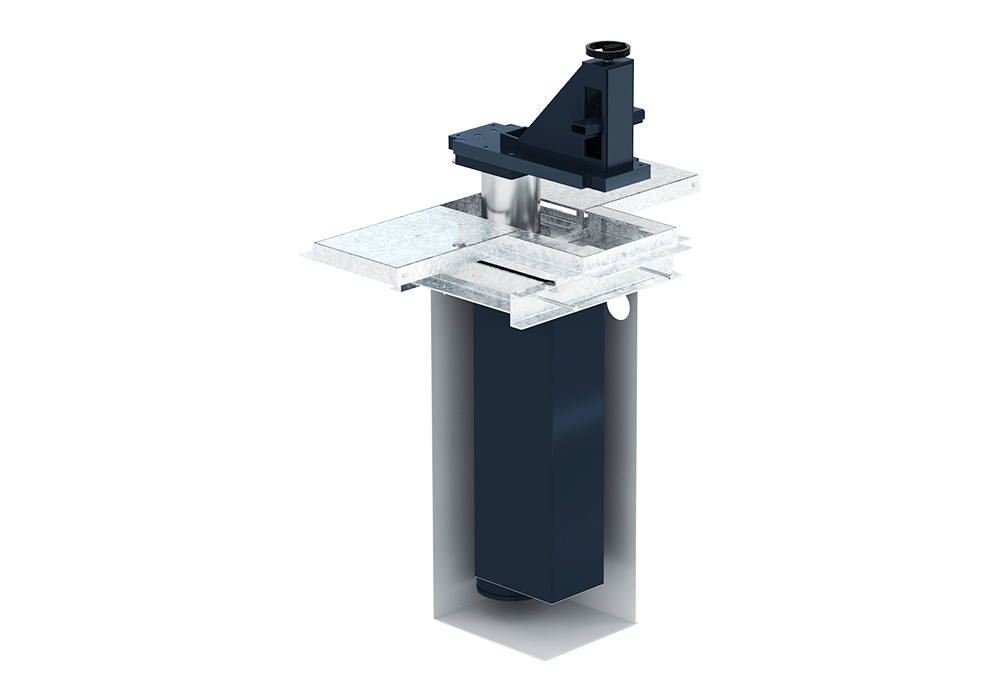

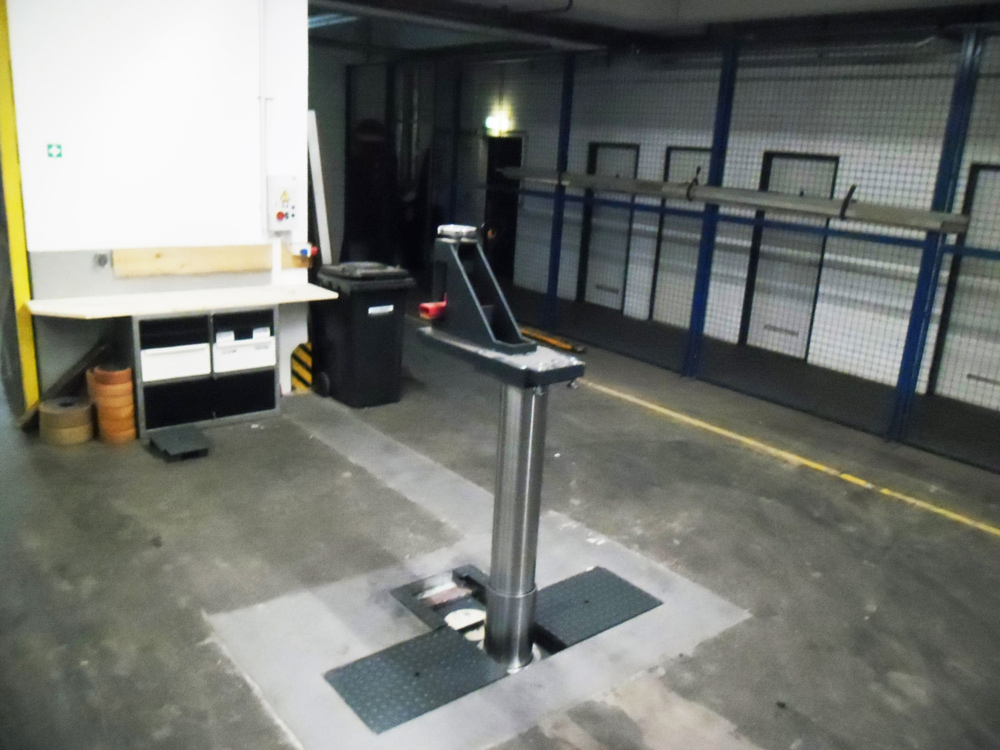

The lift is installed into a special foundation frame (foundation frame). The load handling attachment is flush with the floor flush (flush with the floor) is located when the lift is not in use. This design ensures smooth traffic in the workshop when the lift is not operating.
The HF 3 Tele is a first-class product in every respect. This hydraulic single-cylinder lift with a telescopic design is exceptionally well-suited for precise and safe lifting tasks in the logistics and manufacturing sectors. Its compact installation depth, design ensuring easy maintenance, and high degree of flexibility make this model a standout solution in industrial lifting technology.
Further detailed information, including floor plans and product brochures, can be downloaded from the appropriate sources.
