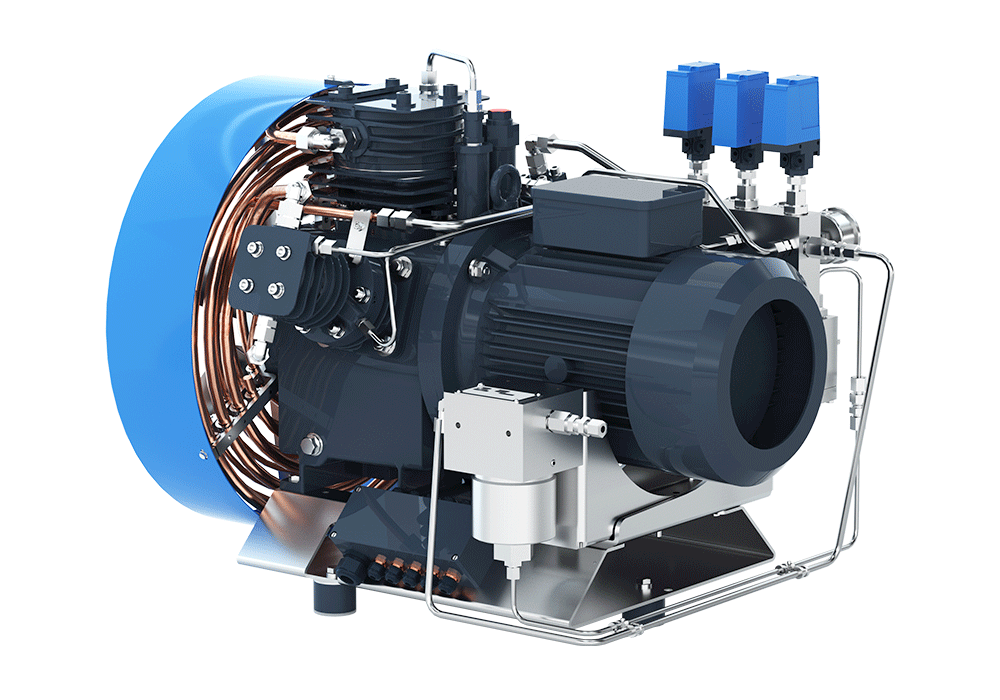

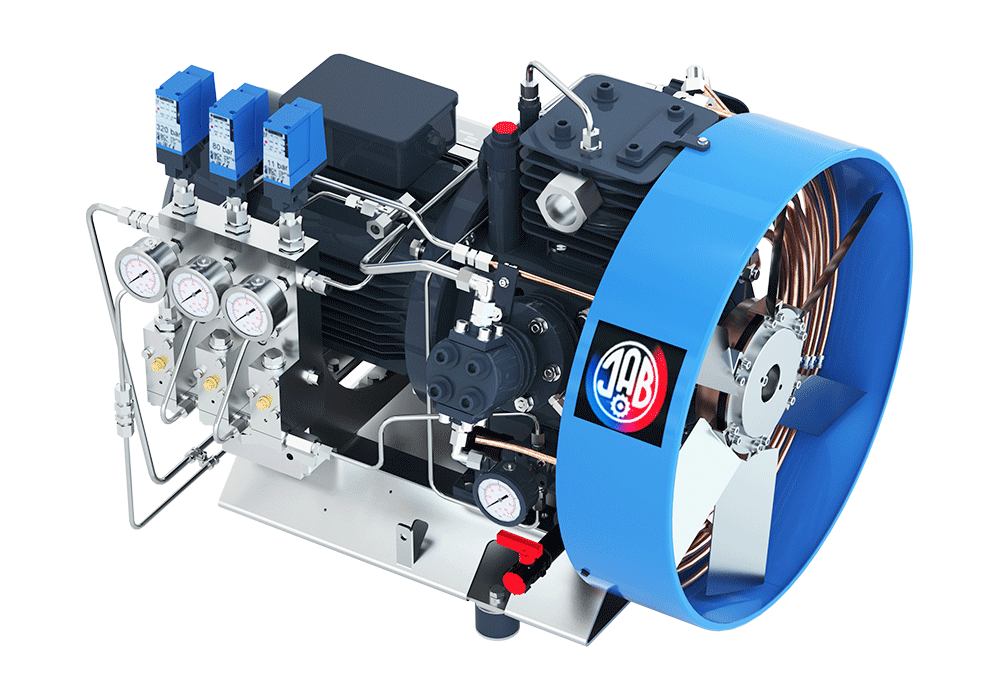

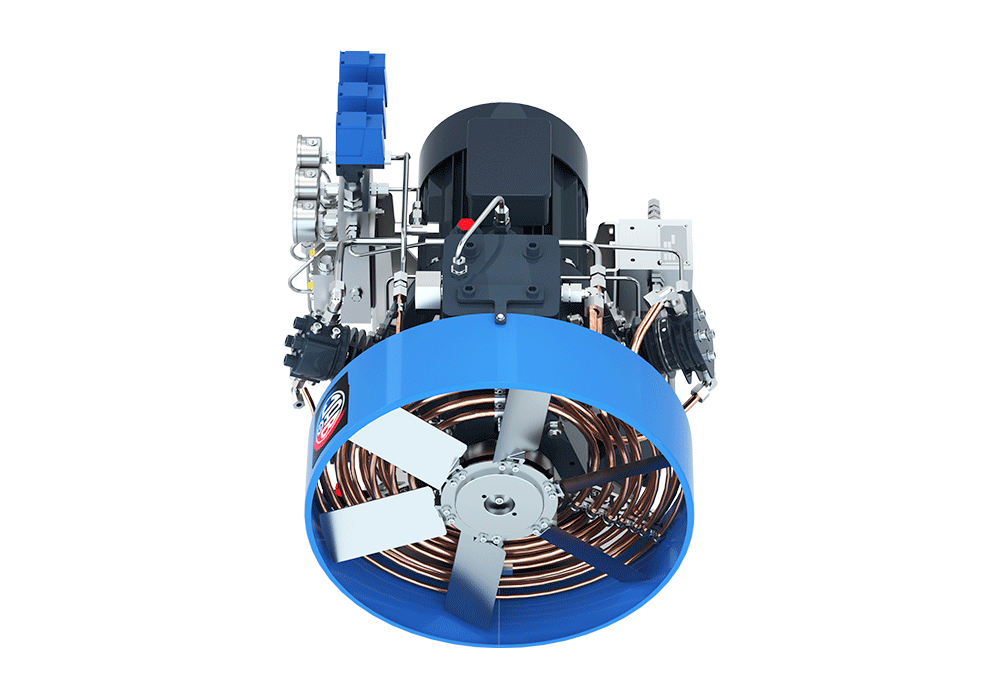

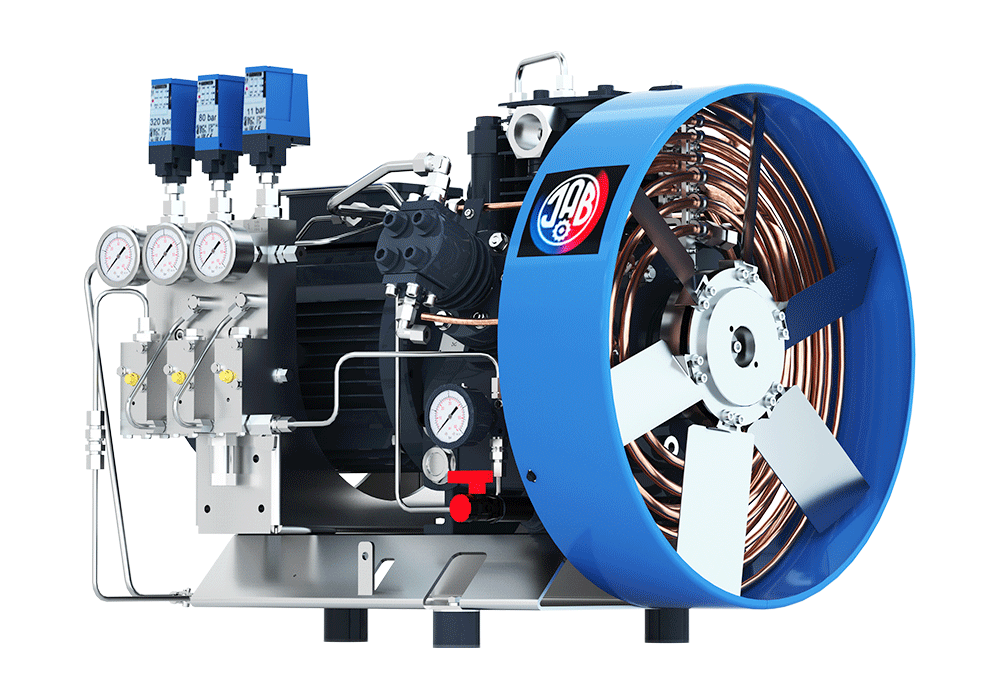

The SV 225/350 N type nitrogen compressor is a distinguished piece from the J.A. Becker & Söhne product range, specifically designed for the precise and reliable fulfillment of high-pressure gas supply needs. This three-stage piston compressor is perfectly suited for industrial applications requiring a maximum operating pressure of 350 bar while providing a volume flow rate between 13.4 and 18.3 m³/h.
J.A. Becker & Söhne is committed to the philosophy of „NO 08/15 PRODUCTS” (No Average Product), which means the SV 225/350 N represents first-class quality in every aspect, guaranteeing long service life and optimal performance.
This compressor features several functions that increase efficiency and reduce operating costs:
High-Efficiency Cooling: The advanced cooling system ensures optimal dissipation of heat generated during the compression process. This is critically important for maintaining gas stability, preventing failures, and ensuring a long service life, especially in high-pressure applications.
Fully Automatic Discharge: The fully automated depressurization function facilitates maintenance and system shutdown, thereby increasing safety and operational convenience.
Long Maintenance Cycles: As a result of the robust design and high-quality components, the compressor features extremely long maintenance intervals, minimizing downtime and annual service costs.
Reliable Performance: The three-stage design guarantees gradual pressure increase, which reduces the load on individual stages, thereby increasing reliability when reaching the maximum pressure of 350 bar.
The SV 225/350 N compressor integrates precise engineering solutions for maximum performance. The table below summarizes the most important technical parameters:
| Parameter | Value | Note |
|---|---|---|
| Típus | SV 225/350 N | Three-Stage Nitrogen Compressor |
| Flow Rate (Min.) | 225 l/min | Corresponds to 13.4 m³/h |
| Flow Rate (Max.) | 305 l/min | Corresponds to 18.3 m³/h |
| Maximum Operating Pressure | 350 bars | For high-pressure applications |
| Pressure stages / Number of cylinders | 3 / 3 | Three-stage compression |
| Inlet Pressure (Min.) | 0.1 bar | |
| Inlet Pressure (Max.) | 0.5 bar | |
| Electric Motor Power | 7.5 kW | |
| Motor Speed | 1,500 RPM |
The unit performs the nitrogen compression in three pressure stages, which ensures efficient energy consumption and optimal temperature regulation. The 7.5 kW electric motor drives the system at a speed of 1500 rpm, which, starting from an inlet pressure of 0.1-0.5 bar, can reach a final pressure of 350 bar. The flow rate can be flexibly scaled between 225 l/min and 305 l/min, so the system can be easily adapted to changing requirements.
The SV 225/350 N compressor is the ideal choice for any industrial sector requiring high-purity, high-pressure nitrogen, for example:
Supply for laser cutting systems.
Filling of industrial gas cylinders.
Special pressure tests and measurements.
Chemical and petrochemical processes.
J.A. Becker & Söhne provides comprehensive documentation for the product, aiding in installation, operation, and maintenance.
Downloadable Documentation:
Technical Data Sheet: Detailed technical descriptions and drawings.
Brochure: Comprehensive product information and application examples.
This compressor is a symbol of J.A. Becker & Söhne's engineering precision and commitment to durable, reliable industrial solutions. The superior build quality and long lifespan guarantee that the SV 225/350 N offers a cost-effective solution for the most demanding nitrogen supply tasks in the long run.
