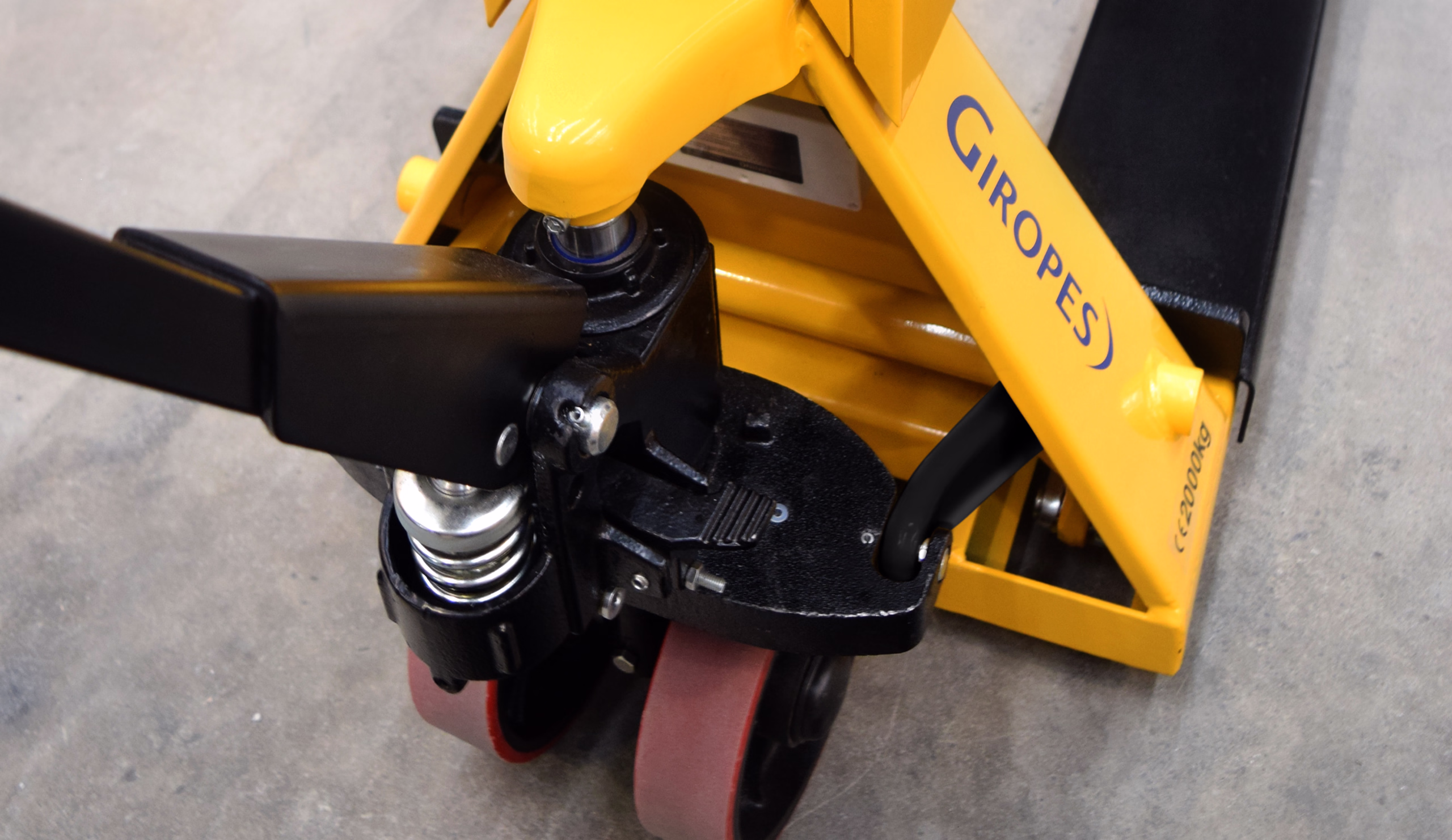

TP410 ATEX Weighing Pallet Truck – Robust Solution for Hazardous Environments
The TP410 ATEX painted version pallet truck is a robust and reliable solution for material handling and weighing in hazardous, explosion-risk environments. Specifically designed for the most demanding industrial sectors, such as the chemical, food, and pharmaceutical industries, this pallet truck ensures safe and precise weighing during manual product transportation processes.
Key Features and ATEX Certification
The TP410i pallet truck is a crucial element for safe operation in zones where there is a risk of explosion.
ATEX Zone Classification:
- 2/22 -es besorolás: Designed for weighing in explosion-risk atmospheres.
- IP68 Protected Cells: Excellent protection against dust and water ingress, ensuring durability and reliability even in extreme conditions.
This pallet truck enables weight checking during the manual movement of hazardous materials, thereby increasing process efficiency and safety.
Technical Data and Capacity
The TP410i pallet truck offers optimal performance for satisfying standard lifting and weighing requirements.
| Parameter |
Capacity (kg) |
Readability (g) |
Certified Version Legal Metrology |
| Basic Version |
1000 / 2000 |
200 / 500 |
500 g / 1 kg |
Lifting Parameters:
- Maximum load capacity: 2000 kg
- Lifting height: 200 mm
- Weighing Resolution (Increment): 500 g -tól (opcionálisan elérhető a jogi mérésre alkalmas változat)
Legal Metrology (OIML/Metrological Approval):
The pallet truck is also available in a version valid for legal metrology (certified), which complies with strict commercial regulations.
Battery System and Mobility
To ensure continuous operation, the TP410i pallet truck is equipped with a replaceable battery.
- Battery Type: Rechargeable NiMH (Nickel-Metal Hydride)
- Voltage/Capacity: 7.2V / 12Ah
- Operating Time: Up to 48 hours with intensive use.
- Expandability: It is possible to purchase a second, auxiliary battery for continuous operation.
Wheels:

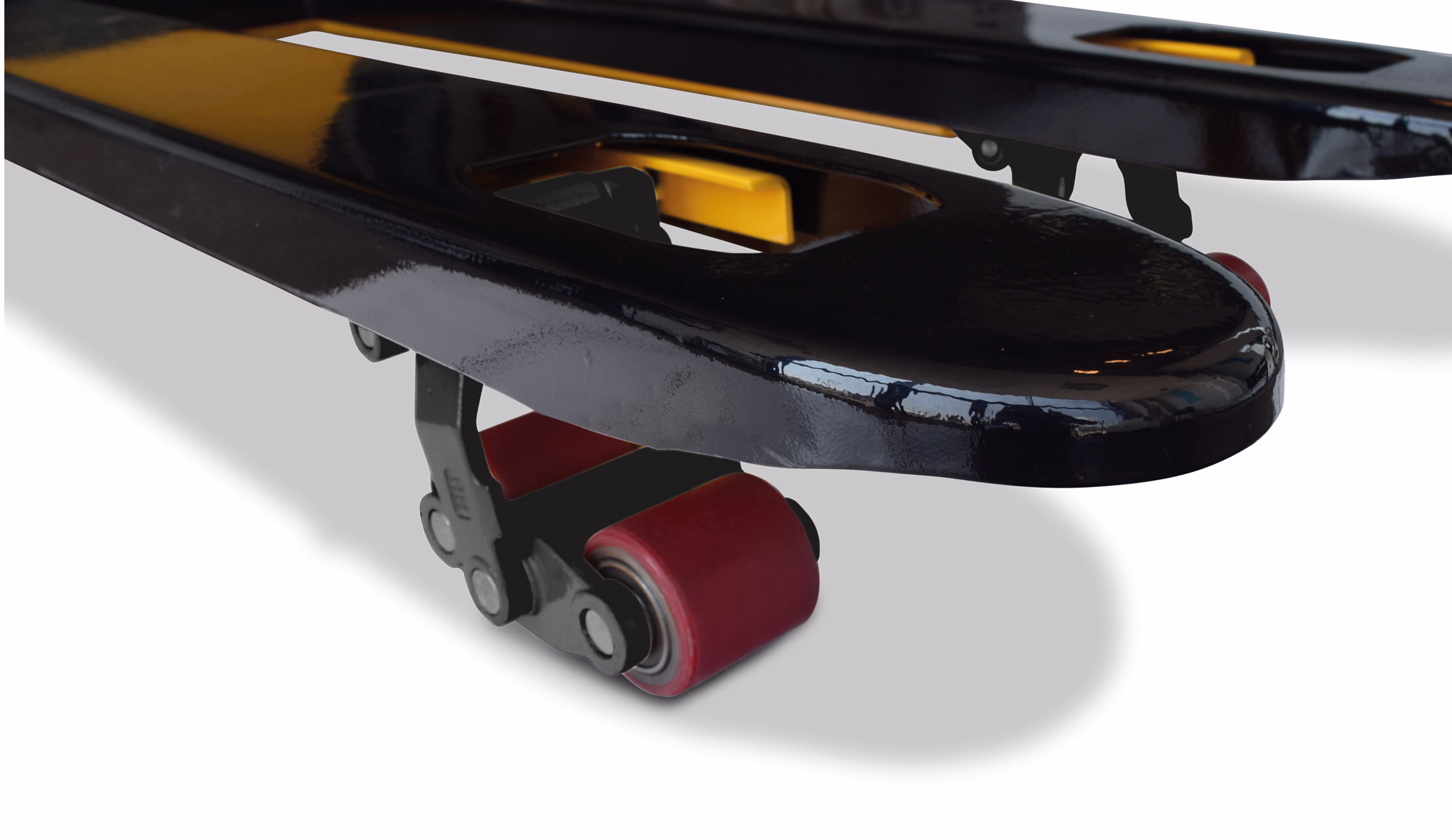

- Material: Polyurethane coated wheels that ensure maximum safety and easy maneuverability when moving products.
GI410i ATEX Weight Indicator Functions
The forklift is equipped with the advanced
GI410i ATEX weight indicator, which offers numerous useful functions for optimizing work processes.
Main Operating Modes:
- Darabszámlálás:
- Lehetővé teszi a platformon elhelyezett tételek számának automatikus kiszámítását a beprogramozott átlagos egységtömeg alapján. Ez jelentősen felgyorsítja a leltárazást és a tételkezelést.
- Ellenőrző Mérleg:
- A GI410i kijelző rendelkezik átlépési/elbukási móddal. Ez kritikus fontosságú a gyártási folyamatokban, ahol a súlynak egy előre meghatározott tartományon belül kell maradnia.
- Tare Memory:
- Storage capacity: Storage for up to 400 items for tare weights.
- Detailed Listing: It is possible to retrieve a detailed list of stored weights.
- Összegző:
- Enables the summation of accumulated weights stored in memory, as well as displaying the total number of measurements.
Commercial Documentation and Customization
The system supports the creation of commercial documents. Users can obtain detailed information about the
GI410-EX LCD display pozicionálási lehetőségeiről.
A gyártó kiemeli a testre szabhatóságot: „konkrét intézkedéseket biztosítunk, testre szabunk”. A kiegészítők és opciók lehetővé teszik a termék olyan szintű testreszabását, amely a legmegfelelőbb eredményt hozza a vevő számára.
Optional Accessories and Further Models
The TP410i forklift can be flexibly expanded to adapt to specific needs:
- Auxiliary Battery: External battery for ATEX zone 2/22.
- ALIBI/DSD Memory Extension Card: For data security and logging functions.
- Wheel Set: Wheel set with polyurethane outer coating.
- TP410 ATEX Inox: Stainless steel design (note: the input text refers to it, but the details are missing, presumably for higher hygiene requirements).
Application Areas (ATEX Zone 2 and 22):
The TP410i is the ideal choice in the following industries:
- Chemical and Petrochemical Industry
- Pharmaceutical Production
- Food Industry (including grain, legume, and coffee warehouses)
- Paint Shops and Spray Booth Facilities
- Waste Treatment and Processing Facilities
- Textile and Dyeing Plants
- Plastics manufacturing
- Furniture Production
Associated Weighing Systems (Examples from the Offer):
Other, similarly ATEX-compatible weighing systems using GI400i EX or GI410-EX indicators are available in the manufacturer's offering:
- BMX: Platform scale with a double load cell structure and weighing cells made of stainless steel.
- BEX4: 4-cell multi-dimensional scale where the weighing cells and the junction box are located inside the side walls of the platform, which also forms the structural element of the platform.
- PTX4: Lightweight single load cell multi-dimensional scale designed to support evenly distributed loads.
GI410-EX Weight Indicator Specifications:
- Display Type: Weight Indicator
- ATEX Rating: For Zones 2 and 22, Group II, Category 3.
This forklift offers the perfect combination of safety, precision, and flexibility for material handling and weighing in the strictest industrial environments.
