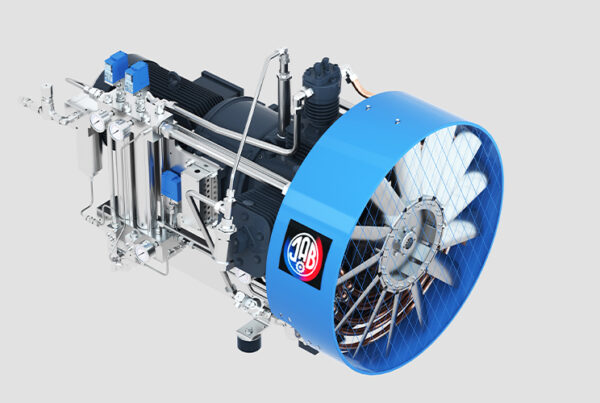

The J.A. Becker & Söhne SV 1101/64 air compressor is a top-category, three-stage piston compressor designed for high-output, reliable compressed air supply. This model is an ideal choice for industrial applications requiring extremely high operating pressures while ensuring high volume flow. Becker's commitment to quality is reflected in the „NO 08/15 PRODUCTS” (No Average Product) philosophy, which guarantees durability and efficiency.
The SV 1101/64 compressor features several outstanding characteristics that ensure continuous and economical operation:
Excellent Efficient Cooling: The advanced cooling system minimizes heat generation between compression stages, increasing system lifespan and improving energy efficiency. Temperature optimization is critical for high-pressure applications.
Fully Automatic Draining (Condensate Removal): The built-in, fully automatic condensate drain system ensures that the compressed air remains dry, protecting connected equipment from corrosion and damage. This reduces the need for manual intervention and increases operational reliability.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, the compressor operates with exceptionally long maintenance intervals. This significantly reduces downtime and operating costs.
High Pressure Performance: The maximum operating pressure of 64 bar enables the servicing of special processes that would not be achievable with conventional compressors.
Robust Construction: The product represents first-class quality in every aspect, ensuring reliable operation even in the most demanding industrial environments.
The precise and detailed technical specifications of the SV 1101/64 model are as follows:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Típus | SV 1101/64 | – | Three-stage air compressor |
| Volume flow rate (Suction side) | 1.100 | l/min | Equivalent to 66.0 m³/h |
| Maximum Operating Pressure | 64 | bar | For high-pressure applications |
| Pressure Stages / Cylinder | 3 / 3 | – | Three compression stages |
| Electric Motor Power | 18,5 | kW | High-power drive |
| Rotational speed | 1.500 | rpm | Optimized operating speed |
The 18.5 kW electric motor provides sufficient energy to achieve the 64 bar pressure, while the 3-stage design ensures that compression occurs efficiently at optimal temperatures in each stage. The flow rate of 1100 liters/minute (66 m³/h) guarantees that the high-pressure air demand is met continuously.
The SV 1101/64 compressor is excellently suited for areas where conventional, lower-pressure systems are insufficient:
Special Industrial Processes: Manufacturing processes that require high-pressure air for pneumatic systems or process control.
High Pressure Testing: Pressure testing of equipment and pipelines where 64 bar pressure is essential for adhering to safety regulations.
Gas Supply and Storage: Compression tasks where air needs to be compressed to high pressure for storage or transport purposes.
J.A. Becker & Söhne provides comprehensive documentation for the product, assisting with installation, operation, and maintenance.
Downloadable Documents:
Technical Data Sheet: Detailed technical information about the compressor.
Brochure: Comprehensive product information and application examples.
This compressor is the pinnacle of Becker engineering knowledge, guaranteeing long-term, trouble-free, and efficient compressed air supply.
