P16 Repeater and Alphanumeric Panel – Robust Display and Intelligent Communication

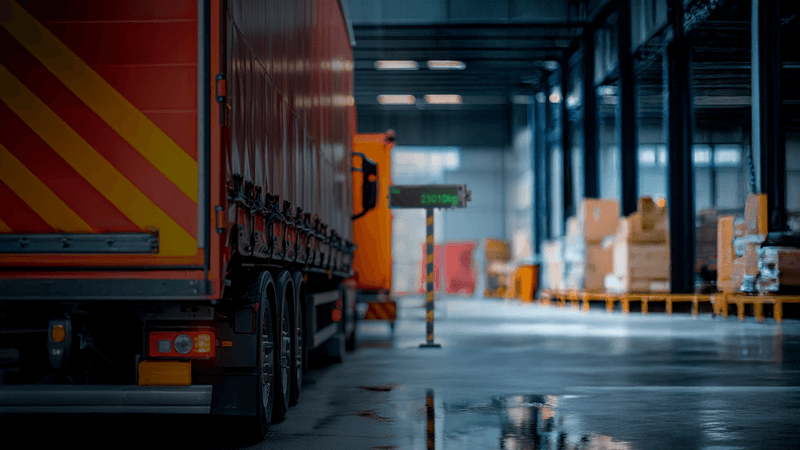

The P16 repeater and alphanumeric panel is an extremely durable display unit made of stainless steel, designed to ensure maximum visibility and reliability even in the harshest industrial environments. Thanks to its IP66 protection rating, it is highly resistant to dust, moisture, and vibrations, making it an ideal solution for visually complementing weighing systems.
The P16 panel is capable of operating in two main modes:
Ismétlő módban and
Panel Mode, enabling flexible integration into various weighing systems and processes.
Key Features and Advantages
- Kiváló Tartósság: Stainless steel structure and IP66 protection guarantee a long service life.
- High-Resolution Display: RGB LED matrix display ensures high-contrast, clear text and number display.
- Multifunctional Capability: Capable of displaying individual weights, weight accumulations, or total gross weights.
- Intuitive Visual Indications: Szín kódolt jelzések (Traffic Light funkció) segítik a folyamatok gyors és hibamentes irányítását.
- Remote Control: Convenient configuration and management via infrared remote control.
Operating Modes and Functionality
1. Ismétlő Mód
In repeater mode, the P16 panel can display data from up to 4 input/output channels, ideal for summation functions.
Súlyösszegzés
The panel is capable of displaying:
- Individual channel values.
- Channel values + the sum of all weights.
- Only the aggregated weight.
The display clearly indicates the currently shown input channel. Full-screen magnification (95 mm high characters) ensures remote readability.
Communication Channels
The P16 panel is equipped with bidirectional communication ports:
- 2 x RS232
- 1 x RS485
- 1 x Ethernet/Wi-Fi port (opcionális bővítmény)
Forgalomirányító Fény

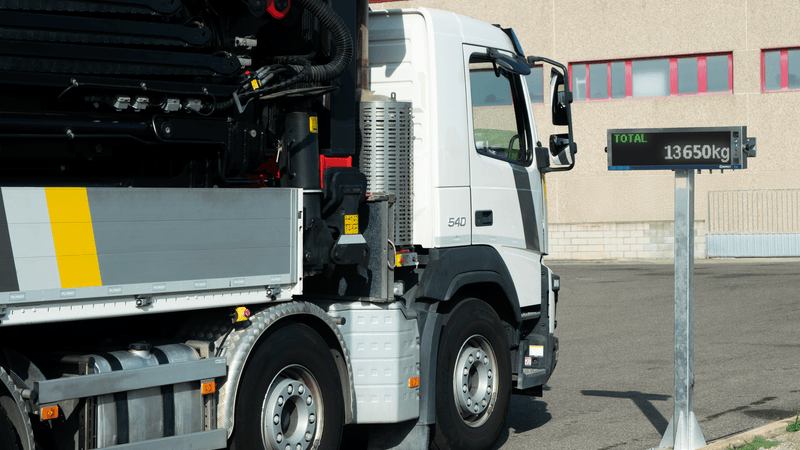

This function makes weighing vehicles extremely intuitive and reliable:
- Green: The vehicle can drive onto the truck scale.
- Red: The vehicle must stop while the weight stabilizes.
- After stabilization: The system registers the measurement, and the signal turns back to green, indicating to the driver that they can leave the scale.
Ellenőrző Mérés – GI400/GI410 Indikátorokkal
Amikor a P16 szinkronizálva van a GI400/GI410 indikátorokkal, megjeleníti az ellenőrző mérleg 4 zónáját. A szín kódolt kijelzés azonnal segít azonosítani a cél súlytól való eltéréseket. Lehetővé teszi a megfelelő súly kiválasztását, valamint a felső és alsó határok beállítását százalékos vagy abszolút értékes megadással.
2. Panel Mód
Panel mode enables specific integration with other Giropes indicators, ensuring specialized process tracking.
Traffic Light Function – With GI650 Indicators
A GI650 indikátorhoz csatlakoztatva a P16 a mérlegelési folyamat 4 lépcsőjét jeleníti meg szín kódolt szöveggel:
- Scale available.
- Truck arrival.
- Weight captured.
- Exit.
Dynamic Axle Weighing – With GI620 Series Indicators
In cooperation with the GI620 series, it supports axle weighing with an accumulating function. It separately displays the weight of individual axles, then the total gross weight of the vehicle. Maximum speed for weighing: 5 km/h.
Running Functions and Configuration
Display and Presentation
Thanks to the P16's extremely high-resolution LED matrix, it provides exceptional clarity and detailed display.
- Light Output: The brightness can be adjusted quickly and easily both manually and automatically using the built-in daylight sensor.
- Color Coding: 7 configurable colors are available.
- Text Formats:
- Full screen (95 mm high characters).
- 1 weight (70 mm high characters).
- 1 súly + referencia vagy több súly formátum (45 mm magas karakterek).
- Státusz LED -ek: 4 dedikált LED jelzi a stabilitást, a nullázást, a nettó súlyt és az előkészített állapotot.
P16 Configuration and Management
Remote control
An infrared remote control is included for convenient configuration and interaction from up to 6 meters away. The buttons provide quick access to main functions, such as
Bruttó/Méregtelenítés (Tára),
Nullázás, setting the brightness, and switching between channels to view detailed weight data.
Gimanager Integration
Integration with the PC-based Gimanager software enables centralized management:
- Downloading firmware updates.
- Creating backups.
- Real-time scale display.
- Setting up data storage and regional configurations.
- Managing communication between devices.
Gimanager automatically recognizes devices connected via the network or serial port (GI6xx series indicators and other P16 repeaters), simplifying the centralized setup of all network devices.
Complete Automation Solution
The P16 repeater is a crucial element in complete automation for industrial weighbridge installations. Connected to GI4XX or GI6XX series weighing indicators, which in turn connect to Giropes scales, they form an integrated system. This system allows for real-time centralized control and visualization of weighing data, optimizing the efficiency and accuracy of industrial facilities.
Technical Specifications
| Parameter |
Value |
| Protection Class |
IP66 |
| Temperature Range |
Between -10°C and +40°C |
| Fixation |
Via side feet, onto a horizontal or vertical surface |
| Tápellátás |
Connection: 110-240V 50/60Hz |
| Power Consumption |
35W |
| Cable Length (Power) |
2 meters |
| Serial Communication |
2 x RS-232 (bidirectional) & 1 x RS485 |
| Serial Communication Cable |
Included RS232/RS485 cable length: 15 meters |
| Remote Control Technology |
Infravörös |
| Remote Control Range |
6 meters |
| Display |
RGB, nagy sűrűségű LED mátrix, 128 x 32 pont (640 x 160 mm) |
| Brightness Levels |
7 levels, with manual and automatic mode |
| Colors |
7 configurable colors |
| Display Formats |
Full screen (95mm), 1 weight (70mm), 1 weight + reference/total weight (45mm) |
| Status LEDs |
4 pcs (stability, zero, net weight, ready) |
Available P16 Models and Accessories
| Part number |
Description |
| 210371 |
P16 repeater made of stainless steel, IP66 |
| 210372 |
P16 ismétlő rozsdamentes acélból, IP66, WI-FI opcióval |
| 210373 |
P16 repeater made of stainless steel, IP66, with ETHERNET option |
Optional Accessories:
- Wi-Fi és Ethernet modulok
- Rúdra szerelhető tartókonzol
- Napellenző
