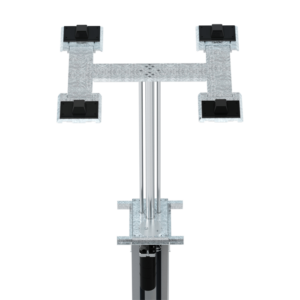

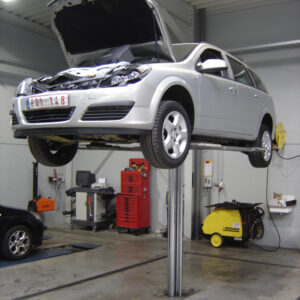

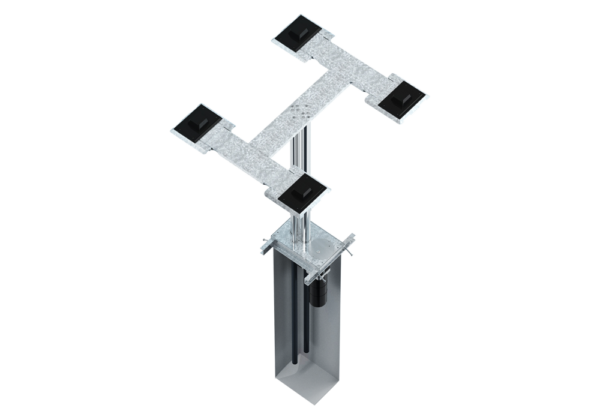

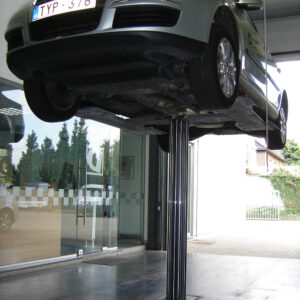

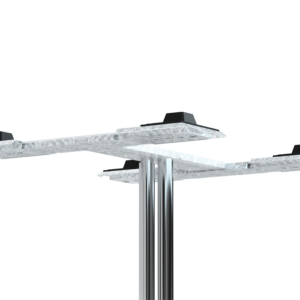

A J.A. Becker & Söhne DuoRam HK 35 egy emelőberendezés, amelyet kifejezetten a járművek gyors, egyszerű és biztonságos felvételéhez terveztek. Ez a kiváló minőségű szerkezet alapfelszereltségként tűzihorganyzott kivitelben készül, ami garantálja a hosszú élettartamot és a kiváló korrózióvédelmet. A rendkívül alacsony felhajtási magasság (mindössze 59 mm) jelentősen leegyszerűsíti a járművek pozicionálását, minimalizálva ezzel a beállítási időt és növelve a műhely hatékonyságát.
The DuoRam HK 35 is not just a standard product; it reflects JAB's engineering precision and maximum consideration for safety aspects. The redundant design and advanced mechanical solutions ensure reliable operation even under the most intensive workshop conditions.
The DuoRam HK 35 lift features several outstanding characteristics that distinguish it from average solutions on the market:
Redundant Design: Two independent hydraulic cylinders ensure the safe handling of the load, thus increasing the system's reliability and safety reserve.

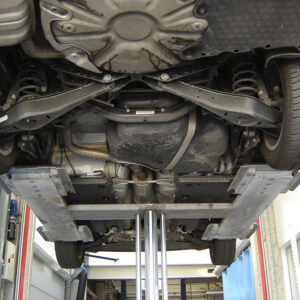

Excellent Accessibility: The design provides optimal access to the wheel, brake system, engine bonnet, passenger compartment, and vehicle body, thus facilitating any repair and maintenance task.
Minimum Setup Time: The low lift height (59 mm) drastically reduces the time required to set up the vehicle, maximizing productivity.
Full Stroke Anti-Rotation System: The anti-rotation mechanism ensured throughout the entire lifting height guarantees stability and precise positioning.
Load Absorption: The additional guide rods absorb all occurring torque, ensuring the structural integrity and long-term stability of the structure.
Directly Flanged Hydraulic Unit: The direct connection of the hydraulic unit allows for simpler maintenance and more efficient operation.
Durability: The hot-dip galvanized bridge structure supplied as standard resists corrosion and environmental influences.
The technical parameters of the DuoRam HK 35 lift form the basis for high performance and reliable operation:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting Height | 1,880 mm | Ensuring a comfortable working height. |
| Lifting Height | 59 mm | Extremely low, facilitates setup. |
| Installation Depth | 2,350 mm | The required depth below the floor. |
| Oil quantity | 10 liter | The quantity required for the operation of the hydraulic system. |
| Connection Power | 2 kw | Power consumption of the electric drive. |
A DuoRam HK 35 rugalmasságát növeli a csúszó elemek állíthatósága, amely lehetővé teszi a különböző nyomtávú járművek precíz pozicionálását:
The DuoRam HK 35 is a first-class product in every respect, demonstrating J.A. Becker & Söhne's commitment to quality and safety. The hot-dip galvanized finish is not only aesthetic but also guarantees long-term, low-maintenance operation even in the toughest workshop environments.
This lift is the ideal choice for service centers where fast throughput time and maximum safety are essential for daily workflows. The mechanical redundancy provided by the two independent hydraulic systems and the additional guide rods offers an unparalleled level of safety for both the operator and the vehicle being serviced.
A rendkívül alacsony, 59 mm-es felhajtási magasság minimalizálja a rámpák vagy speciális felhajtóelemek szükségességét, ami tovább gyorsítja a járművek be- és kirakodását, csökkentve ezzel a balesetveszélyt és a padlófelület terhelését.
The DuoRam HK 35 is the perfect symbiosis of efficiency and safety, which can become standard equipment for every modern vehicle repair workshop.
