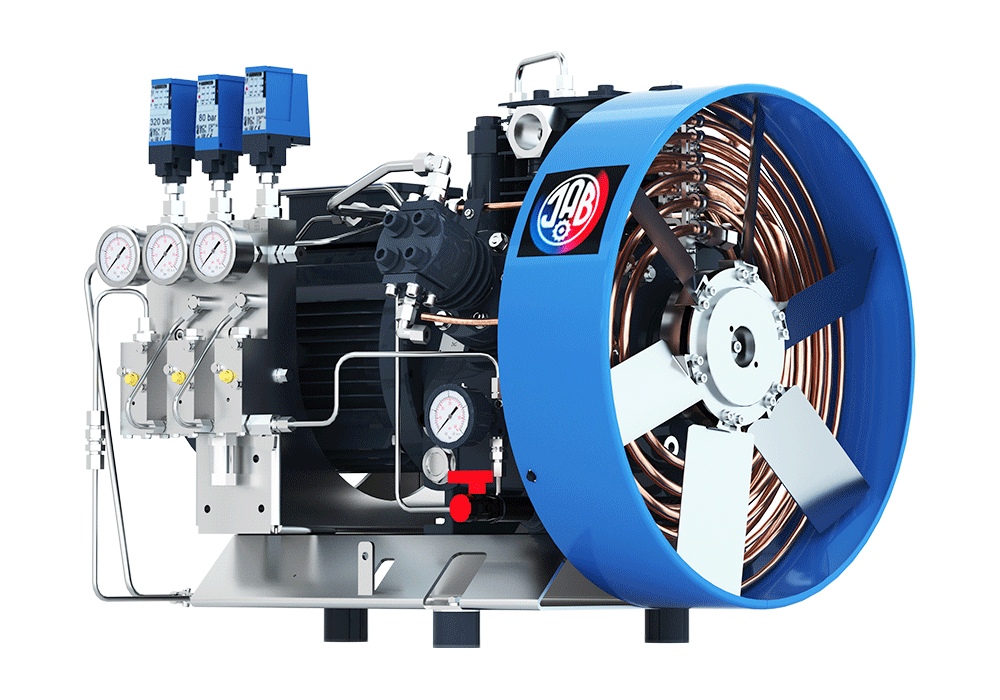

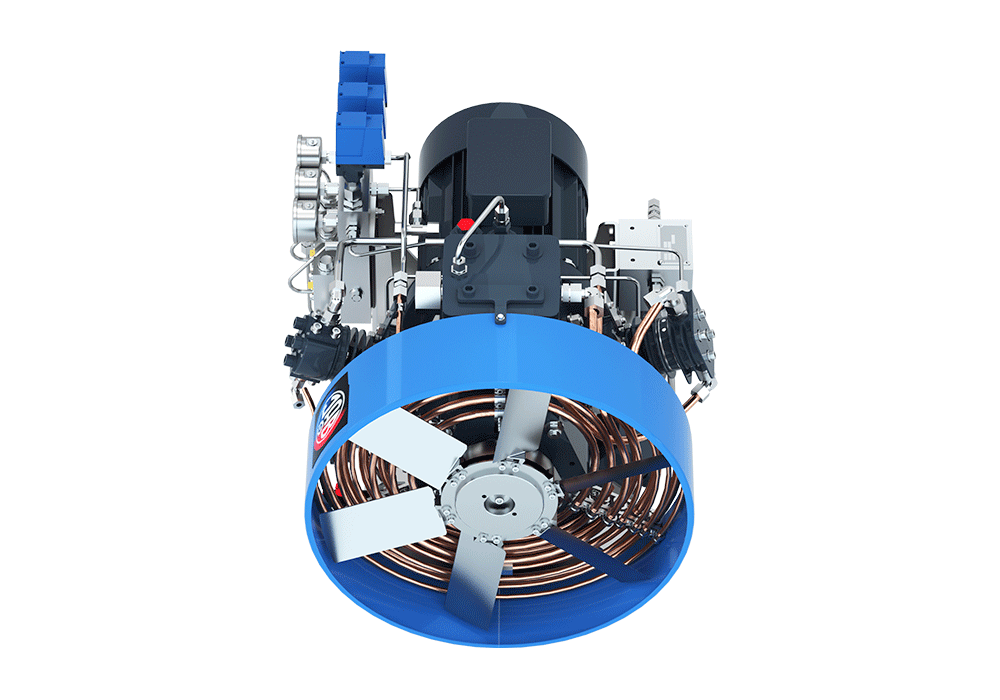

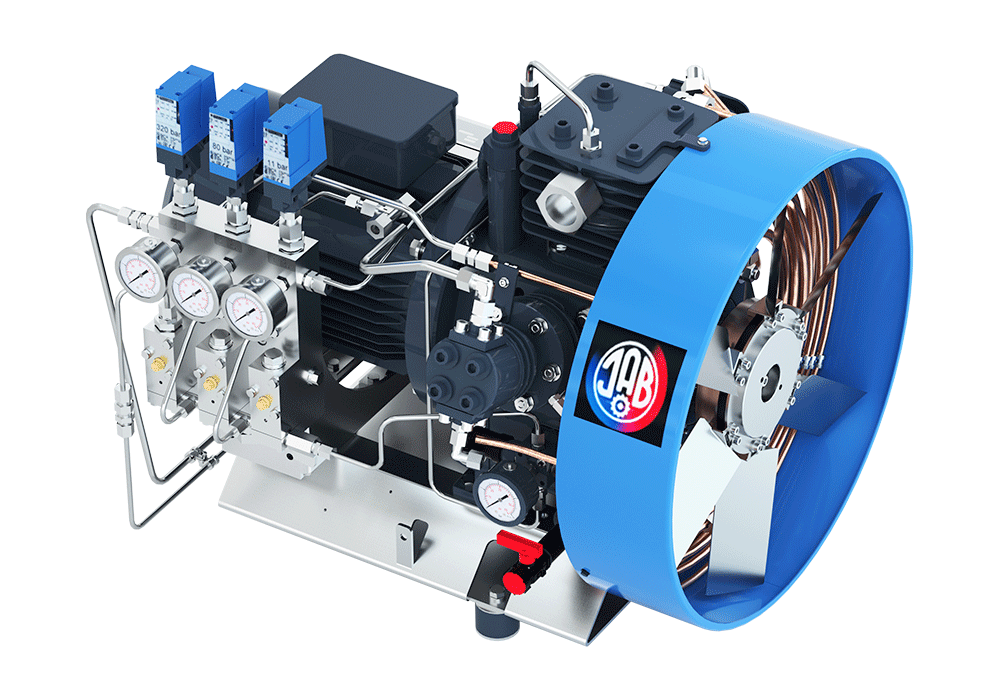

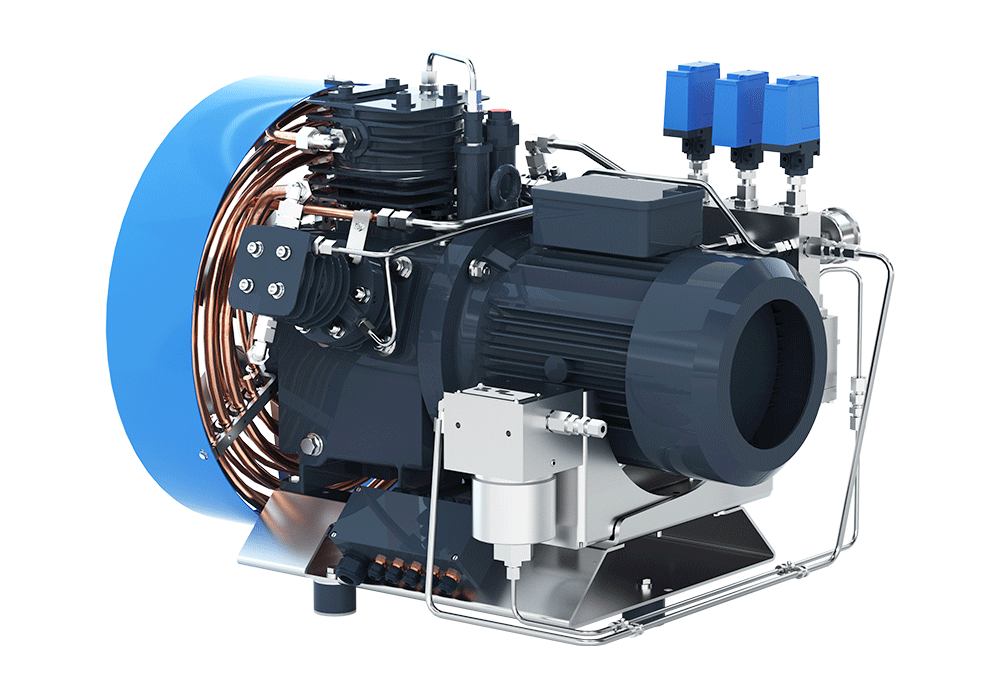

The SV 700/40 type, two-stage air compressor is part of the excellent quality product family of J.A. Becker & Söhne, designed for the production of high-performance, reliable compressed air. This model is an ideal choice for industrial applications requiring extremely high operating pressure of 40 bar, while ensuring a high flow rate (756 l/min). The compressor meets the highest quality standards and is not considered a „commodity product” (NO 08/15 PRODUCTS).
The SV 700/40 compressor has several outstanding features that guarantee efficient and long-term, trouble-free operation:
Outstandingly Efficient Cooling: The advanced cooling system ensures that the compressor operates at an optimal temperature even under intensive load. This is crucial for increasing component lifespan and maintaining performance stability.
Fully Automatic Discharge: The built-in, fully automatic drainage function simplifies maintenance and ensures that the system is always in the most suitable condition for the next operating cycle. This minimizes the need for human intervention.
Long Maintenance Cycles: As a result of the robust design and high-quality components, the compressor features extremely long maintenance intervals, significantly reducing downtime and operating costs.
Outstanding Quality in Every Respect: Every element of the product is manufactured according to the highest industrial standards, ensuring reliability and durability.
The precise technical parameters of the SV 700/40 compressor are as follows:
| Parameter | Value | Note |
|---|---|---|
| Maximum Ultimate Pressure (Max. Ultimate pressure) | 40 bar | For extremely high-pressure applications |
| Volume flow (Volume flow) | 756 l/min | Corresponds to a flow rate of 45.4 m³/h |
| Pressure stages / Cylinder | 2 / 2 | Two-stage compression system |
| Electric Motor Power (Electric motor) | 15 kW | Powerful drive for stable performance |
The 2/2 cylinder and stage count means that the air passes through two separate compression phases. The first stage (low-pressure cylinder) pre-compresses the air, and then the second stage (high-pressure cylinder) raises it to the final operating pressure of 40 bar. This technology significantly increases efficiency, reduces heat generation in each stage, and contributes to a longer service life.
Further detailed information regarding the SV 700/40 compressor, including the complete technical data sheet and product brochure, is also available for download. These documents provide deeper insight into installation requirements, maintenance procedures, and performance curves.
Datasheet Download: Detailed technical specifications.
Download Brochure: Comprehensive product overview.
This compressor is an ideal choice for critical systems such as high-pressure gas refueling stations, special industrial processes, or any application where 40 bar pressure is an essential requirement. J.A. Becker & Söhne's commitment to quality guarantees that the SV 700/40 will be a reliable partner for your industrial processes in the long run.
